Awards:
PRIME flow GREENflow filter box, grey
Product number:
4043075
- Filter box
- simple maintenance/access
Description
PRIME flow GREENflow filter box, grey

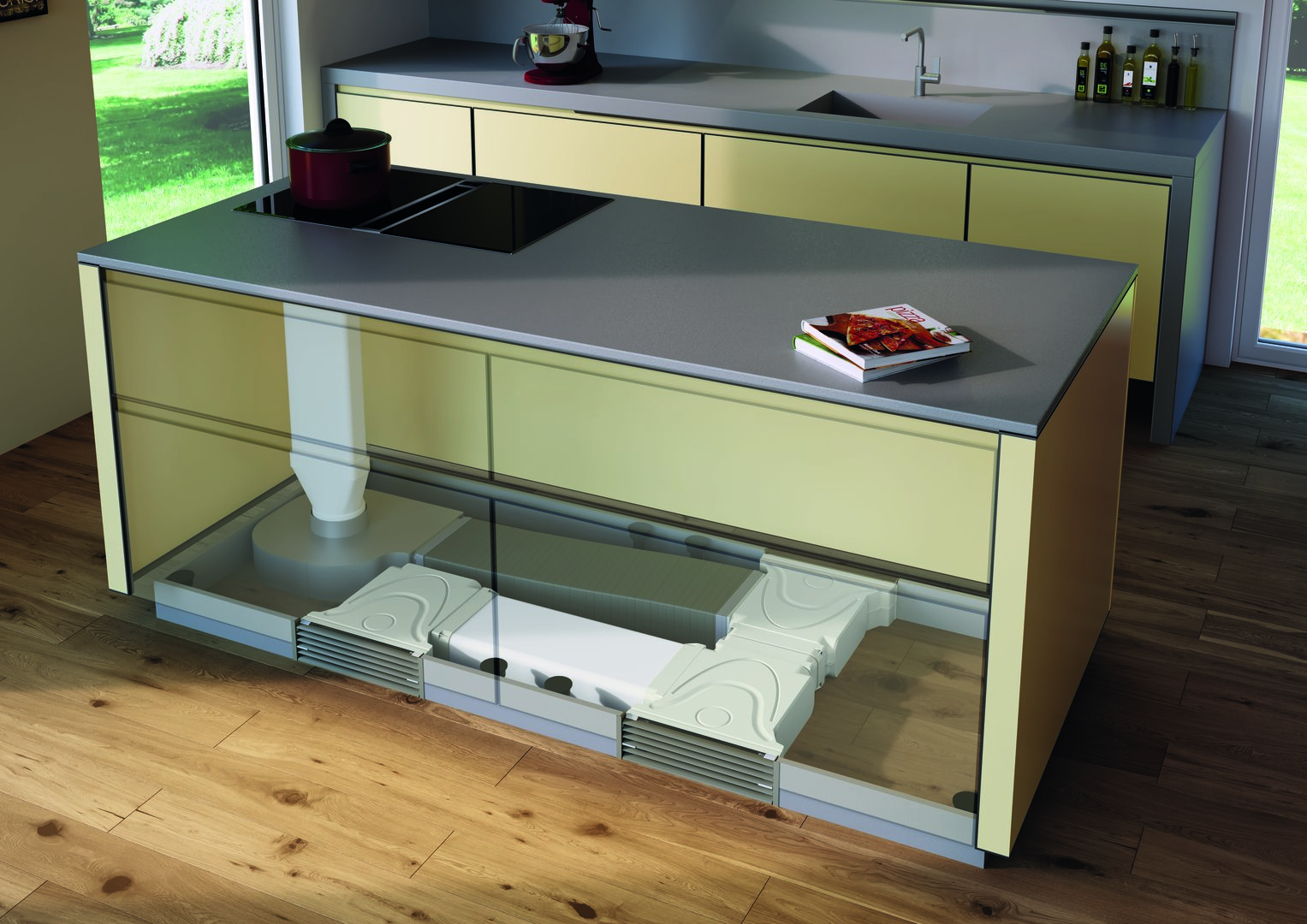

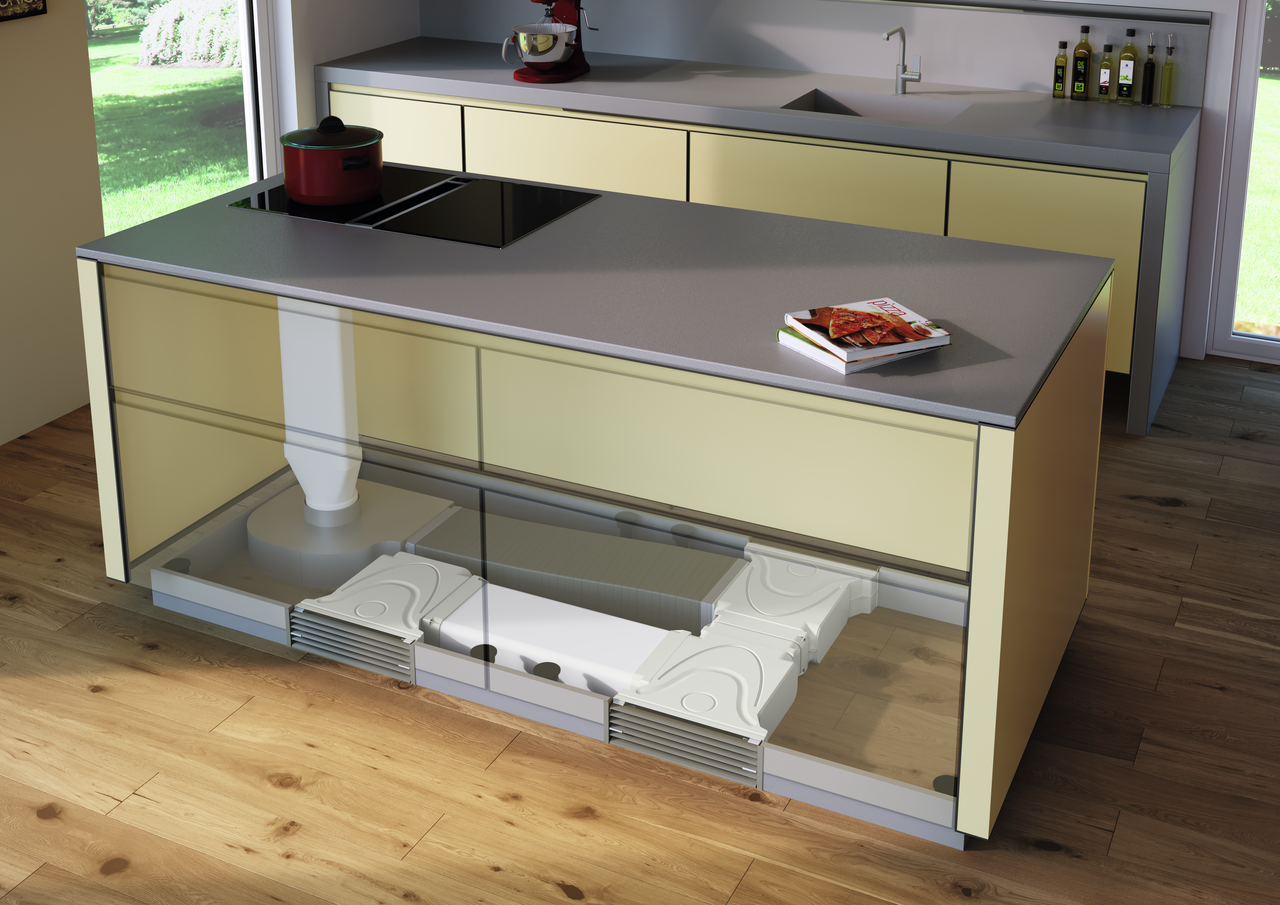

The modular COMPAIR® GREENflow filter box is specially designed for recessed fans in the kitchen. The recirculating air filter system efficiently and safely eliminates odours and evenly guides the vapours produced during cooking back into the room thanks to integrated guide bodies. This prevents moisture damage and soiling of the carcase. The downdraft extractor is equipped with a ventilation grille made of anodised aluminium, which has aerodynamically optimised lamellas. They minimise the pressure loss and ensure a barely perceptible noise level. Due to the low installation height, the table fan can be used universally with plinth heights of 100 to 150 mm and placed flexibly. The integrated plinth foot can be used as required. It has a load-bearing capacity of up to 300 kg. To achieve an optimal ventilation result, the use of at least two air filter boxes is recommended. The system can be easily extended. Matching COMPAIR® flow air duct elements and the OMEGA activated carbon filter are available as accessories.
Recirculating air filter system for filtration of cooking vapours when using a downdraft hood/hob ventilator.
— high flexibility in the positioning of the filter boxes
— suitable for base heights from 100–150 mm (grid can be shortened)
— guide vanes provide for uniform distribution of the air flow
— suitable for almost all common downdraft hoods/ hob ventilators, with or without own activated carbon filter
— simple maintenance/access
— integrated base foot (optionally usable, load capacity up to 300 kg)
— aerodynamically optimised blades of the ventilation grid (anodised aluminium) minimise the pressure loss
— maximum outlet cross-section provides for barely perceptible air movement
Note:
The GREENflow OMEGA filter needs to be ordered separately if required.
For good ventilation results, the use of at least two boxes is recommended.
Recirculating air filter system for filtration of cooking vapours when using a downdraft hood/hob ventilator.
— high flexibility in the positioning of the filter boxes
— suitable for base heights from 100–150 mm (grid can be shortened)
— guide vanes provide for uniform distribution of the air flow
— suitable for almost all common downdraft hoods/ hob ventilators, with or without own activated carbon filter
— simple maintenance/access
— integrated base foot (optionally usable, load capacity up to 300 kg)
— aerodynamically optimised blades of the ventilation grid (anodised aluminium) minimise the pressure loss
— maximum outlet cross-section provides for barely perceptible air movement
Note:
The GREENflow OMEGA filter needs to be ordered separately if required.
For good ventilation results, the use of at least two boxes is recommended.
Article type:
Filter box
Brand:
PRIME flow
Colour:
grey
Form:
angular
Further:
integrated base foot (optionally usable, load capacity up to 300 kg), suitable for base heights from 100–150 mm (grid can be shortened)
Height:
100 - 150 mm
Length:
353 mm
Maintenance:
simple maintenance/access
Note:
The GREENflow OMEGA filter needs to be ordered separately if required. For good ventilation results, the use of at least two boxes is recommended., aerodynamically optimised blades of the ventilation grid (anodised aluminium) minimise the pressure loss, maximum outlet cross-section provides for barely perceptible air movement
Outer diameter:
150 mm
Properties:
flexible
Suitable for:
suitable for almost all common downdraft hoods/ hob ventilators, with or without own activated carbon filter
System dimension:
150
Width:
362 mm
Assembly
Measures
More
Accessories
PRIME flow GREENflow OMEGA filter, black
