PRIME flow P-E-Jal Col flow 150 wall conduct incl. THERMOBOX, white, stainless steel
Product number:
4051067
- Wall sleeve
- installation in the wall
- N-click system with integrated latching elements
Description
PRIME flow P-E-Jal Col flow 150 wall conduct incl. THERMOBOX, white, stainless steel

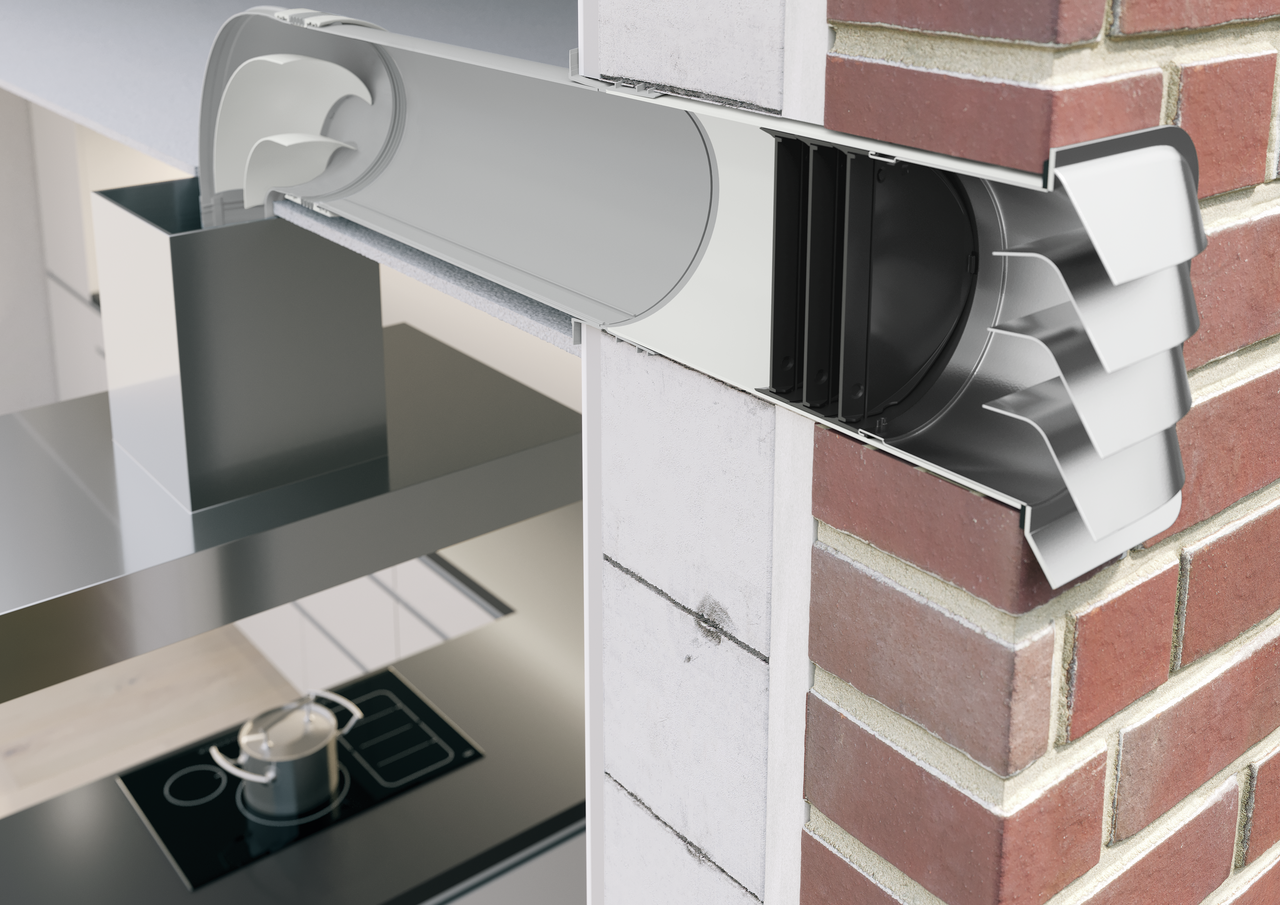

The COMPAIR® PRIME flow P-E-Jal Col flow 150 wall box including THERMOBOX and rough-in kit is a complete solution for the installation of efficient kitchen ventilation. It belongs to the COMPAIR® PRIME flow product family, which enables individual solutions for every need. The innovative components of the exhaust air wall box include a heat retention system. It prevents flow and heat losses as soon as the extractor bonnet is switched off. The weather-resistant P-E-Jal Col louvre made of stainless steel provides a decorative finish for the exterior. It is suitable for installation near the floor as well as at common ceiling heights. To enable easy connection with the P-UVB 150 universal connector, which is optionally available as an accessory, the P-MAS 150 wall connection piece with practical N-click system is included in the overall package. Depending on the version, flat adapters, round pipes or round pipe bends are connected directly. The pipe kit is designed for a maximum wall thickness of 550 mm. The telescopic tube can be shortened to 220 mm. Styrofoam plugs that can be inserted on both sides protect against soiling during the construction phase and also serve as an alignment aid. The wall connection sleeve with 3-lip seal is installed without tools and silicone and reliably seals the duct. The final assembly of the exhaust air wall box takes place in the second phase.
Wall conduct, incl. THERMOBOX heat retention system and P-E-Jal Col stainless steel external blind for installation close to the ground and for conventional installation at ceiling height.
Two-stage installation:
1. Assembly of the separately packaged construction kit
2. Toolless insertion of the heat retention system and the blind
— N-Klick system for secure connection with the universal connector
— direct connection of the flat adapter, round pipe or round pipe bends
— Blower-Door certified (necessary opening pressure >65 Pa)
Raw construction set:
— raw construction set for installation in the wall at any time
— max. wall thickness 550 mm, can be shortened to 220 mm
— core hole drilling in nominal Ø 162 mm
— polystyrene plugs to protect against dirt during the construction phase
— wall sleeve for tool-free installation and sealing against leakage
Wall conduct, incl. THERMOBOX heat retention system and P-E-Jal Col stainless steel external blind for installation close to the ground and for conventional installation at ceiling height.
Two-stage installation:
1. Assembly of the separately packaged construction kit
2. Toolless insertion of the heat retention system and the blind
— N-Klick system for secure connection with the universal connector
— direct connection of the flat adapter, round pipe or round pipe bends
— Blower-Door certified (necessary opening pressure >65 Pa)
Raw construction set:
— raw construction set for installation in the wall at any time
— max. wall thickness 550 mm, can be shortened to 220 mm
— core hole drilling in nominal Ø 162 mm
— polystyrene plugs to protect against dirt during the construction phase
— wall sleeve for tool-free installation and sealing against leakage
Article type:
Wall sleeve
Brand:
PRIME flow
Colour:
stainless steel/white
Discontinued item:
No
Material:
stainless steel/plastic
Mounting/Fixing:
N-click system with integrated latching elements, installation in the wall
Opening pressure:
> 65 Pa
Outer diameter:
150 mm
Output drive:
angular
Properties:
can be shortened
Shortenability:
can be shortened to 220 mm
Suitable for:
direct connection of the flat adapter, round pipe or round pipe bends
Suitable wall thickness:
max. wall thickness 550 mm
System dimension:
150
