PRIME flow P-UVB 150 universal connector, light grey
Product number:
4051004
- Connecting element
- can be installed horizontally and vertically
Description

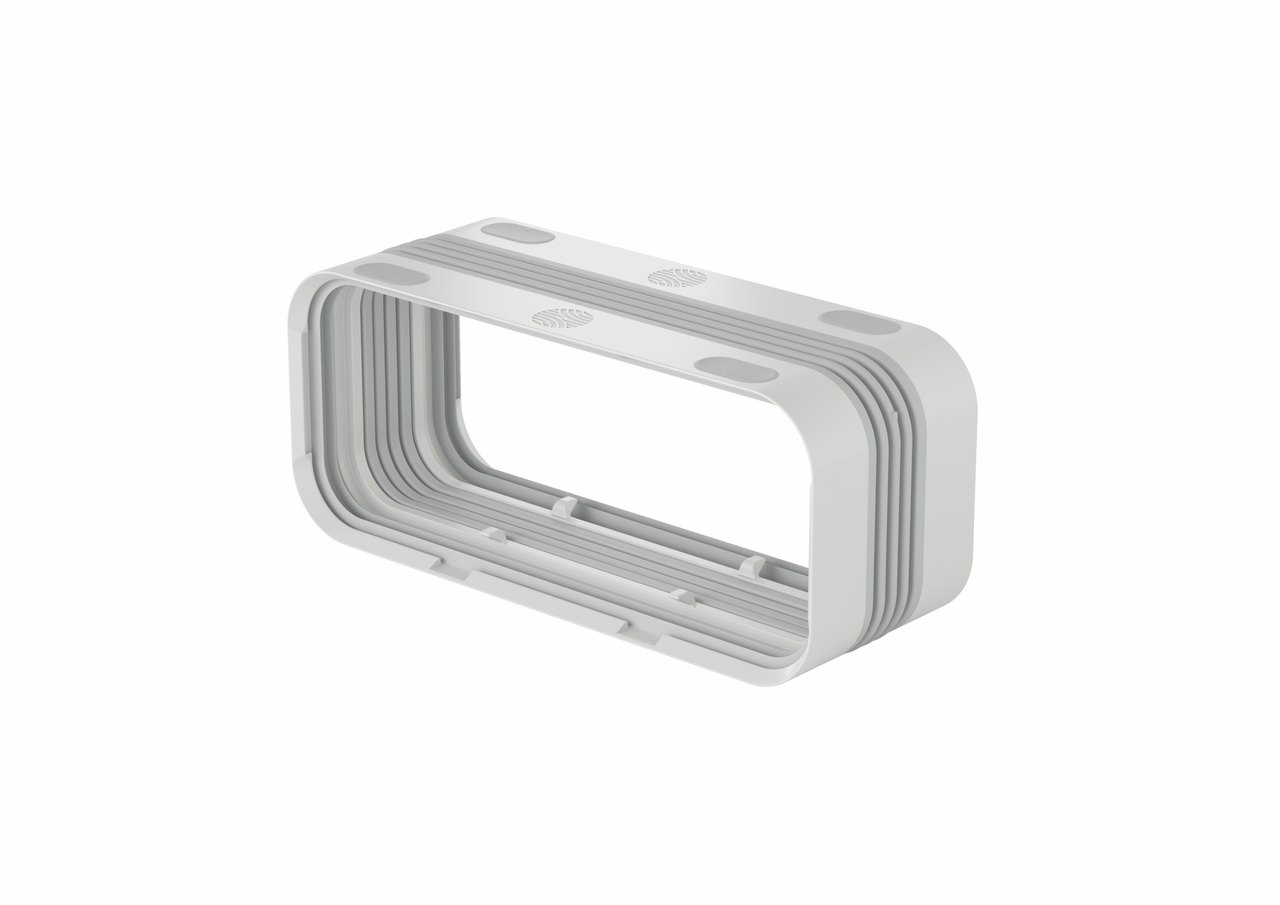

PRIME flow P-UVB 150 universal connector, light grey
The COMPAIR® PRIME Flow P-UVB 150 universal connector serves as a flexible connecting element for flat duct pipes and flat duct bends. It is part of the innovative COMPAIR® Flow system, which enables complex recirculation and exhaust solutions with high efficiency. The ventilation moulding consists of hard and soft components and is manufactured in one piece, which noticeably extends its service life. Other highlights include two integrated lip seals for an airtight assembly of the individual elements within the system assembly. At least the requirements of tightness class ATC3 according to DIN EN 16798 are fulfilled. The compensator, which is also integrated, enables flexible assembly, opening up a vertical and horizontal leeway of 0°-15°. External grip points improve the feel and at the same time ensure decoupling of structure-borne sound. The moulding has a length of 85 mm.

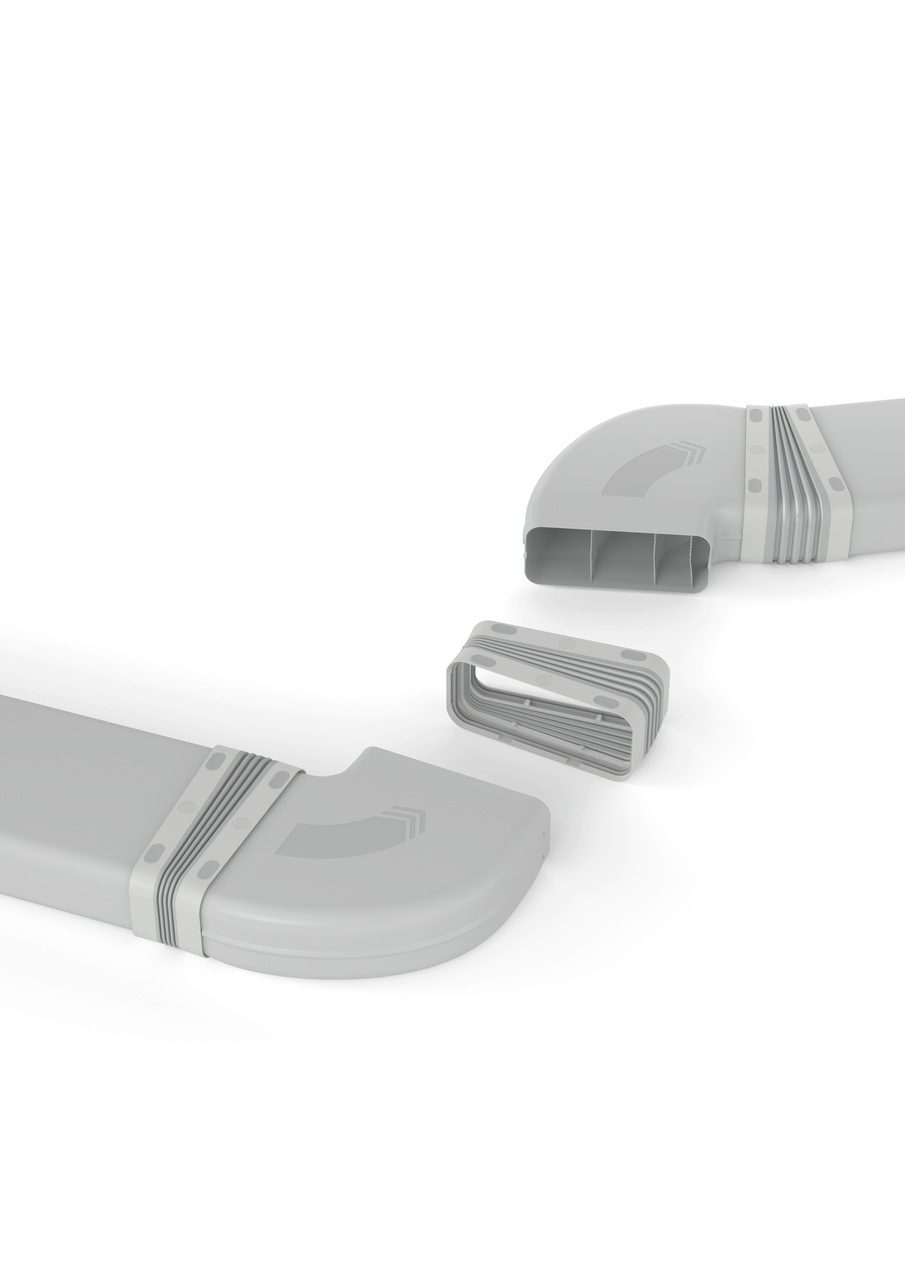

— flexible connector for flat duct pipes and flat duct pipe bends
— manufactured in one piece from soft and hard components
— 2-lip seal for airtight installation, fulfils at least tightness class ATC3 according to DIN EN 16798 in system construction
— outer grip points for better handling and decoupling of structure-borne sound
— compensator for flexible installation, horizontal/ vertical 0°–15°
— length 85 mm
— flexible connector for flat duct pipes and flat duct pipe bends
— manufactured in one piece from soft and hard components
— 2-lip seal for airtight installation, fulfils at least tightness class ATC3 according to DIN EN 16798 in system construction
— outer grip points for better handling and decoupling of structure-borne sound
— compensator for flexible installation, horizontal/ vertical 0°–15°
— length 85 mm
Article type:
Connecting element
Brand:
PRIME flow
Colour:
light grey
Further:
outer grip points for better handling and decoupling of structure-borne sound
Length:
85 mm
Mounting/Fixing:
can be installed horizontally and vertically
Note:
2-lip seal for airtight installation, fulfils at least tightness class ATC3 according to DIN EN 16798 in system construction, manufactured in one piece from soft and hard components
Output drive:
angular
Properties:
flexible (horizontal/ vertical 0°–15°)
Suitable for:
for flat duct pipes and flat duct pipe bends

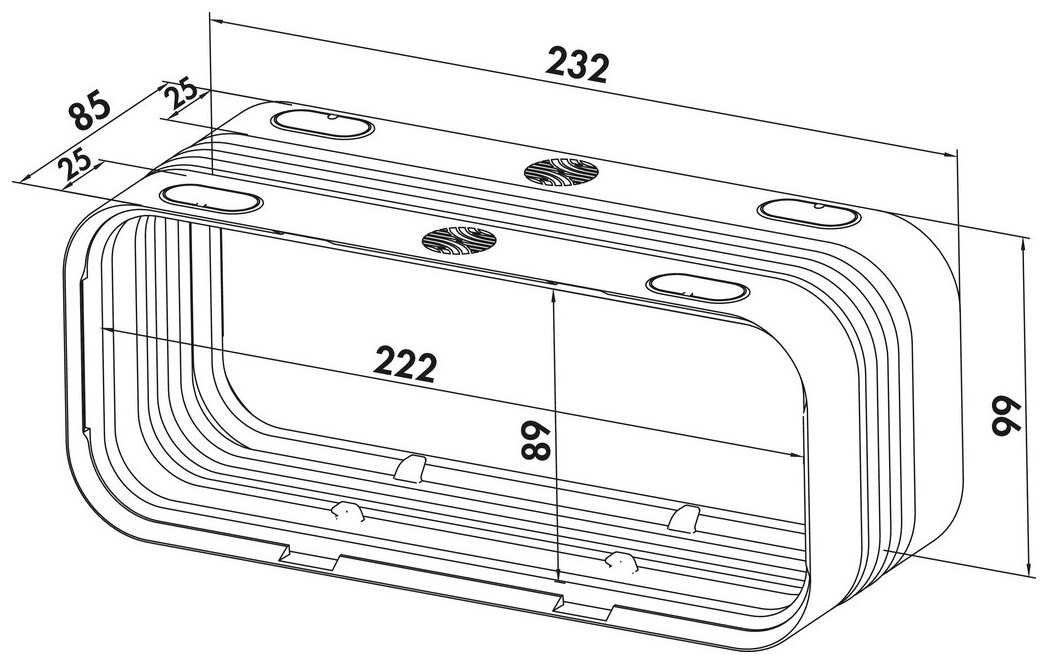

System dimension:
150
Width:
232 mm
