iMove set Double Tray, for 600 mm cabinet, W 562 mm
Product number:
8031106
- Lift fitting
- load capacity up to 8 kg
- Cabinet width: 600 mm
Description
iMove set Double Tray, for 600 mm cabinet, W 562 mm
The innovative iMove-Set Double Tray lift fitting for kitchen wall units makes it easy to reach the top cupboard level. Thanks to the sophisticated pull-out system, the permanent use of a stepladder is no longer necessary. It can be moved with just one hand and transports the entire shelf level including contents downwards and in front of the cabinet with an elegant swing. Thanks to the soft stop, the system is lowered gently so that there is no jolt. Lifting is just as comfortable with the integrated soft-close mechanism. The lift has two shelves on top of each other. The total load capacity is 8 kg. The set is designed for wall units with a carcase width of 600 mm. It is also suitable for retrofitting. The cabinet fitting is characterised by its intelligent technology, which includes finger pinch protection. No adjustment is necessary. The lift etagere is intended for screw mounting in the side panels, which can be 16 or 19 mm thick.
Lift fitting. Silver. Incl. fittings (1 drilling template, 8 wood screws 4.5 x 50 mm). Suitable for retrofitting.
— minimum cabinet height* (no upward limit)
— with hinged door: 710 mm
— with use of lift fittings: 710 mm
— suitable for 16 mm and 19 mm side walls
— load capacity up to 8 kg

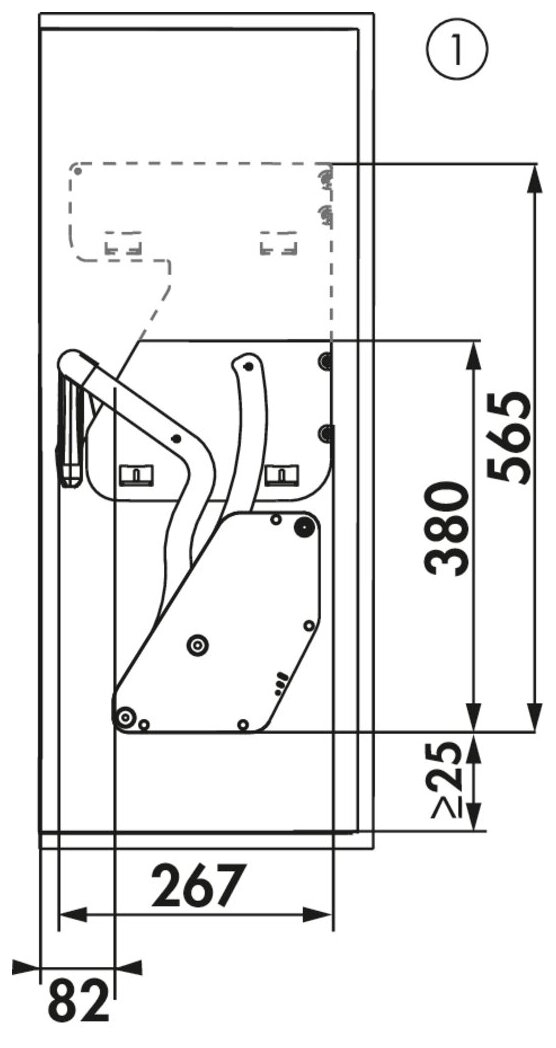

— 565 x 267 mm (H x L)

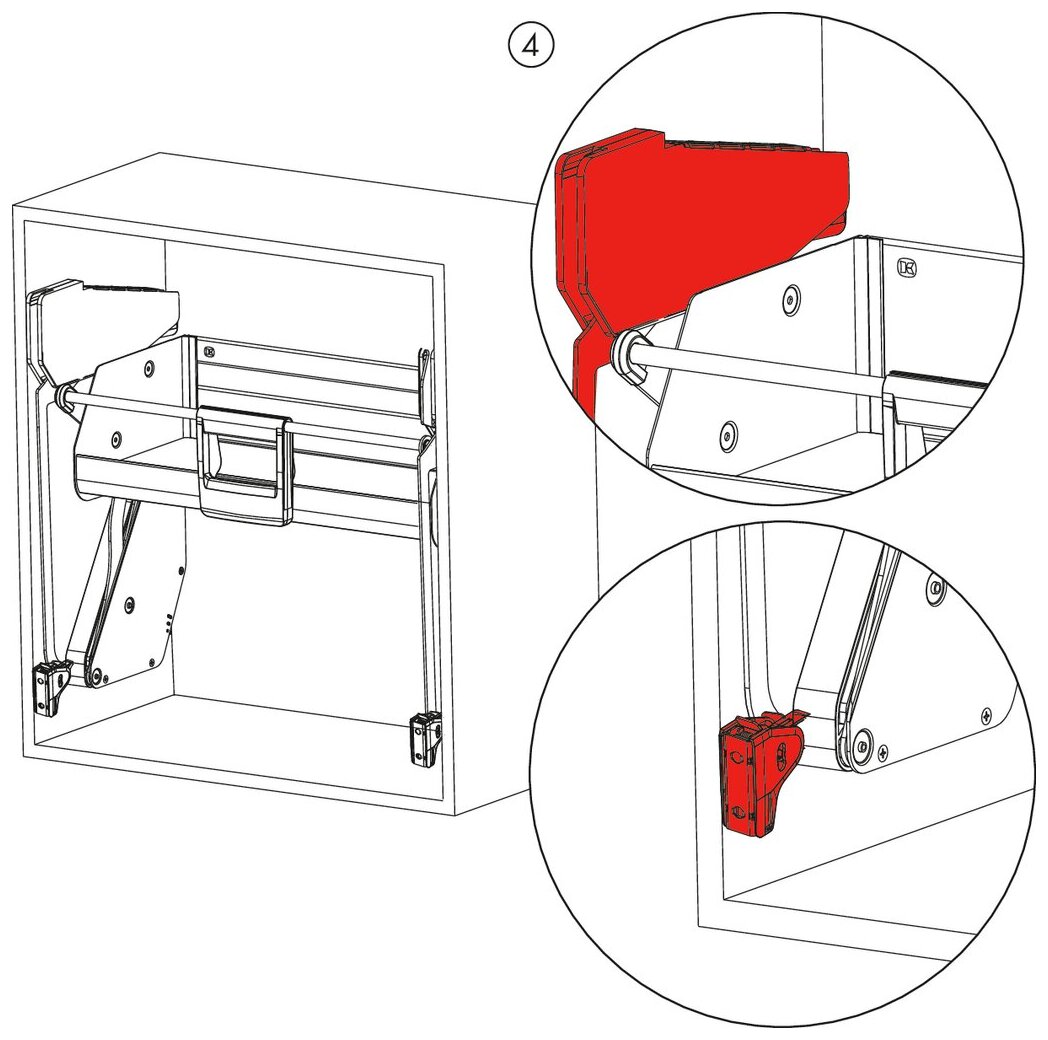

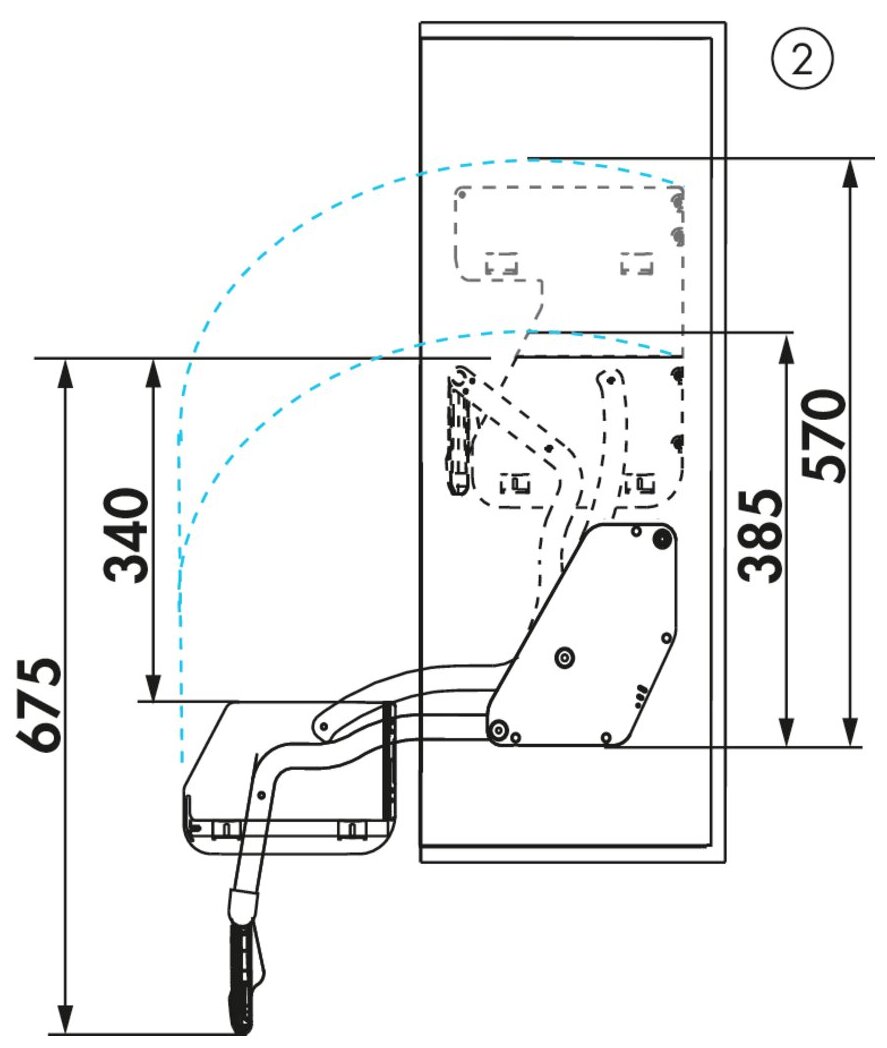

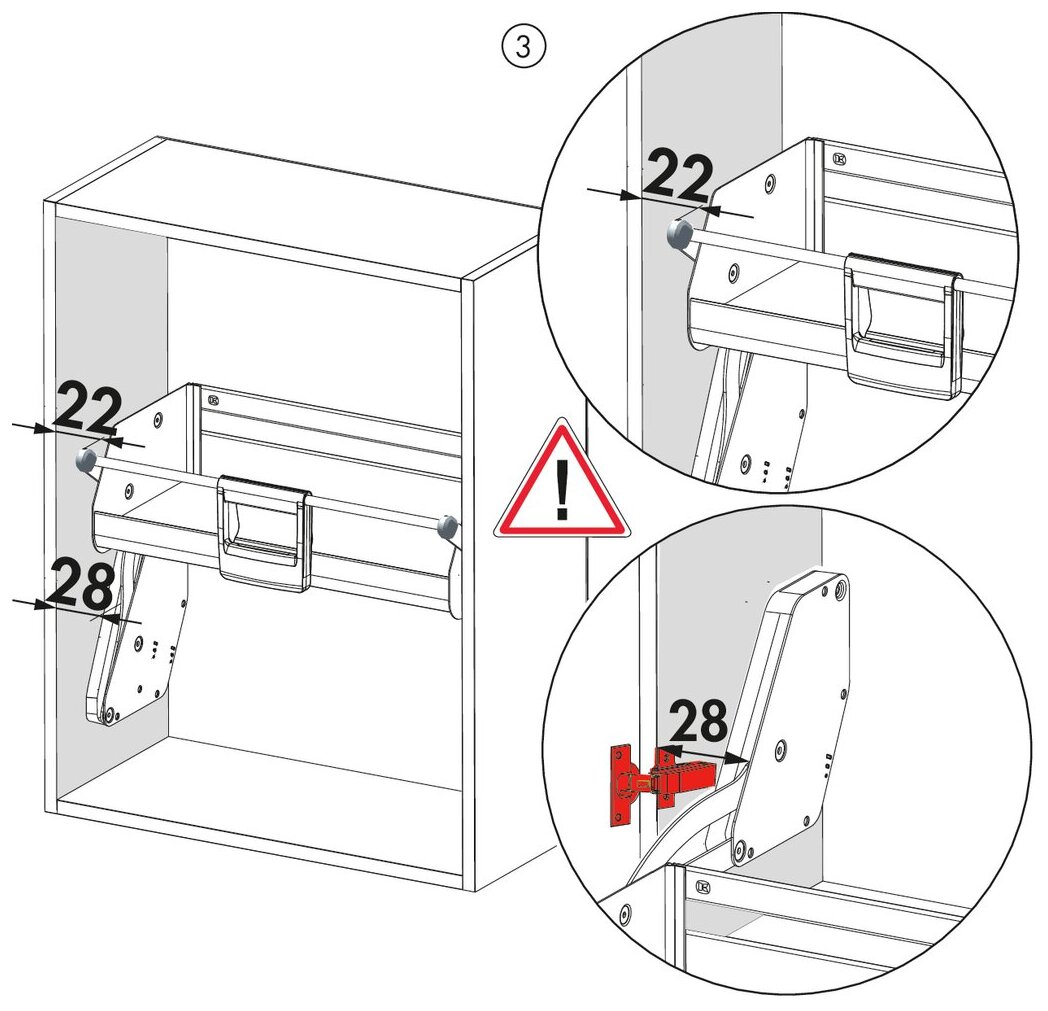

*_x0007_Cabinet height depends on hinge position, hinge protrusion or lift fitting (see illustrations 1–4).
Lift fitting. Silver. Incl. fittings (1 drilling template, 8 wood screws 4.5 x 50 mm). Suitable for retrofitting.
— minimum cabinet height* (no upward limit)
— with hinged door: 710 mm
— with use of lift fittings: 710 mm
— suitable for 16 mm and 19 mm side walls
— load capacity up to 8 kg
— 565 x 267 mm (H x L)
*_x0007_Cabinet height depends on hinge position, hinge protrusion or lift fitting (see illustrations 1–4).
Article type:
Lift fitting
Cabinet width:
600 mm
Carrying capacity:
load capacity up to 8 kg
Colour:
silver
Depth:
267 mm
For sidewall thickness:
16/19 mm
Further:
suitable for retrofitting
Height:
565 mm
Incl. mounting material:
incl. fittings (1 drilling template, 8 wood screws 4.5 x 50 mm)
Load capacity storage elements:
load capacity up to 8 kg
Mounting/Fixing:
for hanging cabinets, no adjustment necessary
Note:
Body differences, for example the thickness of the side walls, are easily compensated by the system, cabinet height depends on hinge position, hinge protrusion or lift fitting (see illustrations 1–4)
Number of floors:
2
Retrofitting possible:
Yes
Safety functions:
finger protection
Soft closing:
Yes
Storage elements can be swivelled in and out independently:
Yes
Suitable for:
suitable for hinged doors and lifting doors
Width:
562 mm
