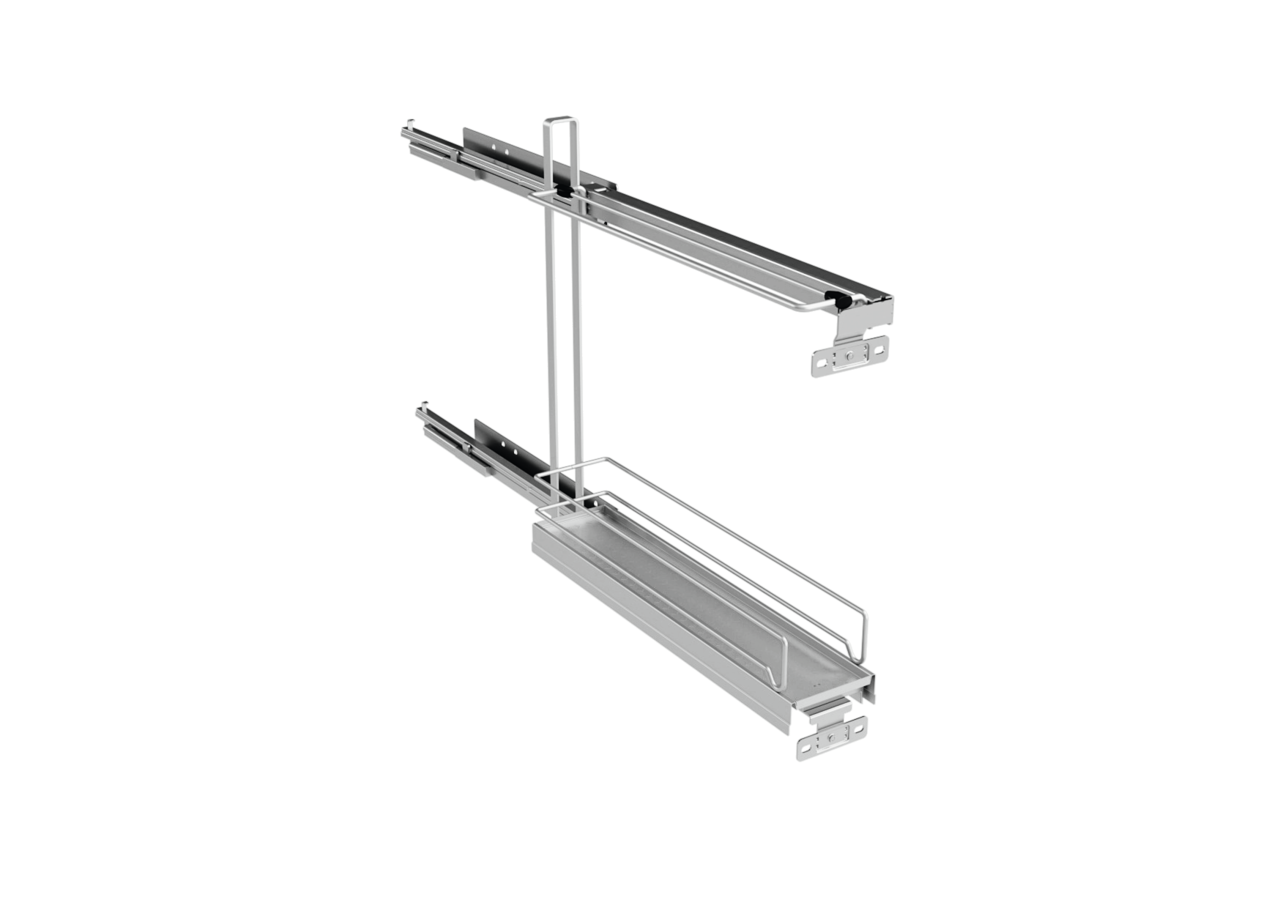

VS SUB Slim baking tray holder, silver
Product number:
8037002
- Level pull-out
- Cabinet width: 150 mm
- Storage elements can be swivelled in and out independently
Description
VS SUB Slim baking tray holder, silver
Practical helper for the modern kitchen: the VS SUB Slim shelf pull-out as a baking tray holder including pull-out guide for base units with front panel and full-extension runner. The lower section also has an integrated shelf that can be used as required for utensils such as cleaning products or drinks bottles. Thanks to its compact dimensions, the pull-out is suitable for all cupboards with a minimum width of 150 mm, so that niches can be used efficiently. The technical highlights include the guide rails with integrated self-closing mechanism and quiet-closing damping. The system is mounted on the inside wall of the kitchen cabinet with the stop on the right-hand side. In addition, the system is firmly screwed to the front panel. Aligning the front is made easier by the 3D adjustment. The cabinet pull-out is optionally available as a towel rail as well as a shelf. From a visual point of view, the railing is available in chrome and silver.
Tiered pull-out with baking tray holder and storage element, incl. complete pull-out runner.
— cabinet width 150 mm
— installation depth min. 495 mm
— installation height min. 530 mm
— end stop only right
— 1 baking tray holder and 1 storage element
— load capacity max. 6 kg per storage element
— integrated damping and self-closing in both runners
— rail silver or anthracite
— 3D front adjustment
Tiered pull-out with baking tray holder and storage element, incl. complete pull-out runner.
— cabinet width 150 mm
— installation depth min. 495 mm
— installation height min. 530 mm
— end stop only right
— 1 baking tray holder and 1 storage element
— load capacity max. 6 kg per storage element
— integrated damping and self-closing in both runners
— rail silver or anthracite
— 3D front adjustment
Article type:
Level pull-out
3D front adjustment:
Yes
Cabinet width:
150 mm
Colour:
silver
Colour railing:
silver
For sidewall thickness:
16-19 mm
Installation_height_list:
530 mm
Installation depth:
min. 495 mm
Load capacity storage elements:
max. 6 kg per storage element
Location:
base cabinet
Number of floors:
2
Number of storage elements:
1
Number of tours:
2
Soft closing:
Yes
Storage elements can be swivelled in and out independently:
Yes
Downloads
Assembly
