Twist double plug socket, with earthed plug sockets, stainless steel coloured
Product number:
7053021
- Built-in socket element
- 2 x earthed plug socket
- round
Description

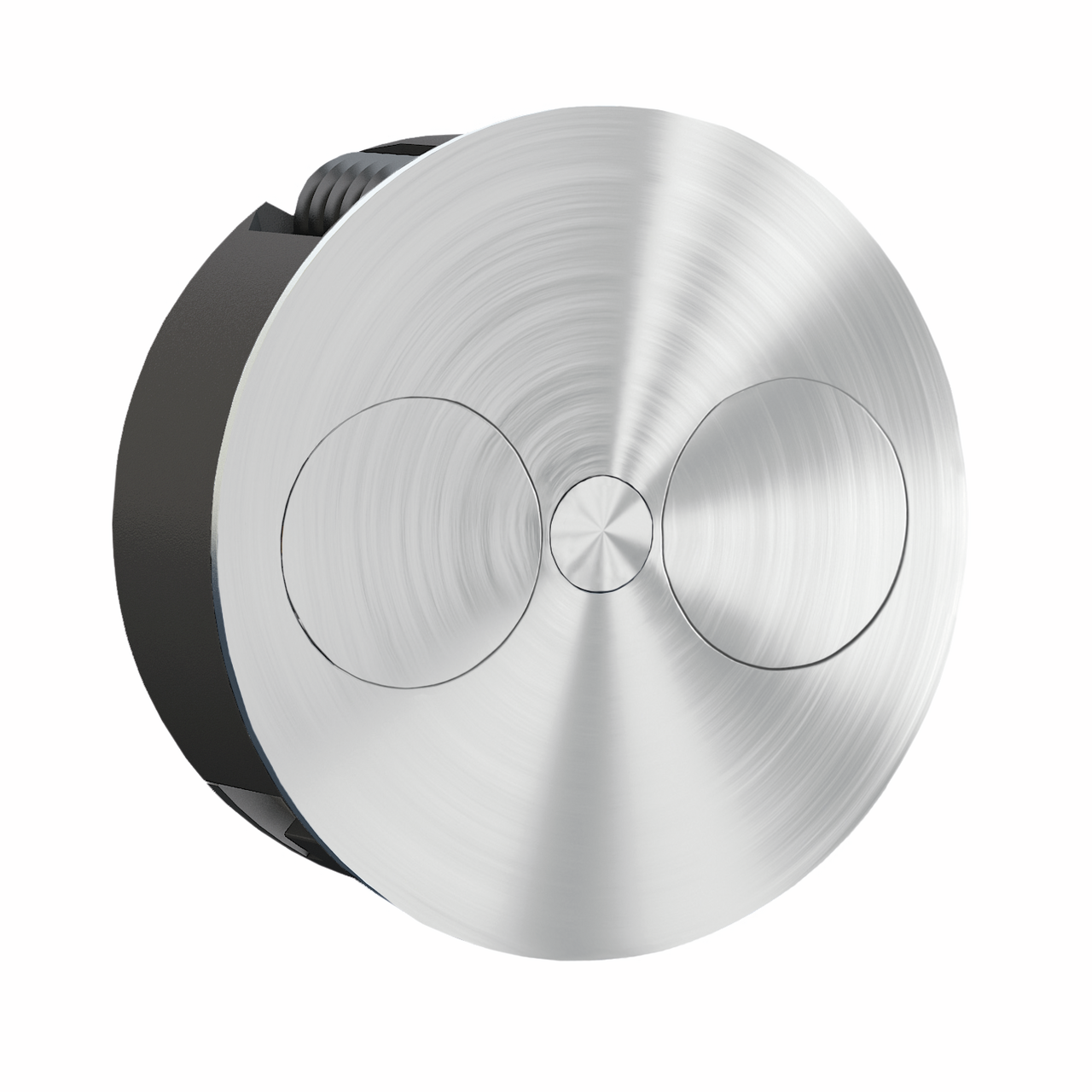

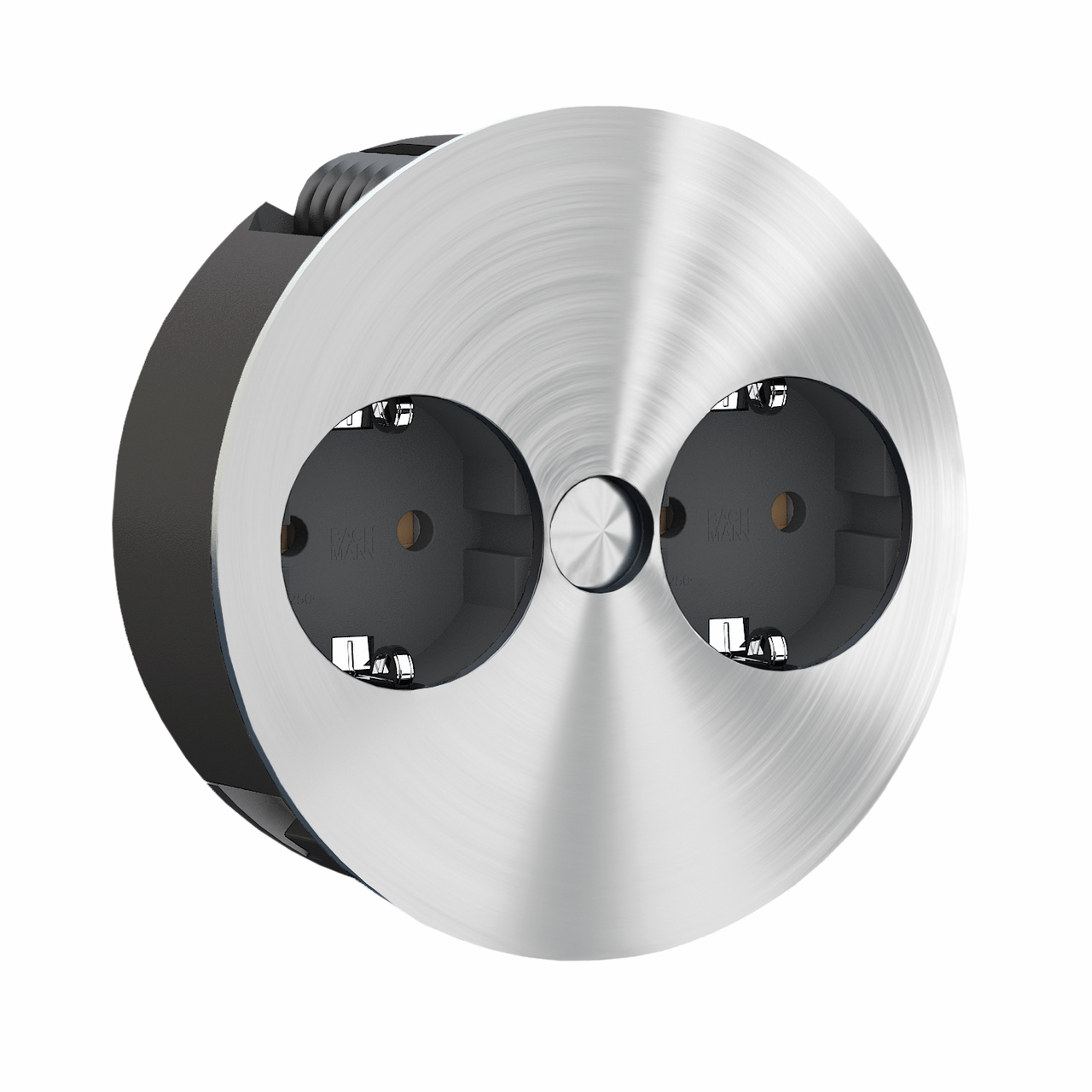

Twist double plug socket, with earthed plug sockets, stainless steel coloured

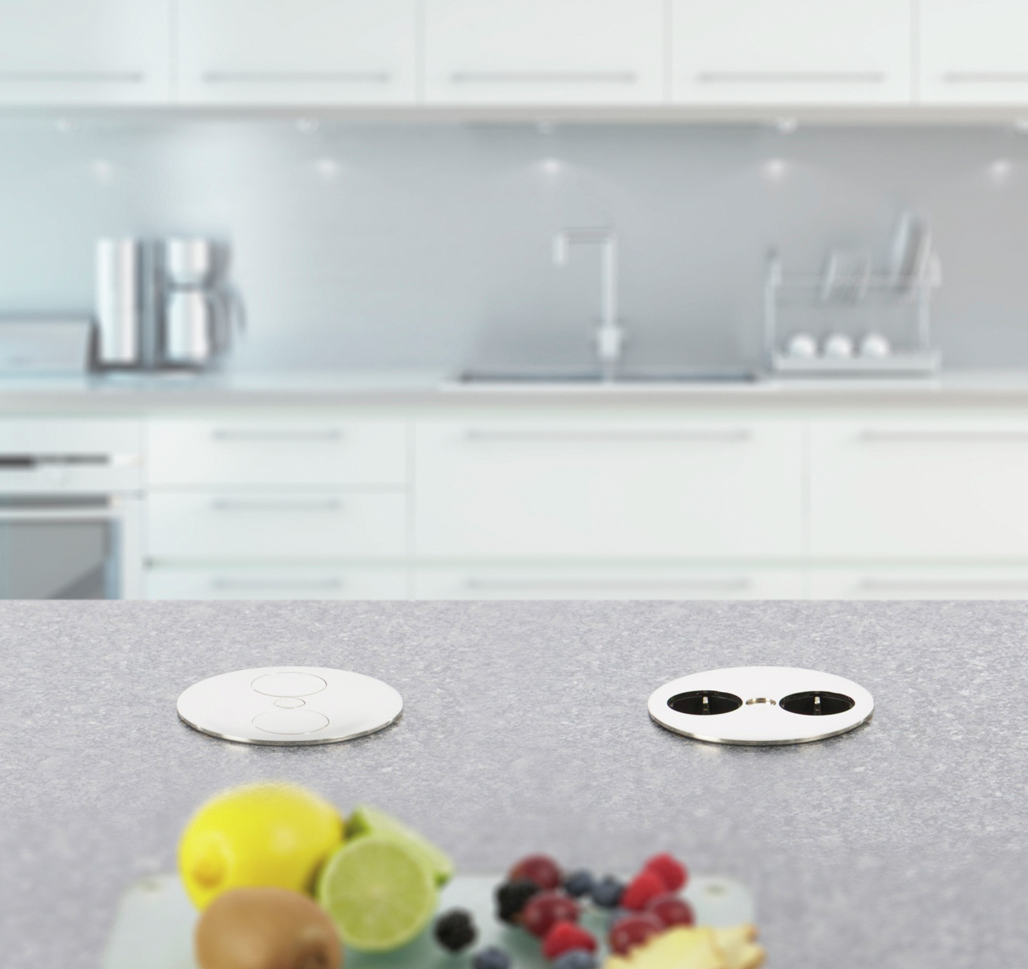

Decorative eye-catcher with practical added value: the CON-AKTIV® Twist built-in socket in an elegant round shape. It provides a striking accent in the area of the worktop and serves as a temporary power supply for various kitchen aids. The double socket outlet is equipped with a rotating cover to allow access to the two sockets with earthing contact. For safety reasons, increased protection against accidental contact is integrated. Thanks to the low installation depth, the double socket outlet can easily be placed above drawers in the kitchen unit. Manufactured in solid quality, the housing is made of plastic, the cover of nickel-plated die-cast zinc with stainless steel-coloured brushed surfaces. The two Schuko plugs are supplied loose. In addition, the set includes a mains connection cable. The cable outlet is located on the side at the bottom. The socket element is optionally available with Belgian-French and Swiss sockets.
Socket element. 2-fold.
— 3680 watt/16 A, 250 VAC, IP20
— H05VV-F 3G1
— 3-pin with earthing contact
— 2000 mm mains connection line, earthing contact plug enclosed loosely
— drill Ø 105 mm, for board thicknesses from 8 mm
— increased contact protection
— cable outlet below side
Socket element. 2-fold.
— 3680 watt/16 A, 250 VAC, IP20
— H05VV-F 3G1
— 3-pin with earthing contact
— 2000 mm mains connection line, earthing contact plug enclosed loosely
— drill Ø 105 mm, for board thicknesses from 8 mm
— increased contact protection
— cable outlet below side
Article type:
Socket element
Cable outlet:
cable outlet rear side
Certification:
CE
Colour:
stainless-steel coloured
Colour bezel:
stainless-steel coloured
Colour socket:
black
Cover/blind type:
Turning lid
Drilling diameter:
105 mm
Form:
round
Height:
180 mm
Installation depth:
40 mm
Installation diameter:
115 mm
Integrated water drain:
Yes
Length:
180 mm
Length of the supply line (primary):
2.000 mm
Mains plug loosely enclosed:
Yes
Mains voltage:
250 VAC
Max. connected load:
3680 watt
Mounting/Fixing:
installation, on the worktop
Number of sockets (total):
2
Opening mechanism:
Push-to-open
Protection class:
IP20
Touch protection ("child safety lock"):
with increased contact protection
Type of socket element:
Built-in socket element
Version sockets:
2 x earthed plug socket
Width:
90 mm
Wiring:
3-wire with free ends, bared
Worktop thickness:
8 mm
