PRIME flow GREENflow filter box set-2, grey
Product number:
4043095
- filter box set
- simple maintenance/access
Description
PRIME flow GREENflow filter box set-2, grey

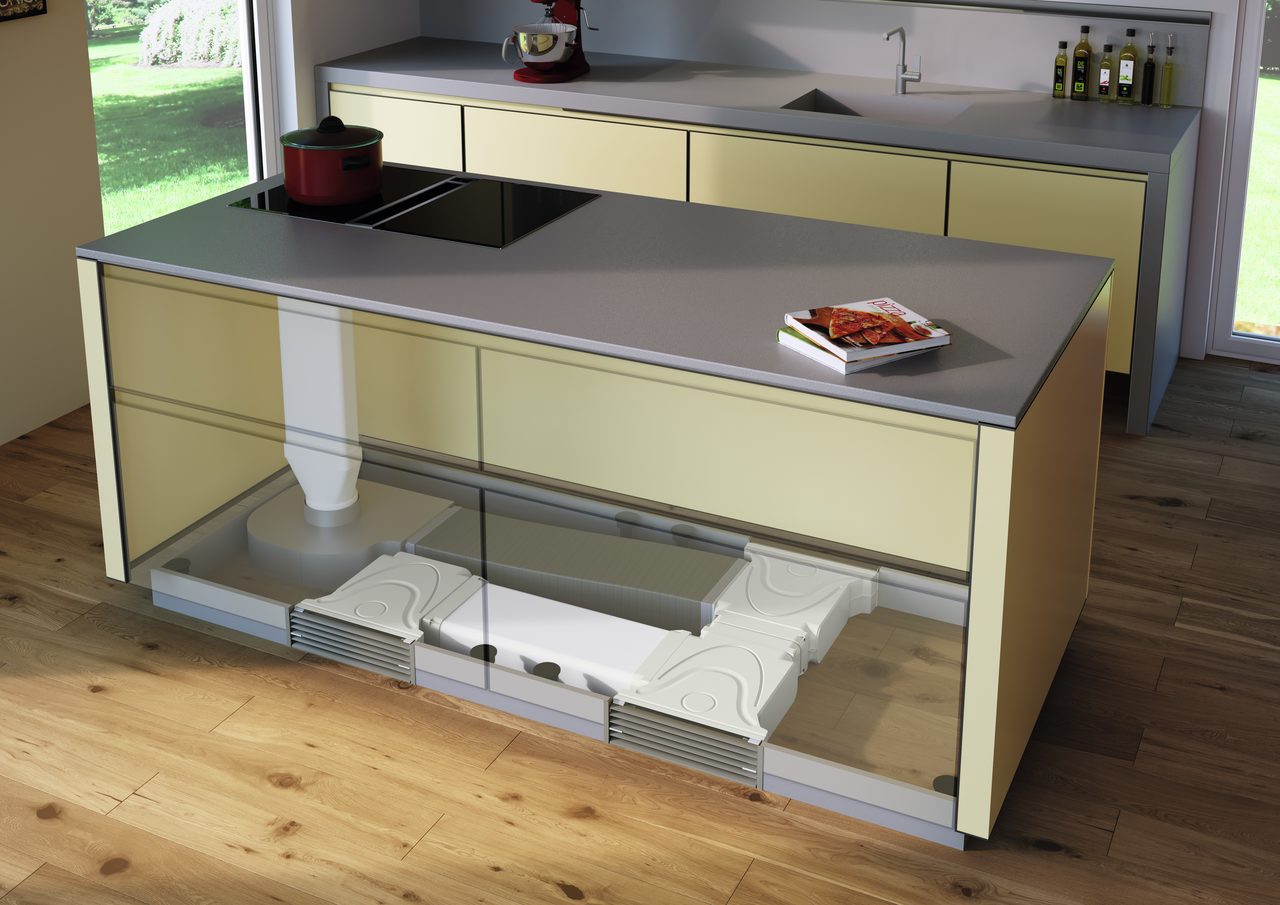

The modular COMPAIR® GREENflow Filterbox Set-2 achieves an even distribution of the airflow in downdraft bonnets in the kitchen. The system safely directs cooking vapours out of the carcase into the room, thus avoiding moisture damage or soiling of the underside of the cabinet. In addition, the filter system reduces the total pressure loss as well as the noise development of the cooker bonnet with minimal air movement thanks to the aerodynamically optimised ventilation grille made of anodised aluminium. It can be flexibly positioned in the plinth area of the fitted kitchen and is compatible with almost every recessed fan with or without activated charcoal filter. Additional boxes can be added at any time for optimum ventilation results. Furthermore, the patented COMPAIR® GREENflow system is characterised by easy access and thus by problem-free maintenance. The integrated base foot can be used as an option and offers a load capacity of up to 300 kg. The four-part table fan set consists of the filter box, a 1 m long flex duct, a 15 m long cold shrink tape for easy installation and an activated carbon filter in OMEGA design.
Recirculating air filter system for filtration of cooking vapours when using a downdraft hood/hob ventilator.
— high flexibility in the positioning of the filter boxes
— suitable for base heights from 100–150 mm (grid can be shortened)
— guide vanes provide for uniform distribution of the air flow
— suitable for almost all common downdraft hoods/ hob ventilators, with or without own activated carbon filter
— simple maintenance/access
— integrated base foot (optionally usable, load capacity up to 300 kg)
— aerodynamically optimised blades of the ventilation grid (anodised aluminium) minimise the pressure loss
— maximum outlet cross-section provides for barely perceptible air movement
Set consisting of:

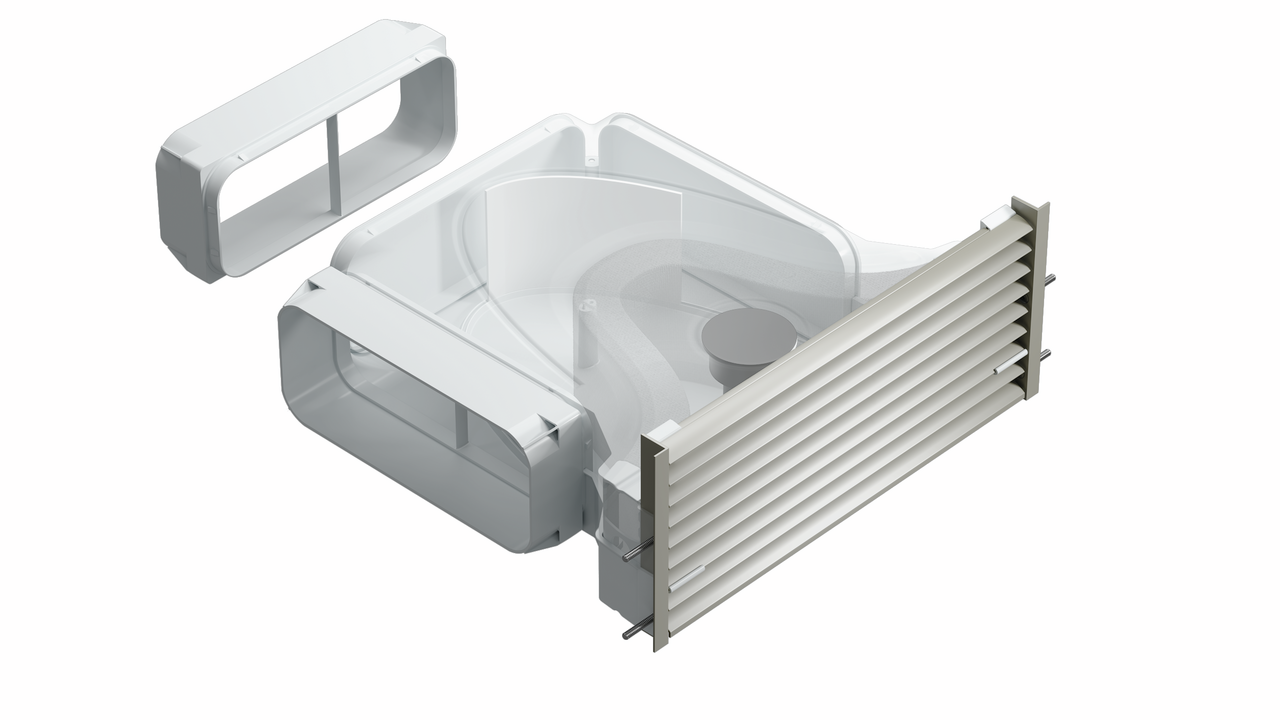

— 1 x filter box (4043075)

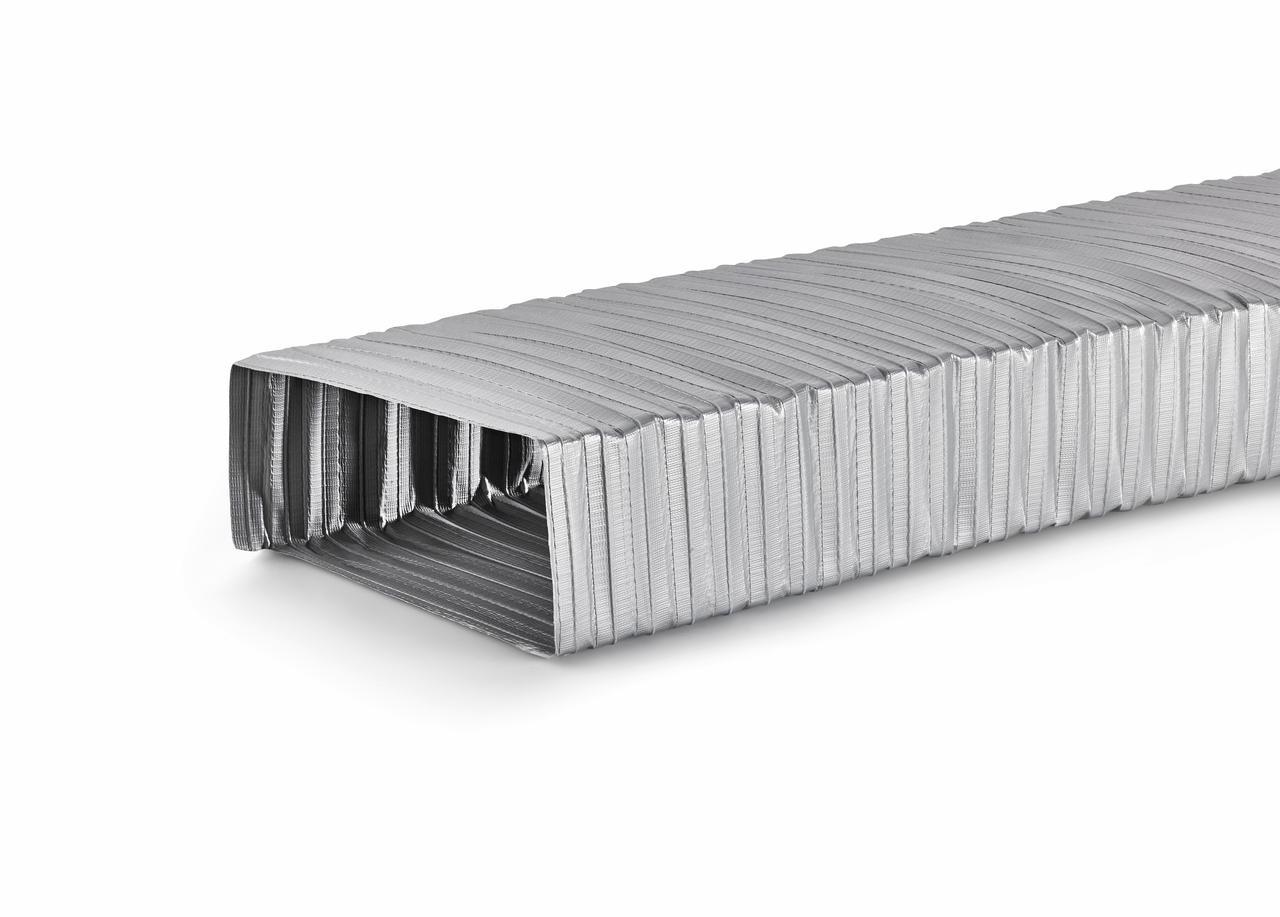

— 1 x GREENflow flexi-duct, 1 m (4043093)

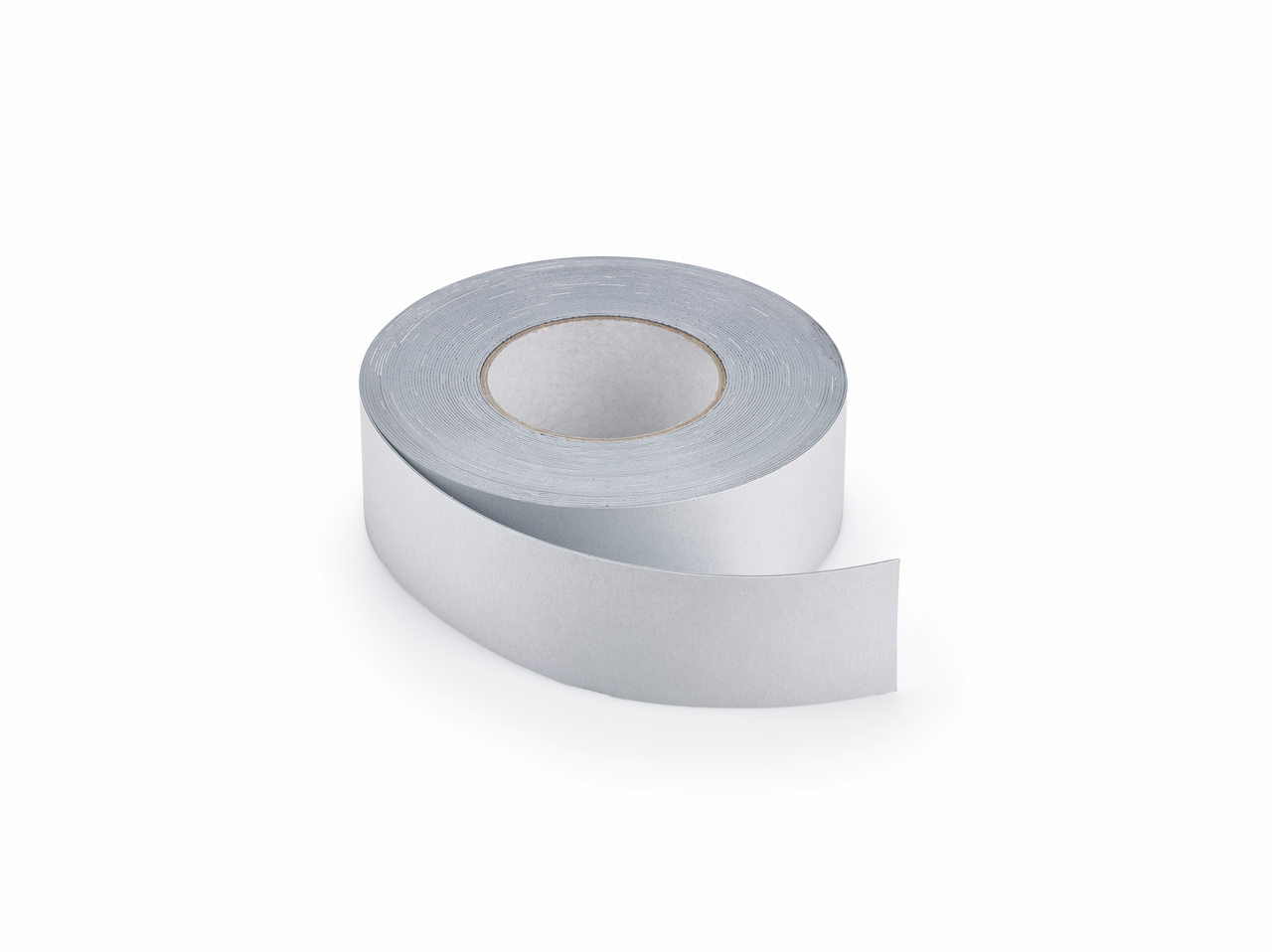

— 1 x GREENflow cold shrink tape, 15 m (4043077)
— 1 x GREENflow OMEGA filter (4043080)
Note:
For optimal ventilation results, additional boxes can easily be added.
Recirculating air filter system for filtration of cooking vapours when using a downdraft hood/hob ventilator.
— high flexibility in the positioning of the filter boxes
— suitable for base heights from 100–150 mm (grid can be shortened)
— guide vanes provide for uniform distribution of the air flow
— suitable for almost all common downdraft hoods/ hob ventilators, with or without own activated carbon filter
— simple maintenance/access
— integrated base foot (optionally usable, load capacity up to 300 kg)
— aerodynamically optimised blades of the ventilation grid (anodised aluminium) minimise the pressure loss
— maximum outlet cross-section provides for barely perceptible air movement
Set consisting of:
— 1 x filter box (4043075)
— 1 x GREENflow flexi-duct, 1 m (4043093)
— 1 x GREENflow cold shrink tape, 15 m (4043077)
— 1 x GREENflow OMEGA filter (4043080)
Note:
For optimal ventilation results, additional boxes can easily be added.
Article type:
filter box set
Brand:
PRIME flow
Colour:
grey
Discontinued item:
No
Form:
angular
Further:
integrated base foot (optionally usable, load capacity up to 300 kg)
Height:
100 - 150 mm
Length:
353 mm
Maintenance:
simple maintenance/access
Note:
For optimal ventilation results, additional boxes can easily be added., aerodynamically optimised blades of the ventilation grid (anodised aluminium) minimise the pressure loss, easy maintenance/replacement, maximum outlet cross-section provides for barely perceptible air movement
Outer diameter:
150 mm
Properties:
flexible
Suitable for:
suitable for almost all common downdraft hoods/ hob ventilators, with or without own activated carbon filter
System dimension:
150
Width:
362 mm
