Description
LINEA Arco 2, stainless steel finish, low pressure
The Linea Arco 2 kitchen mixer is an eye-catcher in the kitchen with functional features. Its appearance is defined by an elegant design with a slender, filigree shape. As the fitting is available in several colours and surface finishes, it can be harmoniously complemented with the existing kitchen furnishings. The highlight is the pull-out spout, which extends the range of movement and directs the water jet in a targeted manner. This makes it even easier to wash dirty dishes or fruit and vegetables. Thanks to the 180° swivel range, the sink mixer provides more flexibility when working in the kitchen and also reaches hard-to-reach places in the sink. The lever on the side makes it easy to use. The single-lever mixer is equipped with a high-quality ceramic cartridge for precise adjustment of the water temperature. The kitchen mixer is available as a high-pressure or low-pressure mixer.



Single lever faucet. With swivelling/pull-out metal outlet, side lever and ceramic cartridge.
— swivel range 360°
— drill Ø 35 mm
— corresponds to the German and European drinking water regulation/directive





Article type:
Sink faucet
Brand:
LINEA
Cartridge with ceramic sealing discs:
Yes
Colour:
stainless steel finish

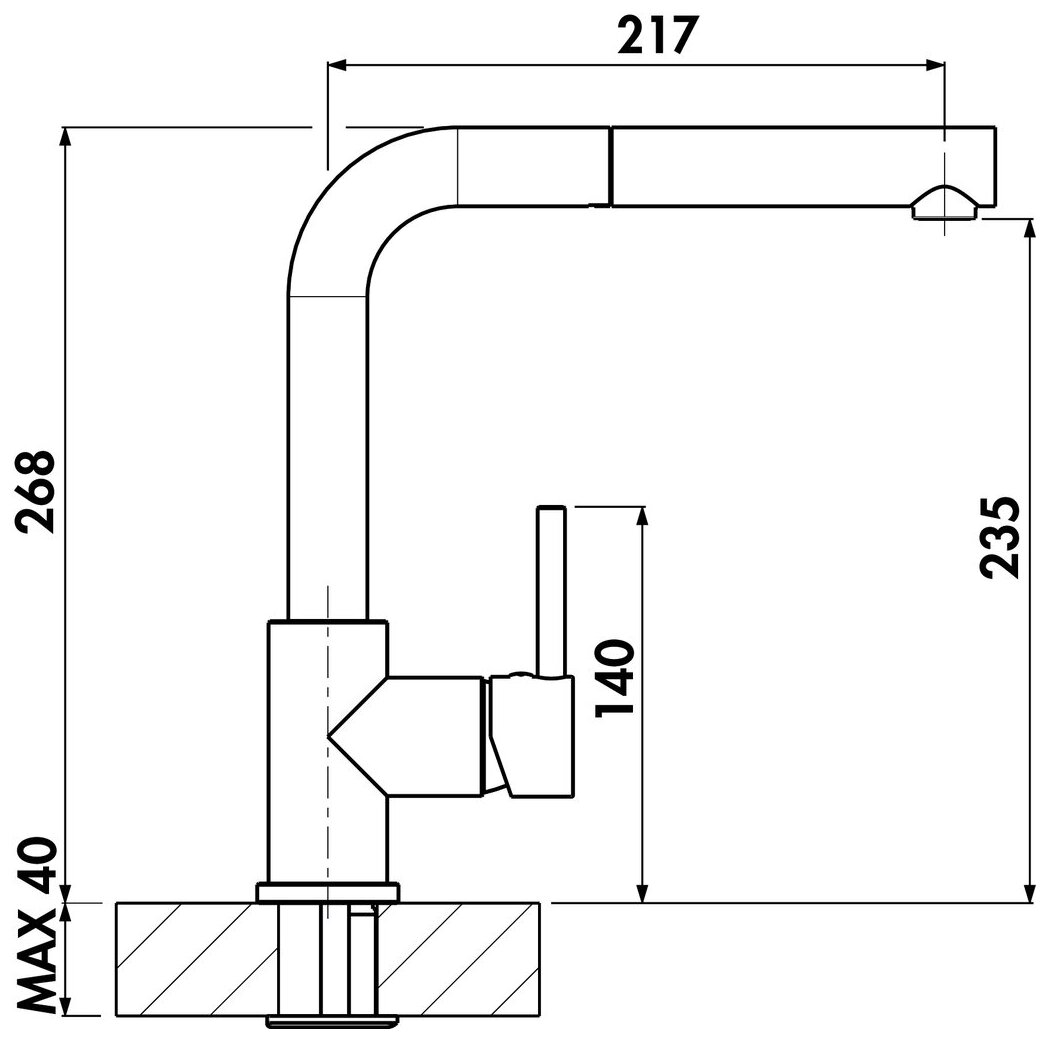

Discharge height:
235 mm
Drilling diameter:
35 mm
Factory customer service:
No
Handle position:
right
Height:
268 mm
Manufacturer's warranty:
5 years manufacturer’s warranty (except on wearing parts), 10-year after-sales guarantee on spare parts, Your claim to customer service during the warranty period will be settled individually by agreement.
Material:
brass

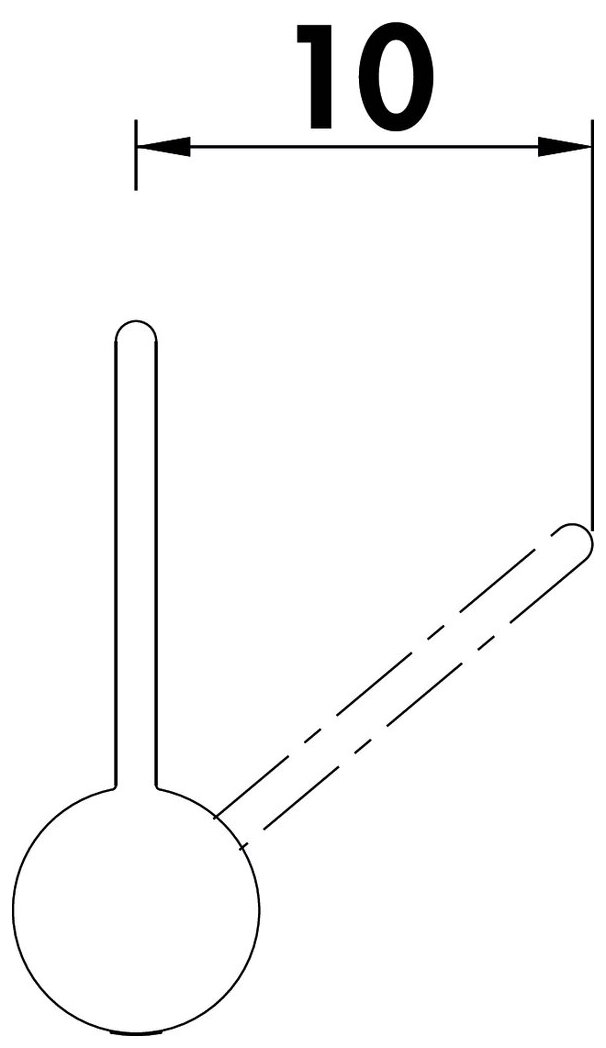

Minimum distance wall to centre tap hole:
10 mm
Number of handles:
1
Number of tap holes:
1
Operating mode:
Lever
Operating pressure:
low pressure
Outlet:
Extractable, Swivelling
Outreach:
217 mm
Spring-guided hose shower:
No
Swivel range outlet:
360°
Total installation height:
268 mm
Type of fitting:
Single lever faucet
Worktop thickness:
40 mm
