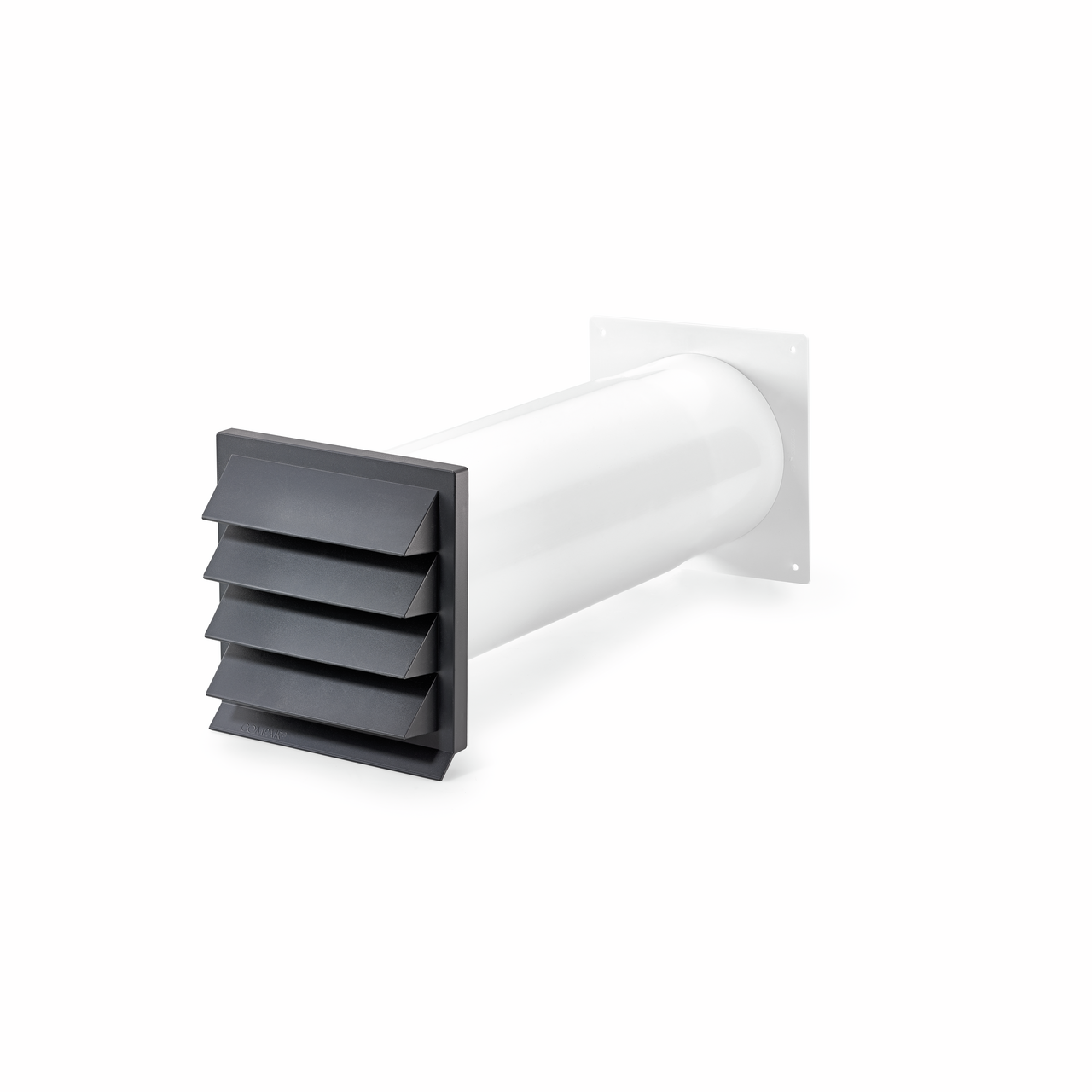

K-Klima-R 150/150 wall conduct, anthracite
Product number:
4044061
- Wall sleeve
- installation in the wall
Description
K-Klima-R 150/150 wall conduct, anthracite
The COMPAIR® flow K-Klima-R 150/150 wall box serves as a wall duct to transport exhaust air from the extractor bonnet to the outside. The COMPAIR® flow air duct system with conductive body technology smoothes the vapours in the duct and transports them away with little loss of flow. In the patented air duct system with integrated air guide bodies in transition pieces and horizontal bends, the air flows quietly and energy-efficiently around the bend. The exhaust air wall box is designed for a round duct connection. With its pipe diameter of 150 mm, a wall opening of approx. 155 mm is required. The practical telescopic pipe allows the length of the duct to be adjusted from 420-620 mm depending on the wall thickness. Likewise, the tube can be shortened to a length of up to 100 mm. To prevent air flows in the opposite direction, the telescopic wall duct is equipped with a backflow flap. The external louvre in louvre design forms the outer closure of the wall duct and provides protection against the effects of the weather. The wall duct can be selected in several colour variants according to personal taste.
With backpressure shutter, telescopic pipe and external blind.

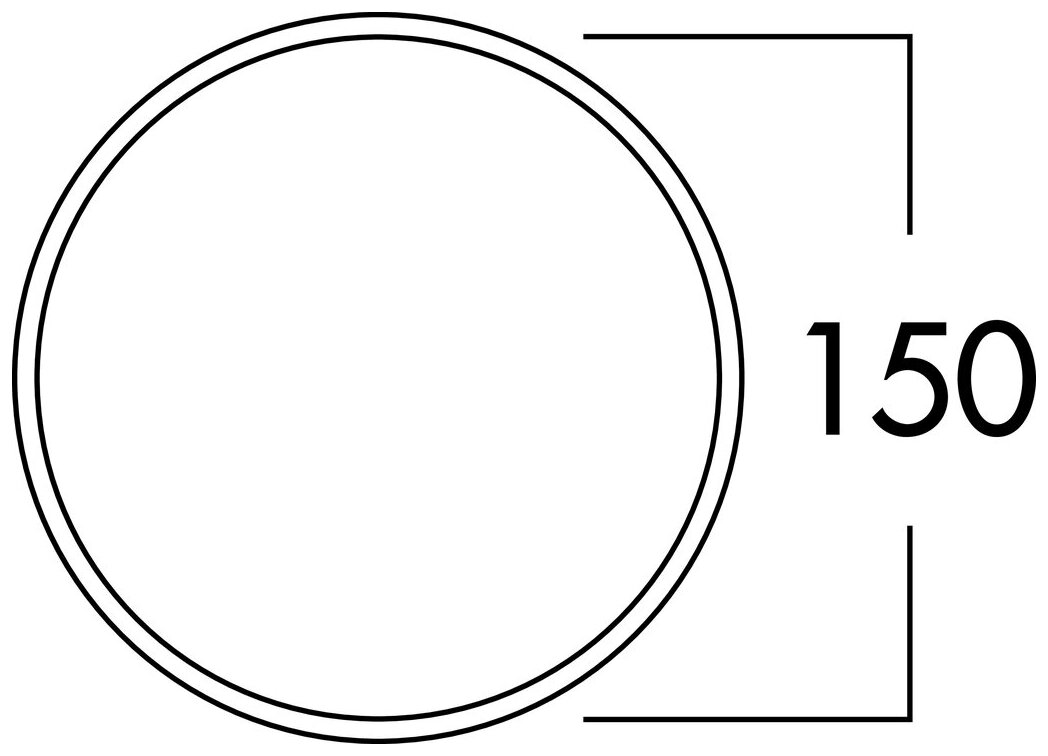

— hose/tube connector Ø 150 mm
— connector depth 24 mm
— installation depth 420–620 mm, can be shortened to 100 mm
— wall penetration Ø about 155 mm
With backpressure shutter, telescopic pipe and external blind.
— hose/tube connector Ø 150 mm
— connector depth 24 mm
— installation depth 420–620 mm, can be shortened to 100 mm
— wall penetration Ø about 155 mm
Article type:
Wall sleeve
Colour:
anthracite
Connection diameter:
150 mm
Discontinued item:
No
Form:
angular
Height:
190 mm
Installation depth:
420–620 mm
Material:
Polystyrene
Mounting/Fixing:
installation in the wall
Output drive:
round
Properties:
can be shortened
Shortenability:
can be shortened to 100 mm
Support depth:
24 mm
System dimension:
150
Width:
190 mm
Assembly
Measures
