Description

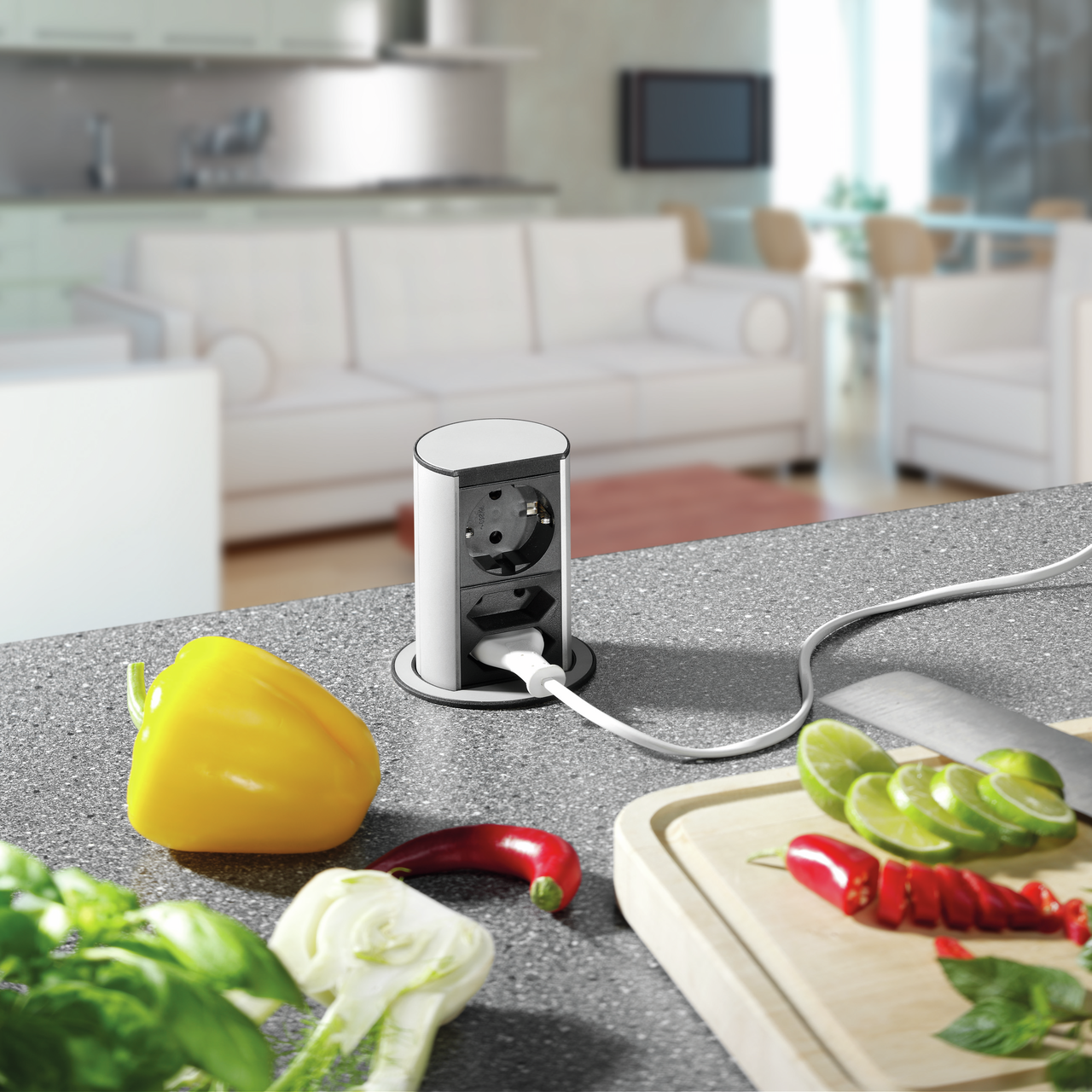

Elevator 3, stainless steel coloured

The CON-AKTIV® Elevator 3 retractable socket outlet puts power connections in the kitchen where they are still needed. The elegant socket element equips worktops, especially on kitchen islands, with power. It has a semi-circular, classic design with stainless steel-coloured, brushed trim. The socket outlet is equipped with a total of three slots arranged one above the other, one of which is a protective contact socket and two of which are Euro flat sockets. If the 3-way socket outlet is not needed at the moment, it fits almost flush into the work surface. A light press on the housing cover is all it takes for the unit to slide out via a clever spring mechanism. In this way, the multiple socket provides a convenient and safe power supply for kitchen appliances that are not in permanent use. The connecting cable with the Schuko plug included in the set offers sufficient scope for installation. The cable outlet is located at the bottom. When planning, the installation depth for pull-outs and drawers must be taken into account. While the socket insert is made of black plastic, the profile is made of aluminium. The socket strip is mounted quickly and easily using a screw ring, so that installation can also be done retrospectively.





Socket element. Retractable. With 3 sockets (1 x earthing contact, 2 x Euro flat socket) for hanging cabinets or worktops.
— material plastic, black
— profile aluminium
— covers stainless steel coloured, punched and brushed
— 2000 mm mains connection line, earthing contact plug separately enclosed
— drill Ø ca. 80 mm
— for panel thickness from16 mm to 60 mm, mounted by screw ring
— cable outlet below



Article type:
Socket element
Cable outlet:
cable outlet below
Certification:
CE
Colour:
stainless-steel coloured
Colour socket:
black
Drilling diameter:
80 mm
Housing colour:
stainless-steel coloured
Installation depth:
135 mm
Installation diameter:
86 mm
Length of the supply line (primary):
2.000 mm
Mains plug loosely enclosed:
Yes
Material profile:
aluminium
Mounting/Fixing:
for hanging cabinets, installation, in the worktop
Number of sockets (total):
3
Opening mechanism:
Push & Pull
Surface/coating:
brushed
Type of socket element:
Retractable socket element
Version sockets:
1 x earthed plug socket, 2 x Euro socket
Worktop thickness:
16–60 mm

Downloads

Recommendations

7 variations available
Hole saw, Ø 80 mm, for Elevator
Product number: 7053053
  • Drilling diameter: 80 mm
  • Max. cutting depth: 38 mm
  • incl. centre drill
