Description
LINEA Raw, graphite, high pressure
In keeping with the industrial style, the Raw kitchen mixer from the Linea range creates rustic accents at the sink. The design of the raw metal mixer body is based on a solid industrial mixer with a high pipe spout. This is particularly evident in the screw connection of the pull-out spout or the control lever on the side. In addition to the integrated pull-out hose shower with jet switch, the single-lever mixer has a large swivel range of 360°. The fitting also impresses with its robust material design. This is continued in the insensitive surface coating. With matt black and graphite grey, two versions underline trendy furnishing styles. The high-pressure fitting is equipped with a high-quality ceramic cartridge that regulates the flow rate and the water temperature. Thanks to the stabilising plate, it can be easily mounted on the sink rim or worktop.

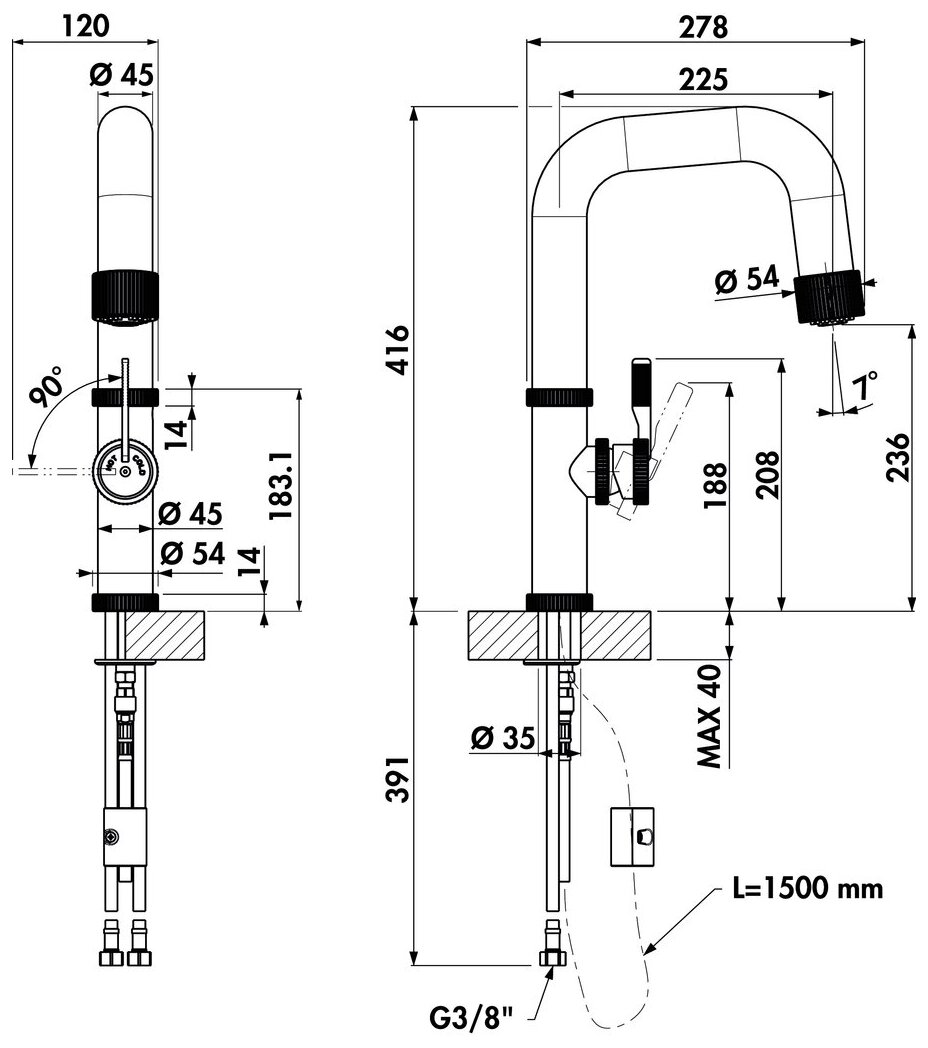

Single lever faucet. With metallic swivelling/pull-out hose with shower head (can be switched to stream or shower), side lever and ceramic cartridge.
— swivel range 360°
— drill Ø 35 mm
— corresponds to the German and European drinking water regulation/directive



Article type:
Sink faucet
Angle of inclination of aerator:
1 °
Brand:
LINEA
Cartridge with ceramic sealing discs:
Yes
Colour:
graphite
Convertible jet/shower:
Yes
Discharge height:
236 mm
Drilling diameter:
35 mm
Factory customer service:
No
Handle position:
right
Height:
416 mm
Manufacturer's warranty:
5 years manufacturer’s warranty (except on wearing parts), 10-year after-sales guarantee on spare parts, Your claim to customer service during the warranty period will be settled individually by agreement.
Material:
brass
Minimum distance wall to centre tap hole:
0 mm
Number of handles:
1
Number of tap holes:
1
Operating mode:
Lever
Operating pressure:
high pressure
Outlet:
Extractable, Swivelling
Outreach:
225 mm
Spring-guided hose shower:
No
Swivel range handle:
90 °
Swivel range outlet:
360°
Total installation height:
416 mm
Type of fitting:
Single lever faucet
Type of hose shower:
Integrated hose spray
Width:
54 mm
Worktop thickness:
40 mm

Downloads

Accessories

Dirt filter Ecco 1, 3/8", chrome
Product number: 5031005
  • Dirt filter
