Description

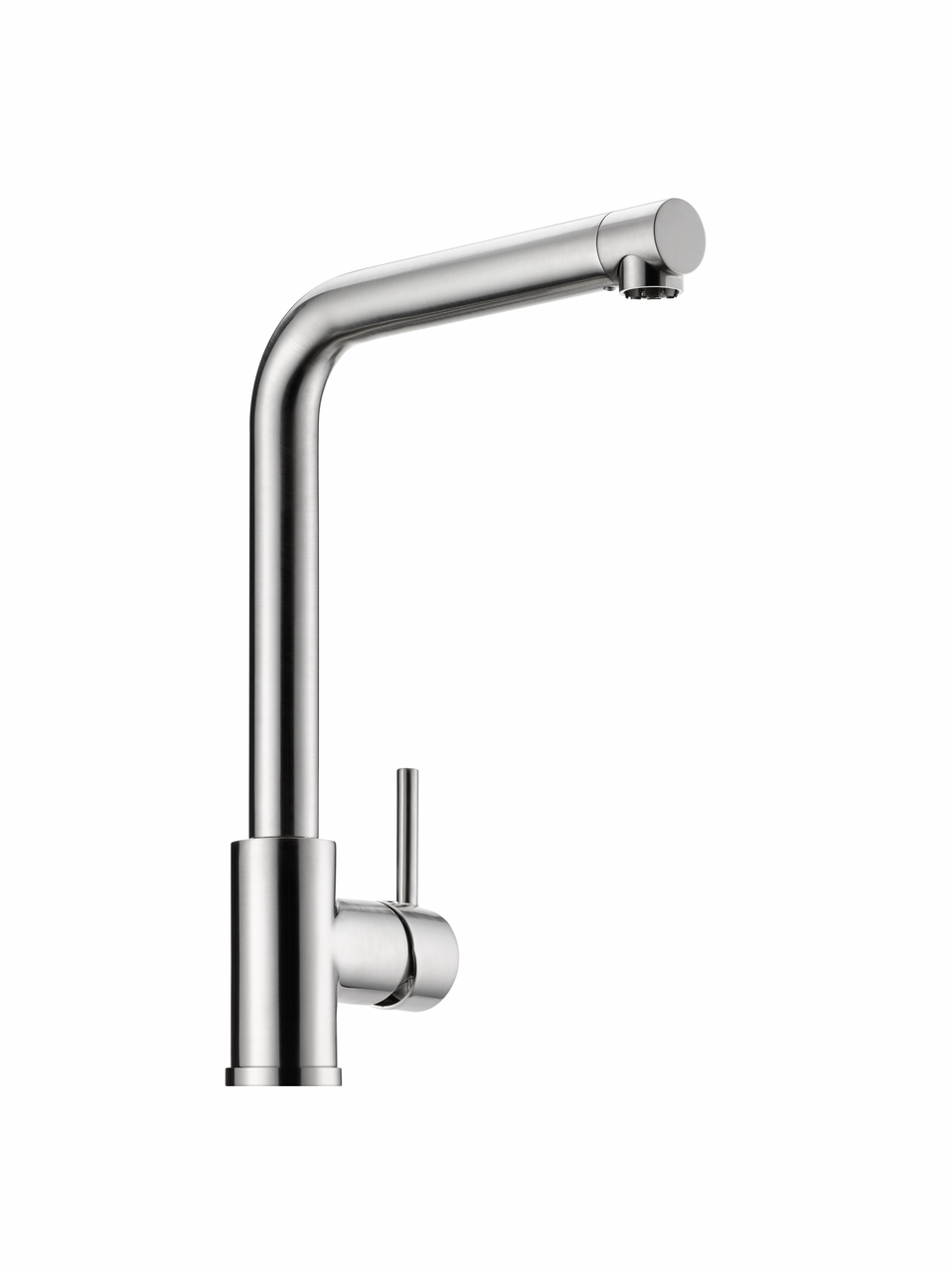

LINEA Arco 1, stainless steel finish, low pressure
The Linea Arco 1 kitchen tap is an elegant and high-quality addition to the kitchen area. Its slim design makes it look delicate and discreet, so it blends in harmoniously with the existing furnishings. Several colour variants and surface finishes are available so that personal design ideas can be implemented. The sink mixer is equipped with a lever on the side for convenient operation. The 360° swivel range allows the spout to be directed in all directions, offering maximum freedom of movement when washing up. Thanks to its height, it also makes it easy to fill pots and vases. The single-lever mixer is made of durable quality and comes with a 5-year manufacturer's guarantee. It also has a high-quality ceramic cartridge that regulates the water temperature and flow rate. The sink mixer is available as a high-pressure or low-pressure mixer.



Single lever faucet. With swivelling outlet, side lever and ceramic cartridge.
— swivel range 360°
— drill Ø 35 mm
— corresponds to the German and European drinking water regulation/directive



Article type:
Sink faucet
Anschlussart:
G 3/8“ F
Brand:
LINEA
Cartridge with ceramic sealing discs:
Yes
Colour:
stainless steel finish
Discharge height:
287 mm
Drilling diameter:
35 mm
Factory customer service:
No
Handle position:
right
Height:
319 mm
Manufacturer's warranty:
5 years manufacturer’s warranty (except on wearing parts), 10-year after-sales guarantee on spare parts, Your claim to customer service during the warranty period will be settled individually by agreement.
Material:
brass
Minimum distance wall to centre tap hole:
0 mm
Number of handles:
1
Number of tap holes:
1
Operating mode:
Lever
Operating pressure:
low pressure
Outlet:
Swivelling
Outreach:
199 mm
Spring-guided hose shower:
No
Swivel range outlet:
360°
Total installation height:
319 mm
Type of fitting:
Single lever faucet
Worktop thickness:
40 mm

Accessories

5 variations available
5 variations available
5 variations available
5 variations available
LINEA Laminar aerator HD-24 AG, chrome
Product number: 5010178
  • Accessory
5 variations available
Dirt filter Ecco 1, 3/8", chrome
Product number: 5031005
  • Dirt filter
