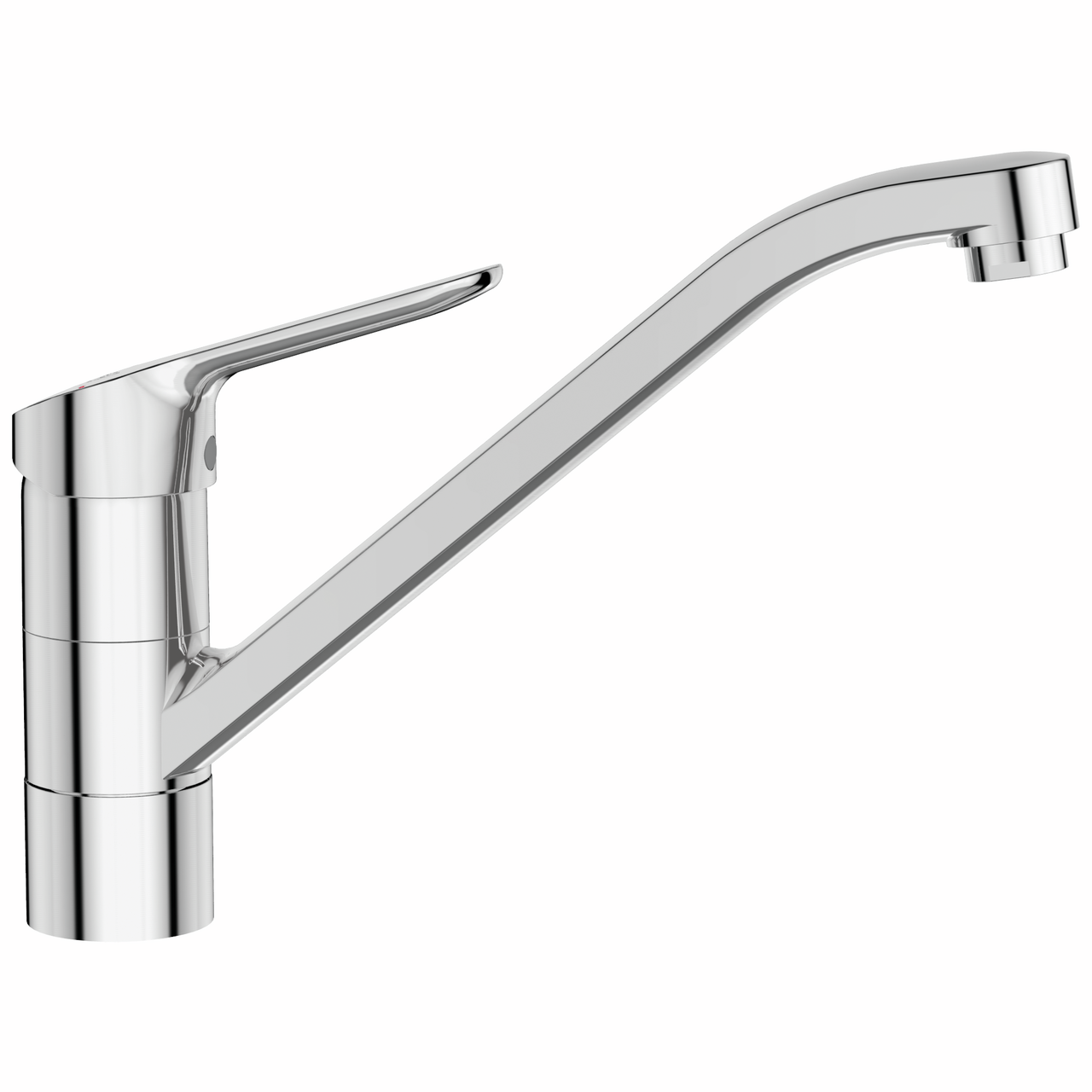

Ideal Standard Ceraflex 5 window fitting, chrome, high pressure
Product number:
5024166
- Sink faucet
- Single lever faucet
- Swivelling
Description
Ideal Standard Ceraflex 5 window fitting, chrome, high pressure

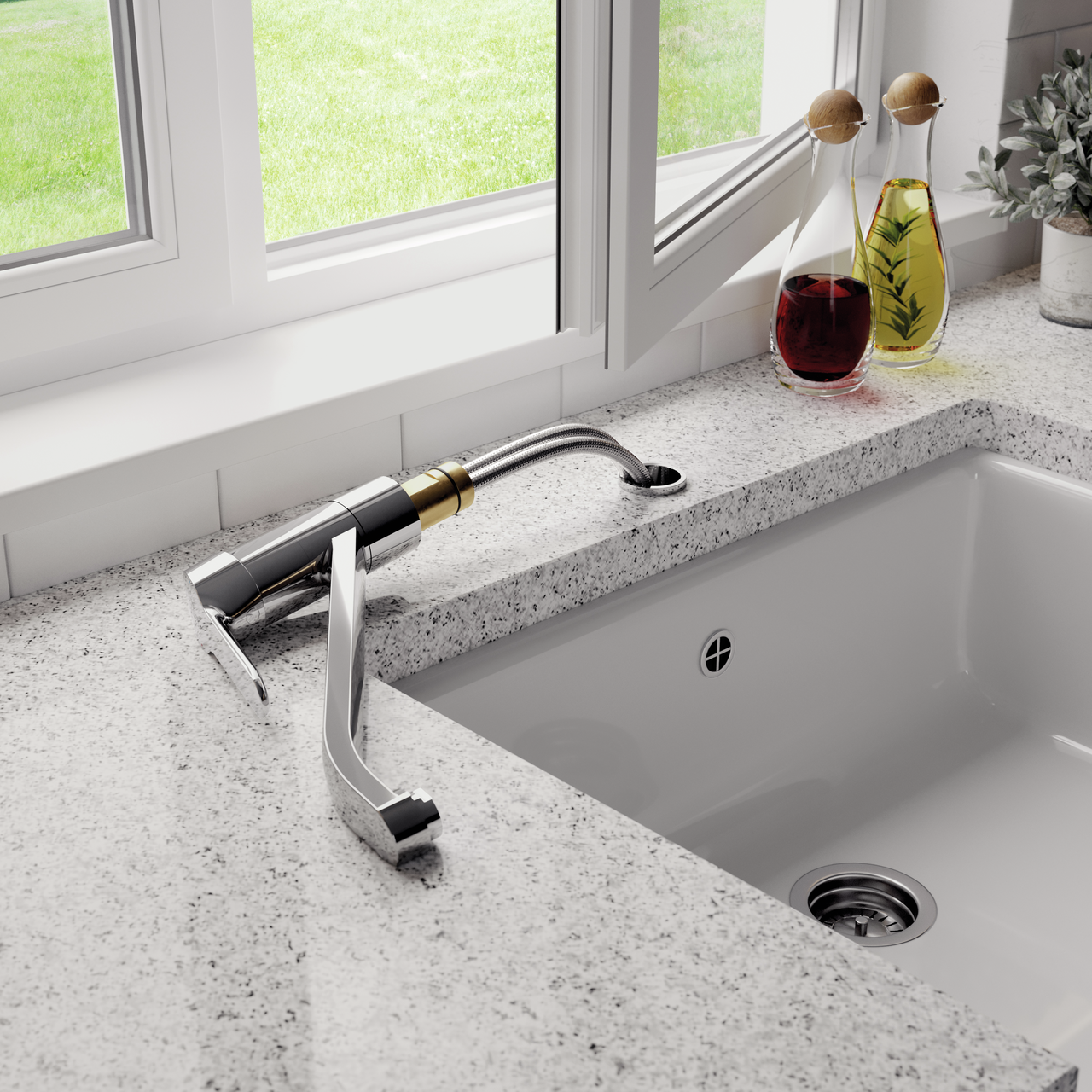

The Ideal Standard Ceraflex 5 sink mixer is ideal if the washing-up area is directly in front of the window. It can be pulled out and folded down with just one movement. This makes it easy to open the window wide for airing or cleaning. In addition, the window fitting impresses with its elegant and timeless design, which can be integrated into many kitchen interiors. The long and stylishly angled spout catches the eye. The single-lever mixer also scores points for its ease of use. The mixing lever is located directly on the housing, where it is easy to reach. As a special feature, the sink mixer is equipped with the clever BlueStart technology: Up to the centre position of the lever, only cold water is dispensed; only when the lever is turned further is hot water added. This saves both energy and water. The material of the high-pressure fitting is also impressive. The elegant high-gloss chrome plating not only makes for an attractive appearance, but also provides an easy-care and resistant surface. Inside the body of the mixer, a cartridge with ceramic seals does the mixing work. Thanks to the temperature control, scalding is avoided as the maximum water temperature can be set.
Single lever faucet. With swivelling outlet and ceramic cartridge.
— height when tilted only 25 mm
— swivel range 360°
— drill Ø 35 mm
Single lever faucet. With swivelling outlet and ceramic cartridge.
— height when tilted only 25 mm
— swivel range 360°
— drill Ø 35 mm
Artikeltyp:
Sink faucet
Anzahl Griffe:
1
Arbeitsplattenstärke:
40 mm
Armaturenart:
Single lever faucet
Aufbauhöhe gesamt:
205 mm
Ausladung:
228 mm
Auslauf:
Swivelling
Auslaufhöhe:
176 mm
Bedienungsart:
Lever
Betriebsdruck:
high pressure
Bohrdurchmesser:
35 mm
Breite:
48 mm
Farbe:
chrome
Fensterarmatur:
Yes
Griffposition:
top
Hahnlochanzahl:
1
Hebellänge:
101 mm
Herstellergarantie:
5 years manufacturer’s warranty, 10-year after-sales guarantee on spare parts
Höhe:
205 mm
Höhe gekippt:
25 mm
Kartusche mit keramischen Dichtscheiben:
Yes
Länge:
267 mm
Marke:
Ideal Standard
Material:
brass
Neigungswinkel Strahlregler:
9 °
Schwenkbereich Auslauf:
360°
Temperaturbegrenzer/Verbrühschutz:
Yes
Werkskundendienst:
Yes
