Product information:

Colonna, stainless steel, H 1160 mm

Product number: 3013073
  • Support foot
  • Material: stainless steel
  • round
Height

Prices will only be shown once logged in.

Description
Colonna, stainless steel, H 1160 mm
The Colonna table leg is characterised by its linear appearance and versatile use. It can be placed as a support element under the edge of a table or worktop and extends the available table surface. At the same time, the support leg remains discreetly in the background and makes the shelf appear to float in the room. It matches the Cippo base or the Capitello console. The table base is a round tube with a diameter of 45 mm. Integrated in the base is an elegant height adjustment that compensates for floor unevenness of up to 10 mm. Thanks to the sturdy design, the support has a load-bearing capacity of about 200 kg. The material is made of durable and rustproof stainless steel that is easy to maintain. There is a choice of two different heights. For a stable connection, the table top can be screwed from below. When used with a glass top, a stainless steel glass adapter disc can be purchased from the accessories.



Supporting foot. Linear in appearance, with washer, may be shortened. Suitable for: base leveller Cippo and console Capitello.
— tube Ø 45 mm
— plus 10 mm height adjustment
— load-bearing capacity ca. 200 kg

When using the glass adapter disk (3021056) bonding should be carried out by a glazier. The disc should be bolted from the bottom.





Article type:
Support foot
Carrying capacity:
ca. 200 kg
Colour:
Stainless steel

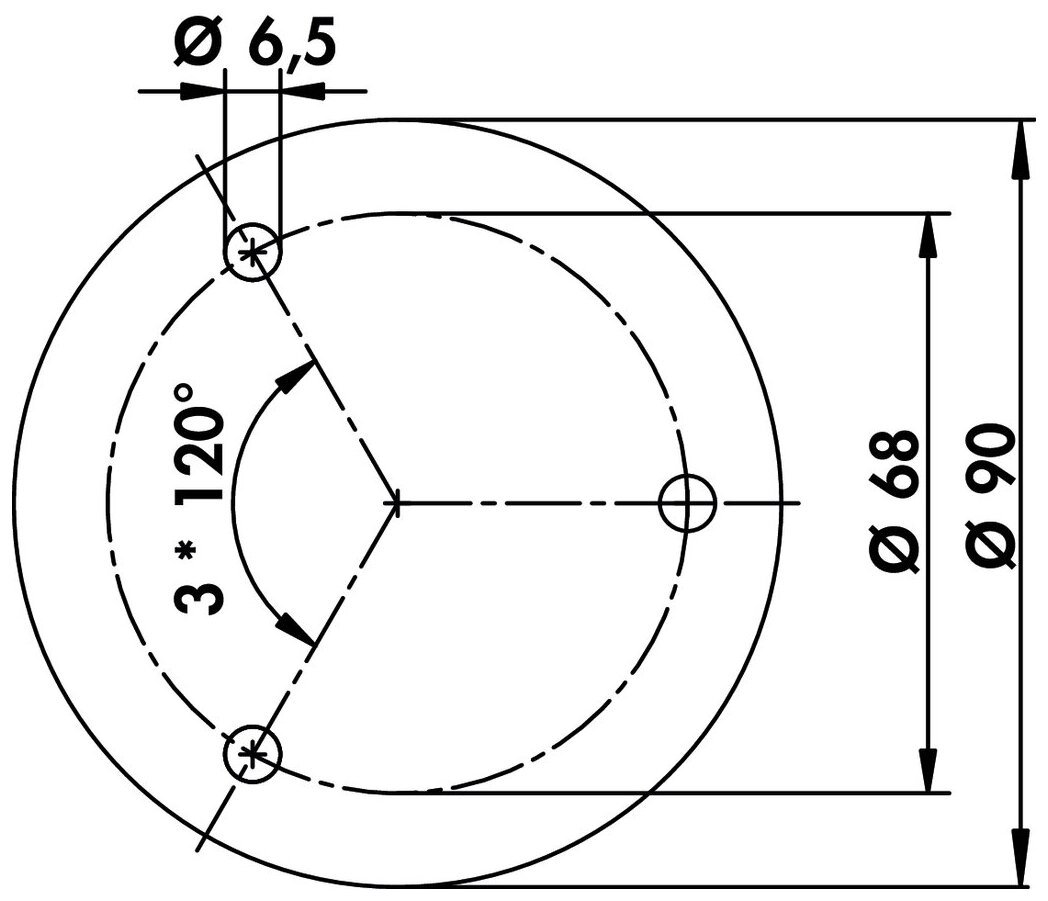

Diameter bearing surface:
90 mm
Height adjustment:
10 mm
Note:
When using the glass adapter disk (3021056) bonding should be performed by a glazier.
Properties:
can be shortened, rust-free
Shape:
round
Support element version:
straight
Tube dimension:
Ø 45 mm
With mounting plate:
No
Material:
stainless steel
Height:
1.160 mm

Downloads

Data sheet Data sheet
2D drawings 2D drawings
Measures Measures
Skip product gallery

Accessories

1 Variant available

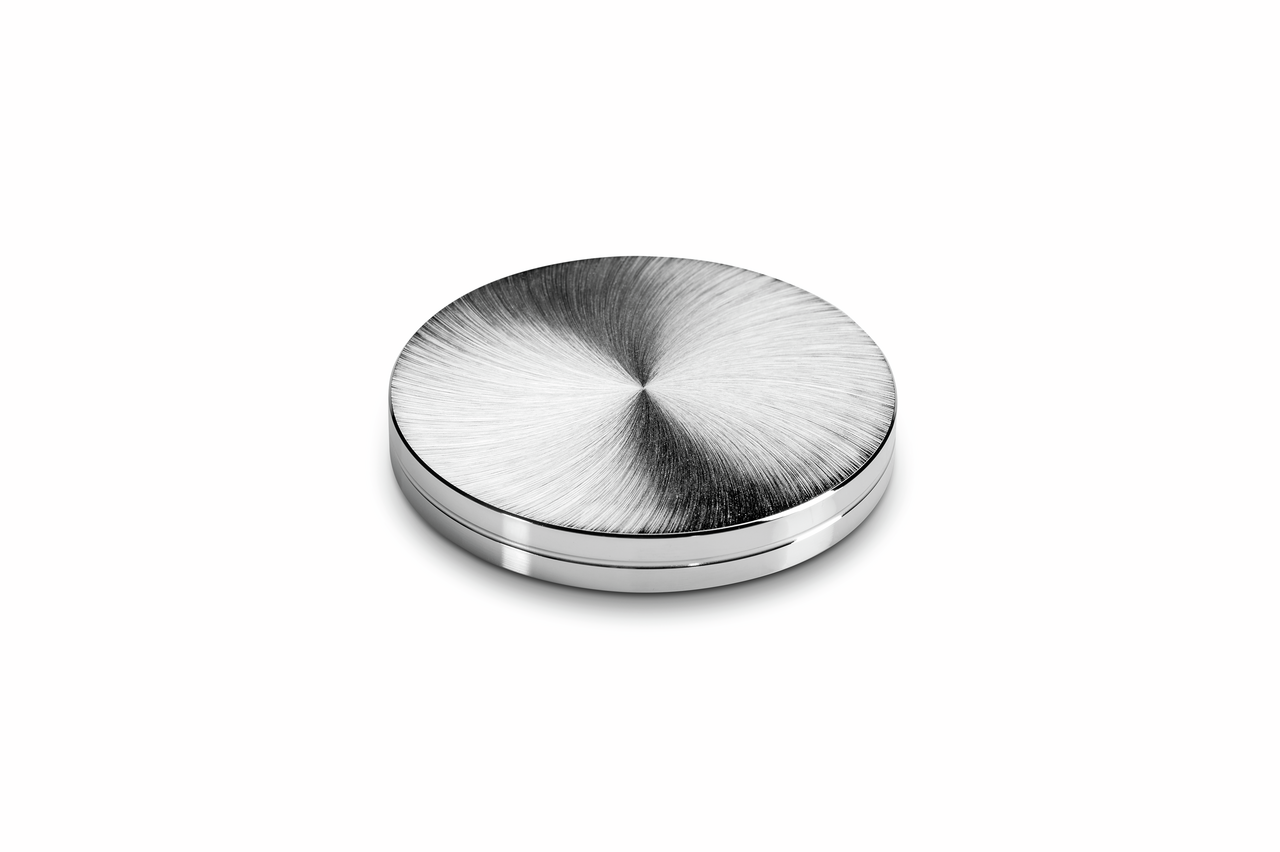

Glass adapter disk, stainless steel, Ø 90 mm
