Description

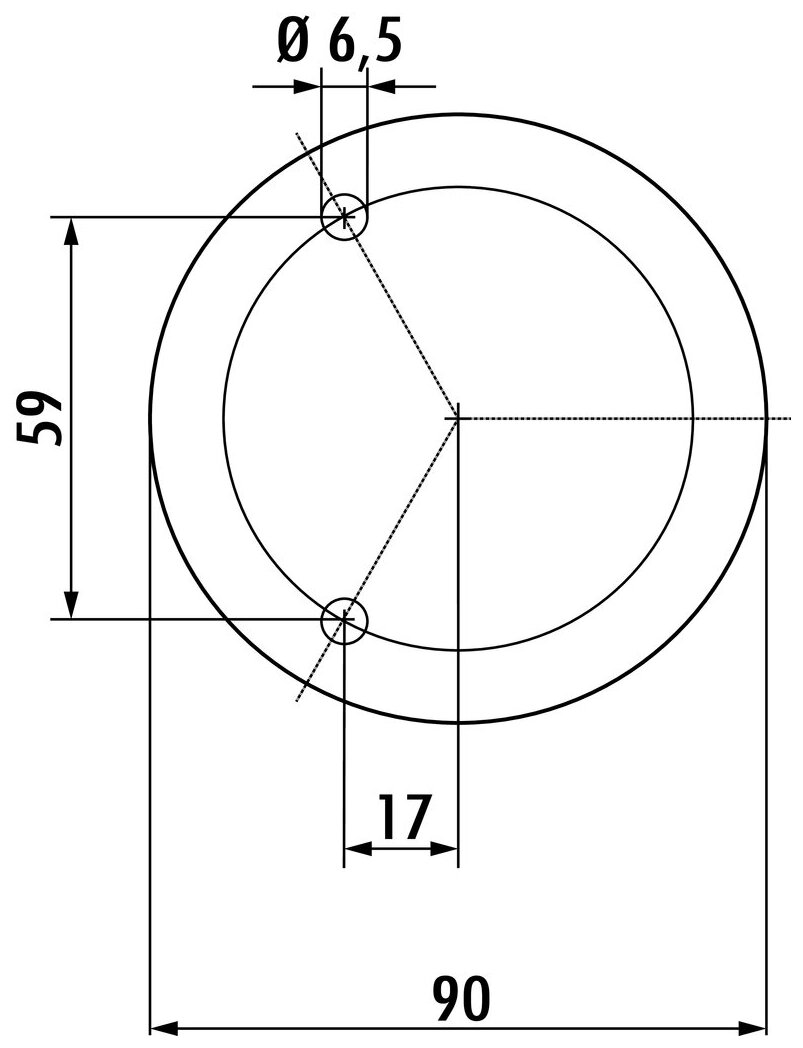

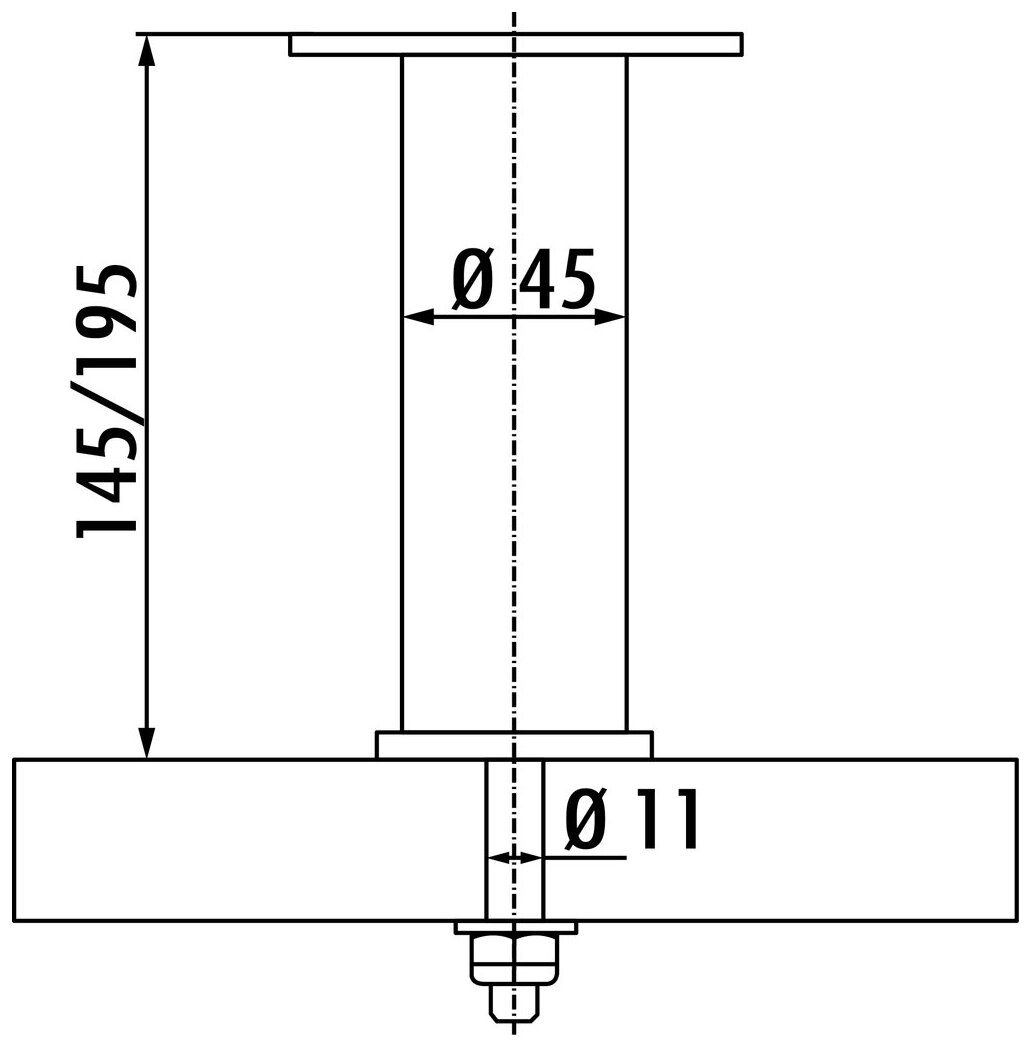

Capitello 1, stainless steel, H 195 mm, tube Ø 45 mm
The round Capitello 1 console support enables the elegant integration of a dining area in the kitchen. It is used to create a raised counter on the worktop. Its round tube design with a diameter of 45 mm blends harmoniously into many kitchen designs. In addition, the design matches the Colonna support leg and Cippo plinth leg, creating a harmonious overall look in the kitchen. The support bracket provides a large round mounting plate. A wooden counter top, which is available separately, can be screwed on from below. For use with a glass countertop, a stainless steel glass adapter plate is offered as an accessory. Thanks to the high-quality stainless steel design and the solid construction, the counter support offers a maximum load-bearing capacity of 60 kg when used in pairs and with even load distribution. Different heights are available. It is mounted on the worktop via a permanent screw fastening.



Console with washer and bolted connection. Suitable for supporting foot Colonna and base leveller Cippo.
— max. load per pair approx. 60 kg given even distribution, max. spacing of the consoles of 900 mm and max. projection of the plates of 250 mm

When using the glass adapter disk (3021056) bonding should be performed by a glazier.



Article type:
Console
Carrying capacity:
max. load per pair approx. 60 kg given even distribution, max. spacing of the consoles of 900 mm and max. projection of the plates of 250 mm
Colour:
Stainless steel
Form:
round
Height:
195 mm
Inclination angle:
Length:
90 mm
Material:
stainless steel
Note:
When using the glass adapter disk (3021056) bonding should be performed by a glazier., With washer and bolted connection
Outer diameter:
90 mm
Support element version:
straight
Tube dimension:
Ø 45 mm
Width:
90 mm

Accessories

1 Variant available
Glass adapter disk, stainless-steel, Ø 90 mm
Product number: 3021056
  • Accessory
  • Material: stainless steel
1 Variant available
Counter top, satinised glass
Product number: 3023015
  • Console
  • Material: glass
