Ricol LED, individual lamp, L 2600 mm, stainless steel coloured
Product number:
7061196
- linear light
- Built-in lamp
- 4000 K neutral white
Description
Ricol LED, individual lamp, L 2600 mm, stainless steel coloured

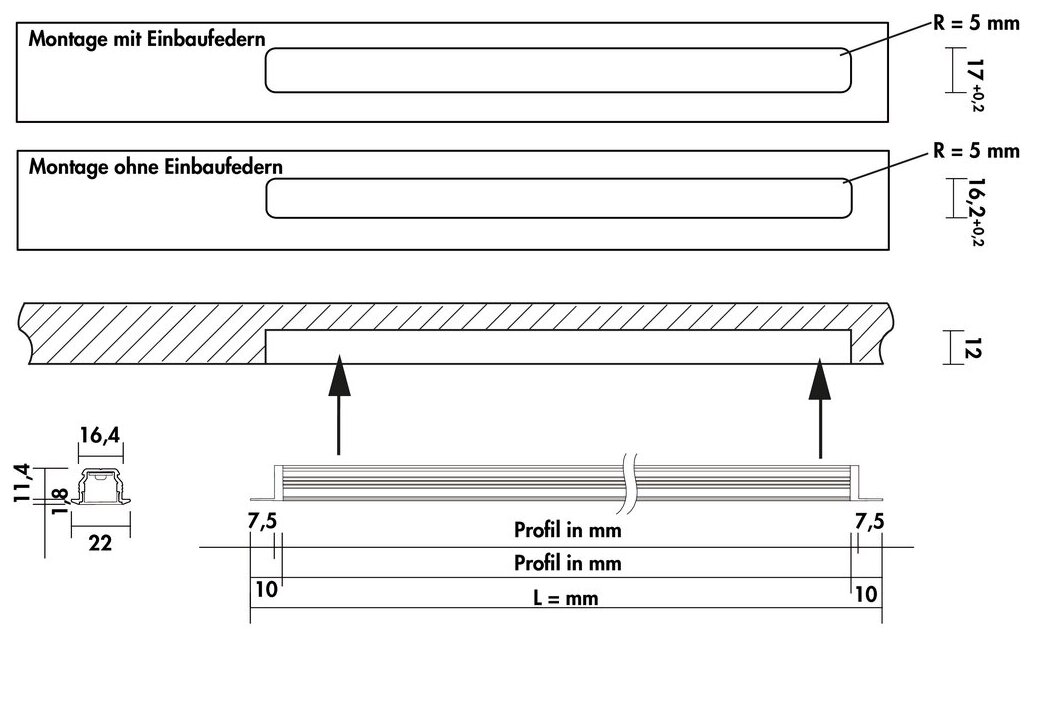

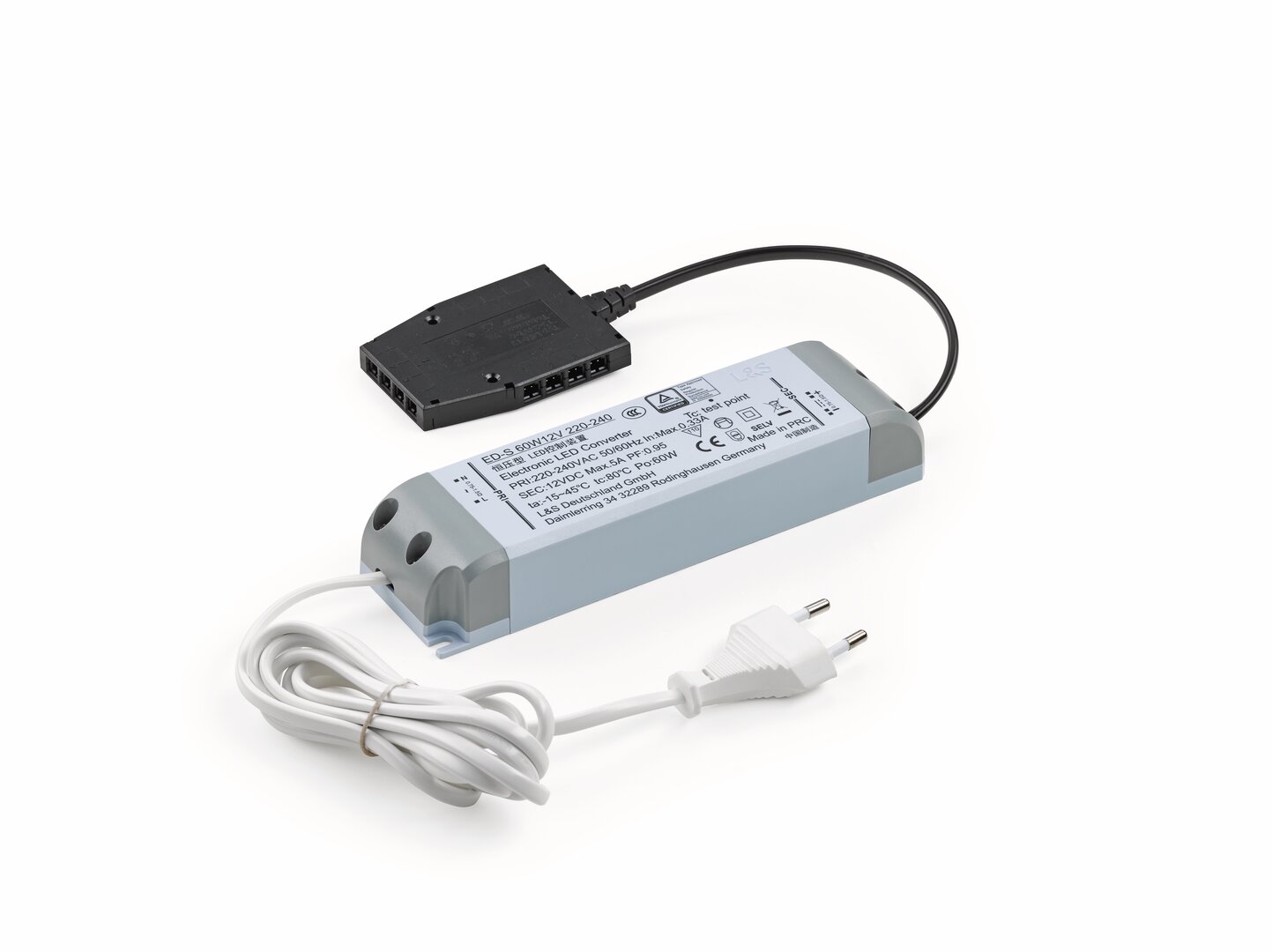

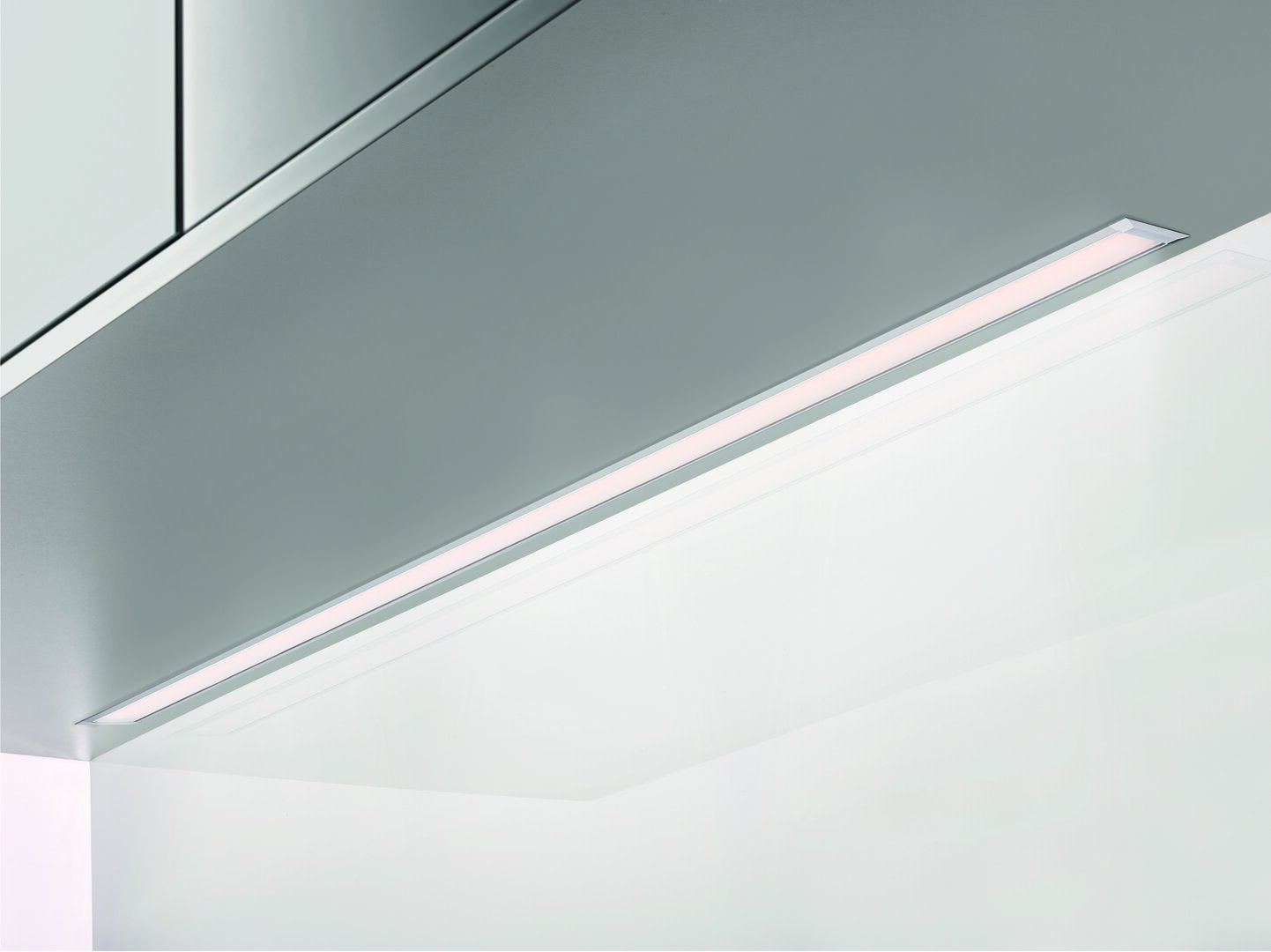

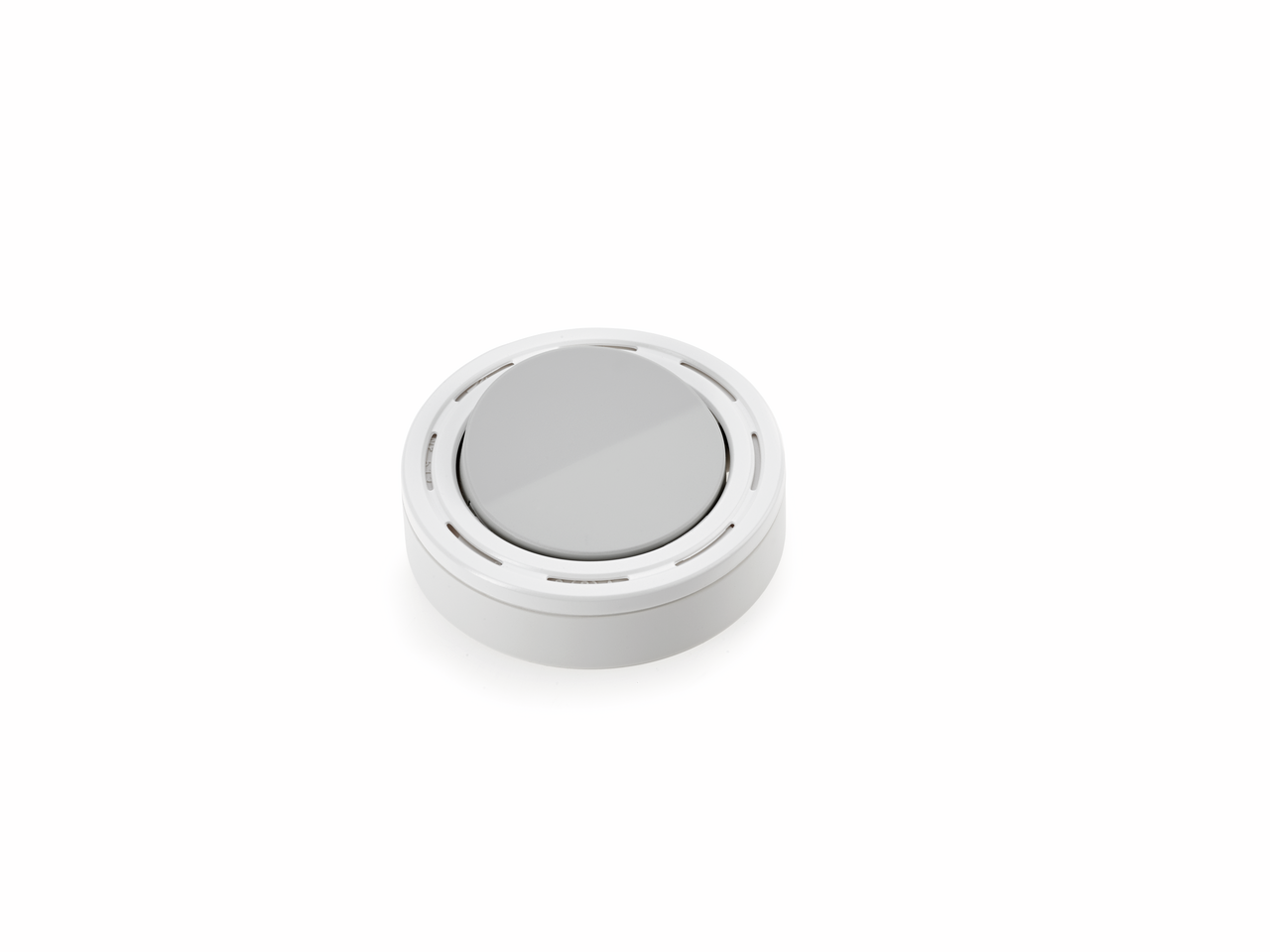

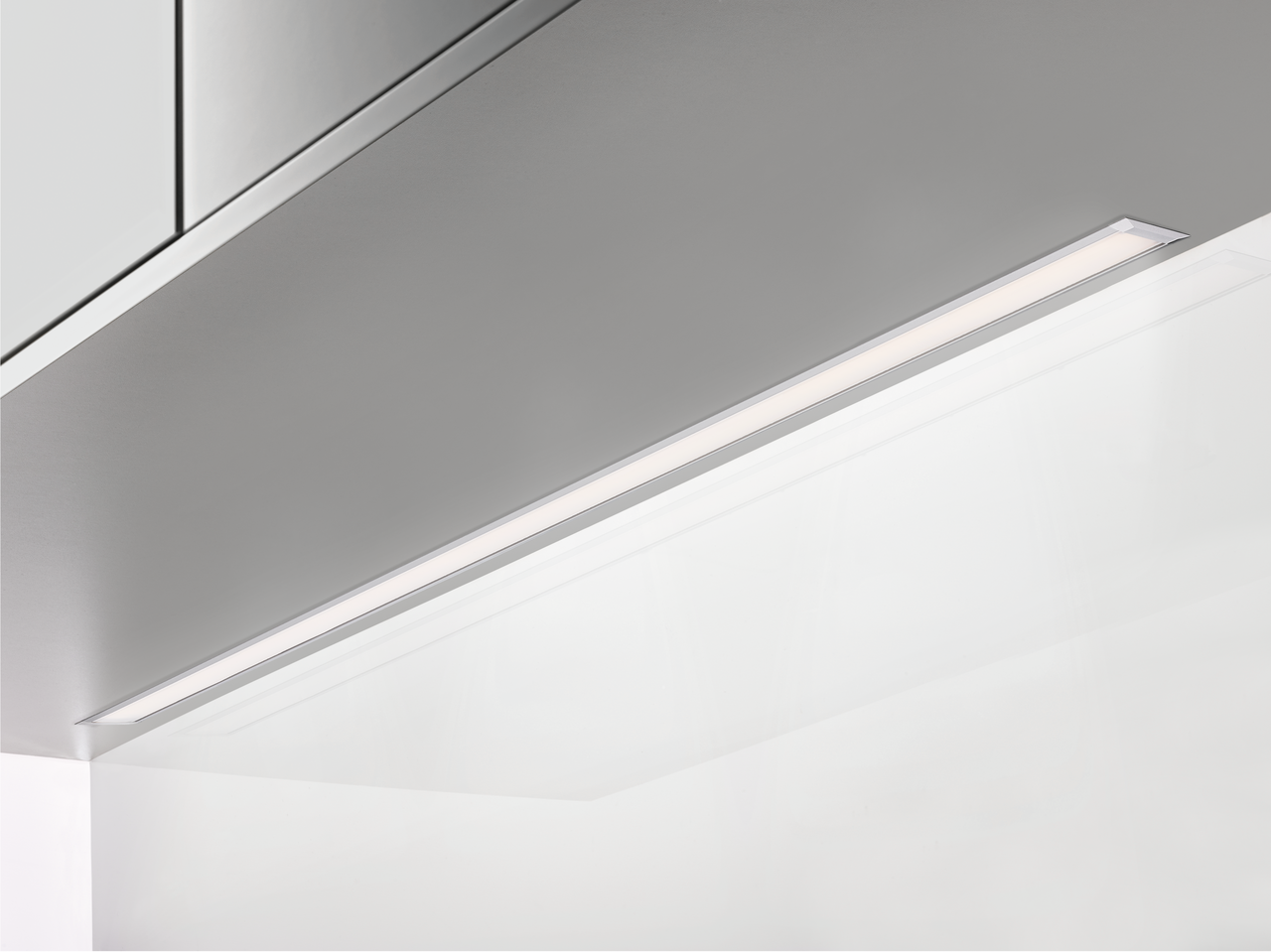

The Ricol LED recessed luminaire is a clever solution for illuminating the work area below the wall cabinets in a targeted manner without visible LED points. Visually, the luminaire convinces with stainless steel-coloured surfaces that harmonise with various designs within the kitchen architecture. The recessed profile has a length of 2600 millimetres and can be shortened if required. Four end caps are available for the terminations. The loose LED strip with supply cable on both sides has the same length and can be shortened every 25 mm. The light colour of 4000 K corresponds to a neutral white tone with a brightness of 81 lumens per watt. For the installation of the LED luminaire, a milling with a depth of 12 mm is necessary at the bottom of the wall unit. The hidden cable routing is realised without screws by means of a clamp fastening. The LED converter 30 is recommended as an optional accessory. In addition, various switch variants are available for operating the recessed luminaire.
Built-in lamp. Aluminium body, LED built-in profile, illumination without visible LED points, hidden cable routing with clamp fastening, no screws required.
Individual lamp
— 15.5 watts per meter, 4000 K neutral white
— 81 lumen/watt
— LED strip 2600 mm loose, not used in profile
— can be shortened every 25 mm, two-sided feed-in
— 2000 mm two-sided supply line
— 4 end caps enclosed separately
— installation depth 12 mm
This product contains a light source of energy efficiency class F.
Built-in lamp. Aluminium body, LED built-in profile, illumination without visible LED points, hidden cable routing with clamp fastening, no screws required.
Individual lamp
— 15.5 watts per meter, 4000 K neutral white
— 81 lumen/watt
— LED strip 2600 mm loose, not used in profile
— can be shortened every 25 mm, two-sided feed-in
— 2000 mm two-sided supply line
— 4 end caps enclosed separately
— installation depth 12 mm
This product contains a light source of energy efficiency class F.
Artikeltyp:
Luminaire
Anschluss:
On both sides
Bauart Leuchte:
Built-in lamp, linear light
Breite:
22 mm
Einbautiefe:
12 mm
Energieeffizienzklasse:
F
Farbe:
stainless-steel coloured
Farbe Gehäuse:
stainless-steel coloured
Farbtemperatur:
4000 K neutral white
Form:
angular
Homogenes Lichtfeld ohne sichtbare LED-Punkte:
Yes
Höhe:
11,4 mm
Kürzbarkeit:
may be shortened every 25 mm
Leuchtmittel austauschbar:
Yes
Leuchtmittel enthalten:
Yes
Leuchtmitteltyp:
LED
Lichtausbeute:
81 lumen/watt
Länge:
2.600 mm
Länge der Zuleitung (primär):
2.000 mm
Material Gehäuse:
aluminium
Montage/Befestigung:
With concealed fastening, clampable
Schalter:
No
Trafo / Konverter erforderlich:
Yes, must be ordered separately
weitere Teile:
incl. 4 end caps
Accessories
LED connection line, white, L 2000 mm
Subscription
Product number:
7061049
- with mini plug-in system
- Connecting element
- Length: 2.000 mm
Ricol LED strip neutral white, L 2600 mm, 40.3 W/12 V
Subscription
Product number:
7061303
- LED Stripe
2
variations available
2
variations available
