Description

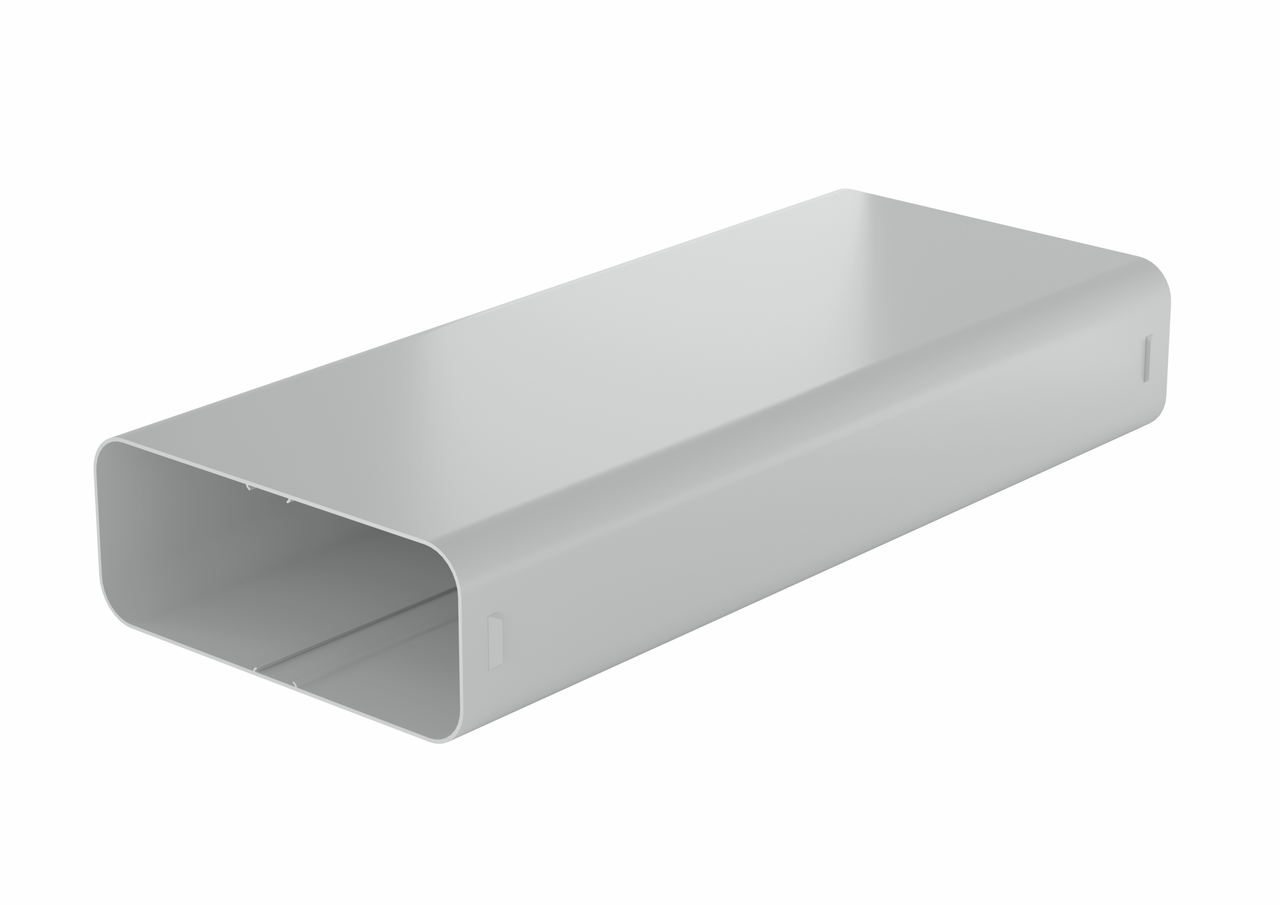

PRIME flow P-VRO 150 flat duct pipe, light grey
The 100 cm long COMPAIR® PRIME flow P-VRO 150 flat duct pipe is a high-quality component for installing an exhaust air duct in the kitchen. It offers a connection cross-section of 222 x 89 mm and can be installed vertically or horizontally. Installation in the floor is also possible through the use of optional support bars. Furthermore, the ventilation duct offers a guide for a cable duct, which is available as an accessory. Thanks to the N-click system, a firm and glue-free connection can be made via the separate universal connector.



— N-Klick system for secure connection with the universal connector
— cable routing in ventilation duct (optional)
— installation in the floor structure using a support (optional)

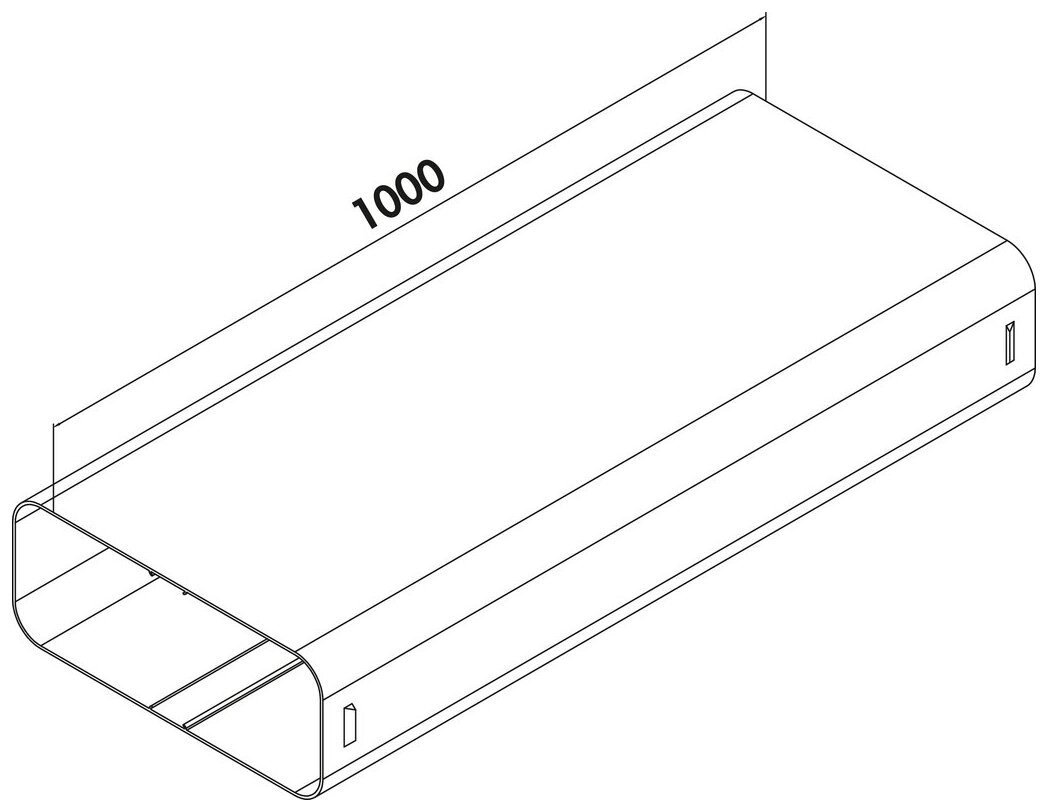

— length 1000 mm





Article type:
Ventilation pipe
Brand:
PRIME flow
Cable routing:
Optional
Colour:
light grey
Connection diameter:
150 mm
Height:
89 mm
Length:
1.000 mm
Material:
PVC
Mounting/Fixing:
N-click system with integrated latching elements
Note:
cable routing in ventilation duct (optional)
Output drive:
angular
Suitable for:
for installation in the floor structure
System dimension:
150
Width:
228 mm

Accessories

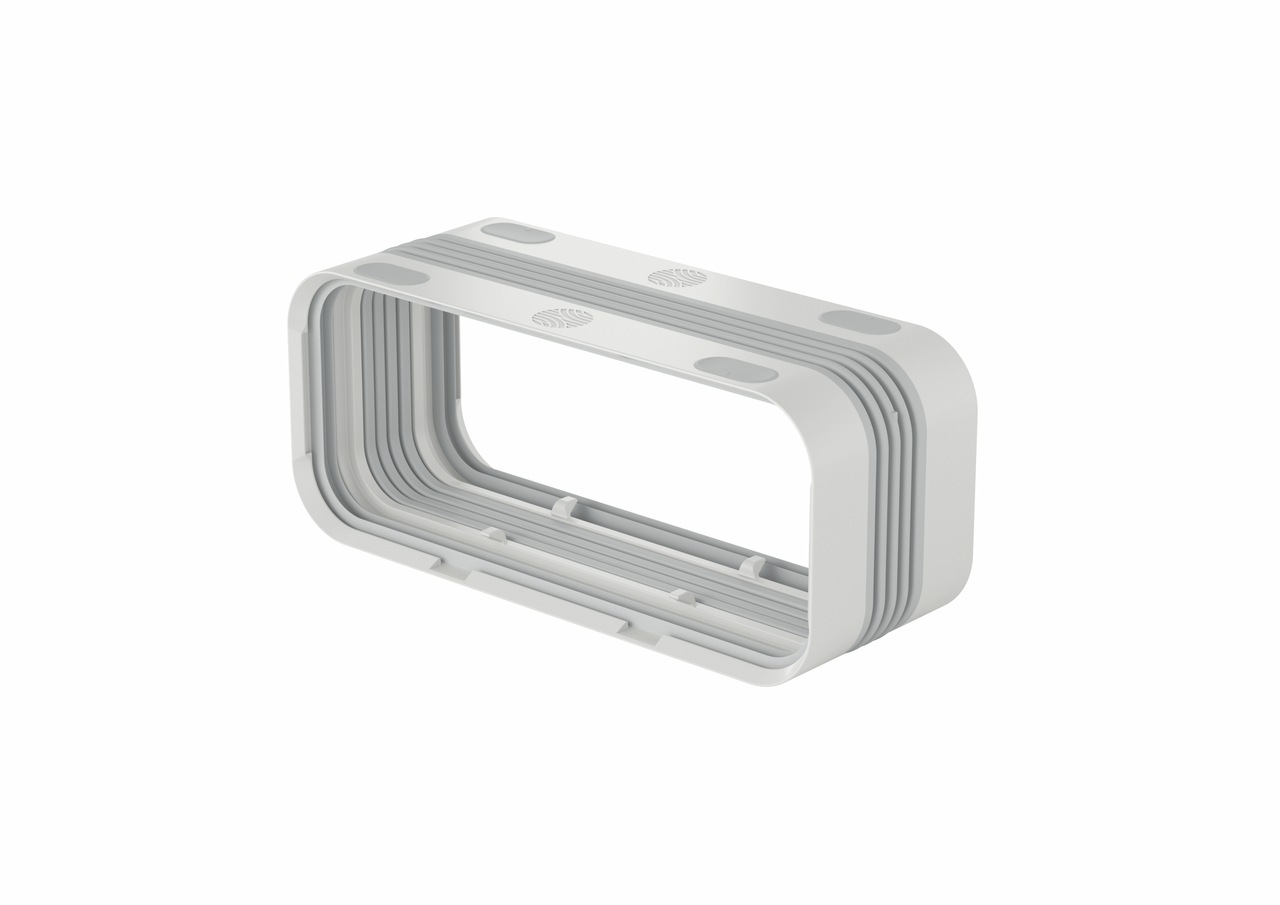

PRIME flow P-UVB 150 universal connector, light grey
Product number: 4051004
  • Connecting element
  • can be installed horizontally and vertically
P-KBK Cable duct, Connecting element, light grey
Product number: 4051002
  • Connecting element

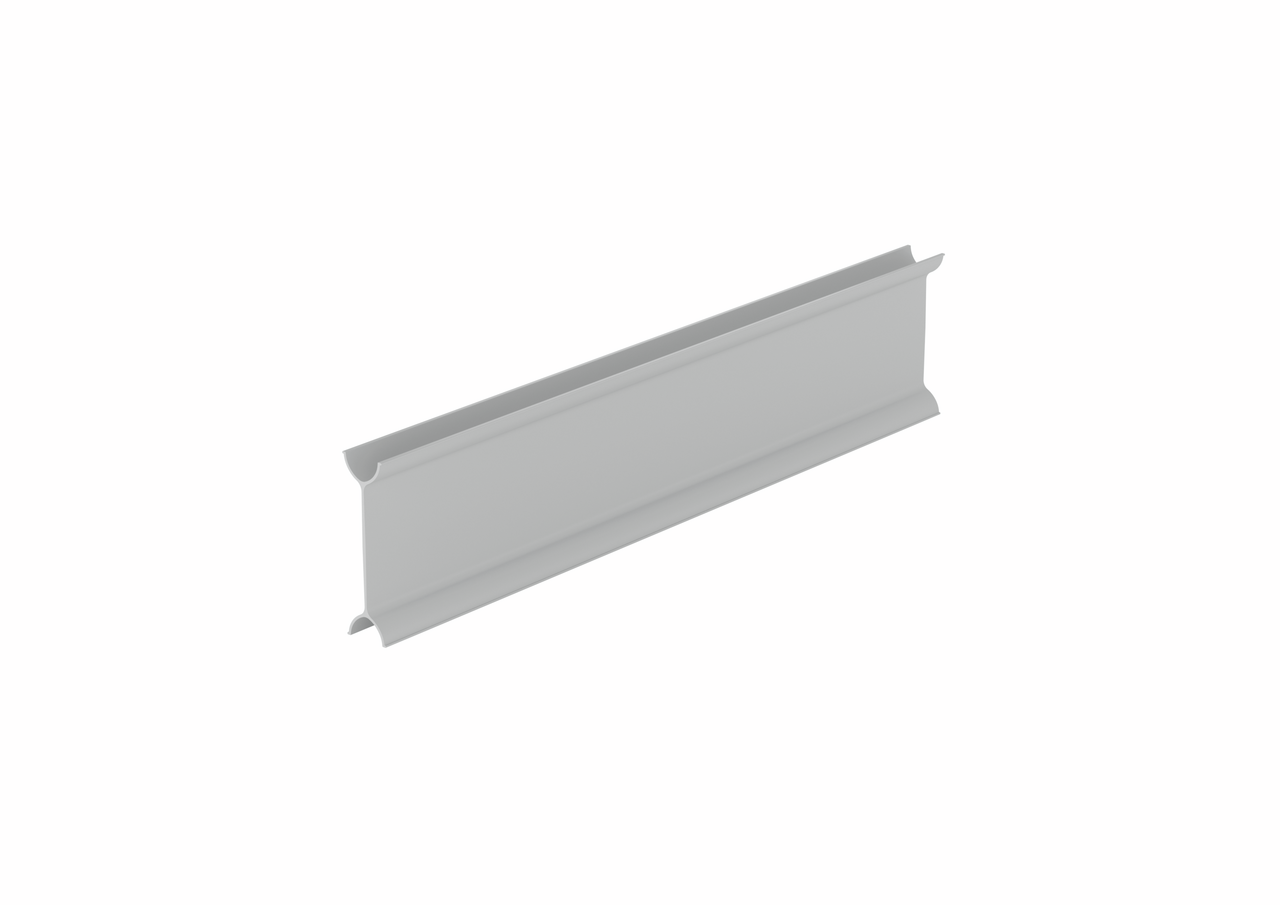

PRIME flow P-STS 150 support, light grey
Product number: 4051003
  • Connecting element
