PRIME flow P-Turbo flow 150 wall conduct incl. THERMOBOX, white, stainless steel

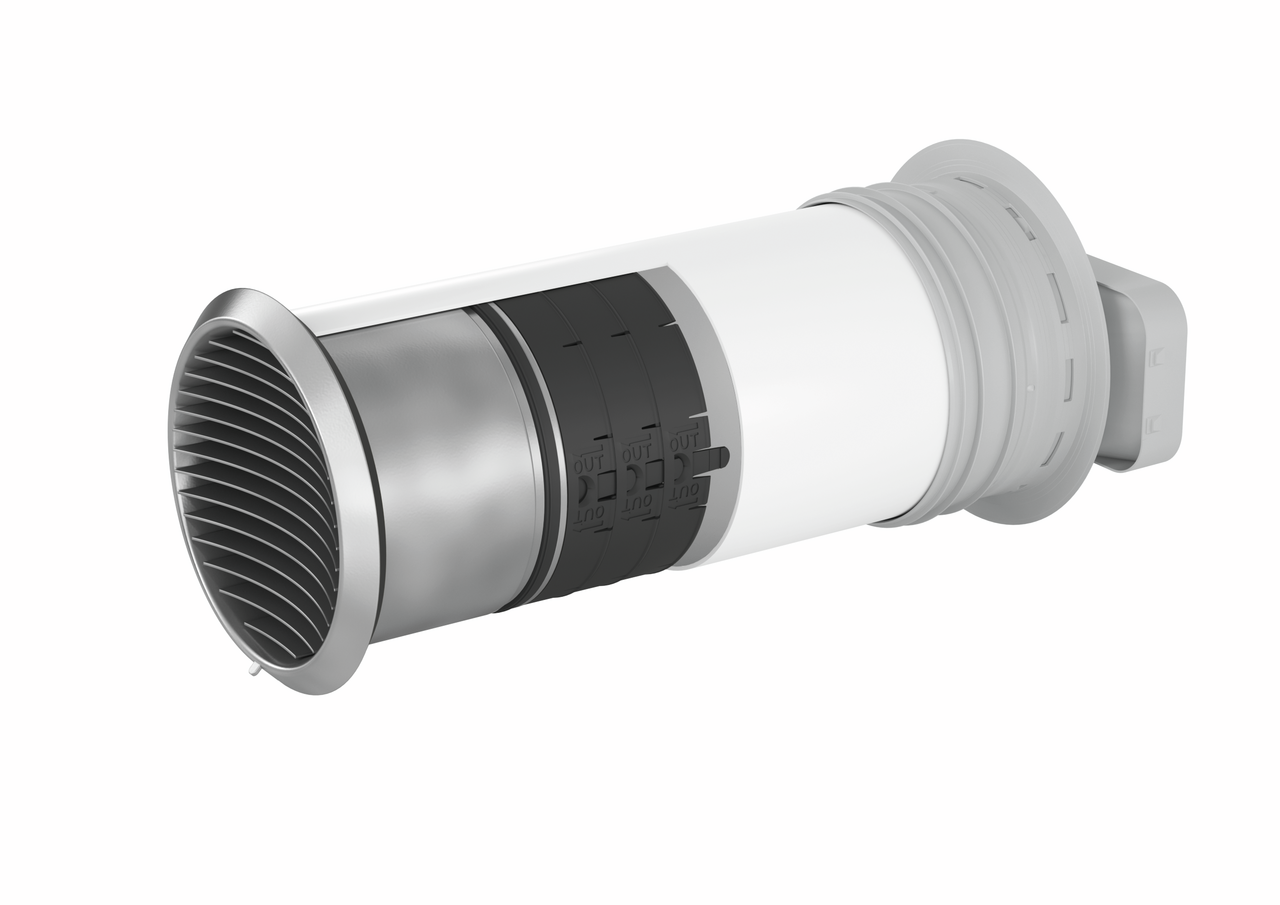

The COMPAIR^® PRIME flow P-Turbo flow 150 wall conduct including THERMOBOX is an innovative solution for integrating the extractor hood into an exhaust air system. It is part of the COMPAIR PRIME flow^® system, which stands for state-of-the-art technology and flexible application options. The exhaust air wall conduct set includes a mechanical THERMOBOX heat retention system for reliable thermal insulation of the exhaust air opening. The weatherproof stainless steel louvre is used outdoors. Thanks to the N-Click system of the P-Mas 150 wall connection piece, a secure connection is created with the universal connectors belonging to the series on the inside. It is possible to connect flat adapters, round pipes and round pipe bends directly. The complete package includes a shell construction set for the time-independent preparation of the installation during the shell construction phase. The corresponding pipe is suitable for a wall thickness of up to 550 mm and can be shortened to 220 mm as required. A nominal diameter of 162 mm or 164 mm is required for the core hole drilling. The enclosed hard foam plugs including plaster edge and alignment aid serve to protect against dust and dirt. Thanks to the wall sleeve with three lip seals, the pipe is fixed and sealed off from the inner wall.

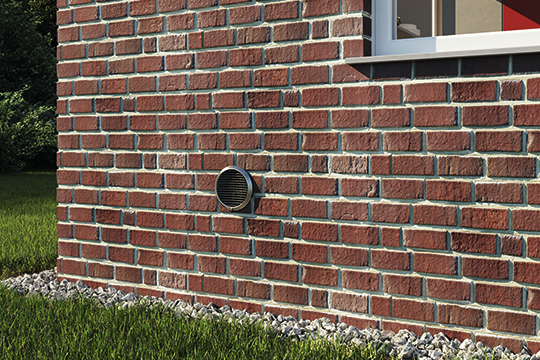

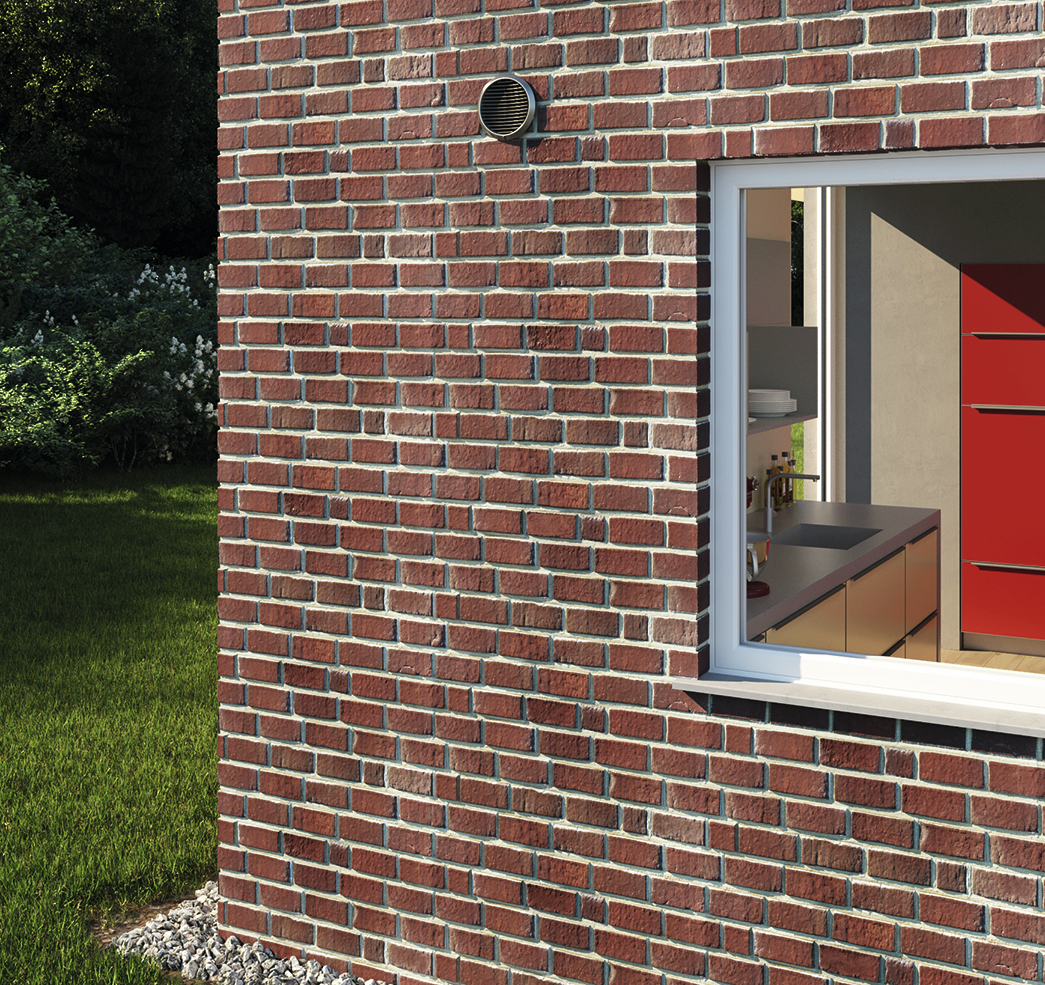

Wall conduct, incl. THERMOBOX heat retention system and Turbo stainless steel external blind for installation close to the ground and for conventional installation at ceiling height.
Two-stage installation:
1. Assembly of the separately packaged construction kit
2. Toolless insertion of the heat retention system and the blind

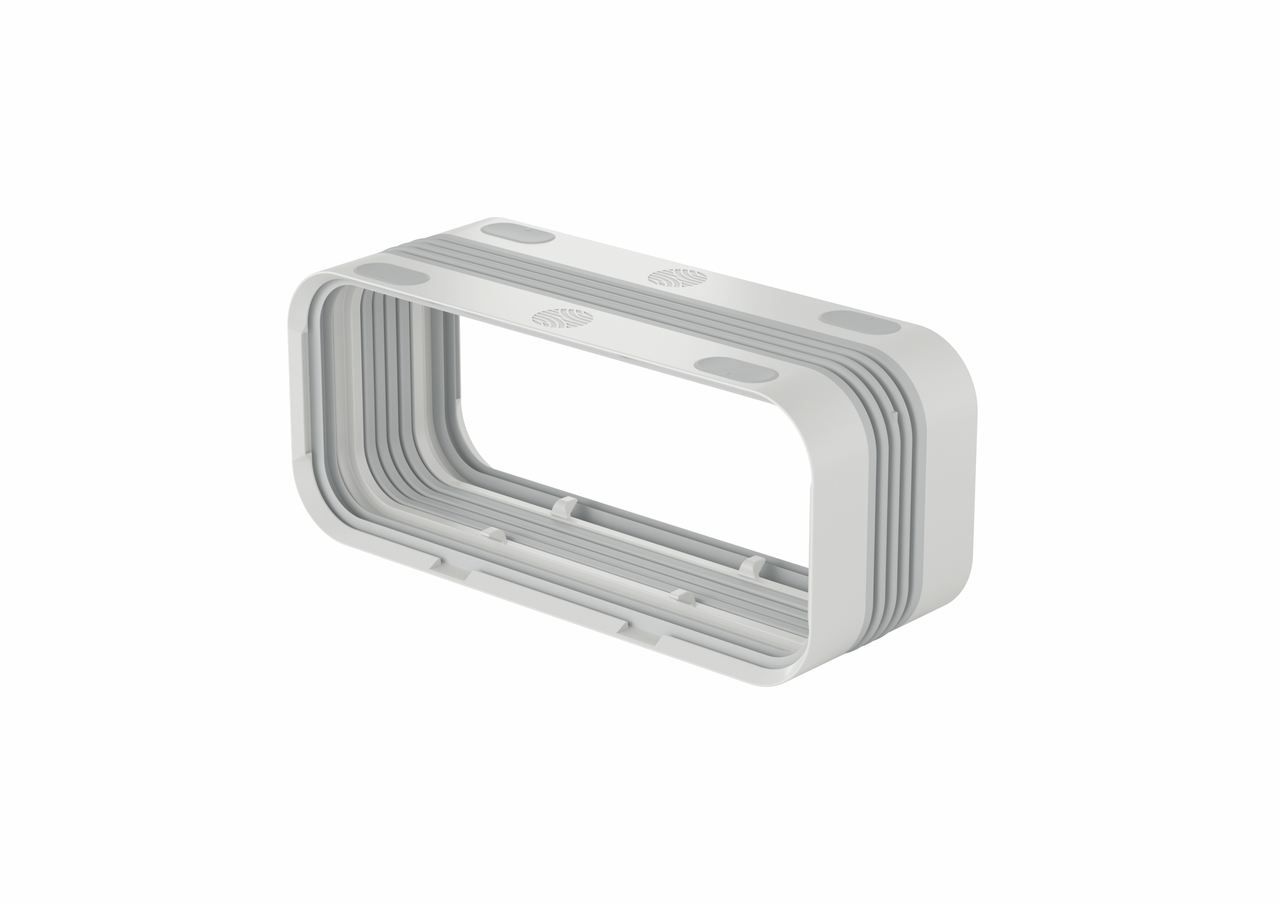

— N-Klick system for secure connection with the universal connector
— direct connection of the flat adapter, round pipe or round pipe bends
— Blower-Door certified (necessary opening pressure >65 Pa)

Raw construction set:
— raw construction set for installation in the wall at any time
— max. wall thickness 550 mm, can be shortened to 220 mm
— core hole drilling in nominal Ø 162 or 164 mm
— hard foam plugs to protect against dirt during the construction phase
— wall sleeve for tool-free installation and sealing against leakage
