PRIME flow P-EST 150 end piece, light grey
Product number:
4051018
- Connecting element
- N-click system with integrated latching elements
Description

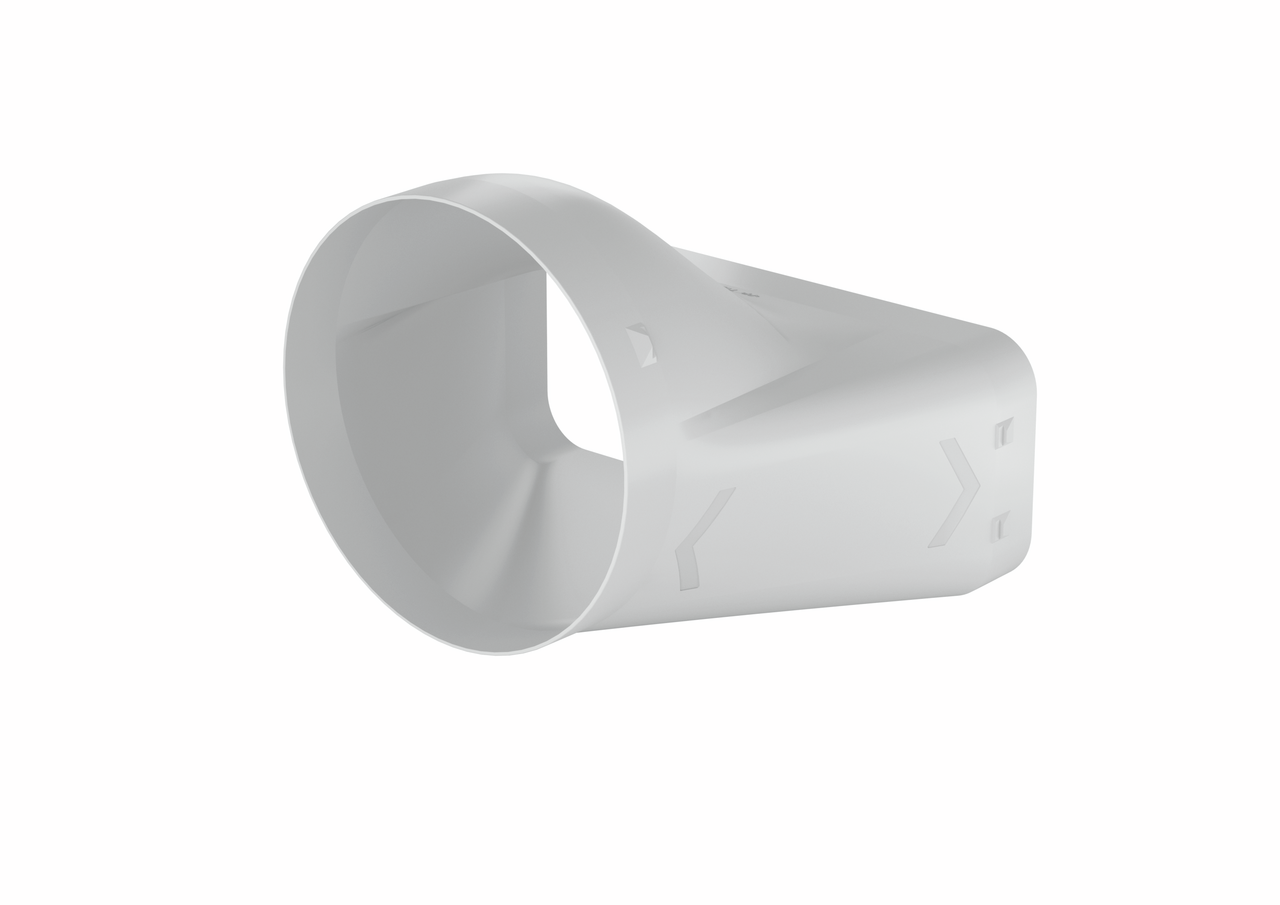

PRIME flow P-EST 150 end piece, light grey

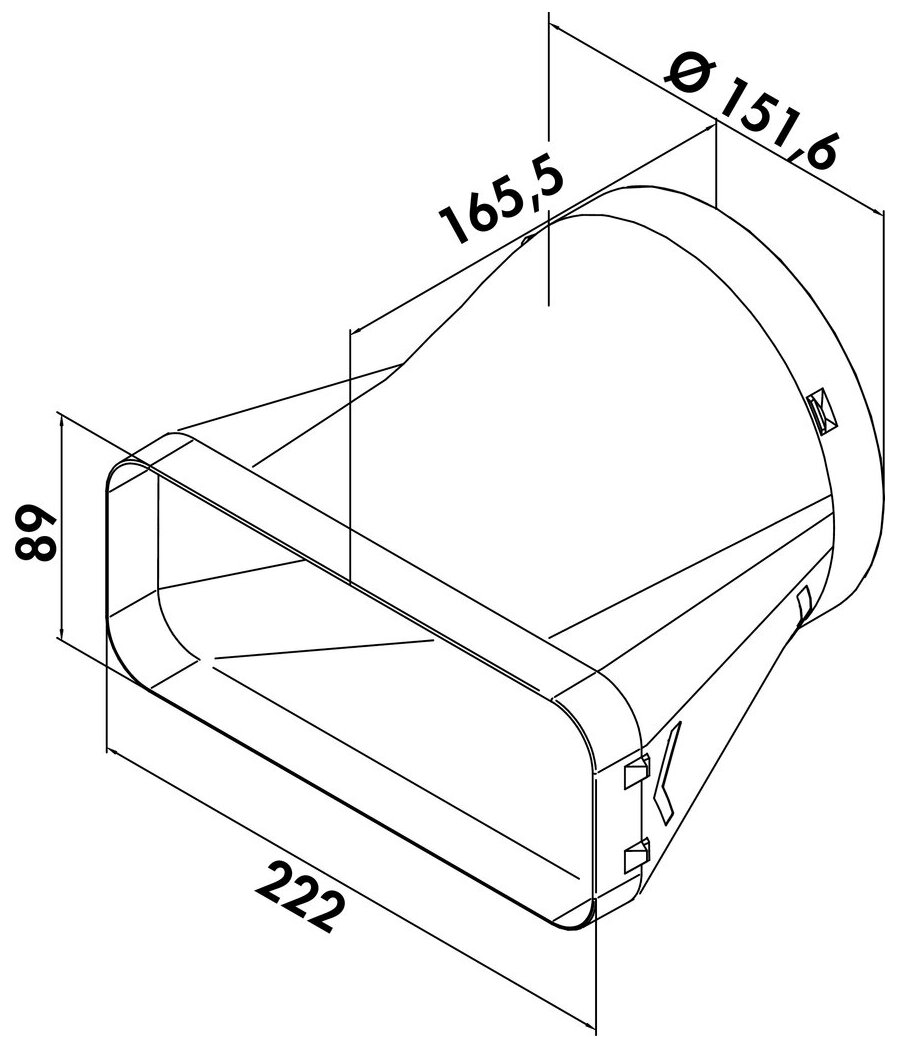

The COMPAIR® PRIME flow P-EST 150 end piece provides a direct transition from a flat to a round exhaust air duct. Its use allows the kitchen ventilation system to be laid flexibly. Optimised flow guidance enables a loss-free transition. The ventilation fitting has a round connection piece with a diameter of 150 mm to a flat connection with the dimensions 222 x 89 mm. Thanks to the N-click technology, the connection element can be plugged on without tools or adhesives.
— N-Klick system for secure connection with the universal connector
— for direct transition from flat to round
— optimised flow guidance enables loss-free transition
— N-Klick system for secure connection with the universal connector
— for direct transition from flat to round
— optimised flow guidance enables loss-free transition
Article type:
Connecting element
Brand:
PRIME flow
Colour:
light grey
Discontinued item:
No
Further:
optimised flow guidance enables loss-free transition
Length:
165,5 mm
Mounting/Fixing:
N-click system with integrated latching elements
Output drive:
angular, round
Suitable for:
for the direct transition from flat duct to round pipe
System dimension:
150
Width:
222 mm
