Product information:
LINEA Arco 5 window fitting, black matt, high pressure
Product number:
5011332
- Sink faucet
- Single lever faucet
- Swivelling
Description

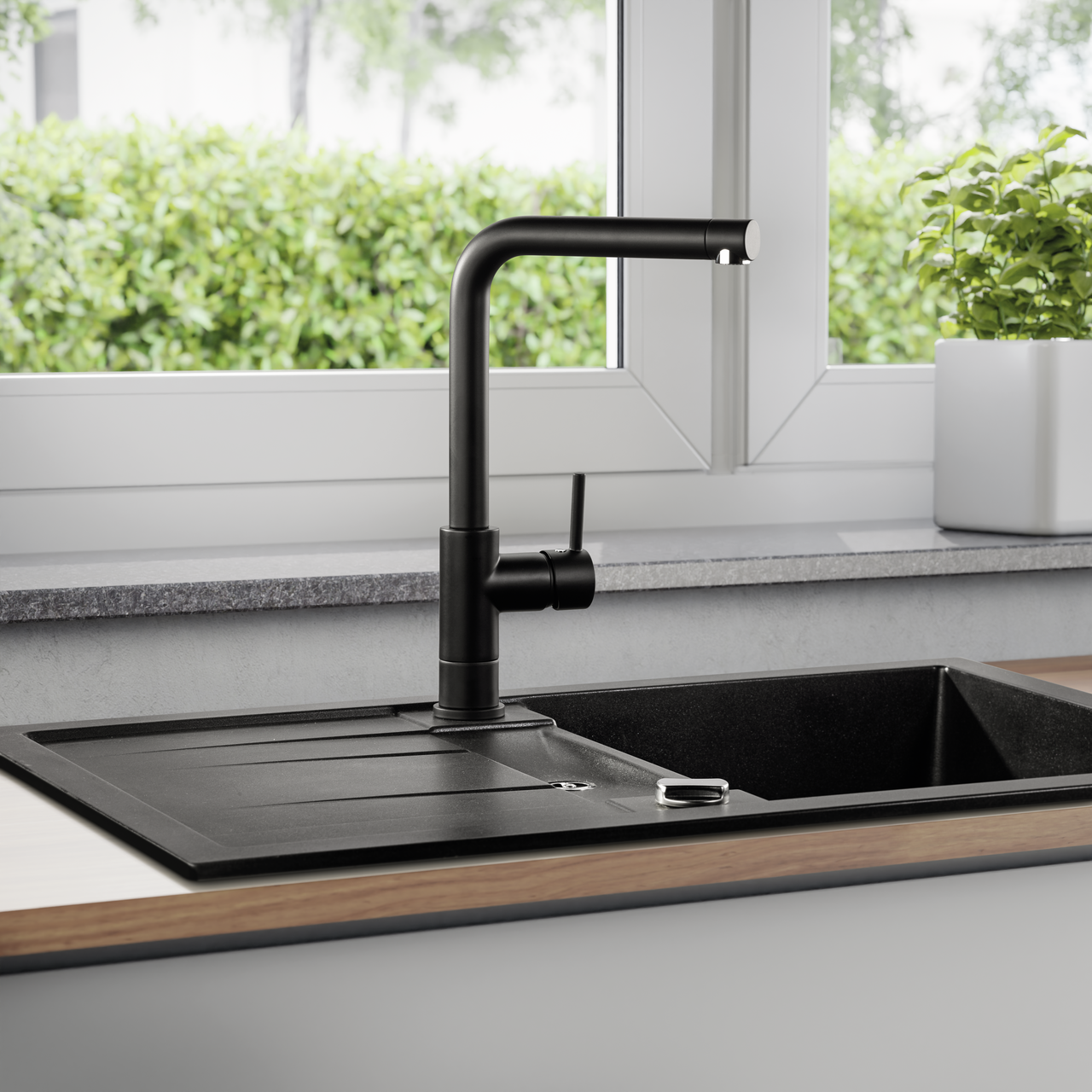

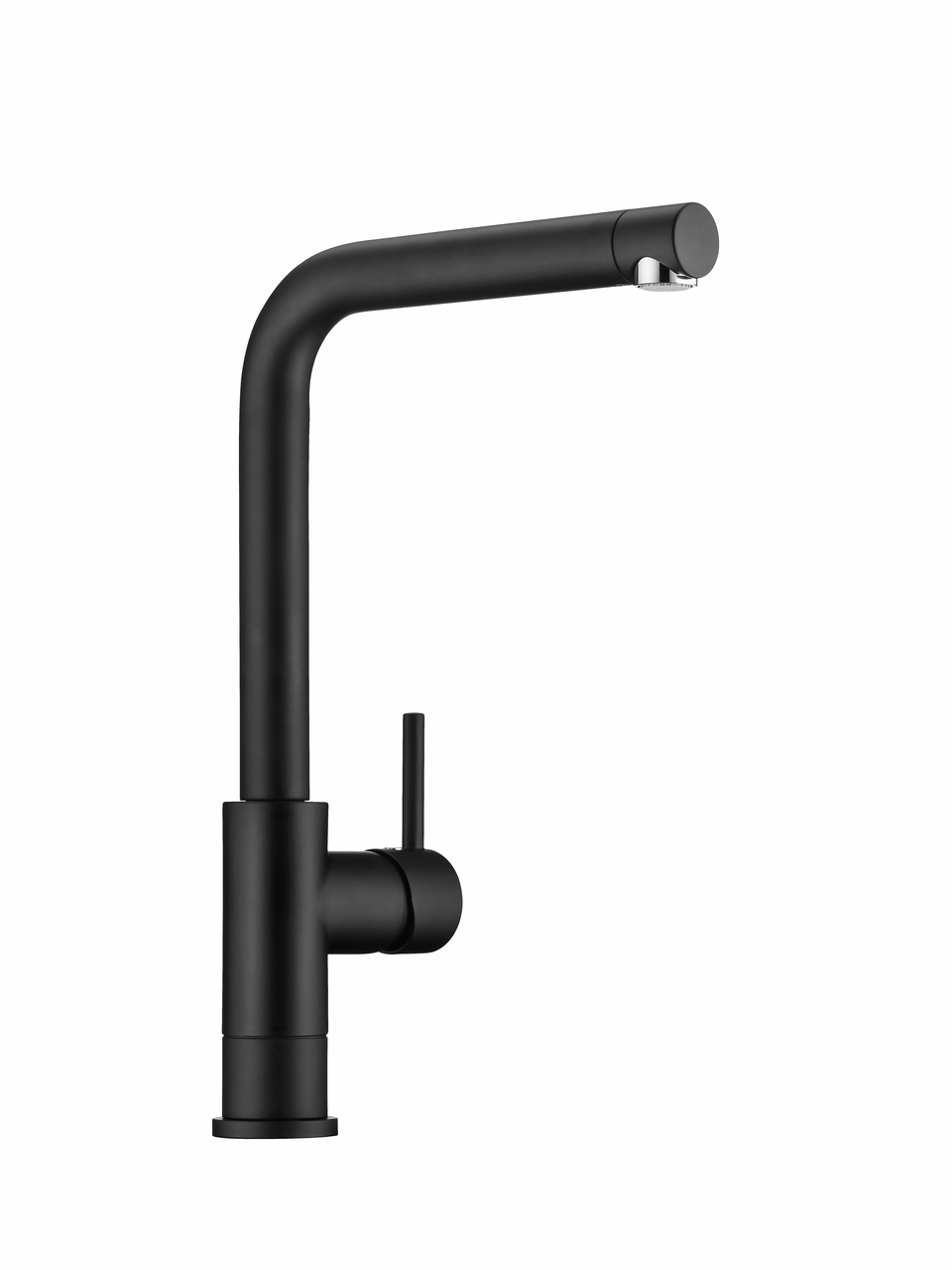

LINEA Arco 5 window fitting, black matt, high pressure

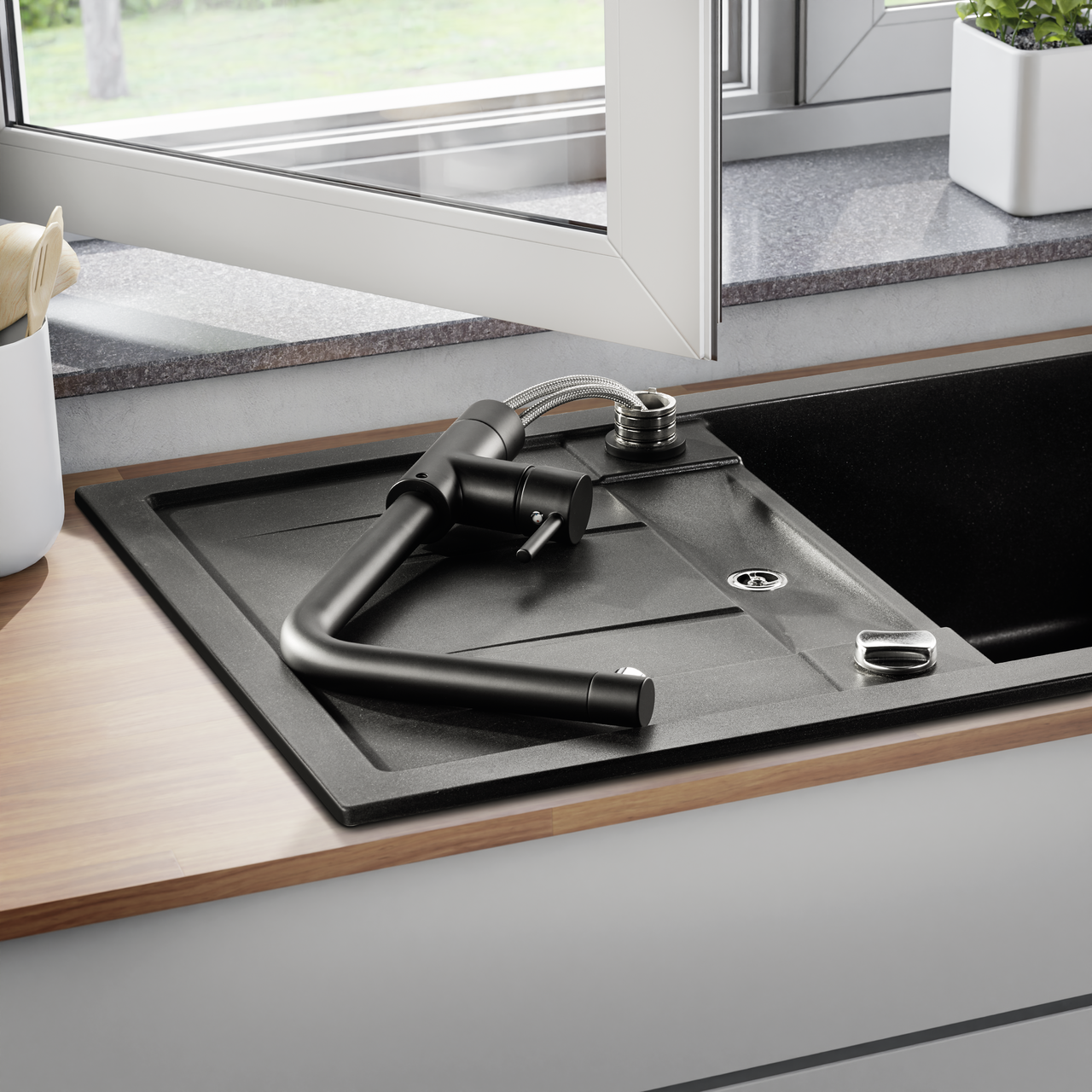

The Arco 5 kitchen mixer from the Linea series scores with elegance, harmonious curves and high functionality. It presents itself in a slim, unadorned design that integrates itself filigree and unobtrusively into any kitchen design. As a special feature, it has a removable body that can be detached from the base and folded down in one easy step. In this way, the sink unit can be realised directly in front of the window: It can be opened completely without the fitting getting in the way. At the same time, the window fitting offers a flexible swivel range of 360°. It is conveniently operated via a handle on the side. The sink fitting is also convincing in terms of quality. High-quality materials and durable, easy-care coatings are used. There is a choice of different versions to meet all requirements for modern surfaces. A precision cartridge with ceramic seals is also integrated. To ensure that the single-lever mixer matches the technical equipment, the model is optionally available as a high-pressure fitting or a low-pressure fitting. It can be installed directly in the tap surface of the sink.

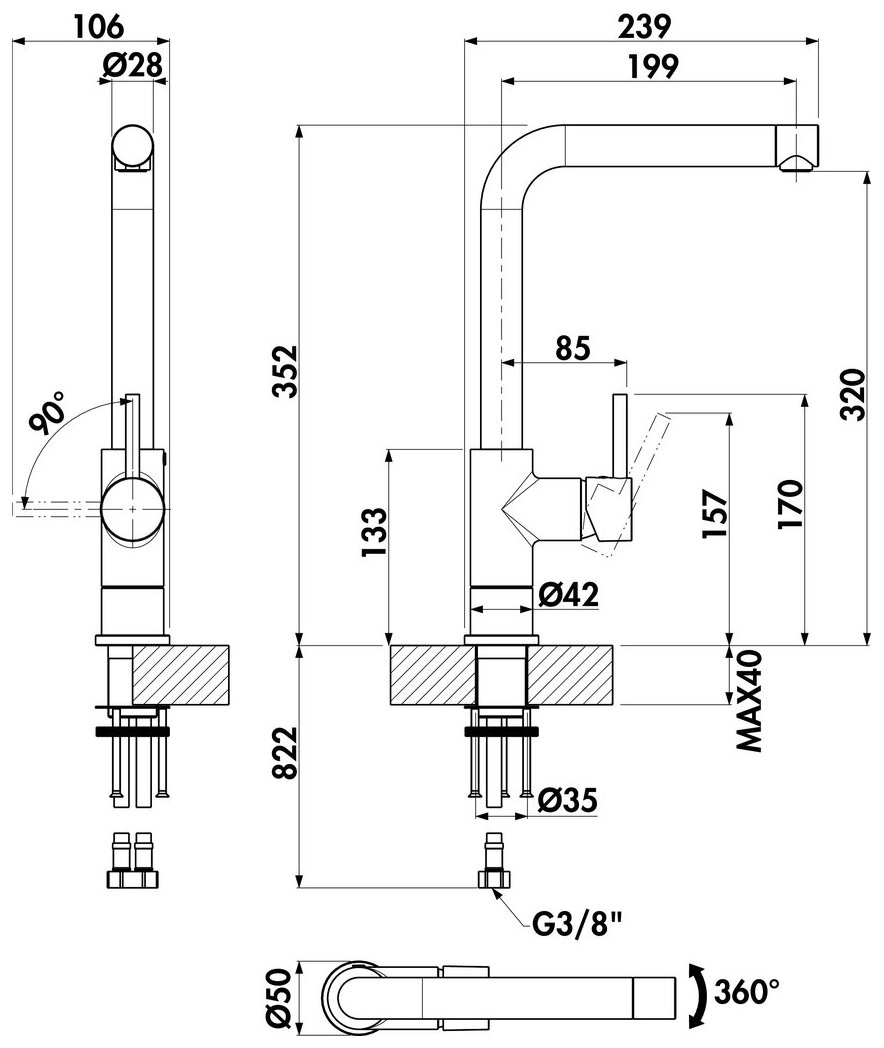

Single lever mixer. With swivelling outlet and ceramic cartridge.
— height when tilted only 45 mm
— swivel range 360°
— drill Ø 35 mm
Single lever mixer. With swivelling outlet and ceramic cartridge.
— height when tilted only 45 mm
— swivel range 360°
— drill Ø 35 mm
Article type:
Sink faucet
Brand:
LINEA
Cartridge size:
35 mm
Cartridge with ceramic sealing discs:
Yes
Colour:
black matt
Connection hoses:
900 mm
Connection type:
G 3/8“ F
Discharge height:
320 mm
Drilling diameter:
35 mm
Handle position:
right
Height:
352 mm
Height tilted:
45 mm
Manufacturer's warranty:
5 years manufacturer’s warranty (except on wearing parts), 10-year after-sales guarantee on spare parts, Your claim to customer service during the warranty period will be settled individually by agreement.
Material:
brass
Number of handles:
1
Number of tap holes:
1
Operating mode:
Lever
Operating pressure:
high pressure
Outlet:
Swivelling
Outreach:
199 mm
Surface/coating:
powder coated
Swivel range outlet:
360°
Total installation height:
352 mm
Type of fitting:
Single lever faucet
Width:
239 mm
Window fitting:
Yes
Worktop thickness:
40 mm
Assembly
More
Accessories
5
variations available

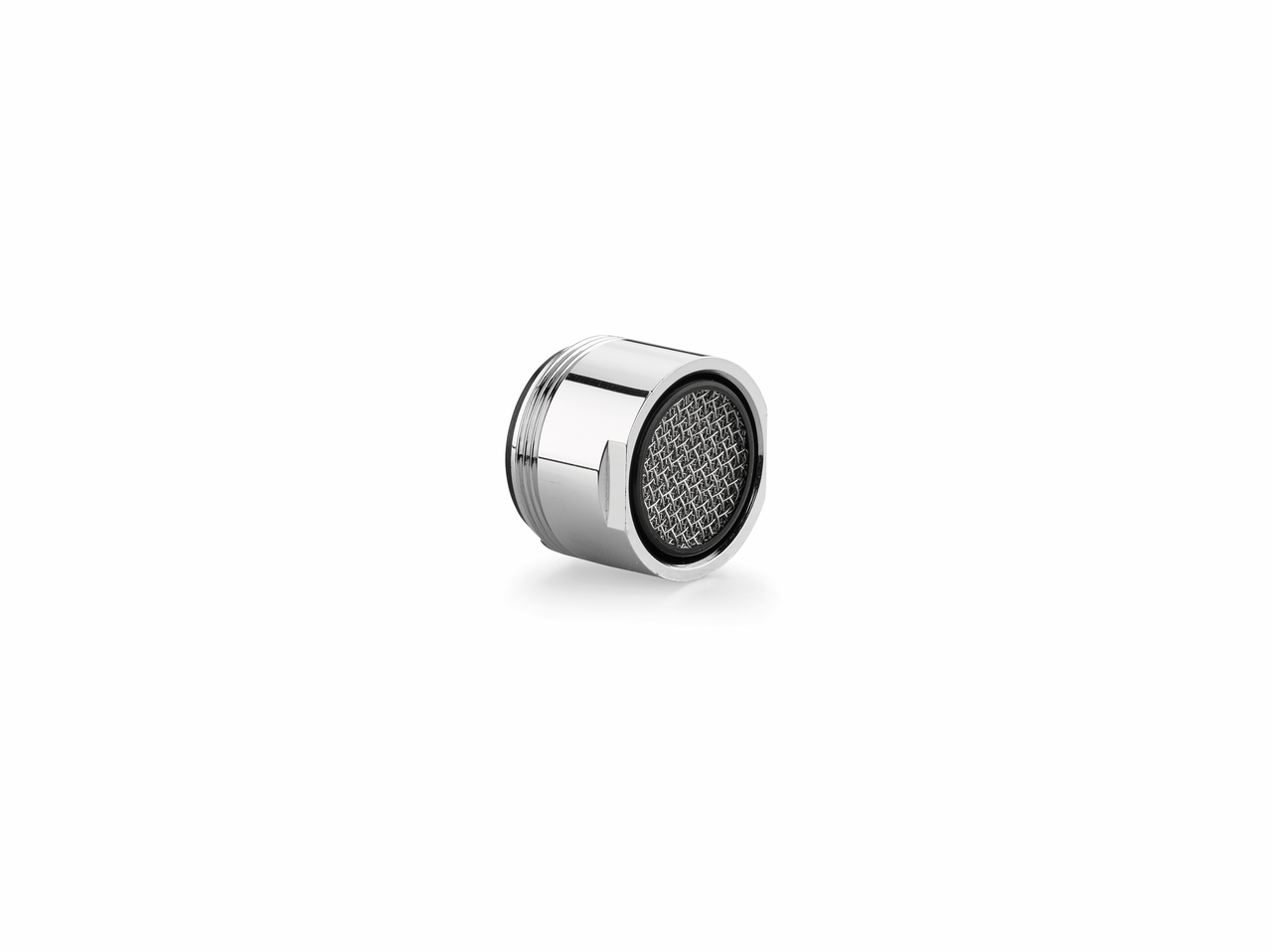

LINEA Laminar aerator HD-24 AG, stainless steel finish
