Corno Turno 60, set (sink and Turno faucet)

Product number: 1041001
  • Built-in sink
  • Flush mounted sink
  • Eccentric set

Prices will only be shown once logged in.

Description
Corno Turno 60, set (sink and Turno faucet)
The Corno Turno 60 fitted sink presents itself with minimalist aesthetics, including a swivel single-lever mixer that is firmly integrated into the basin wall. The innovative sink combination thus meets the highest demands for flexibility and convenience in an urban kitchen design. With just one handle, the flush tap, which can be infinitely swivelled by 180°, can be lowered into the basin on both sides, thus enabling a window to be opened at worktop level. The swivelling spout always ensures a vertical water inlet, while the ergonomic lever mixer at the spout end is very easy to operate. The single bowl and high-pressure tap are made of high-quality stainless steel with extra-durable and easy-care properties. The functional sink has a particularly flat rim for a harmonious transition to the worktop and thus allows surface-mounted and flush installation. The sink set is equipped with a basket valve with push-button eccentric fitting in a stainless steel finish and a drain and overflow system. The sink and tap can be covered with an optional two-piece chopping board, creating an additional work surface for small kitchens.



Built-in sink. 3½" basket strainer valve flush with push-button excenter fitting. With single-lever mixer integrated into the bowl wall, stainless steel finish, swivel spout 180°, 120° rotating.
— flat edge: also suitable for flush mounting
— suitable for worktop thicknesses from 10 mm to 40 mm
— cut-out approx. 535 x 495 mm (built-in sink)
— bowl depth 200 mm
— with integrated single-lever mixer, stainless steel finish, high pressure
— infinitely 180° swivelling and positioning
— vertical water outlet in every position of the faucet
— ergonomic operation by single-lever mixer at the outlet end
— windows can be planned on worktop level and are simply opened

Design by tbSTUDIO, Berlin.





Article type:
Sink
Cabinet width:
600 mm
Colour:
Stainless steel
Cut-out dimension:
approx. 535 x 495 mm (built-in sink)
Excenter fitting:
Eccentric set
Flushing radius (R):
10
Garnish actuation:
Push-button eccentric
Installation variant:
Built-in sink, Flush mounted sink
Material thickness worktop minimum:
10 mm
Maximum worktop material thickness:
40 mm
Number of overflow points:
1
Number of sinks:
1 main sink
Overflow:
Overflow in the main basin
Pelvic inner radius (R):
12
Sound insulation:
Yes
Valve type:
3½" basket strainer valve flush
Material:
stainless steel
Depth:
510 mm
Height:
305 mm
Width:
550 mm
Depth main sink:
200 mm
Height main sink:
400 mm
Main sink width:
500 mm

Downloads

Assembly Assembly
Data sheet Data sheet

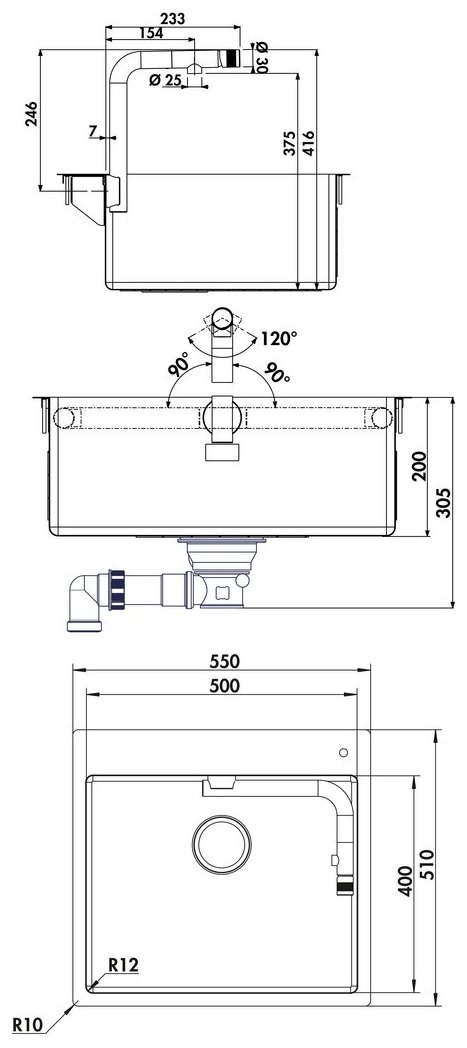

2D drawings 2D drawings
Handbooks & Flyers Handbooks & Flyers
