Corno Turno 50, set (sink and Turno faucet)
Product number:
1041002
- Built-in sink
- Flush mounted sink
- Eccentric set
Description
Corno Turno 50, set (sink and Turno faucet)
The Corno Turno 50 fitted sink combines minimalist aesthetics and high user comfort in a distinctive way. Based on this, it blends harmoniously into modern and classic kitchen concepts. As an innovation, the single-lever mixer integrated in the rim of the basin has an elegant stainless steel finish. The mixer can be swivelled steplessly through 180°. The associated laminar jet regulator can be rotated up to 120°. It ensures that there are no air turbulences in the water jet to significantly reduce the number of splash drops when washing up and cleaning food. The basin is made of excellent quality stainless steel. The edges are finished particularly flat, so that flush integration into the kitchen unit is possible. To provide more space for typical preparation measures, an optionally available cover is available. It consists of two parts so that the tap can still be used in the central position. The stainless steel built-in sink comes with the required strainer basket valve. It is opened and closed via a push-button eccentric fitting.
Built-in sink. 3½" basket strainer valve flush with push-button excenter fitting. With single-lever mixer integrated into the bowl wall, stainless steel finish, swivel spout 180°, 120° rotating.
— flat edge: also suitable for flush mounting
— suitable for worktop thicknesses from 10 mm to 40 mm
— cut-out approx. 435 x 495 mm (built-in sink)
— bowl depth 200 mm
— with integrated single-lever mixer, stainless steel finish, high pressure
— infinitely 180° swivelling and positioning
— vertical water outlet in every position of the faucet
— ergonomic operation by single-lever mixer at the outlet end
— windows can be planned on worktop level and are simply opened
Design by tbSTUDIO, Berlin.
Built-in sink. 3½" basket strainer valve flush with push-button excenter fitting. With single-lever mixer integrated into the bowl wall, stainless steel finish, swivel spout 180°, 120° rotating.
— flat edge: also suitable for flush mounting
— suitable for worktop thicknesses from 10 mm to 40 mm
— cut-out approx. 435 x 495 mm (built-in sink)
— bowl depth 200 mm
— with integrated single-lever mixer, stainless steel finish, high pressure
— infinitely 180° swivelling and positioning
— vertical water outlet in every position of the faucet
— ergonomic operation by single-lever mixer at the outlet end
— windows can be planned on worktop level and are simply opened
Design by tbSTUDIO, Berlin.
Article type:
Sink
Cabinet width:
500 mm
Colour:
Stainless steel
Cut-out dimension:
approx. 435 x 495 mm (built-in sink)
Depth:
510 mm
Depth main pool:
400 mm
Excenter fitting:
Eccentric set
Flushing radius (R):
10
Garnish actuation:
Push-button eccentric
Height:
305 mm
Height main pool:
200 mm
Installation variant:
Built-in sink, Flush mounted sink
Main pool width:
400 mm
Material:
stainless steel
Material thickness worktop minimum:
10 mm
Maximum worktop material thickness:
40 mm
Number of basins:
1 main sink
Number of overflow points:
1
Overflow:
Overflow in the main basin
Pelvic inner radius (R):
12
Sound insulation:
Yes
Valve type:
3½" basket strainer valve flush
Variant type:
Set (sink + tap)
Width:
450 mm
Downloads
Assembly

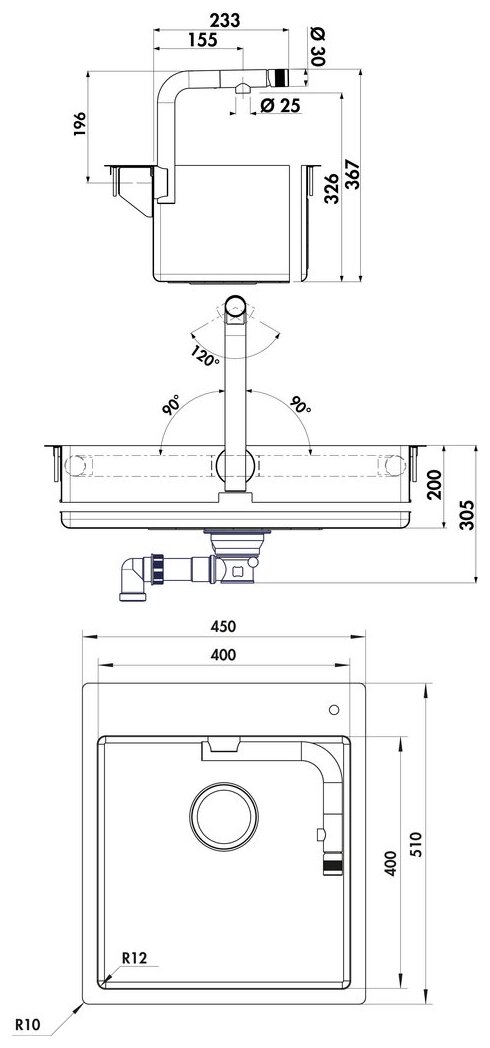

2D drawings
