Product information:
flow Star GTS 125 wall conduct, white, stainless steel
Product number:
4033042
- Wall sleeve
- installation in the wall
Description

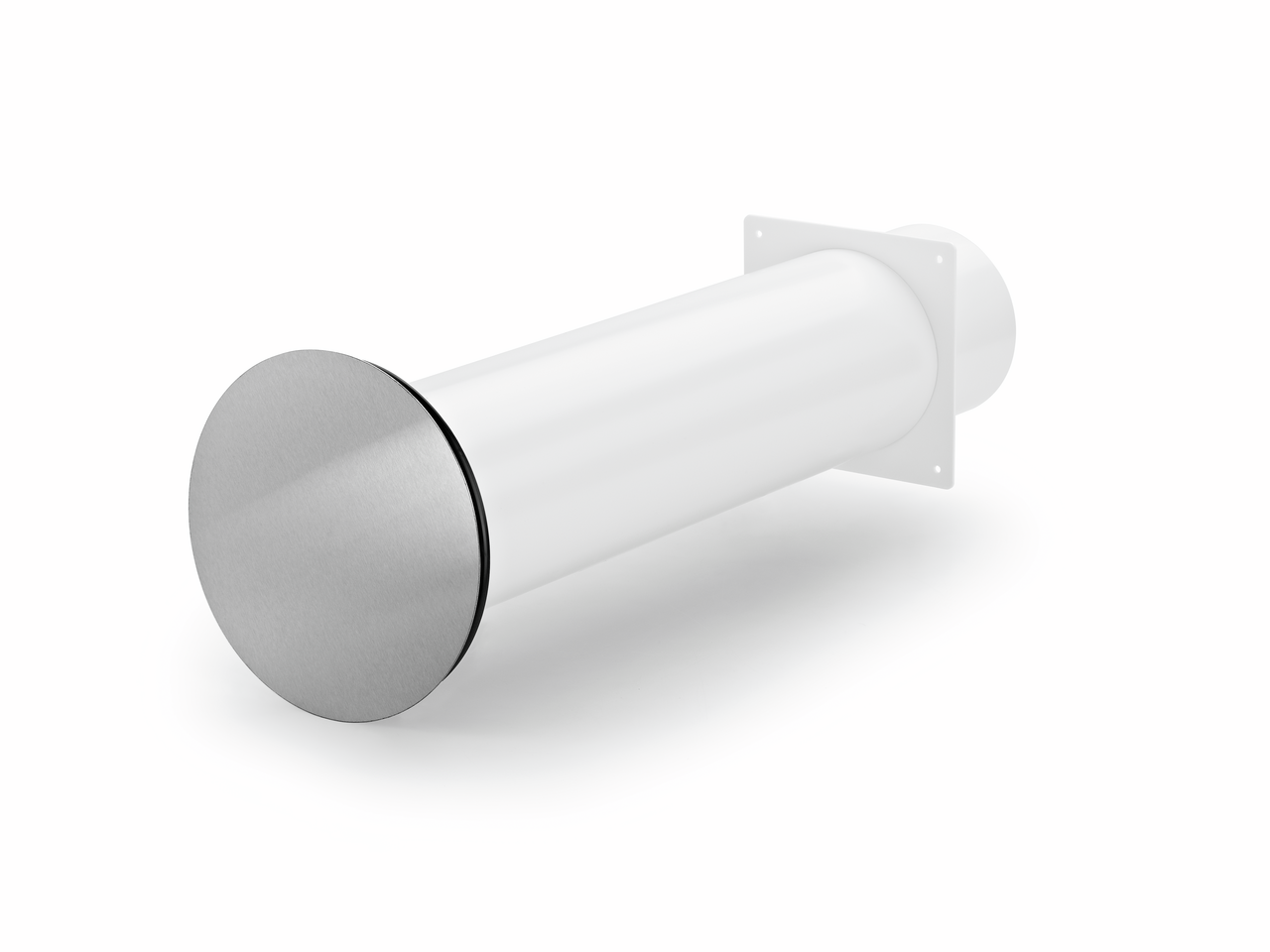

flow Star GTS 125 wall conduct, white, stainless steel

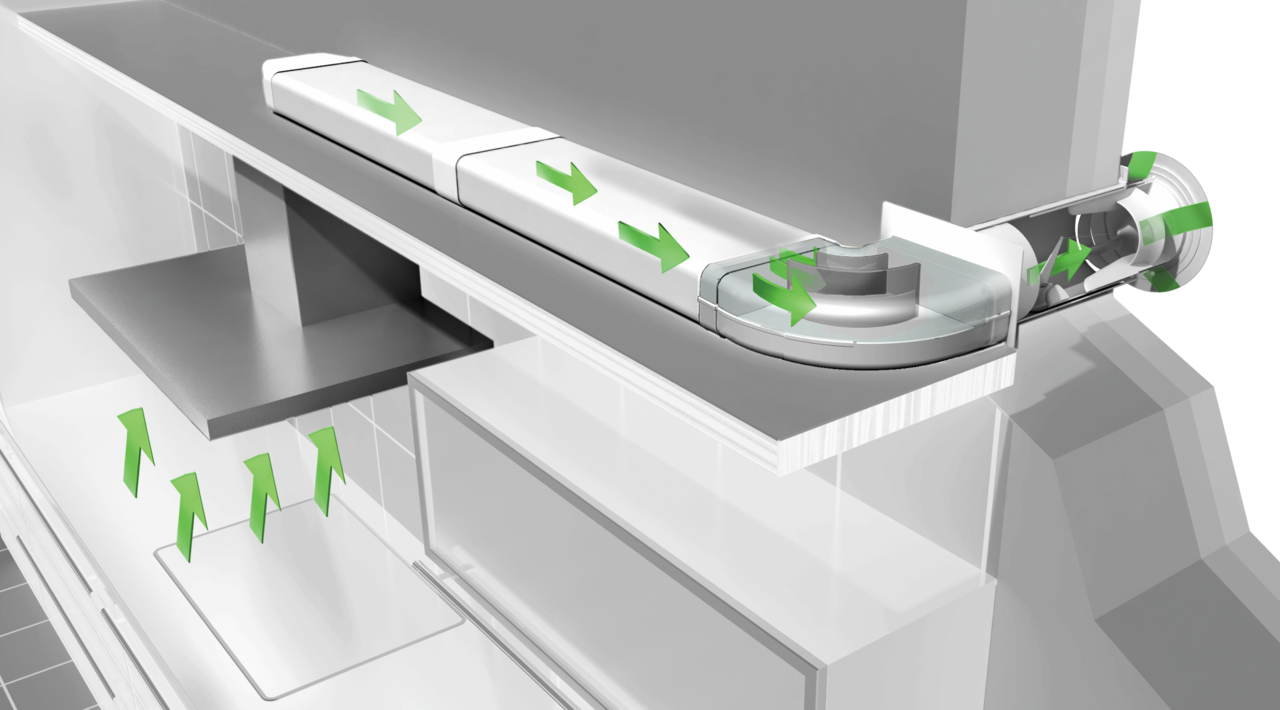

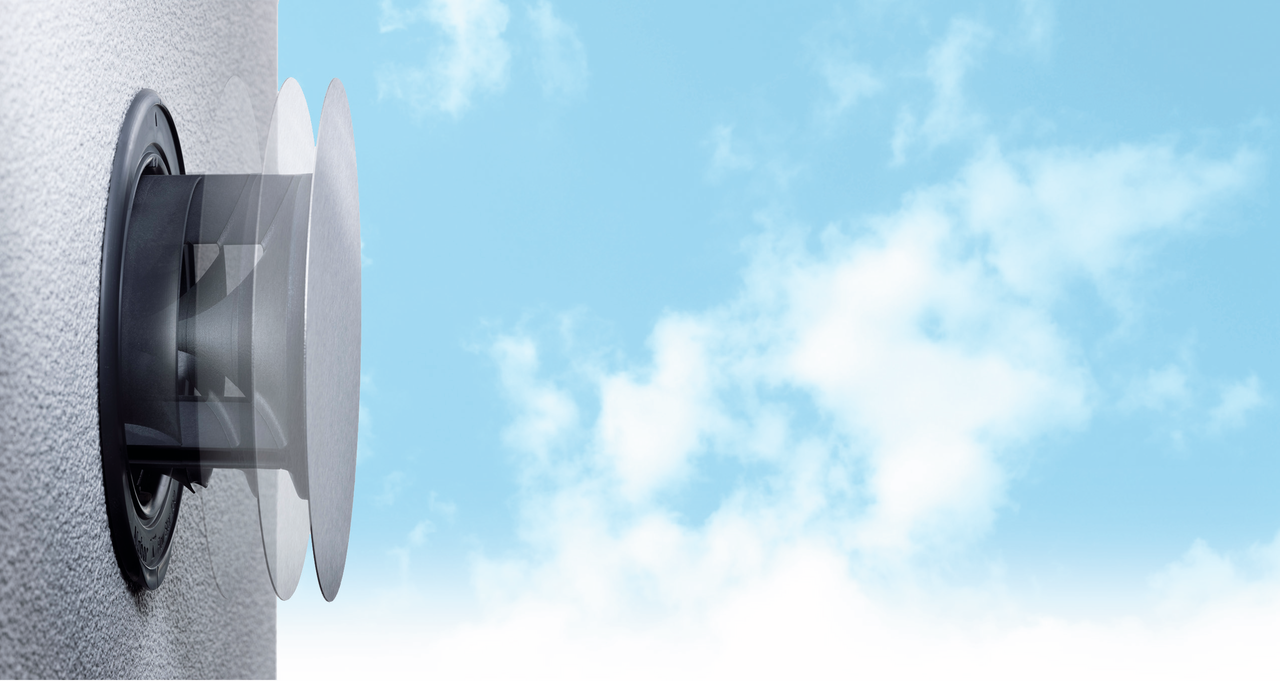

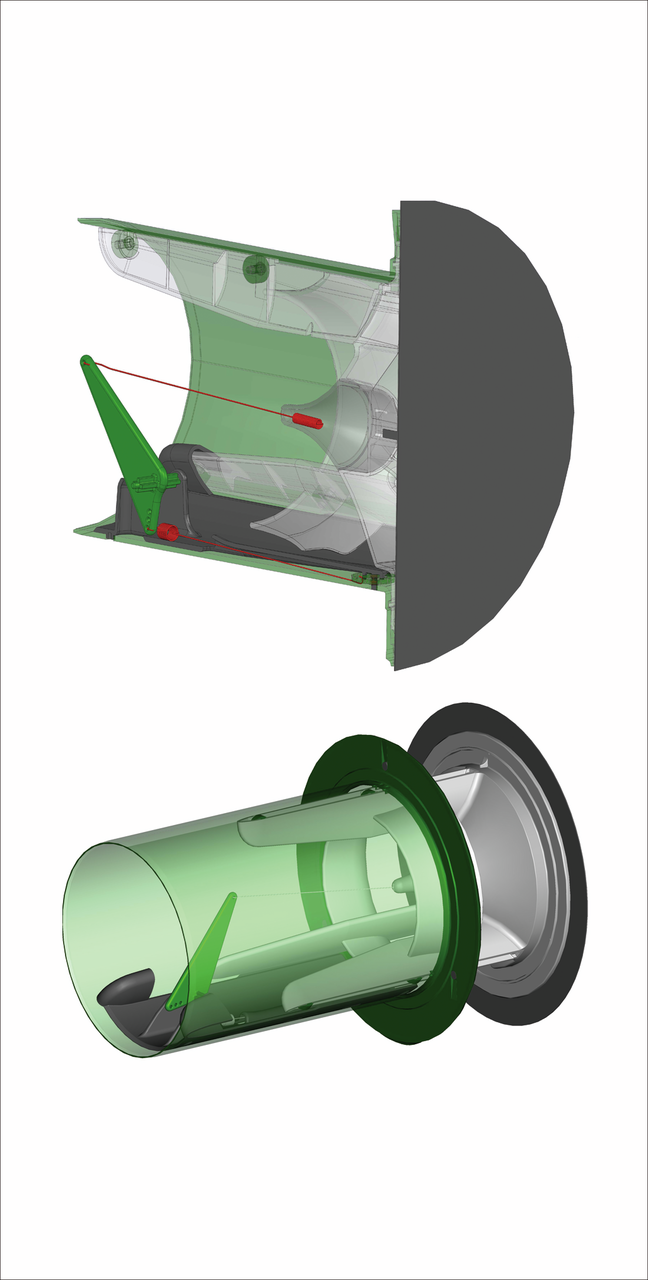

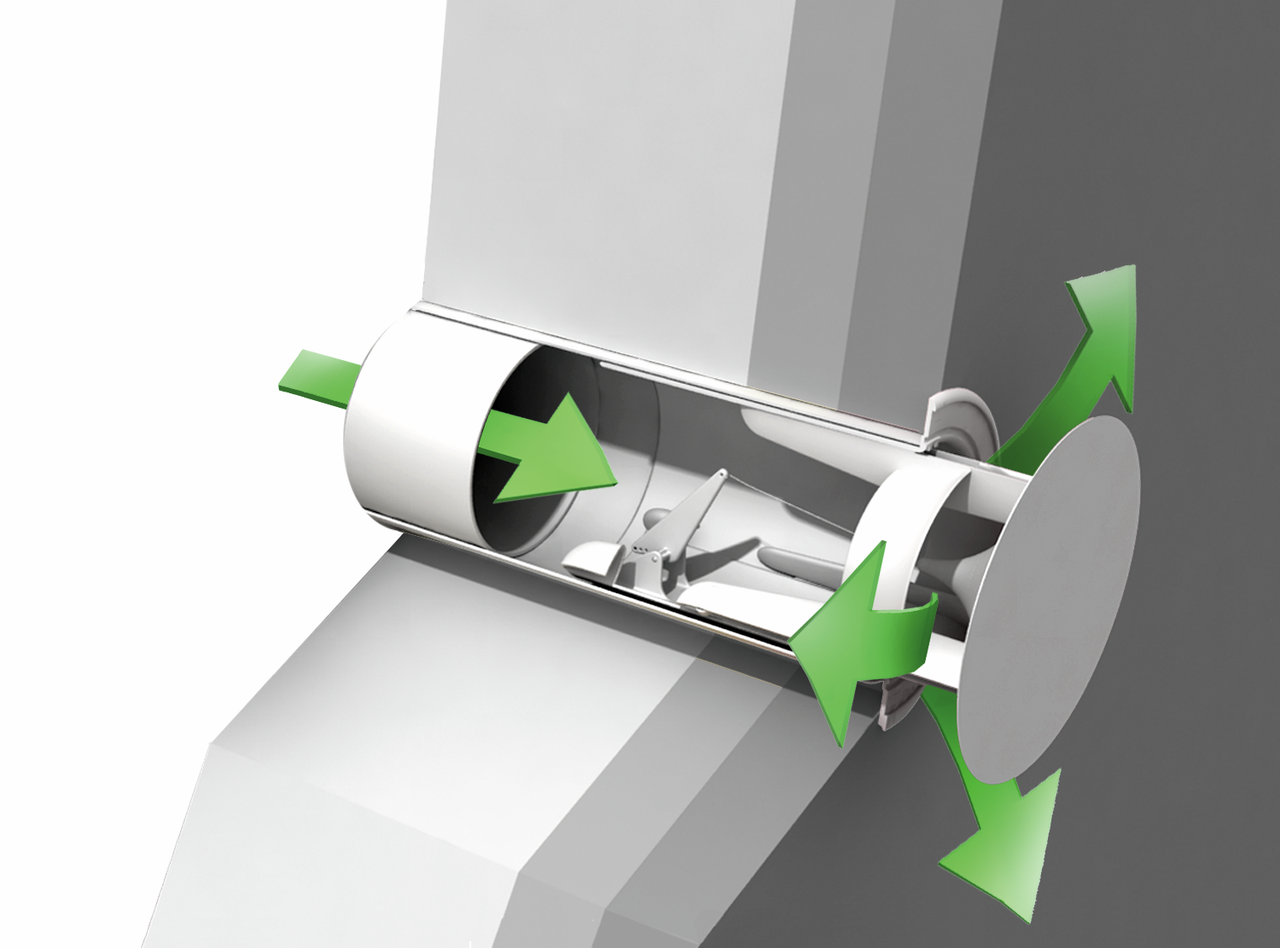

The COMPAIR® flow Star GTS 125 wall box efficiently and quietly conveys exhaust air and odours from the kitchen to the outside area and is installed directly in the outside wall for this purpose. The COMPAIR® flow air duct system with integrated guide element technology is characterised by optimum flow behaviour and low pressure losses. Due to the large flow cross-section, a high level of energy is generated, which is effectively absorbed by an additionally installed compression spring. The exhaust air wall box can be easily opened and closed by spring force and magnets. It has a connection for a round duct with a diameter of 125 mm. With a core hole drilling and wall opening of approx. 132 mm, the mounting pipe can be installed reliably and safely. The length of the feed-through can be adjusted from 314-550 mm depending on the wall thickness. If required, the pipe of the telescopic wall duct can be shortened to a maximum length of 250 mm. For a modern and flush external appearance, the wall duct is equipped with a round external cover made of high-quality stainless steel.
With connection to round pipe Ø 125 mm and round external stainless-steel cover.
— required opening pressure 100 Pa
— stainless steel cover Ø 197 mm

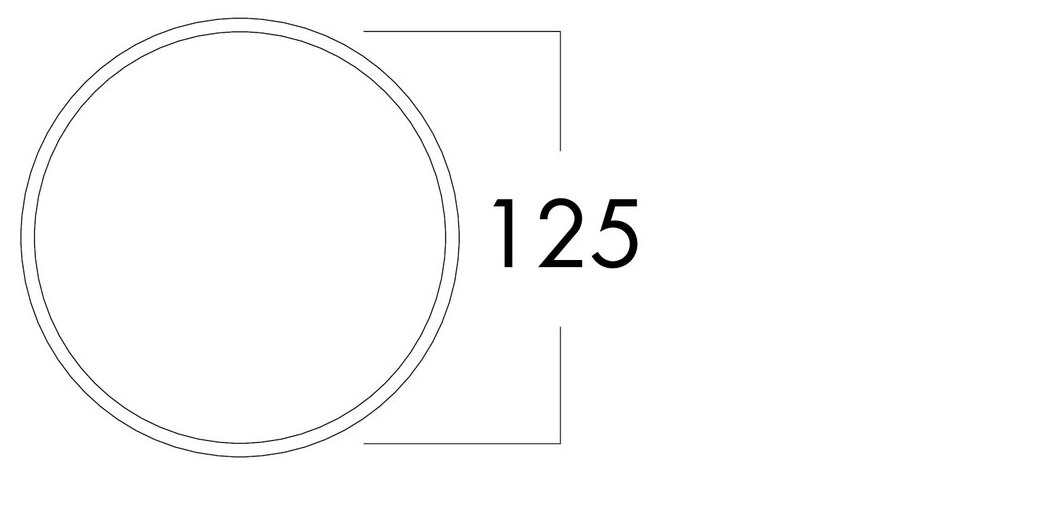

— hose/pipe connector Ø 125 mm
— connector depth 24 mm

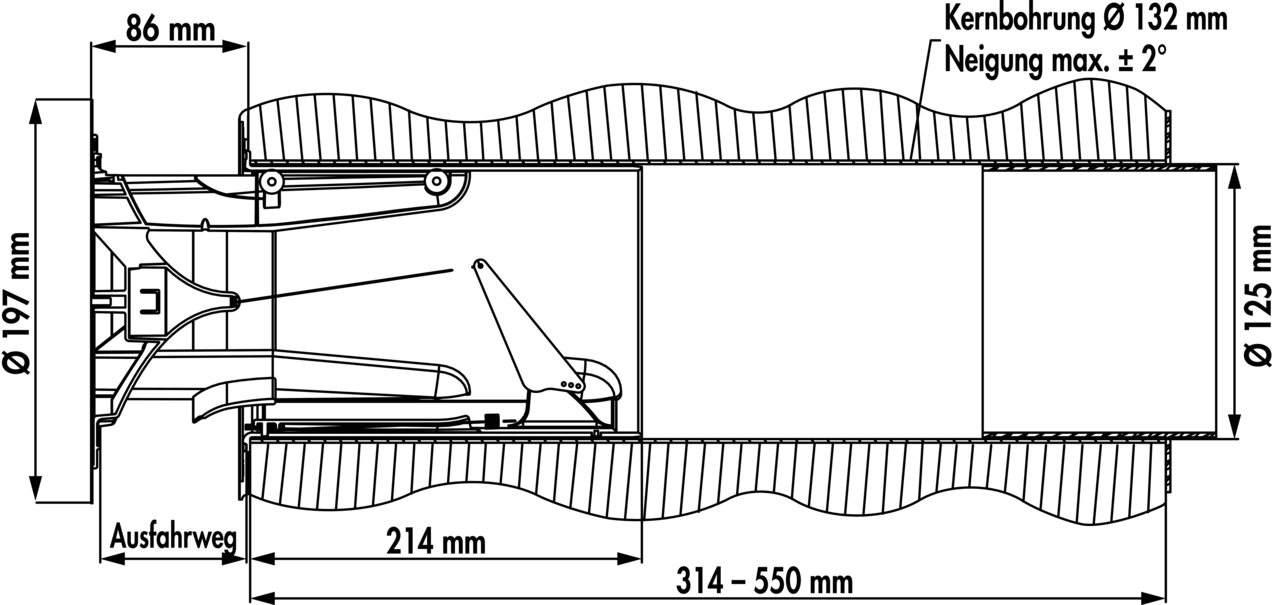

— installation depth 314–550 mm, can be shortened to 250 mm, wall penetration Ø about 132 mm
— for the installation of the mounting pipe, a core drilling hole (Ø 132 mm) is recommended
With connection to round pipe Ø 125 mm and round external stainless-steel cover.
— required opening pressure 100 Pa
— stainless steel cover Ø 197 mm
— hose/pipe connector Ø 125 mm
— connector depth 24 mm
— installation depth 314–550 mm, can be shortened to 250 mm, wall penetration Ø about 132 mm
— for the installation of the mounting pipe, a core drilling hole (Ø 132 mm) is recommended
Article type:
Wall sleeve
Certification:
stainless
Colour:
stainless steel/white
Form:
round
Installation depth:
314–550 mm
Material:
stainless steel
Mounting/Fixing:
installation in the wall
Opening pressure:
100 Pa
Outer diameter:
125 mm
Output drive:
round
Properties:
can be shortened
Shortenability:
can be shortened to 250 mm
Support depth:
24 mm
System dimension:
125
