Awards:
Product information:
flow Star GTS 125 F wall conduct, white, stainless steel
Product number:
4033043
- Wall sleeve
- installation in the wall
Description
flow Star GTS 125 F wall conduct, white, stainless steel

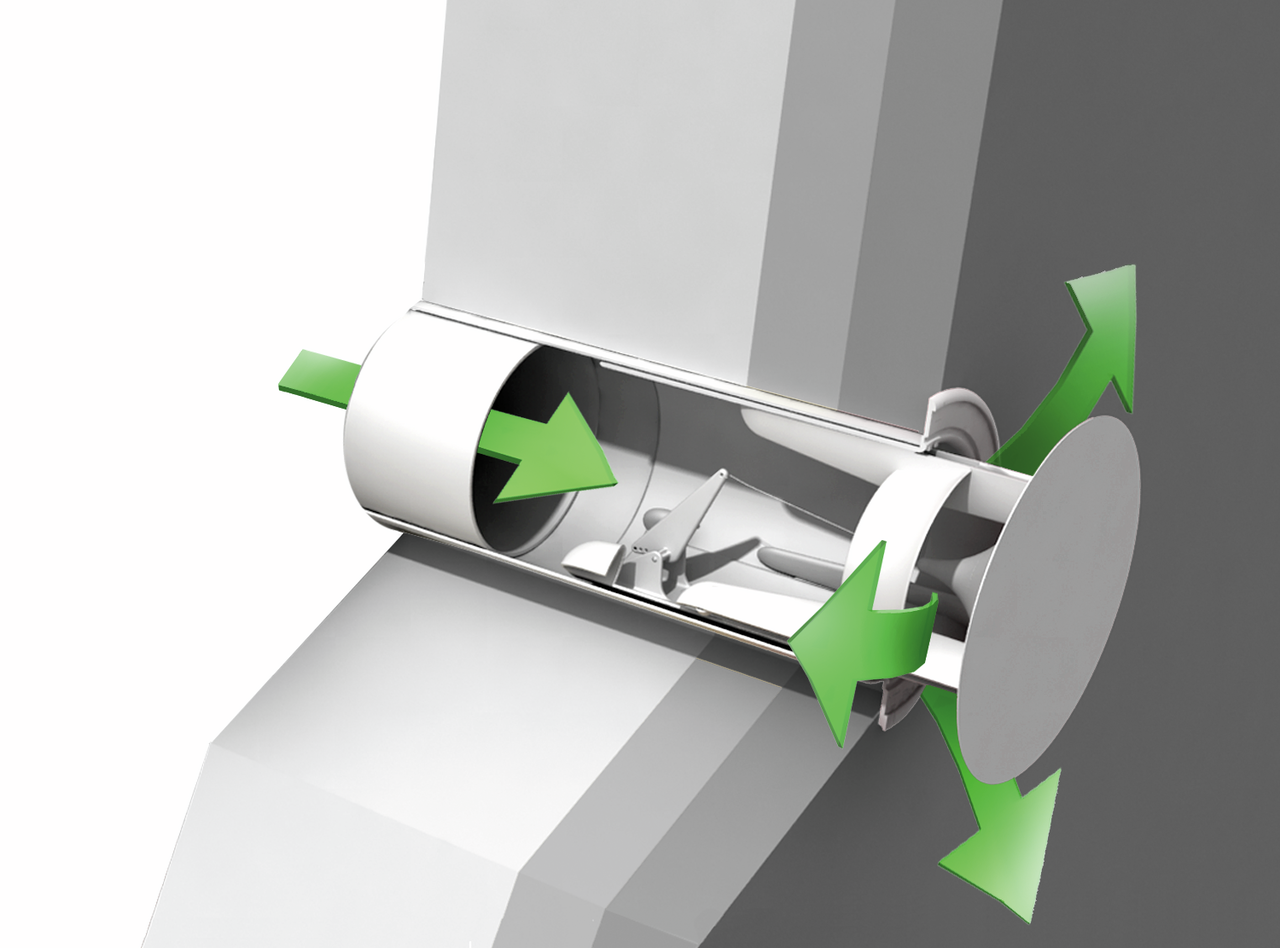

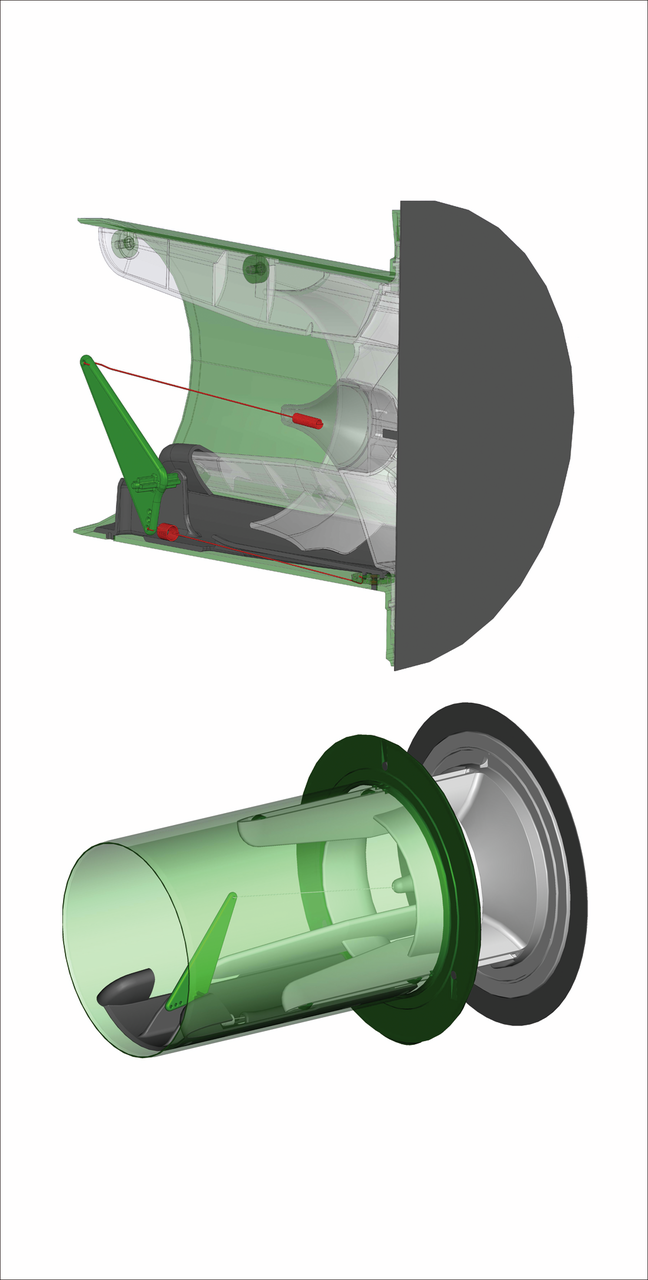

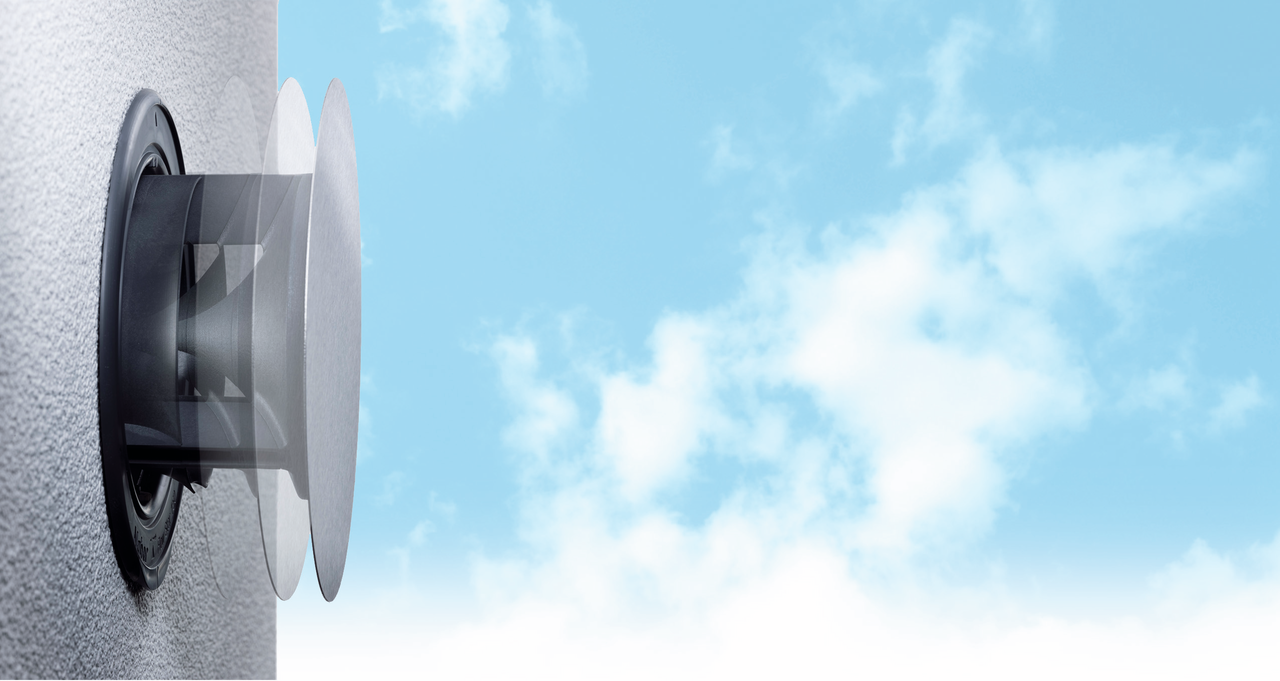

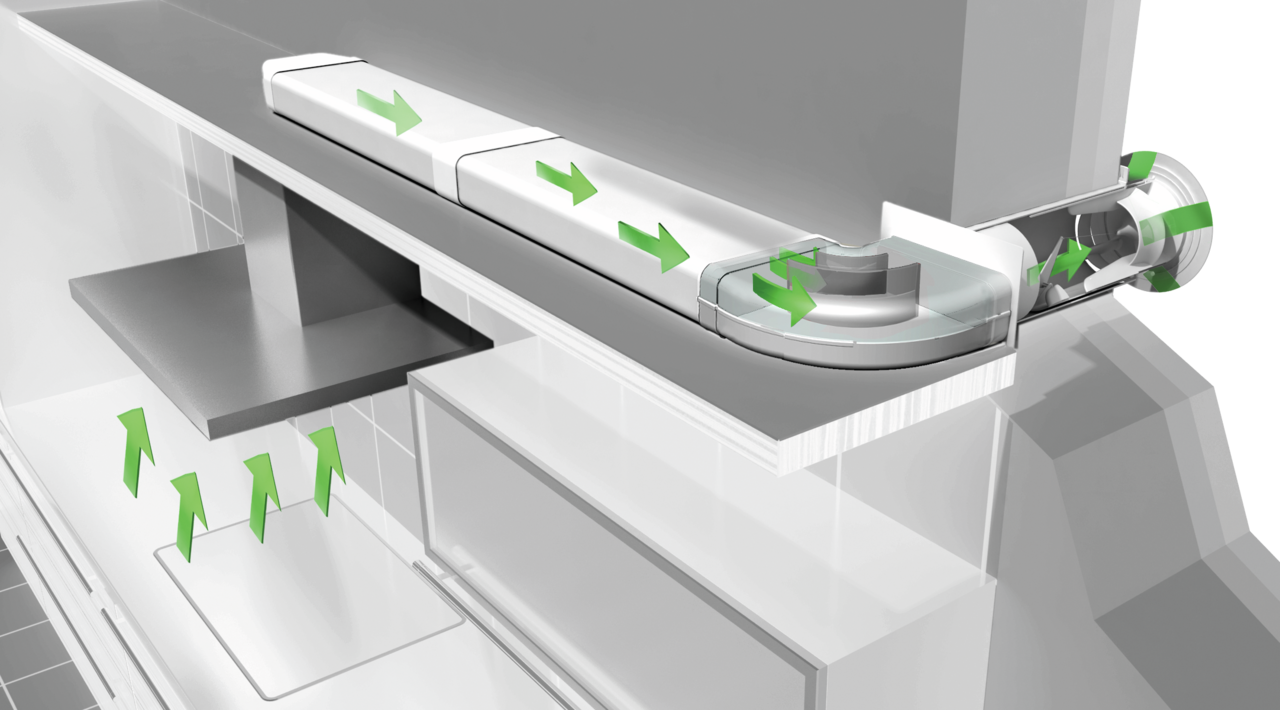

The COMPAIR® flow Star GTS 125 F wall box is used as a wall duct in ventilation technology and is suitable for discharging exhaust air to the outside. The guide element technology used creates an optimum flow pattern with high performance and minimal pressure losses. The high energy caused by the large flow cross-section is reliably absorbed by the additionally installed compression spring. For easy opening and closing, the exhaust air wall box has spring force and additional magnets. It is equipped with a rectangular mounting with dimensions of 174 mm x 82 mm for the connection of a rectangular duct. Due to the pipe diameter of 125 mm, a wall opening of approx. 132 mm is required. The mounting pipe can be reliably installed with a core hole. As the wall duct is telescopic, the length of the duct can be adjusted from 314-550 mm depending on the wall thickness. The pipe can be shortened to a size of 285 mm according to individual requirements. For the outer finish, the wall duct has a round outer cover made of stainless steel, which gives it an elegant appearance and at the same time scores with high stability.
With connection to COMPAIR® flow rectangular 125 tube and round external stainless-steel cover.
— required opening pressure 100 Pa
— stainless steel cover Ø 197 mm
— tube connector 174 x 82 mm, connector depth 80 mm
— installation depth 314–550 mm, can be shortened to 285 mm, wall penetration Ø about 132 mm
— for the installation of the mounting pipe, a core drilling hole (Ø 132 mm) is recommended
With connection to COMPAIR® flow rectangular 125 tube and round external stainless-steel cover.
— required opening pressure 100 Pa
— stainless steel cover Ø 197 mm
— tube connector 174 x 82 mm, connector depth 80 mm
— installation depth 314–550 mm, can be shortened to 285 mm, wall penetration Ø about 132 mm
— for the installation of the mounting pipe, a core drilling hole (Ø 132 mm) is recommended
Article type:
Wall sleeve
Certification:
stainless
Colour:
stainless steel/white
Form:
round
Installation depth:
314–550 mm
Material:
stainless steel
Mounting/Fixing:
installation in the wall
Opening pressure:
100 Pa
Outer diameter:
125 mm
Output drive:
angular, round
Properties:
can be shortened
Shortenability:
can be shortened to 250 mm
Support depth:
80 mm
System dimension:
125
