T-UR-ST 125 deflector 90°, white
Product number:
4021012
- Connecting element
- Plug-in system for subsequent gluing
Prices will only be shown once logged in.
Description
T-UR-ST 125 deflector 90°, white

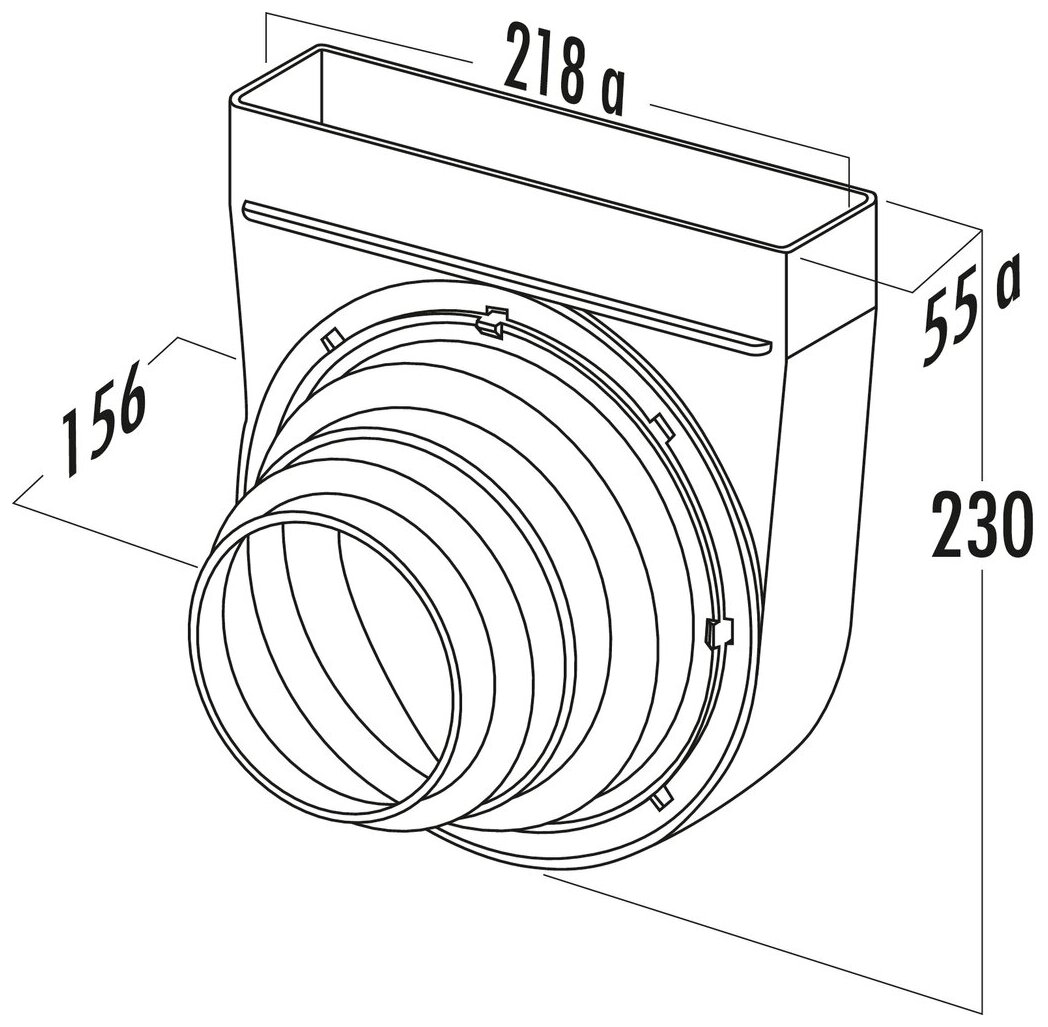

The cleverly developed COMPAIR® top T-UR-ST 125 90° baffle with integrated step ring is characterised by its variable usage options. It is suitable for bonnet connections with a diameter of 120 mm, 125 mm and 150 mm. Depending on the structural requirements, the connection to the moulded part is made via a pipe duct or a flexible hose duct. The connection piece has a depth of 20 mm to enable a secure hold.
With integrated staggered ring.
For 100-gauge, 120-gauge, 125-gauge and 150-gauge pipe/hose connection.
— connector Ø 100, 120, 125, 150 mm
— connector depth 20 mm per size for secure pipe/hose installation
With integrated staggered ring.
For 100-gauge, 120-gauge, 125-gauge and 150-gauge pipe/hose connection.
— connector Ø 100, 120, 125, 150 mm
— connector depth 20 mm per size for secure pipe/hose installation
Article type:
Connecting element
Colour:
white
Further:
with integrated staggered ring
Mounting/Fixing:
Plug-in system for subsequent gluing
Output drive:
round
Shape:
round
Suitable for:
pour raccord de tube/tuyau de 100, 120, 125 et 150
Support depth:
20 mm
System dimension:
125
