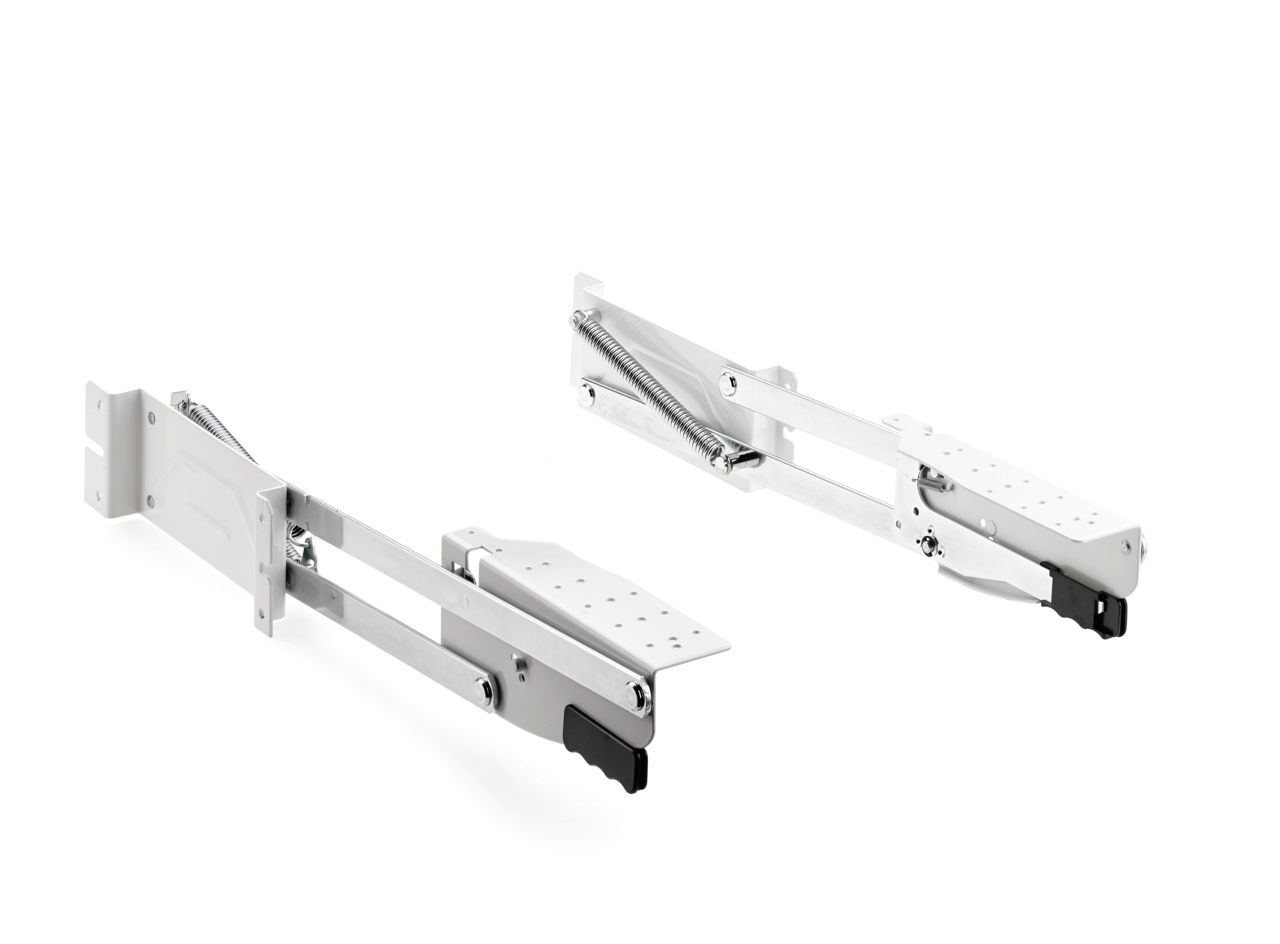

Swivel mechanics 1, white
Product number:
1111036
- Lift fitting
- Cabinet width: Suitable for any cabinet width, for electric slicer from 450 mm cabinet width
- Load capacity of the system: 17,63696 lb
Description
Swivel mechanics 1, white

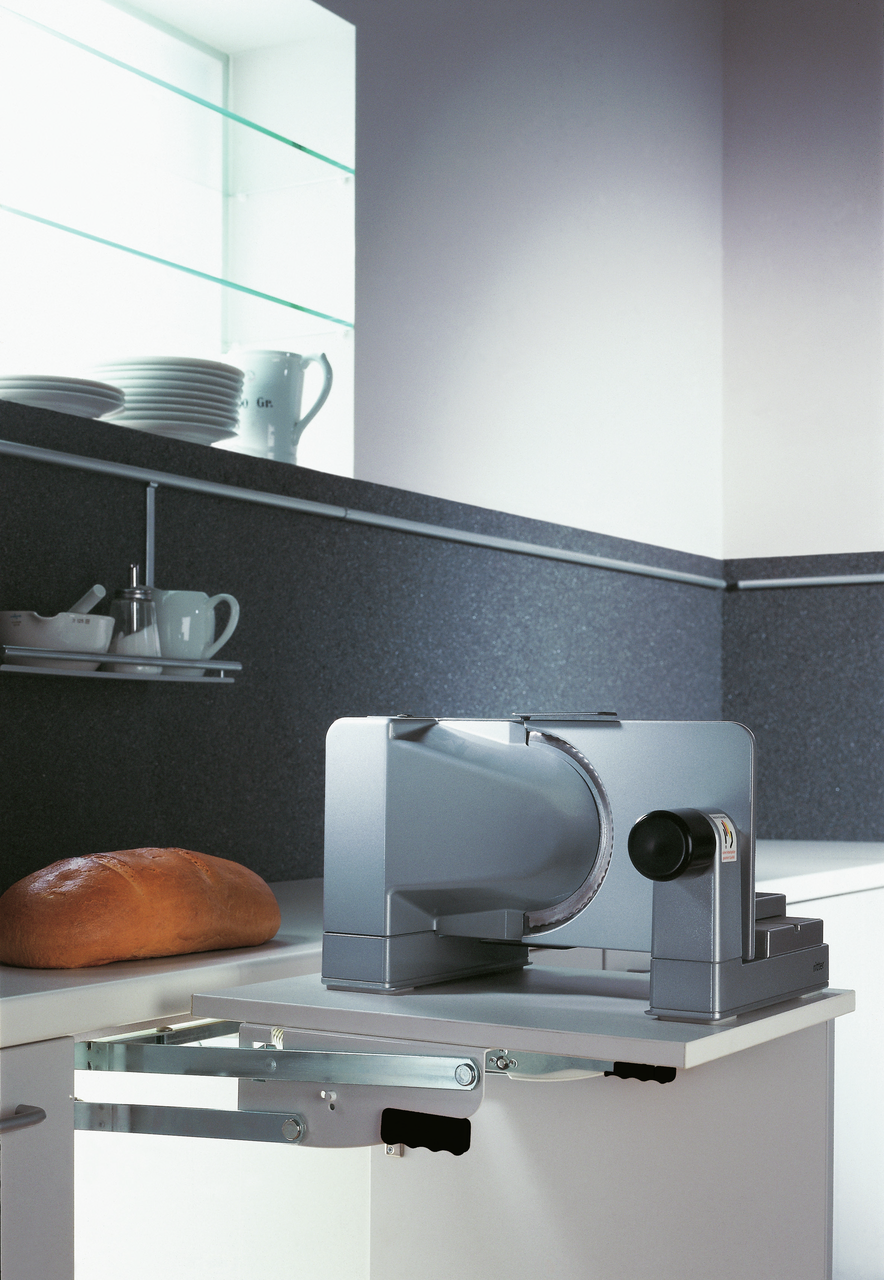

The lift fitting swivel mechanism 1 facilitates the use of particularly large kitchen appliances such as built-in universal cutters. This swivels the appliance parallel-horizontally out of the cabinet and brings it directly to the height of the worktop, with the mechanism supported by the integrated springs... The two-part lift system is well thought-out and of high quality. It provides a load capacity of 8 kg and can be fitted with a matching support plate that serves as a carrier for the unit. It is suitable for any cabinet width. The cabinet equipment is designed for screw mounting on the inner side walls.
Suitable for any cabinet width, for electric slicer from 450 mm cabinet width. Swings larger appliances stored in the base unit, for instance electric slicers parallel-horizontally to the level of the worktop, by employing two springs.
— load bearing capacity 8 kg
— useable height 310 mm
— swivelling depth 505 mm
Suitable for any cabinet width, for electric slicer from 450 mm cabinet width. Swings larger appliances stored in the base unit, for instance electric slicers parallel-horizontally to the level of the worktop, by employing two springs.
— load bearing capacity 8 kg
— useable height 310 mm
— swivelling depth 505 mm
Article type:
Lift fitting
Cabinet width:
Suitable for any cabinet width, for electric slicer from 450 mm cabinet width
Colour:
white
Discontinued item:
No
Load capacity of the system:
17,63696 lb
Location:
base cabinet
Pivoting depth:
505 mm
Retrofitting possible:
Yes
Useful height:
310 mm
