Space saver , 1 ½" x Ø 40 mm
Product number:
1051001
- Siphon
Description

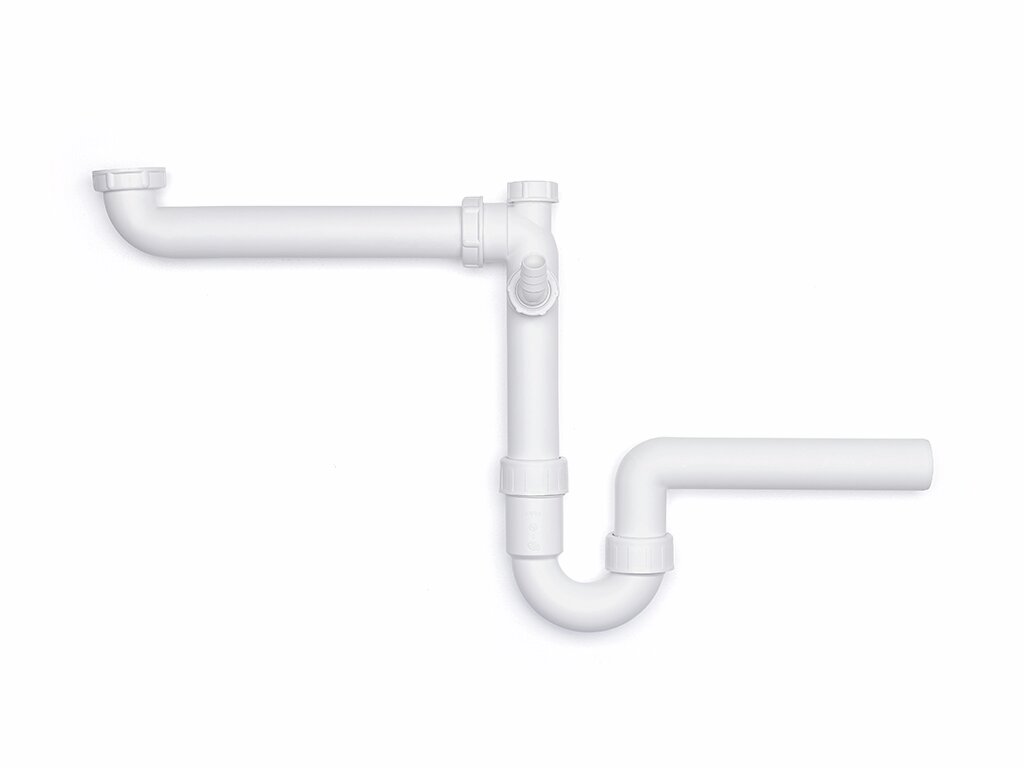

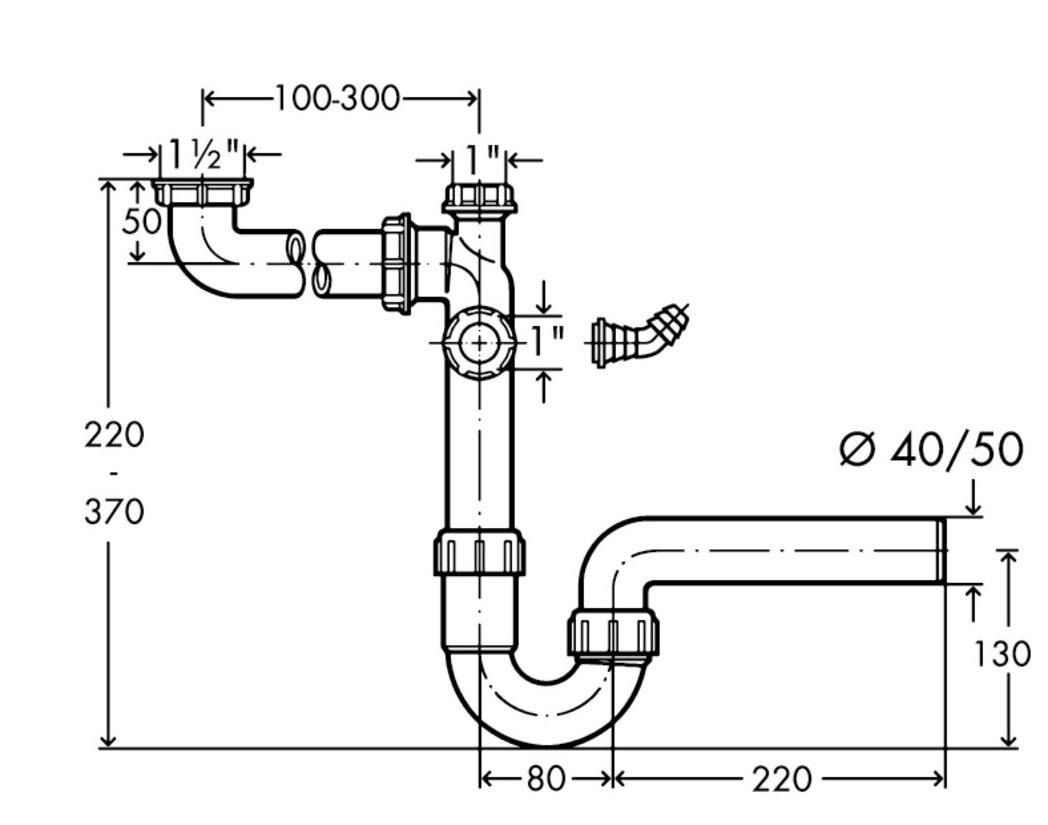

Space saver , 1 ½" x Ø 40 mm
With the space-saving space-saver, the sink can be connected to the drain system in such a way that an under-sink appliance or waste separation can still be installed in the base unit. The siphon is designed without a drain and overflow fitting. The space-saving drain bend provides an additional waste connection for a dishwasher or washing machine with the connection spout. In addition, the kitchen drain offers tested safety according to DIN EN274.
Space saver without drain and spillover fittings. With additional waste water hose connection for dishwasher or washing machine.
— tested as per DIN EN274
Space saver without drain and spillover fittings. With additional waste water hose connection for dishwasher or washing machine.
— tested as per DIN EN274
Article type:
Siphon
Colour:
white
Connection for dishwasher/washing machine:
1
Diameter/nominal width (DN):
DN 40
Thread:
1 ½"
