STEEL flow SF-VRO 150 flat duct, L 500 mm, galvanized steel
The COMPAIR® STEEL flow SF-VRO 150 flat duct pipe is characterised by its durable quality and extreme resilience. It is made of non-combustible material so that even high fire protection requirements are met. The ventilation duct can be shortened for individual installation solutions. SF profile seals are pre-mounted on both sides, whereby the connection dimension is reduced to 216 x 83 mm. After removal, a connection with plastic ducts is possible without any problems. In the case of a floor construction, SF-VRO 150 support bars with a tread load of up to 100 kg are recommended as accessories.



Ventilation pipe.
— can be shortened

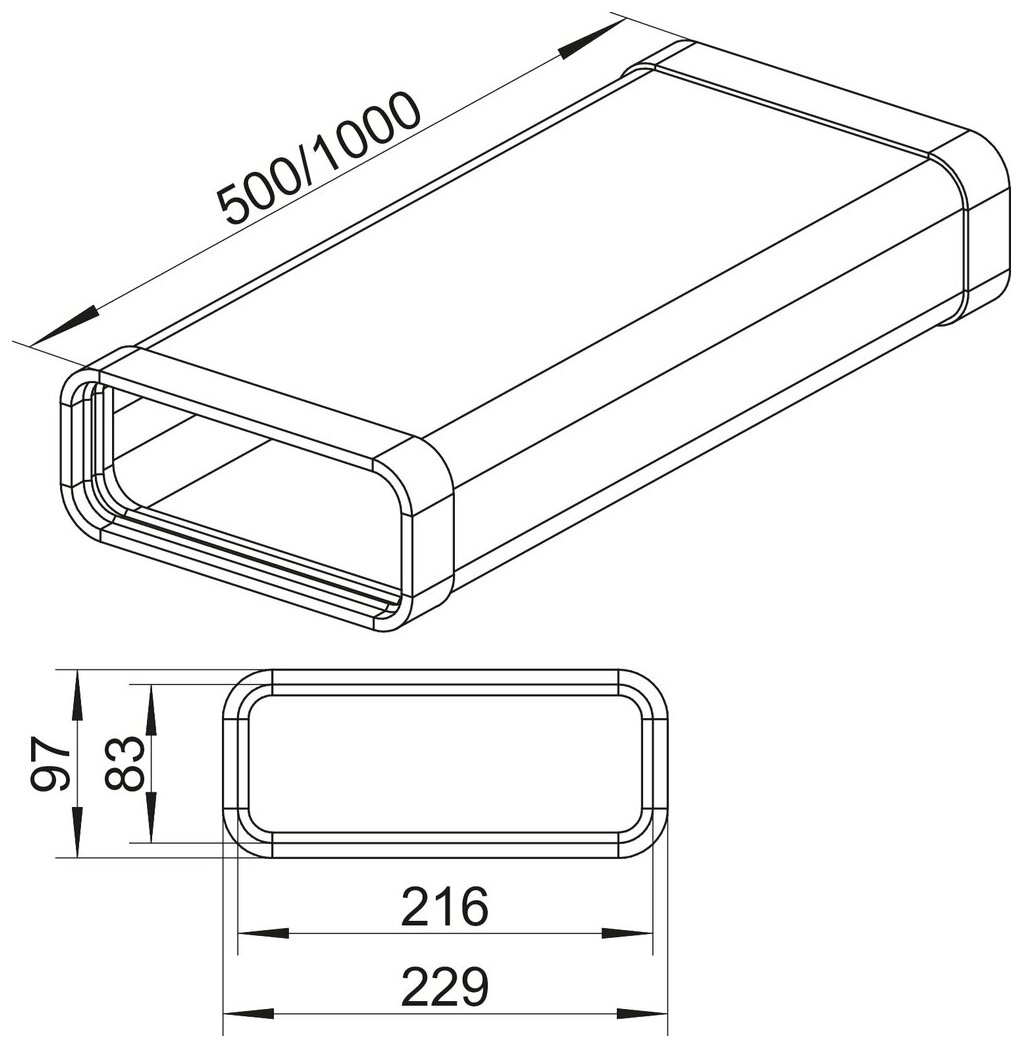

— connection size metal duct 216 x 83 mm (with seal)
— 2 SF profile linings pre-assembled
— after removing the profile seal, connection to a flat plastic duct is possible



Article type:
Ventilation pipe
Brand:
STEEL flow
Colour:
grey
Mounting/Fixing:
plug-in system
Note:
2 SF profile linings pre-assembled, after removing the profile seal, connection to a flat plastic duct is possible
Outer diameter:
150 mm
Output drive:
angular
Properties:
can be shortened
Shape:
angular
Surface/coating:
galvanised
Material:
galvanized steel
Depth:
229 mm
Height:
97 mm
Width:
500 mm
Skip product gallery

Accessories

STEEL flow SF-VRO 150 support, L 300 mm, galvanized steel
Product number: 4061029
  • Exhaust air accessorie
  • plug-in system
