STEEL flow SF-VEST 150 offsetting end piece, galvanized steel
Product number:
4061028
- Connecting element
- plug-in system
- 214 mm
Description
STEEL flow SF-VEST 150 offsetting end piece, galvanized steel
The COMPAIR® STEEL flow SF-VEST 150 offset end piece enables space-saving exhaust air routing when using pedestal fans in the kitchen. It is used in particular for connecting downdraft bonnets or trough fans and connects flat ducts of the size 216 x 83 mm with round ducts of an external cross-section of 150 mm. The connecting element fits the SF-VRO flex and SF-VOR flat ducts from the COMPAIR® STEEL flow series. It is made of galvanised steel with rustproof and non-combustible features. As a result, it meets high fire protection requirements.

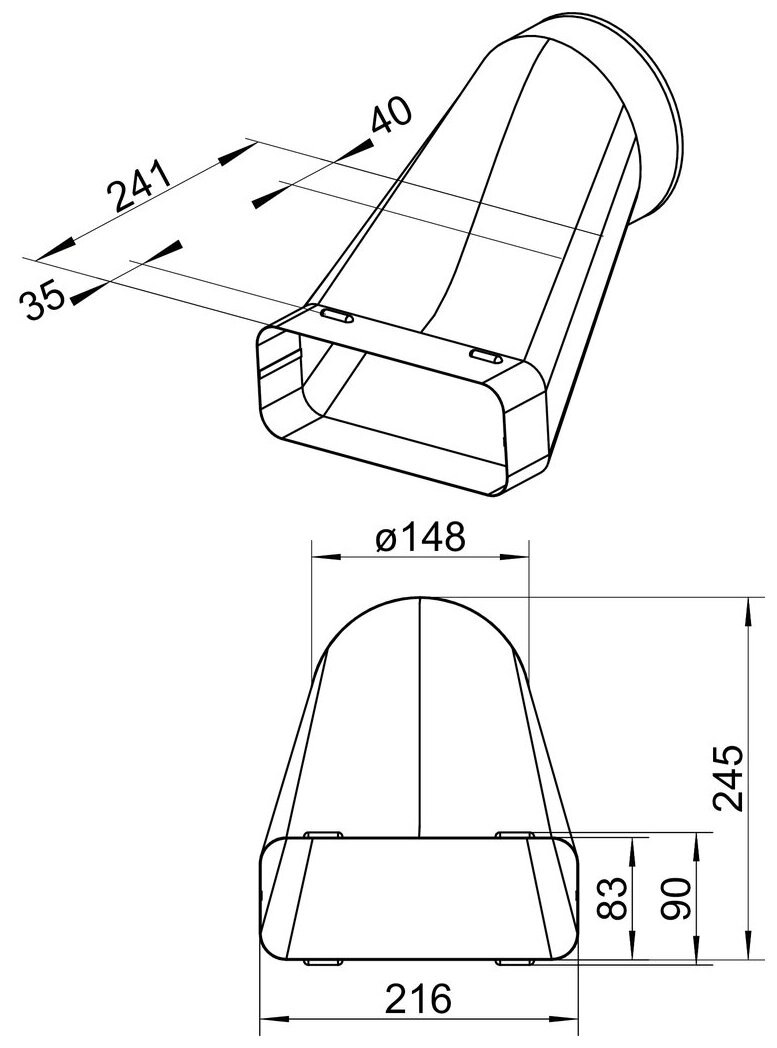

— Ø 148 mm (connection size inside)
— use when connecting downdraft hoods
— enables space-saving exhaust air guidance when using base ventilators
— suitable for flat ducts SF-VRO flex and SF-VRO
— Ø 148 mm (connection size inside)
— use when connecting downdraft hoods
— enables space-saving exhaust air guidance when using base ventilators
— suitable for flat ducts SF-VRO flex and SF-VRO
Article type:
Connecting element
Brand:
STEEL flow
Colour:
grey
Connection diameter:
148 mm
Form:
angular
Height:
245 mm
Length:
214 mm
Material:
galvanized steel
Mounting/Fixing:
plug-in system
Note:
enables space-saving exhaust air guidance when using base ventilators, use when connecting downdraft hoods
Outer diameter:
150 mm
Output drive:
round
Suitable for:
suitable for flat ducts SF-VRO flex and SF-VRO
Surface/coating:
galvanised
System dimension:
150
Width:
216 mm
