STEEL flow SF 150 pipe set for downdraft ventilation, galvanized steel
Product number:
4061024
- Connecting element
- installation in the wall
- plug-in system
Description

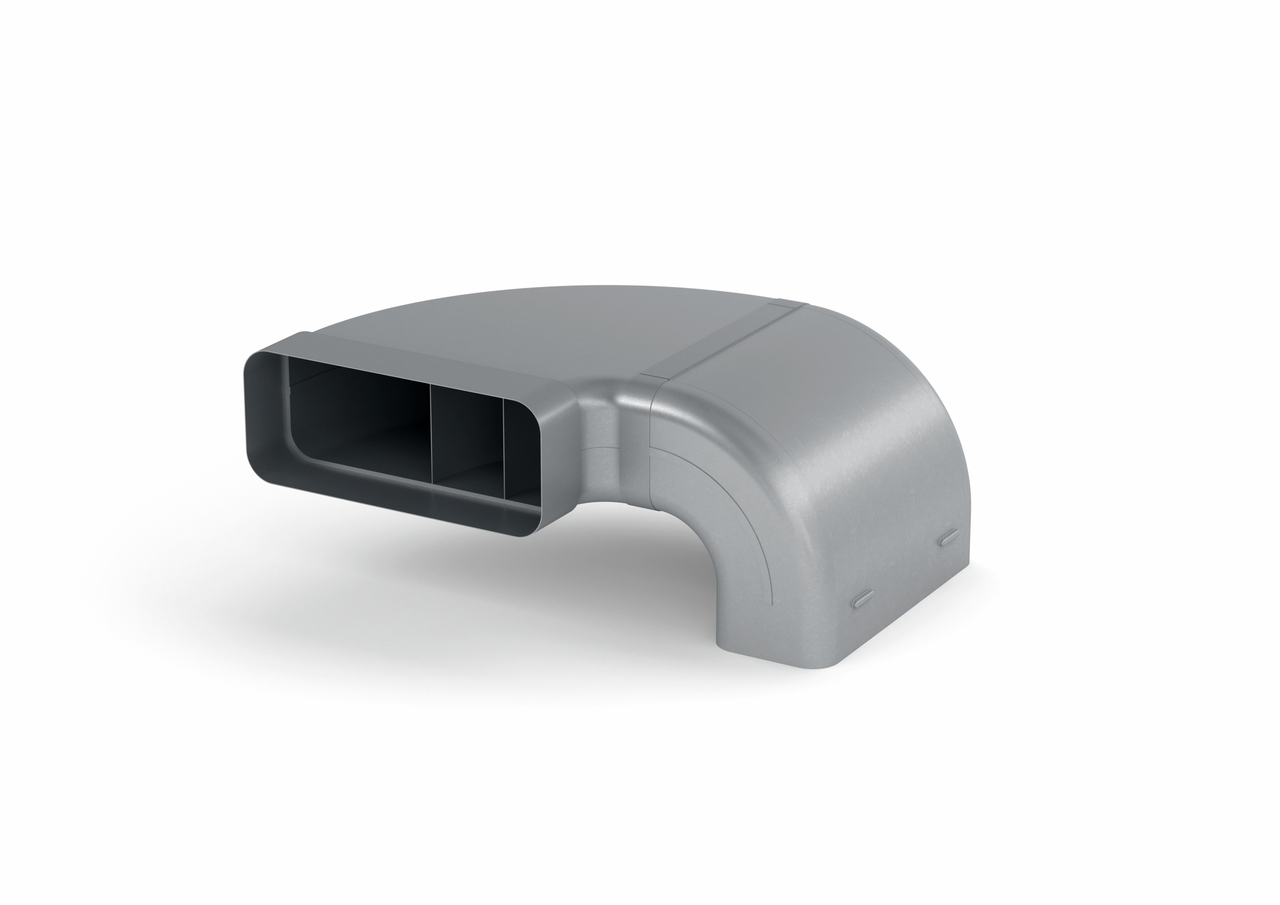

STEEL flow SF 150 pipe set for downdraft ventilation, galvanized steel
The COMPAIR® STEEL flow SF 150 pipe set enables a flexible and space-saving arrangement of the exhaust air pipes for cooker bonnets. It has been specially developed for donwdraft or trough fans and can be used in the floor covering as well as in screed or concrete. An installed underfloor heating system does not pose a problem. Due to its flat design and the variably integrable centre bar, a high step load of up to 100 kg is possible. It can also be laid freely on the floor or under the kitchen ceiling. The pipe system is made of galvanised steel and is therefore non-flammable. It is compatible with all elements of the COMPAIR® flow system and is 100 percent recyclable. The connection dimension of 222 x 89 mm is intended for direct connection to the fume cupboard system. Its guiding direction can be varied from left to right by simply repositioning it. The connecting element is suitable for the SF-VRO flex and SF-VRO flat ducts made of aluminium or galvanised steel, which are available separately.

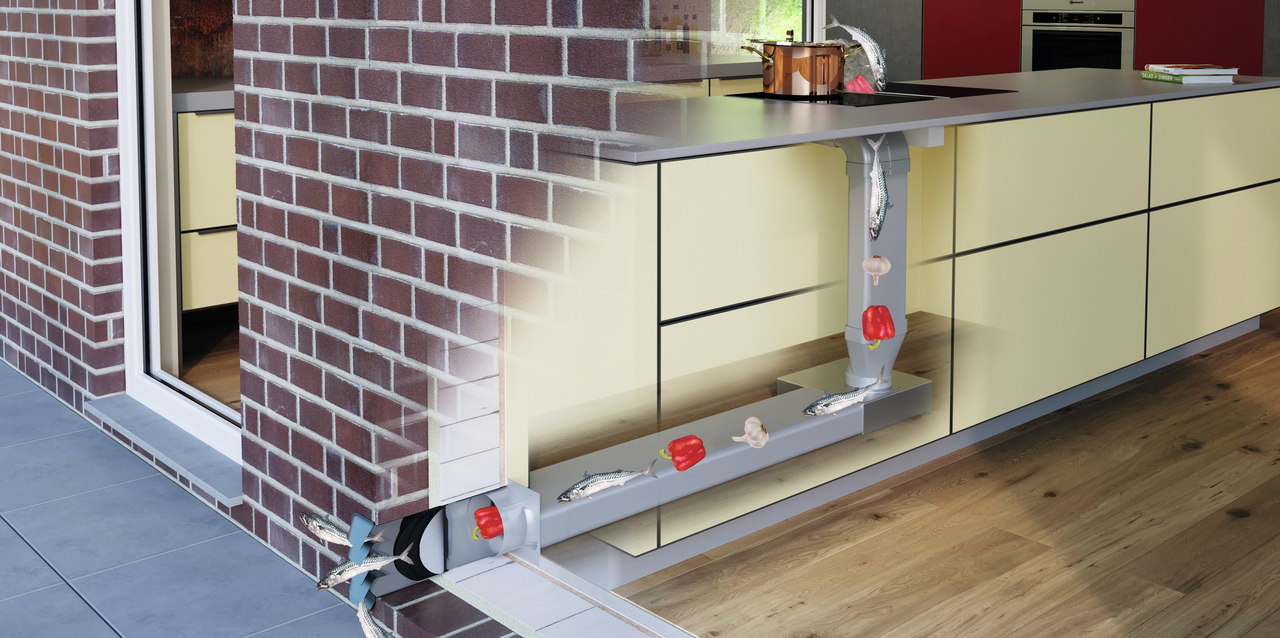

The pipe set allows for a space-saving arrangement of the exhaust pipes at extractor hoods with downdraft or hob ventilation.
— connection size (222 x 89 mm) for direct connection to the extraction system
— guidance direction (left/right) can be changed by replugging
— suitable for flat ducts SF-VRO flex and SF-VRO
The pipe set allows for a space-saving arrangement of the exhaust pipes at extractor hoods with downdraft or hob ventilation.
— connection size (222 x 89 mm) for direct connection to the extraction system
— guidance direction (left/right) can be changed by replugging
— suitable for flat ducts SF-VRO flex and SF-VRO
Article type:
Connecting element
Brand:
STEEL flow
Colour:
grey
Form:
angular
Height:
282 mm
Length:
384 mm
Material:
galvanized steel
Mounting/Fixing:
installation in the wall, plug-in system
Note:
guidance direction (left/right) can be changed by replugging
Outer diameter:
150 mm
Output drive:
angular
Suitable for:
suitable for flat ducts SF-VRO flex and SF-VRO
Surface/coating:
galvanised
System dimension:
150
