STEEL flow SF 150 flat duct mount, galvanized steel
Product number:
4061022
- Exhaust air accessorie
- installation in the wall
- plug-in system
Description
STEEL flow SF 150 flat duct mount, galvanized steel

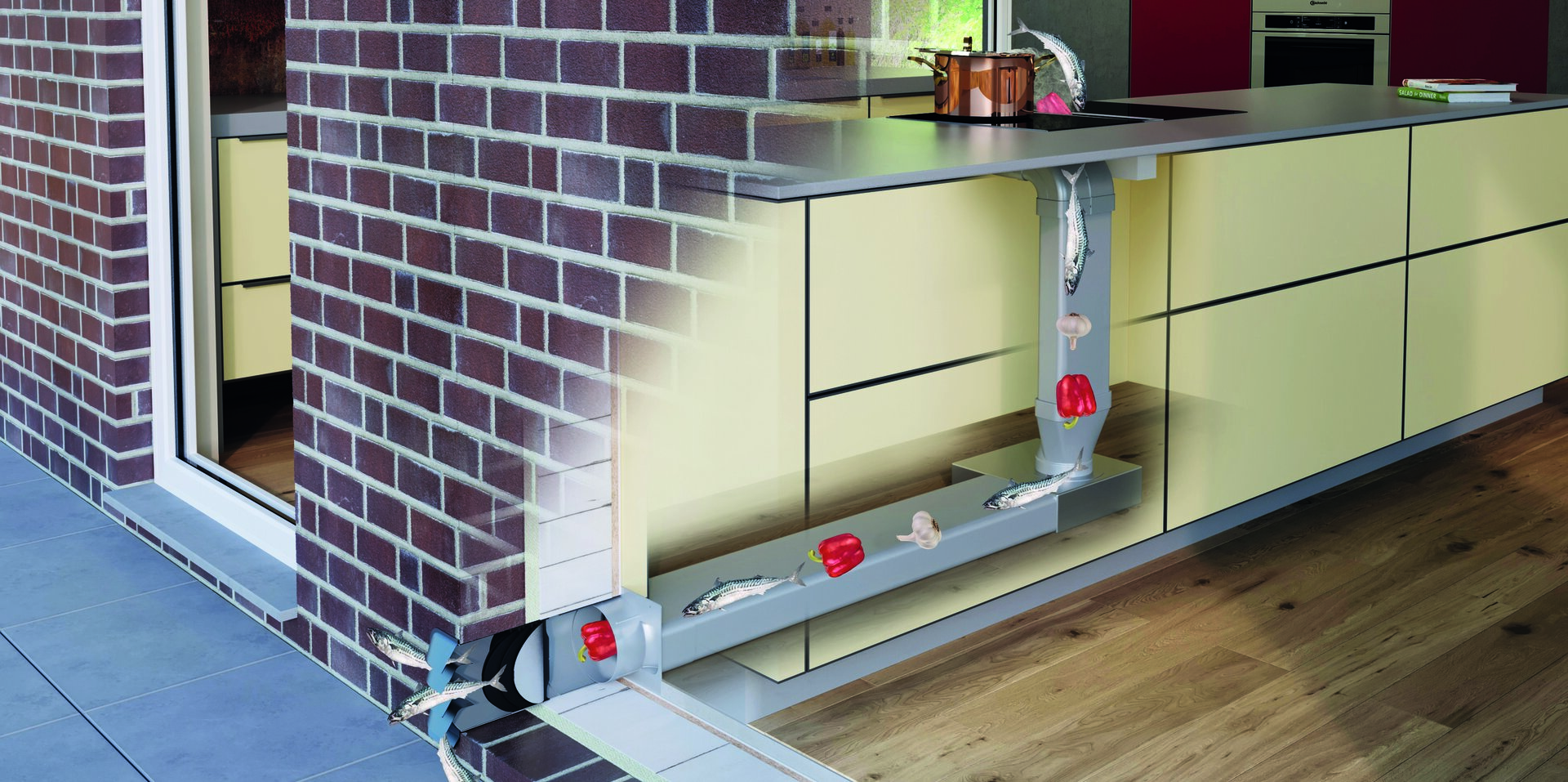

The COMPAIR® STEEL flow SF 150 flat duct support is used for secure installation of the flat duct on ceilings and walls. It is used for the SF-VRO flex and SF-VRO flat ducts with a diameter of 150 mm. In order to minimise noise and vibrations when the air flows through, the bracket is equipped with integrated damping. The material used is high-quality steel, which is highly robust and resistant to weathering and corrosion thanks to the galvanised surface.
For laying the flat ducts on ceilings and walls.
— with damping
— recommended distance between two mounts 500 mm
— suitable for flat ducts SF-VRO flex and SF-VRO
For laying the flat ducts on ceilings and walls.
— with damping
— recommended distance between two mounts 500 mm
— suitable for flat ducts SF-VRO flex and SF-VRO
Article type:
Exhaust air accessorie
Brand:
STEEL flow
Colour:
grey
Form:
angular
Height:
127 mm
Material:
galvanized steel
Mounting/Fixing:
installation in the wall, plug-in system
Note:
recommended distance between two mounts 500 mm
Outer diameter:
150 mm
Suitable for:
suitable for flat ducts SF-VRO flex and SF-VRO
Surface/coating:
galvanised
Width:
277 mm
