Description
Pure colour change LED, single lamp without switch, LIC LED-System kompatibel, white matt

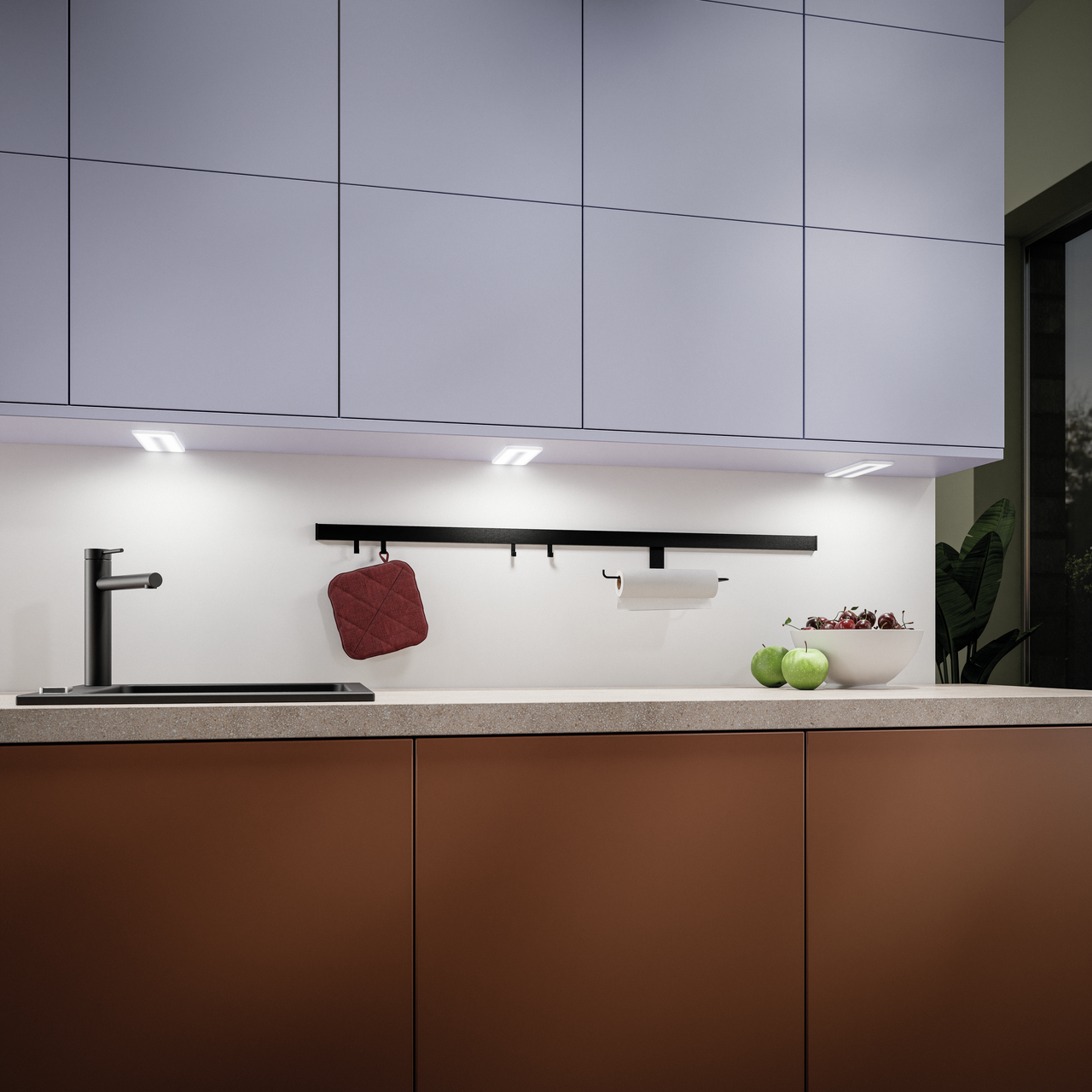

The LUMICA® Pure colour change LED under-cabinet light makes it possible to create a suitable lighting mood in the worktop area at any time. The flat housing of the light designed by Studio Moritz Putzier is made of plastic in a translucent matt white colour. Thanks to its modern look, it blends harmoniously into the base area of wall units and the illumination without visible LED points creates a calm ambience. The luminaire is compatible with the LUMICA® LIC LED system from Naber and contains an energy efficiency class G light source. The light colour can be continuously adjusted from warm white at 2700 Kelvin to cool white at 6500 Kelvin. The last selected setting is saved using a memory function. At the same time, the brightness can also be infinitely adjusted using the dimming function. The maximum brightness is 80 lumens/watt in the cool white light colour range. A socket integrated in the under-cabinet light allows several lights to be connected in series. The supply cable for the mini plug-in system included in the scope of delivery has a length of 1800 mm. A function converter and a remote control from the LUMICA® LIC system are required for the control system. Alternatively, wireless control is possible via a smartphone or tablet using the corresponding app.

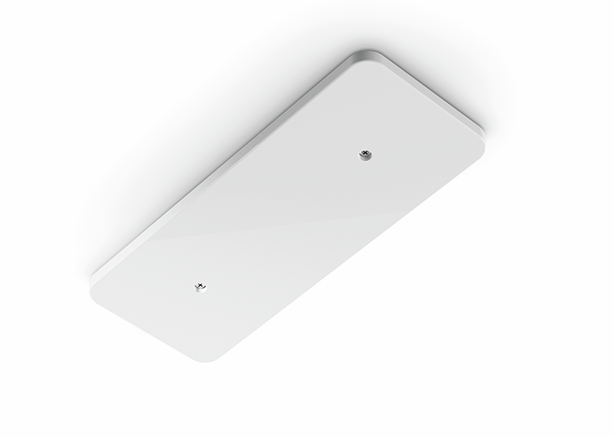

Lamp mounted from below. Plastic housing, translucent white. Illumination without visible LED points. When switched off, the entire body of the lamp is made of translucent plastic, white matt.

Individual lamp without switch
— housing can be screwed through with white cover caps
— 3,8 watts, 12 V
— continuous control of the light colour from 2700 K warm white to 6500 K cold white
— memory function: the last setting is stored
— dimmer function: brightness continuously dimmable
— max. 80 lumen/watt at 6500 K cold white
sockets for mini plug system integrated in the lamp housing
— 1800 supply line with mini plug-in system

Set 2, 3, 5 with switch consisting of:
— 1, 2 or 4 individual lamps without switch (7063372)
— 1 individual lamp with switch (7063376)
— 1 LED converter 20 (7062309)

Design by STUDIO MORITZ PUTZIER, Cologne.

This product contains a light source of energy efficiency class G.





Article type:
Luminaire
Colour:
white
Colour temperature:
2700 K warm white to 6500 K cold white
Colour temperature adjustable:
stepless
Cover colour:
white
Design:
Under-cabinet/niche light
Dimming function (composite):
brightness continuously dimmable
Discontinued item:
No
Energy efficiency class:
G
Form:
angular

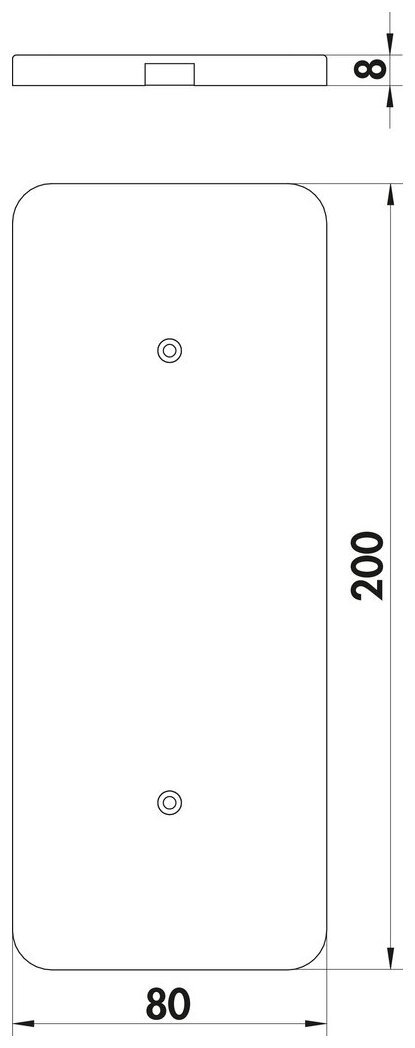

Height:
8 mm
Homogeneous light field without visible LED points:
Yes
Housing colour:
white matt
Illuminant included:
Yes
Illuminant power:
3.8 watts
Illuminant type:
LED
LIC system compatible:
Yes
Length:
200 mm
Length of the supply line (primary):
1.800 mm
Light yield:
80 lumen/watt at 6500 K cold white
Material housing:
plastic
Memory function:
Yes
Mounting/Fixing:
Base unit installation (wall unit/shelf)
Plug-in system:
with mini plug-in system
Replaceable illuminant:
No
Switch:
No
Transformer / converter required:
Yes, must be ordered separately
Type of dimming:
brightness continuously dimmable
Width:
80 mm

Accessories

LED converter 20, grey
Product number: 7062309
  • 20 watts
  • Luminaire slots: 6
  • 2.000 mm
LED connection line, white, L 2000 mm
Product number: 7061049
  • with mini plug-in system
  • Connecting element
  • Length: 2.000 mm
