More:

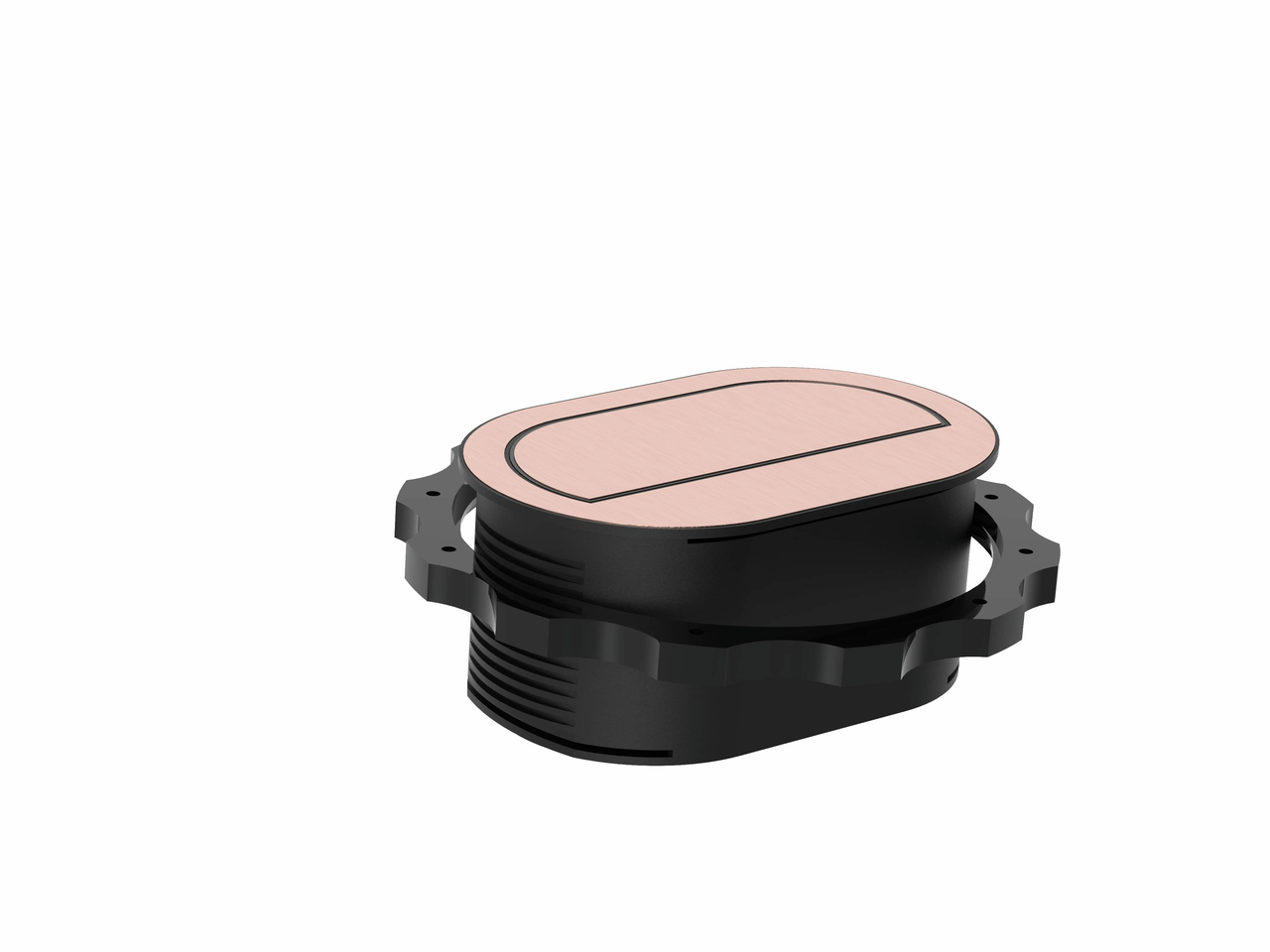

Piccolino, cover copper coloured
- Retractable socket element
- 2 x earthed plug socket
- Length of the supply line (primary): 2.000 mm
Prices will only be shown once logged in.

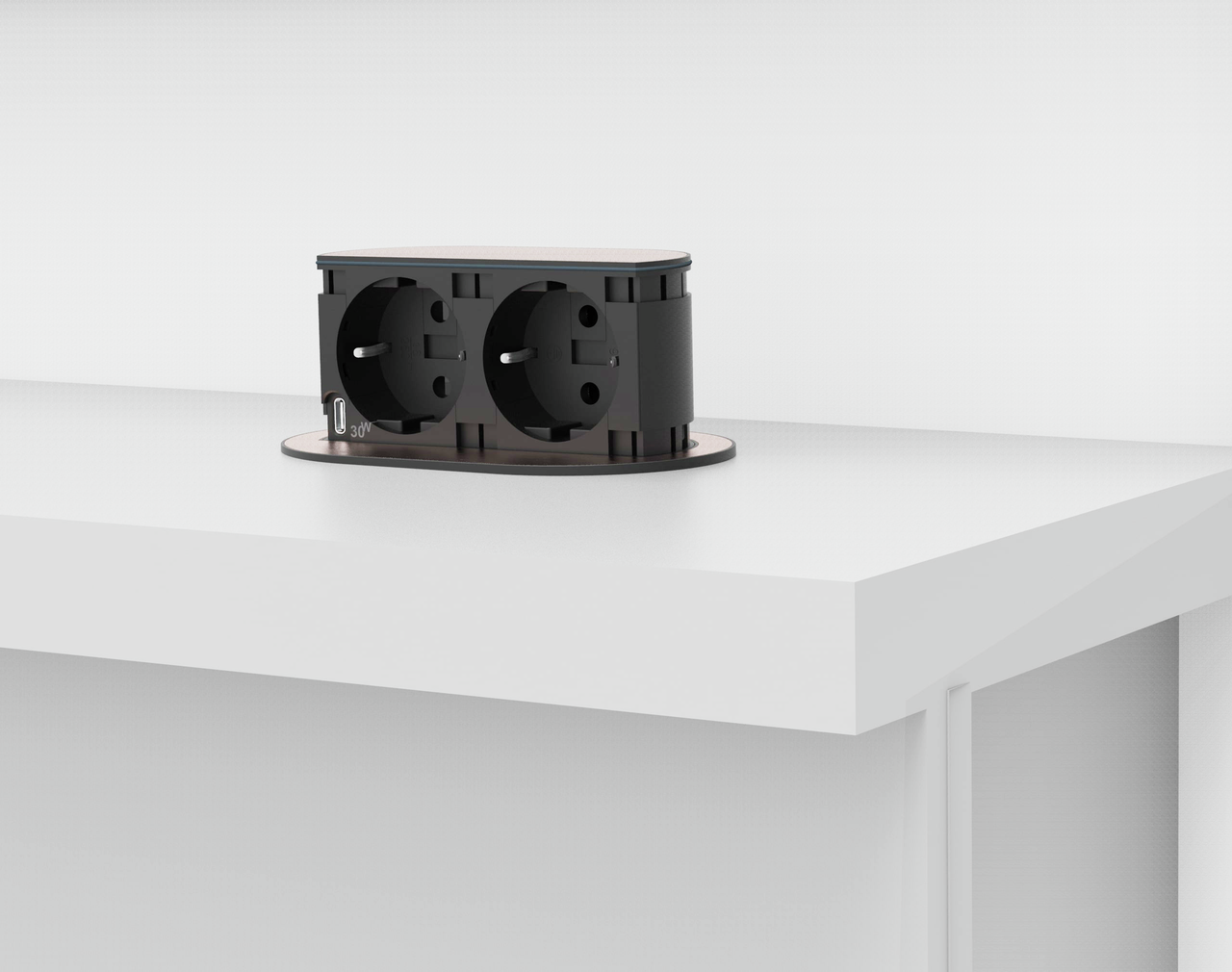

The CON-AKTIV® Piccolino socket with retractable technology is discreet and effective. It is ideal for installation in worktops on kitchen islands. The socket element offers convenient and safe connection for kitchen appliances that are not in constant use. With its elegant oval design, it blends harmoniously into many interior design concepts. When closed, it forms a level surface with the worktop. When needed, a light press on the cover is enough to activate the integrated spring mechanism, which raises the housing. The retractable socket then provides two Schuko sockets, which are arranged side by side. This means that the double socket only requires a shallow installation depth of less than 48 mm. This has a positive effect on the space required if there are drawers or pull-outs underneath. The cable outlet on the underside should also be taken into account during installation. A 200 cm long mains connection cable including a Schuko plug is included. This allows the double socket to be supplied with power directly, for example via a floor socket. The material used is durable and easy-care plastic. There are different cover designs to choose from.
Socket element. Retractable. With 2 earthed plug sockets, 1 USB Type-C charger, 30 watts. For installation in worktops.
— material plastic, black
— cover stainless steel or black matt
— 1 x USB charger type C, 5 VDC, IA/I out: 1100 mA
— 2000 mm mains connection line with Schuko plug
— drill Ø ca. 68 mm
— for panel thickness from 16 mm, mounted by screw ring
— cable outlet below
Downloads
Assembly
Accessories
- Drilling diameter: 68 mm
- Max. cutting depth: 38 mm
- incl. centre drill
Recommendations
- Drilling diameter: 68 mm
- Max. cutting depth: 38 mm
- incl. centre drill
