More:
Piccolino, cover black matt
Product number:
7053199
- Retractable socket element
- 2 x earthed plug socket
- Length of the supply line (primary): 2.000 mm
Description
Piccolino, cover black matt

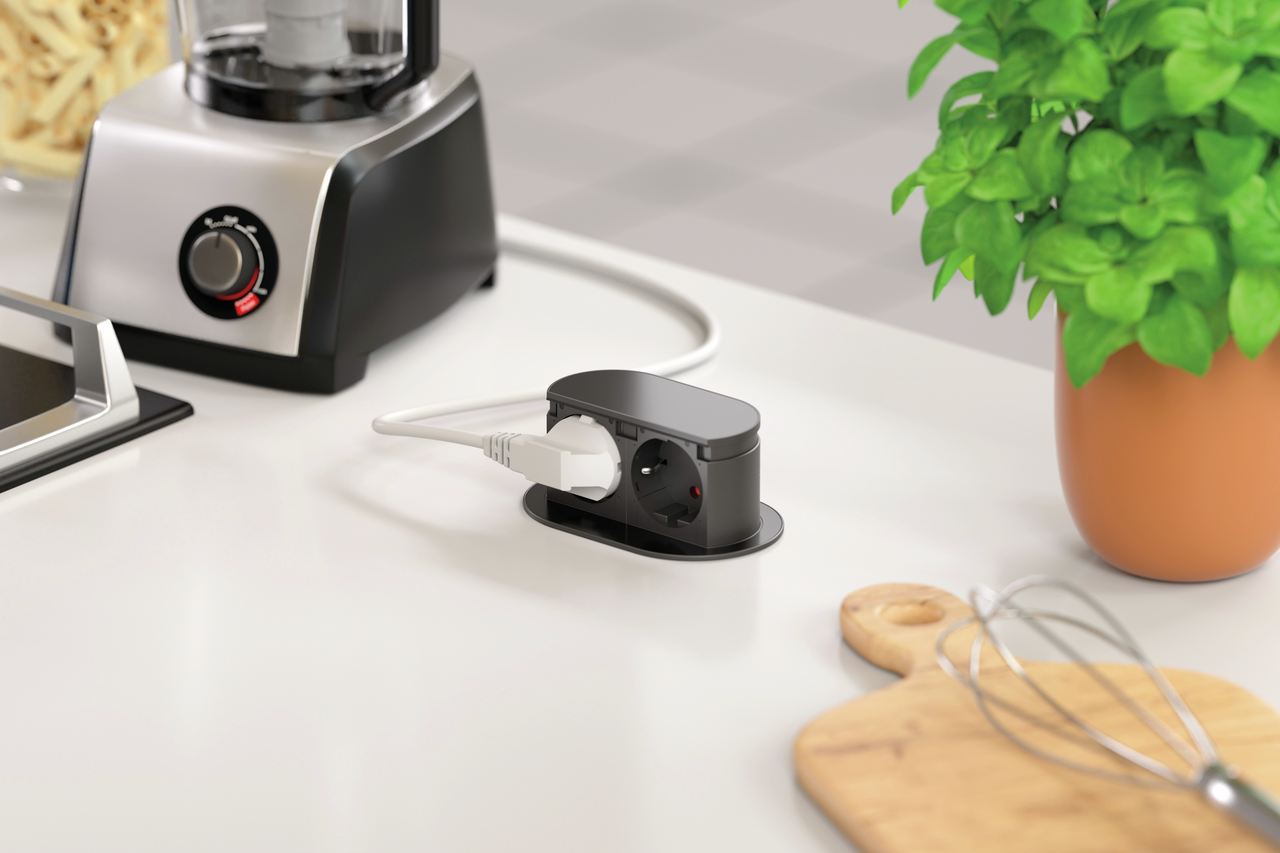

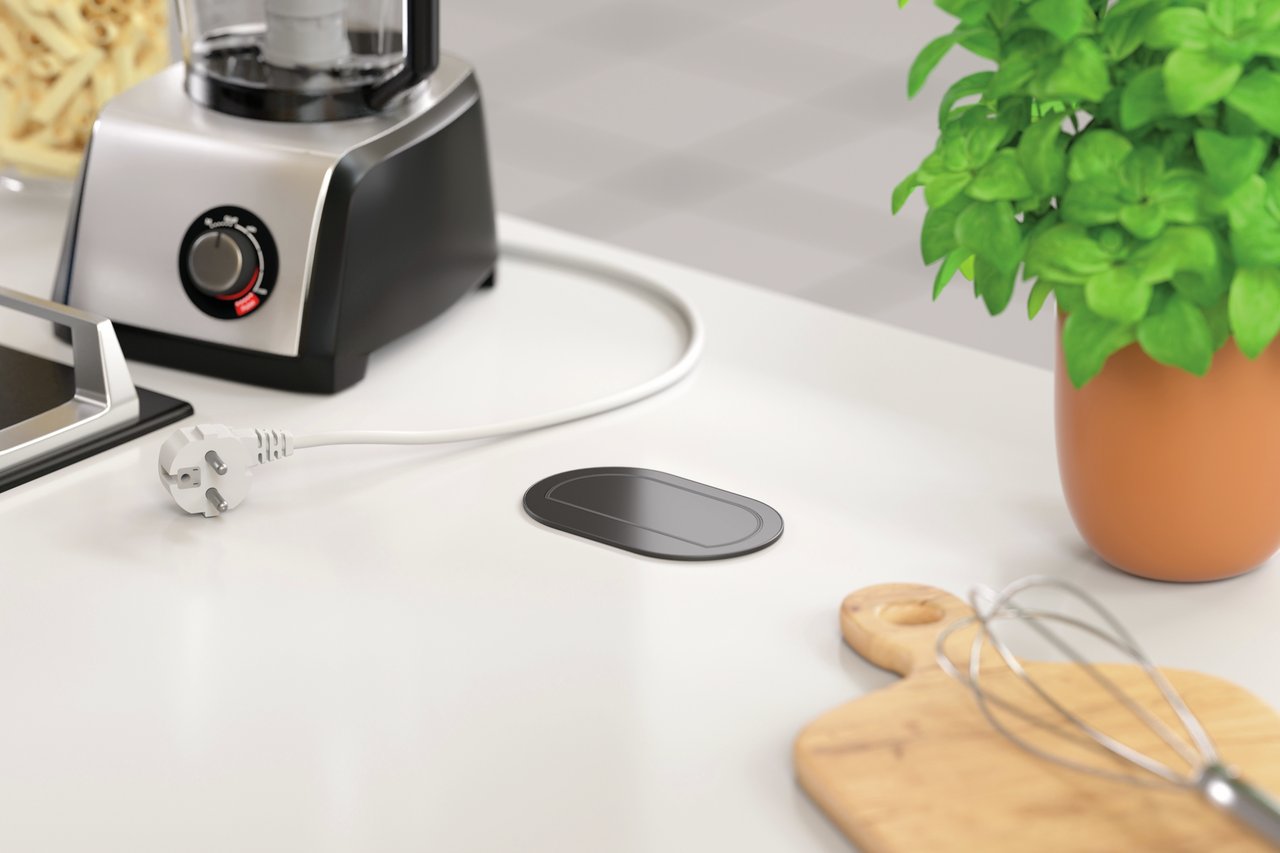

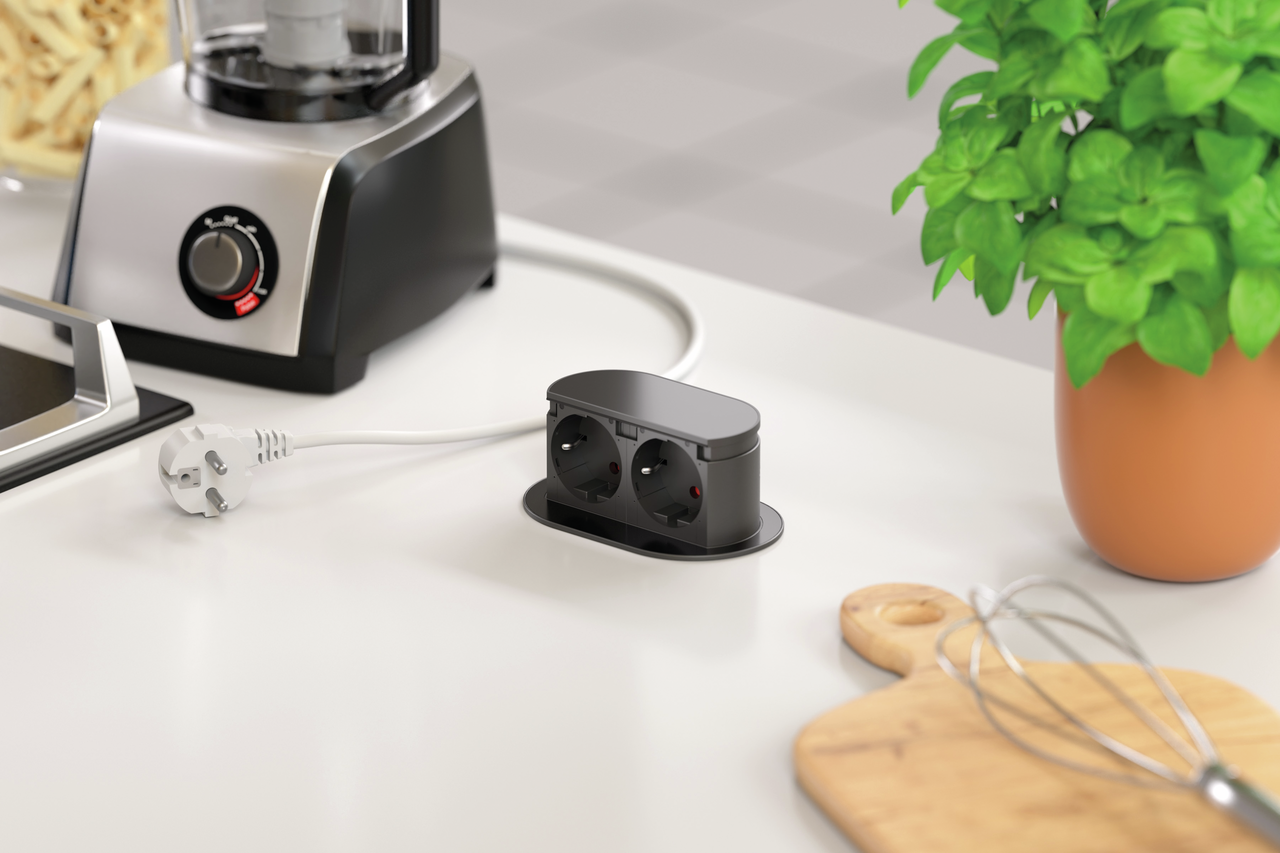

The CON-AKTIV® Piccolino socket outlet with recessed technology is discreet and effective. It is ideal for installation in worktops in kitchen islands. The socket element offers convenient and safe connection of kitchen appliances that are not in constant use. With its elegant oval design, it blends harmoniously into many furnishing concepts. When closed, it forms one level with the worktop. When it is needed, a light press on the lid is all it takes for the integrated spring mechanism to raise the housing. The retractable socket then provides two Schuko sockets, which are arranged next to each other. As a result, the double socket outlet only requires a small installation depth of less than 48 mm. This has a positive effect on the space required if there are drawers or pull-outs underneath. The cable outlet on the underside should also be taken into account during installation. A 200 cm long mains cable including a Schuko plug is connected. This means that the 2-way socket outlet can be supplied with power directly, for example via a floor socket outlet. The material used is durable and easy-care plastic. There is a choice of different cover designs.

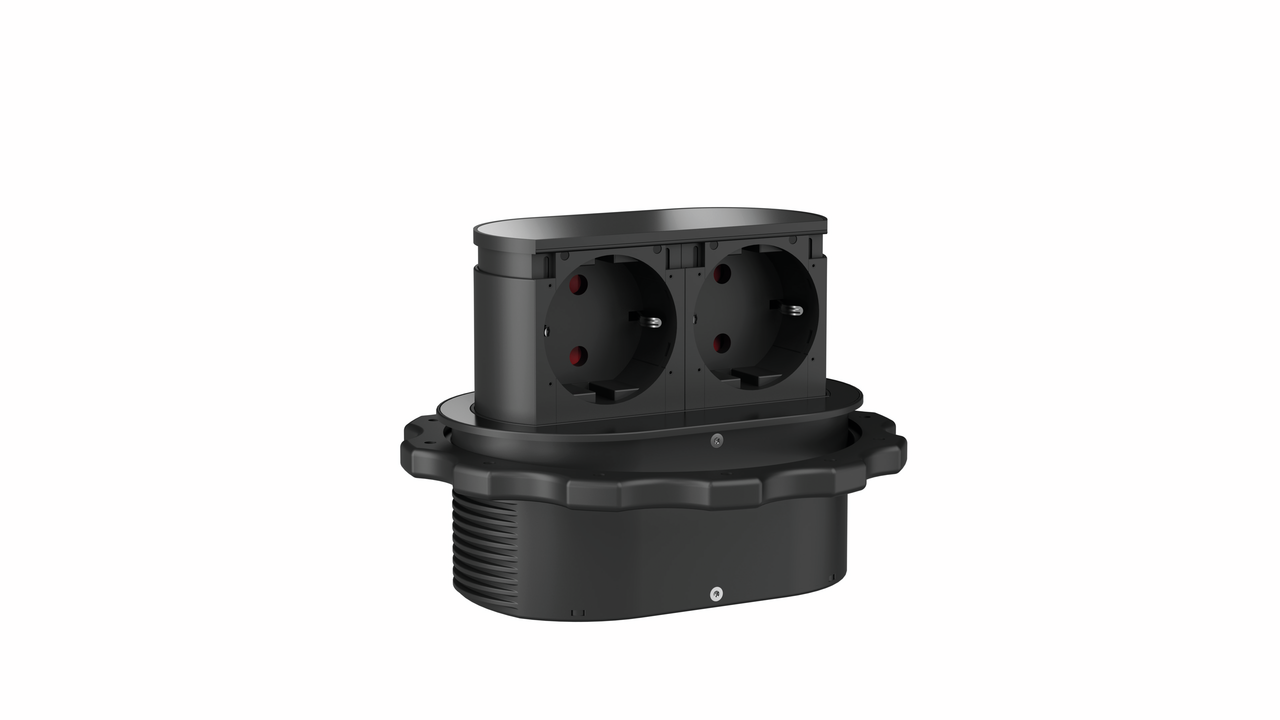

Socket element. Retractable. With 2 Schuko sockets for hanging cabinets or worktops.
— material plastic, black
— Blende Edelstahl oder schwarz matt
— 2000 mm mains connection line with Schuko plug
— drill Ø ca. 68 mm
— for panel thickness from 16 mm, mounted by screw ring
— cable outlet below
Socket element. Retractable. With 2 Schuko sockets for hanging cabinets or worktops.
— material plastic, black
— Blende Edelstahl oder schwarz matt
— 2000 mm mains connection line with Schuko plug
— drill Ø ca. 68 mm
— for panel thickness from 16 mm, mounted by screw ring
— cable outlet below
Article type:
Socket element
Colour:
black matt
Colour bezel:
black matt
Colour socket:
black
Drilling diameter:
68 mm
Flush mountable:
Yes
Length of the supply line (primary):
2.000 mm
Mains voltage:
230 V/16 A
Material:
plastic
Mounting/Fixing:
for hanging cabinets, installation, in the worktop
Number of sockets (total):
2
Opening mechanism:
Push & Pull
Rated current:
16 A
Type of socket element:
Retractable socket element
Version sockets:
2 x earthed plug socket
Width:
67,80 mm
Worktop thickness:
from 16 mm
Assembly
Measures
Accessories
7
variations available
Hole saw, Ø 68 mm, for Piccolino
Subscription
Product number:
7053168
- Drilling diameter: 68 mm
- Max. cutting depth: 38 mm
- incl. centre drill
Recommendations
7
variations available
Hole saw, Ø 68 mm, for Piccolino
Subscription
Product number:
7053168
- Drilling diameter: 68 mm
- Max. cutting depth: 38 mm
- incl. centre drill
