Product information:
PRIME flow P-Turbo 150 wall conduct incl. THERMOBOX, white, stainless steel
Product number:
4051064
- Wall sleeve
- installation in the wall
- N-click system with integrated latching elements
Description

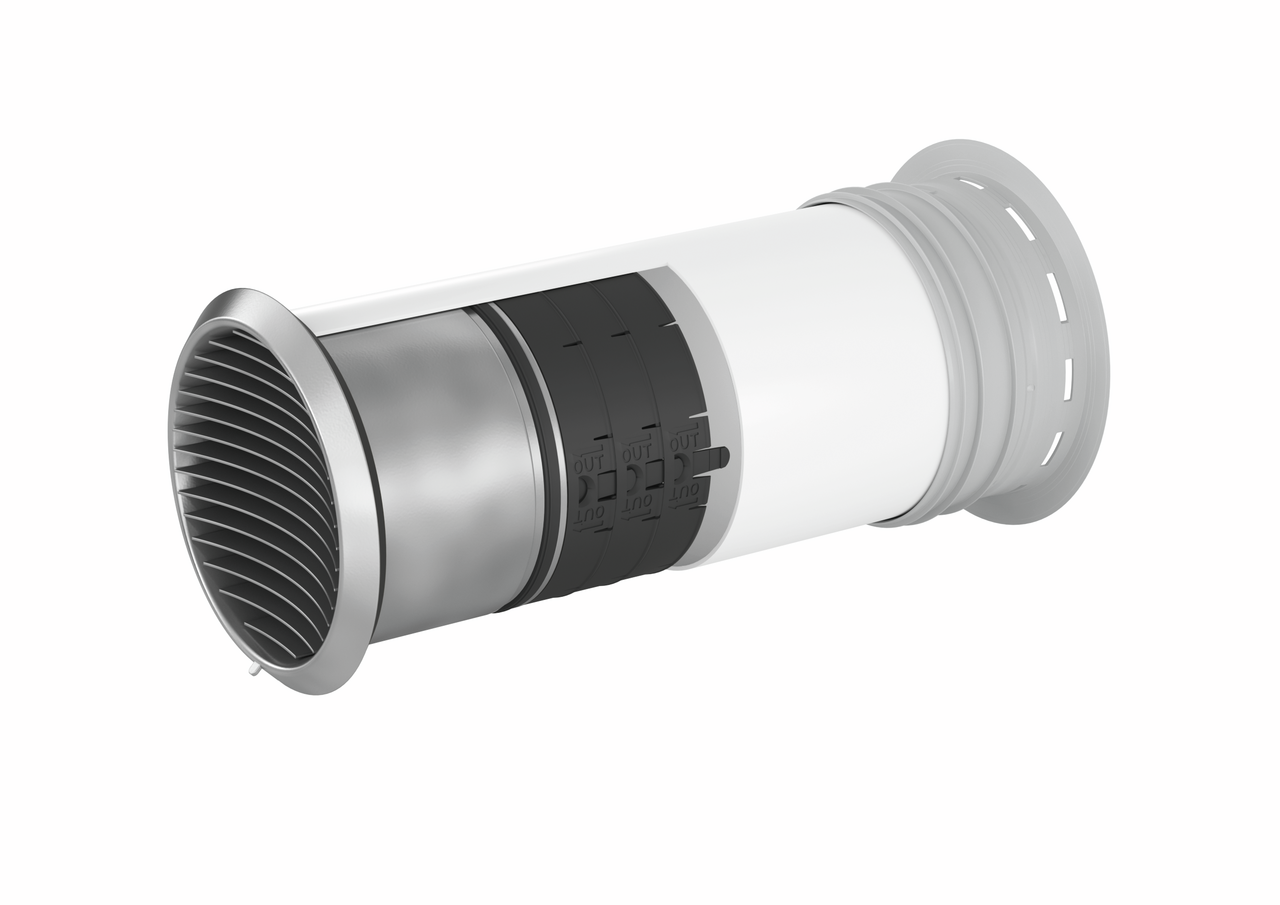

PRIME flow P-Turbo 150 wall conduct incl. THERMOBOX, white, stainless steel

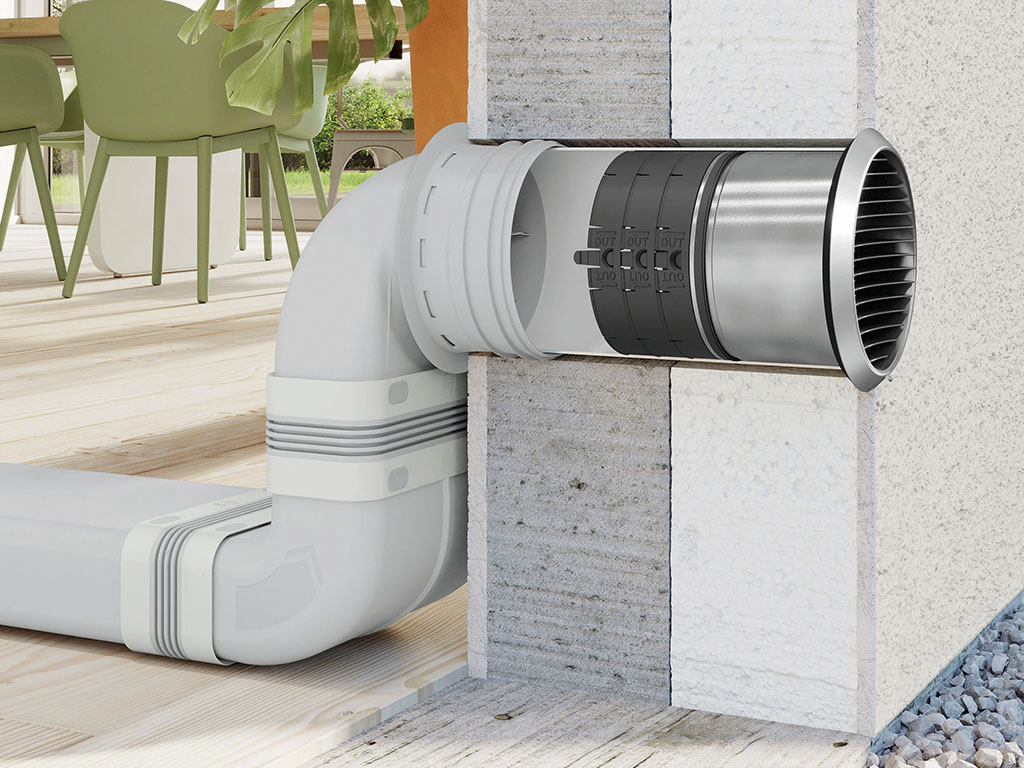

Specially developed for downdraft extractor systems, the COMPAIR® PRIME flow P-Turbo 150 wall box cleverly guides the exhaust air produced in the kitchen outside. It is equally suitable for installation in walls close to the floor or for conventional installation at ceiling height. As a model from the patented COMPAIR® PRIME flow range, it impresses with a particularly easy-to-install and ecological design and comes from socially responsible production. The intelligent THERMOBOX heat retention system is also integrated, which prevents draughts from entering and heat from escaping from the room. The blower door-certified backflow system uses an innovative opening and closing mechanism via magnets. The external louvre and the wall duct are made of stainless steel. The latter is designed for a maximum wall thickness of 550 mm and can be shortened to 220 mm. Its tube diameter is 150 mm. The installation is carried out using the separate pipe kit with a core hole in a nominal diameter of 162 or 164 mm. The scope of delivery includes a hard foam plug and a wall sleeve for sealing leaks without tools.

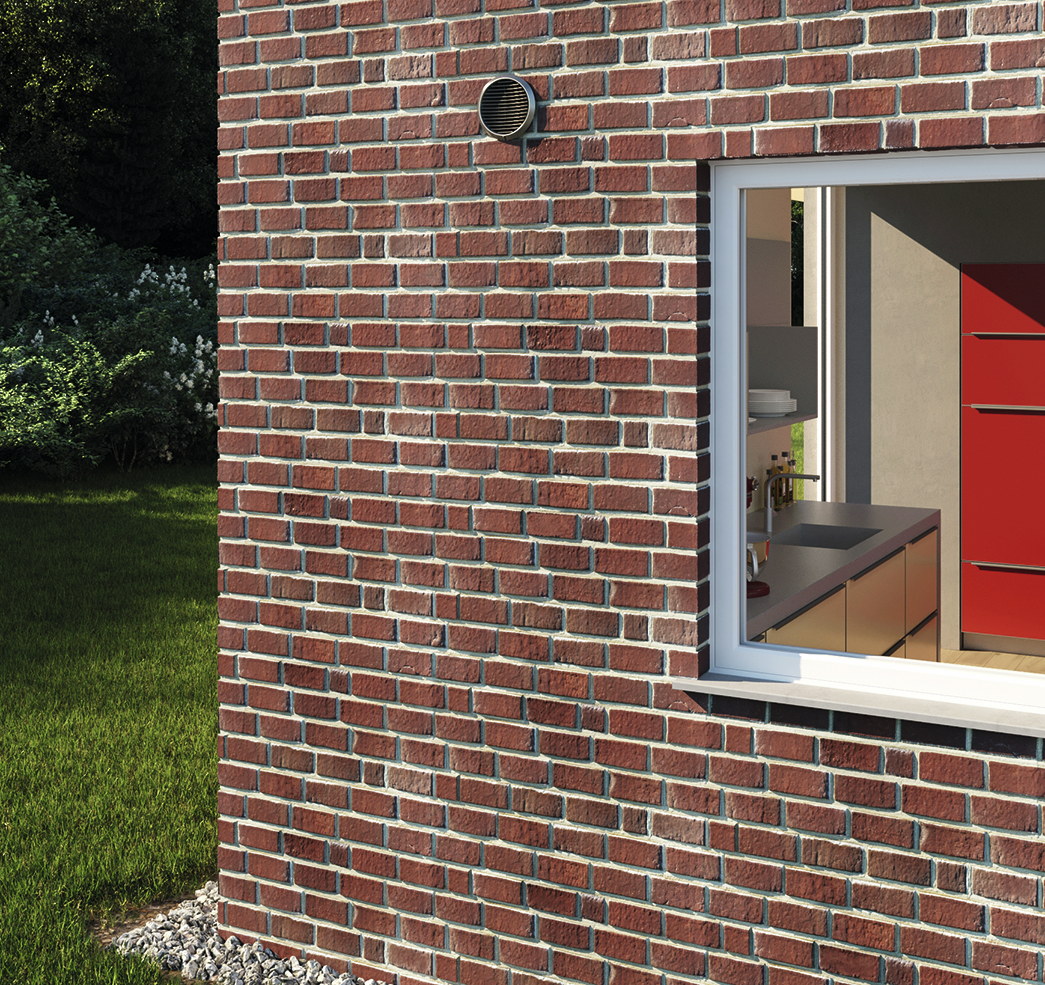

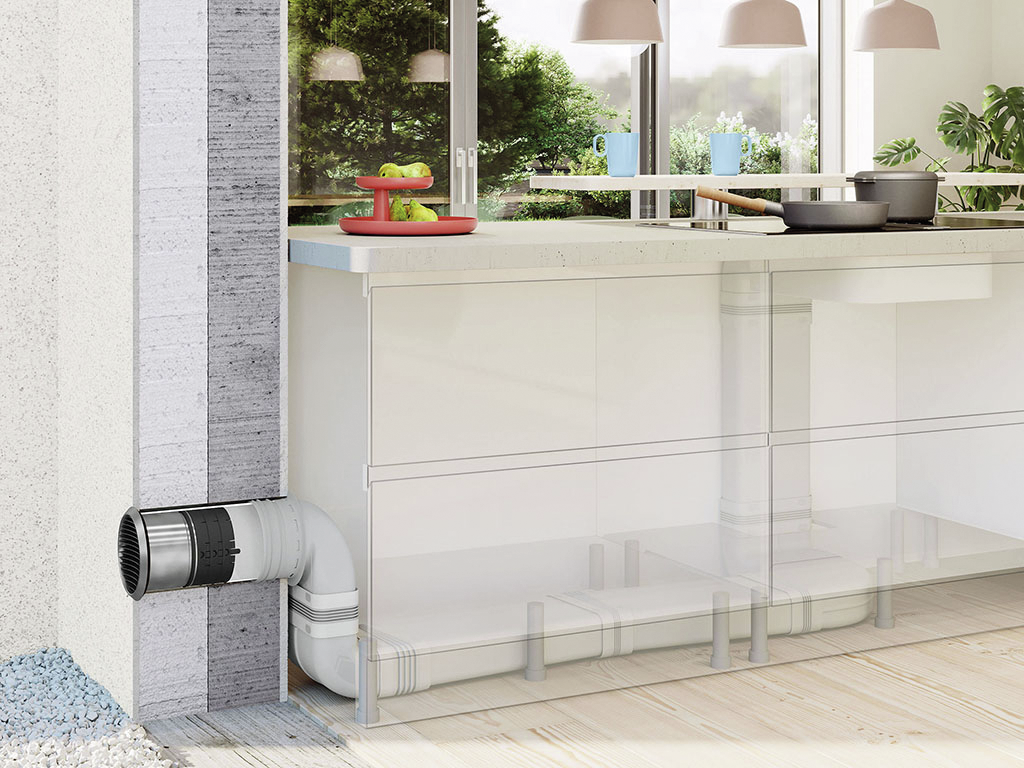

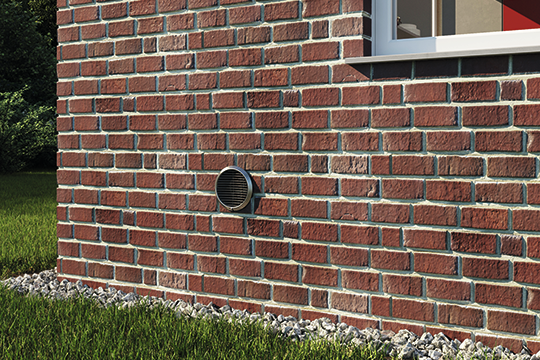

Wall conduct, incl. THERMOBOX heat retention system and Turbo stainless steel external blind for installation close to the ground and for conventional installation at ceiling height.
Two-stage installation:
1. Assembly of the separately packaged construction kit
2. Toolless insertion of the heat retention system and the blind
— N-Klick system for secure connection with the universal connector
— direct connection of the flat adapter, round pipe or round pipe bends
— Blower-Door certified (necessary opening pressure >65 Pa)
Raw construction set:
— raw construction set for installation in the wall at any time
— max. wall thickness 550 mm, can be shortened to 220 mm
— core hole drilling in nominal Ø 162 or 164 mm
— hard foam plugs to protect against dirt during the construction phase

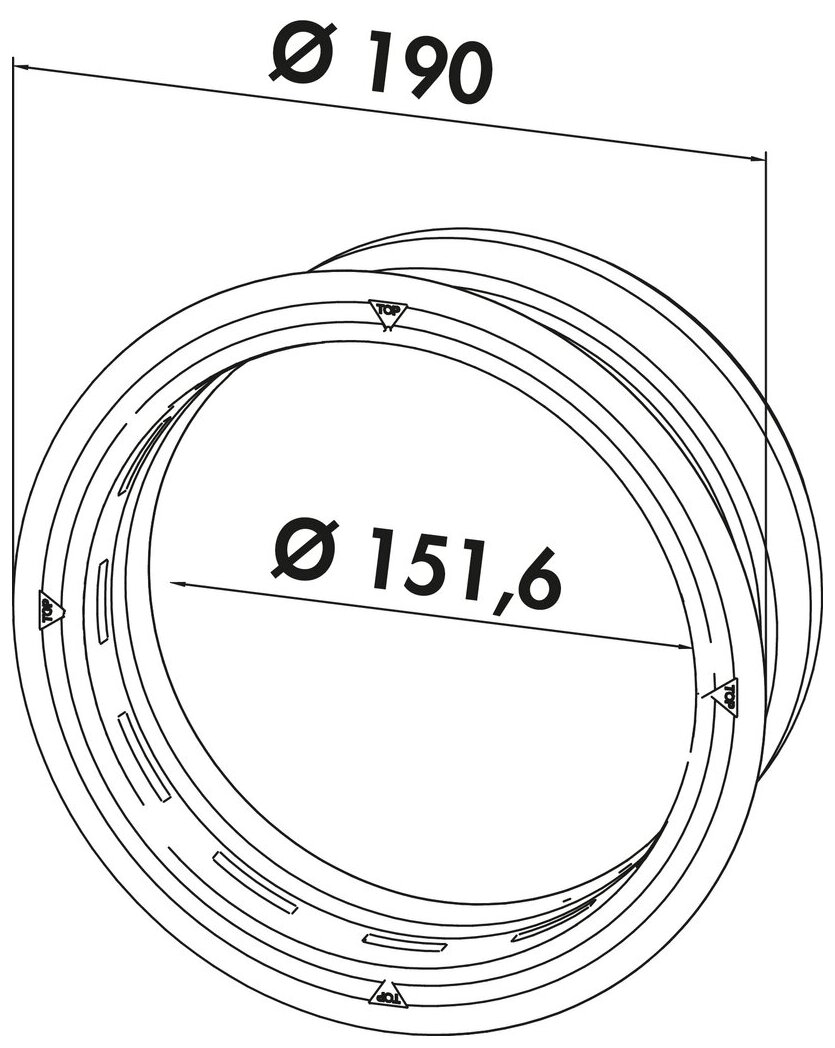

— wall sleeve for tool-free installation and sealing against leakage
Wall conduct, incl. THERMOBOX heat retention system and Turbo stainless steel external blind for installation close to the ground and for conventional installation at ceiling height.
Two-stage installation:
1. Assembly of the separately packaged construction kit
2. Toolless insertion of the heat retention system and the blind
— N-Klick system for secure connection with the universal connector
— direct connection of the flat adapter, round pipe or round pipe bends
— Blower-Door certified (necessary opening pressure >65 Pa)
Raw construction set:
— raw construction set for installation in the wall at any time
— max. wall thickness 550 mm, can be shortened to 220 mm
— core hole drilling in nominal Ø 162 or 164 mm
— hard foam plugs to protect against dirt during the construction phase
— wall sleeve for tool-free installation and sealing against leakage
Article type:
Wall sleeve
Brand:
PRIME flow
Colour:
stainless steel/white
Discontinued item:
No
Form:
round
Material:
stainless steel/plastic
Mounting/Fixing:
N-click system with integrated latching elements, installation in the wall
Opening pressure:
> 65 Pa
Outer diameter:
150 mm
Output drive:
round
Properties:
can be shortened
Shortenability:
can be shortened to 220 mm
Suitable wall thickness:
max. wall thickness 550 mm
System dimension:
150
