PRIME flow GREENflow filter box set-1, grey
Product number:
4043094
- filter box set
- simple maintenance/access
Description
PRIME flow GREENflow filter box set-1, grey

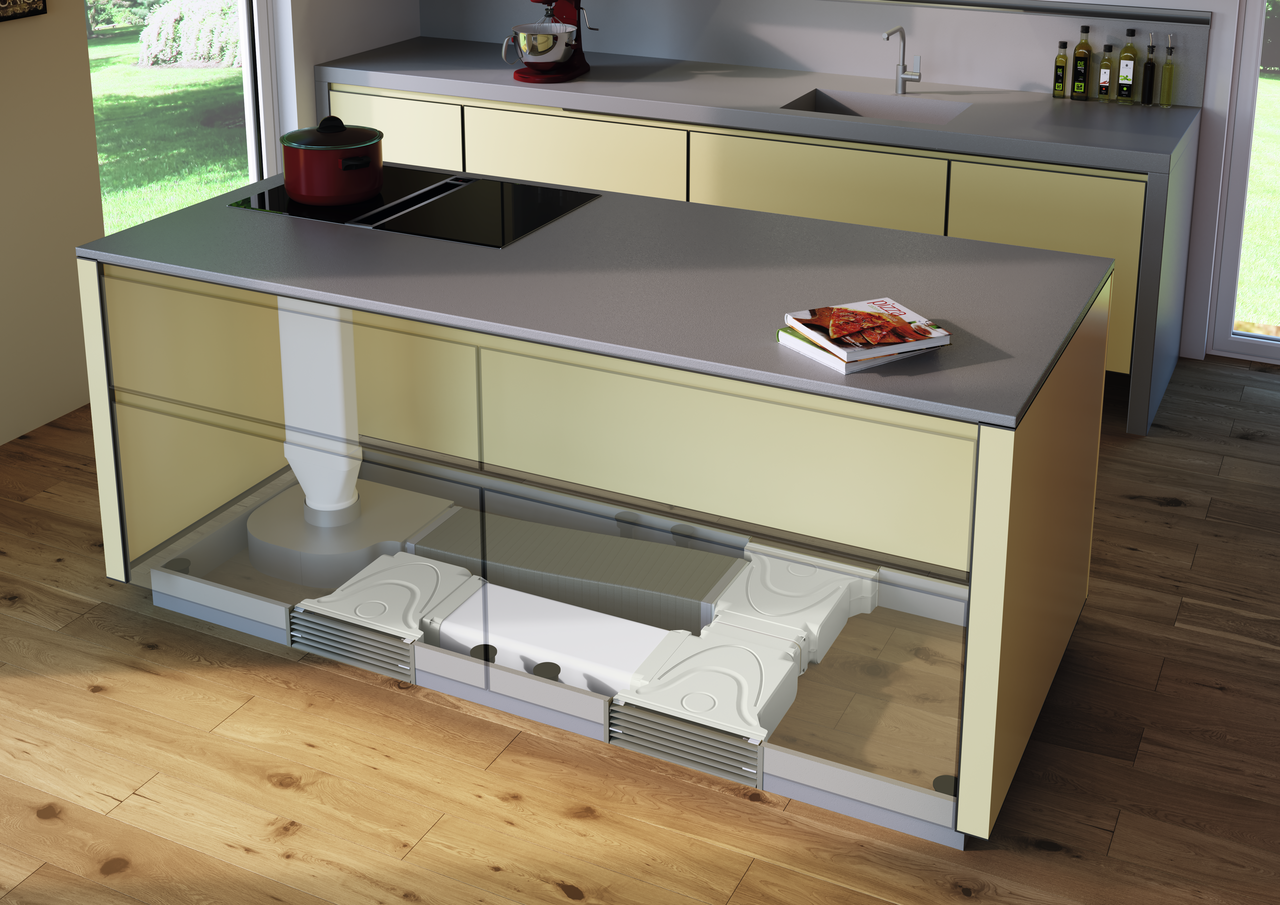

With the COMPAIR PRIME flow® GREENflow Filterbox-Set-1, cooking vapours can be safely extracted, especially from cooking islands. The recirculating air filter system has been specially developed for use with a downdraft bonnet or a hob ventilator. It is part of the modular COMPAIR GREENflow ventilation technology and is characterised by a high extraction capacity due to the large filter surface. The set consists of the GREENflow filter box, which is installed in the plinth area of the kitchen unit. It is suitable for plinth heights from 100 to 150 mm. The box is combined with a one metre long flex duct in a flat, angular design. The outer diameter is 150 mm. The associated cold-shrink tape ensures a tight connection between the components. Thanks to the integrated plinth foot with a load capacity of up to 300 kg, furniture feet can be replaced if necessary. A ventilation grille with aerodynamically optimised slats minimises pressure loss and ensures barely perceptible air movement. It is made of anodised aluminium and comes in a neutral grey colour. For an efficient ventilation result, the filter box can be combined with an OMEGA activated charcoal filter and other boxes, which are available separately.
Recirculating air filter system for filtration of cooking vapours when using a downdraft hood/hob ventilator.
— high flexibility in the positioning of the filter boxes
— suitable for base heights from 100–150 mm (grid can be shortened)
— guide vanes provide for uniform distribution of the air flow
— suitable for almost all common downdraft hoods/ hob ventilators, with or without own activated carbon filter
— simple maintenance/access
— integrated base foot (optionally usable, load capacity up to 300 kg)
— aerodynamically optimised blades of the ventilation grid (anodised aluminium) minimise the pressure loss
— maximum outlet cross-section provides for barely perceptible air movement
Set consisting of:

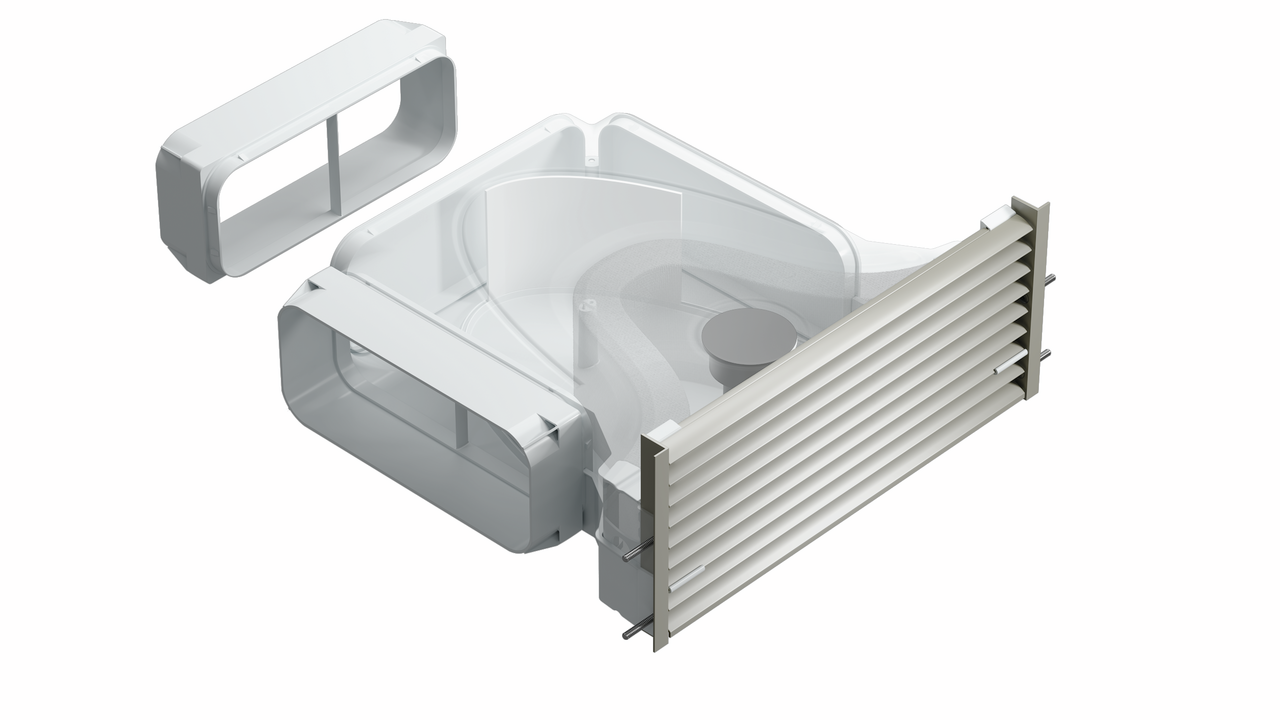

— 1 x filter box (4043075)

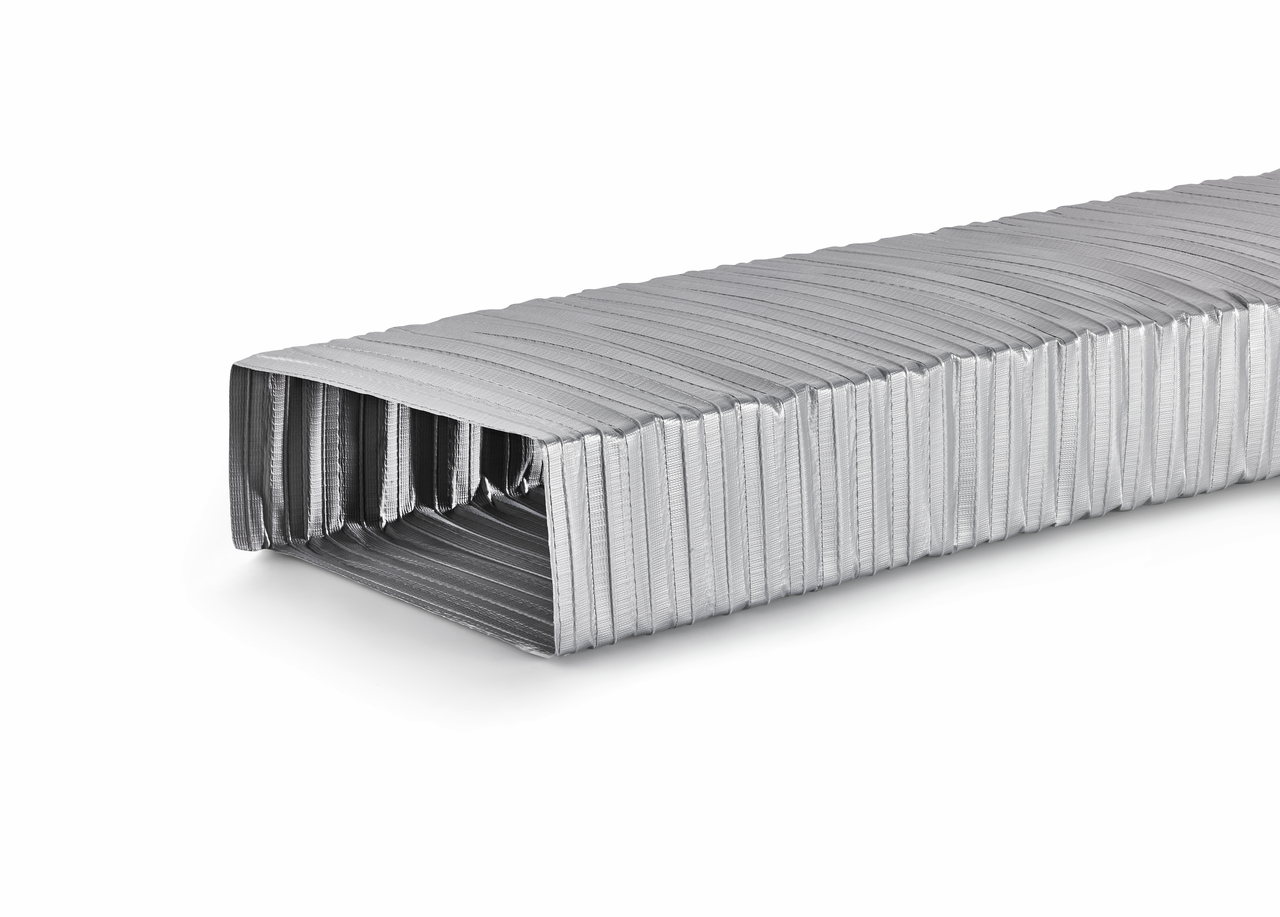

— 1 x GREENflow flexi-duct, 1 m (4043093)

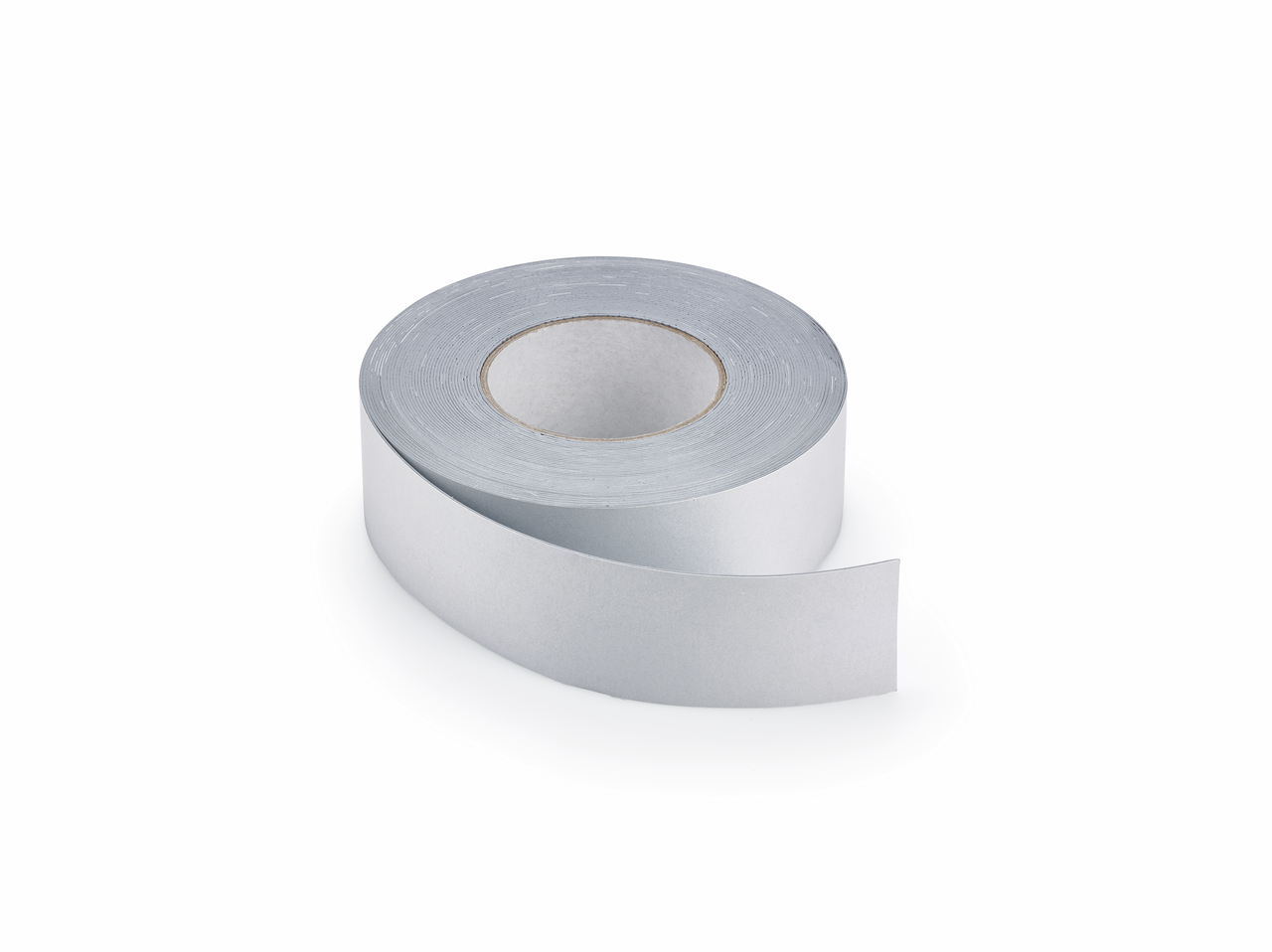

— 1 x GREENflow cold shrink tape, 15 m (4043077)
Note:
The GREENflow OMEGA filter needs to be ordered separately if required.
For optimal ventilation results, additional boxes can easily be added.
Recirculating air filter system for filtration of cooking vapours when using a downdraft hood/hob ventilator.
— high flexibility in the positioning of the filter boxes
— suitable for base heights from 100–150 mm (grid can be shortened)
— guide vanes provide for uniform distribution of the air flow
— suitable for almost all common downdraft hoods/ hob ventilators, with or without own activated carbon filter
— simple maintenance/access
— integrated base foot (optionally usable, load capacity up to 300 kg)
— aerodynamically optimised blades of the ventilation grid (anodised aluminium) minimise the pressure loss
— maximum outlet cross-section provides for barely perceptible air movement
Set consisting of:
— 1 x filter box (4043075)
— 1 x GREENflow flexi-duct, 1 m (4043093)
— 1 x GREENflow cold shrink tape, 15 m (4043077)
Note:
The GREENflow OMEGA filter needs to be ordered separately if required.
For optimal ventilation results, additional boxes can easily be added.
Article type:
filter box set
Brand:
PRIME flow
Colour:
grey
Further:
integrated base foot (optionally usable, load capacity up to 300 kg)
Height:
100 - 150 mm
Length:
353 mm
Maintenance:
simple maintenance/access
Note:
The GREENflow OMEGA filter needs to be ordered separately if required. For good ventilation results, the use of at least two boxes is recommended., aerodynamically optimised blades of the ventilation grid (anodised aluminium) minimise the pressure loss, easy maintenance/replacement, maximum outlet cross-section provides for barely perceptible air movement
Outer diameter:
150 mm
Properties:
flexible
Suitable for:
suitable for almost all common downdraft hoods/ hob ventilators, with or without own activated carbon filter
Width:
362 mm
