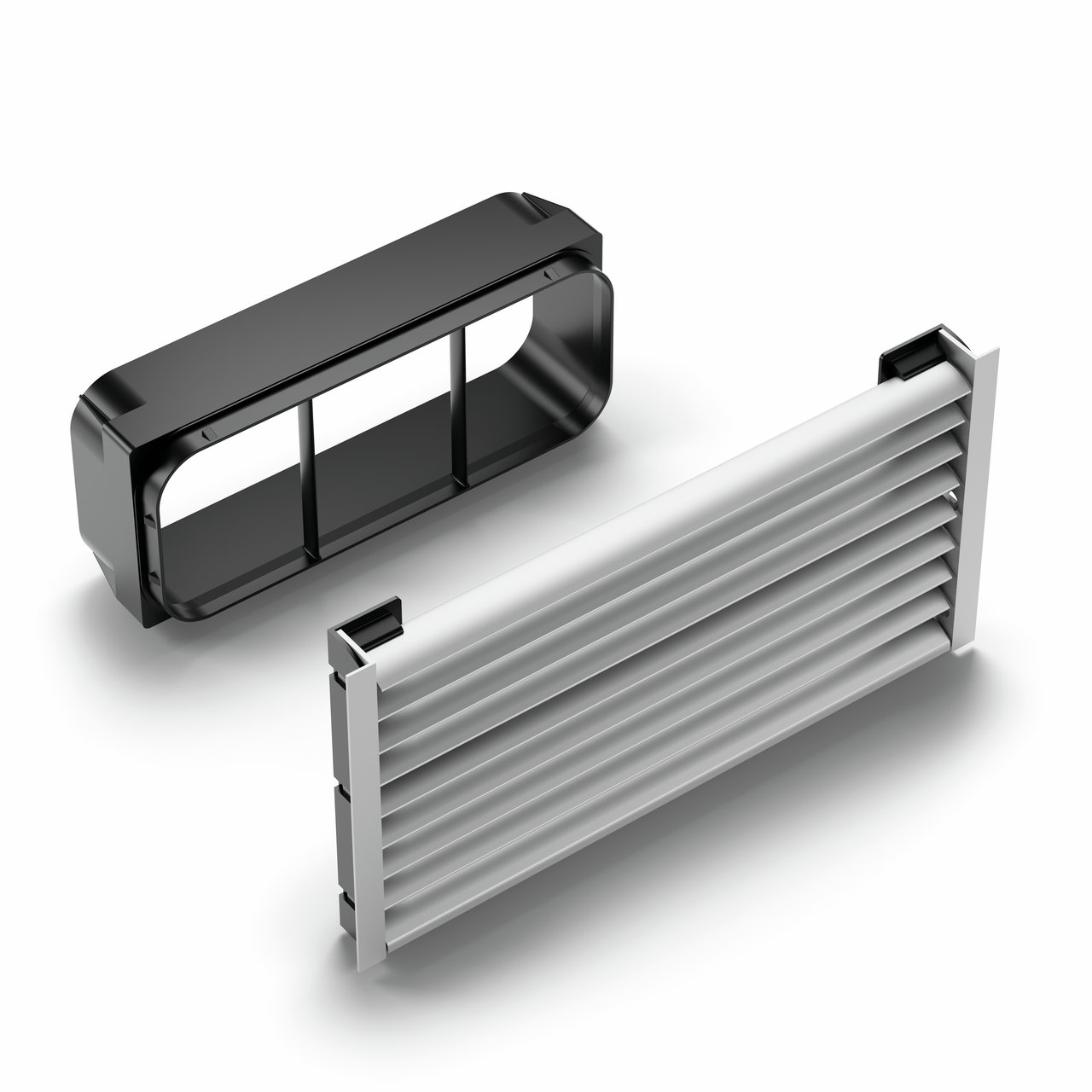

PRIME flow Base ventilation grid flow, stainless steel coloured, W 150 mm, L 297 mm
Product number:
8033014
- Ventilation grid
Description
PRIME flow Base ventilation grid flow, stainless steel coloured, W 150 mm, L 297 mm

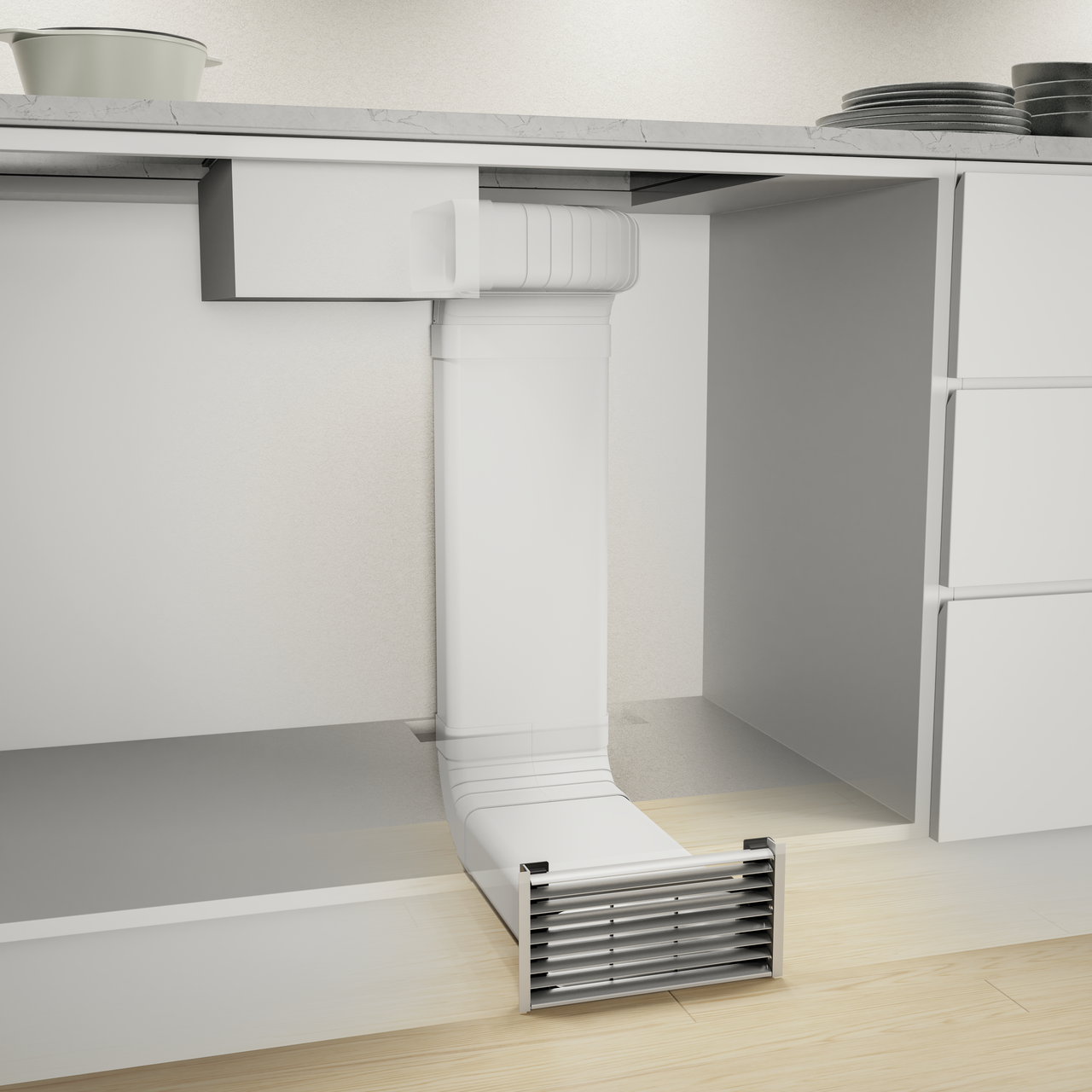

The COMPAIR® PRIME flow plinth ventilation grille flow is characterised by its discreet design, so that it can be unobtrusively integrated into the kitchen design. It is used in duct-guided downdraft or trough ventilation systems with integrated activated charcoal filter in recirculation mode. The aerodynamic slat profiles ensure an even distribution of the air flow in the room. The ventilation grille is suitable for plinth heights of 100 to 150 mm. It can be combined with any COMPAIR® flow flat duct or GREENflow Flex duct. The associated universal connector enables a tool-free connection. The louvre grille is made of anodised aluminium.
Slatted ventilation grid made of anodised aluminium profiles. For ducted downdraft or hob ventilation systems with integrated activated carbon filters in recirculation mode.
Suitable for base heights of 100-150 mm (can be shortened).
For connection to COMPAIR® flow flat duct pipe or GREENflow Flex duct.
— cover dimensions 150 x 297 mm
— ventilation shaft 210 cm²
— cut-out dimensions 150 x 282 mm
— connector dimensions 89 x 222 mm
— connector depth 45 mm
Slatted ventilation grid made of anodised aluminium profiles. For ducted downdraft or hob ventilation systems with integrated activated carbon filters in recirculation mode.
Suitable for base heights of 100-150 mm (can be shortened).
For connection to COMPAIR® flow flat duct pipe or GREENflow Flex duct.
— cover dimensions 150 x 297 mm
— ventilation shaft 210 cm²
— cut-out dimensions 150 x 282 mm
— connector dimensions 89 x 222 mm
— connector depth 45 mm
Article type:
Ventilation grid
Brand:
PRIME flow
Colour:
stainless-steel coloured
Material:
aluminium
Width:
150 mm
