N-UR 8 system 100 deflector 90°, white
Product number:
4011002
- Connecting element
- Plug-in system for subsequent gluing
- 150 mm
Description
N-UR 8 system 100 deflector 90°, white

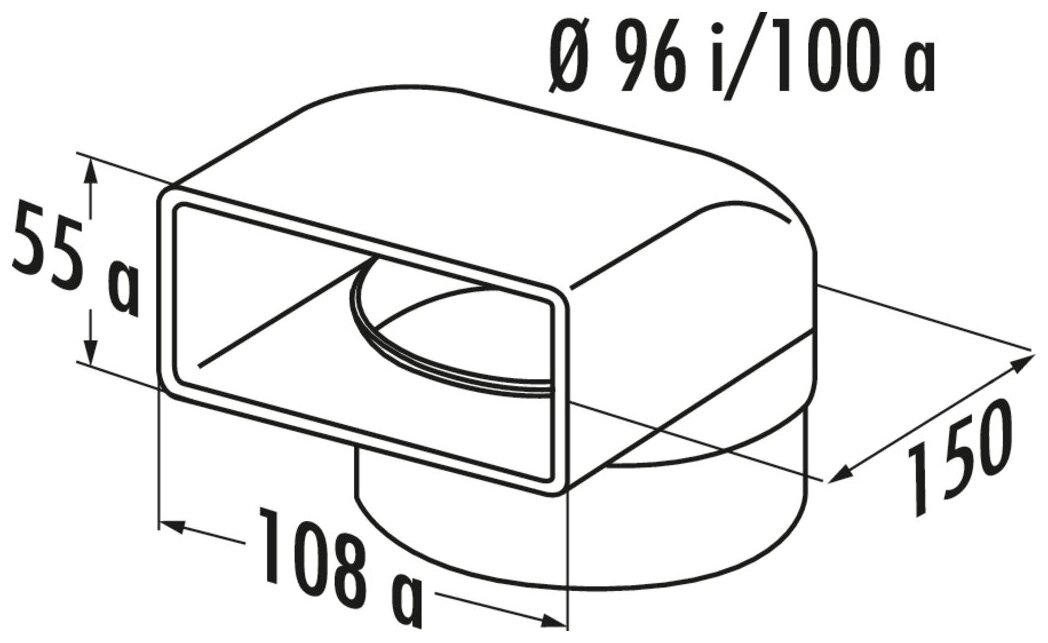

The flexible COMPAIR® norm N-UR 8 System 100 deflection piece enables the uncomplicated connection of a flat duct pipe with a round pipe or Flex duct. At the same time, it provides a vertical bend of 90° to create a change of direction within the exhaust or supply air duct in the kitchen. The fitting is suitable for connecting flat ducts with a cross-section of 108 x 55 mm with a socket and round ducts with a diameter of 150 mm. For this purpose, it is equipped with an 80 mm long pipe socket.
With 80 mm pipe connector for connection to round pipe or flexi-duct.
With 80 mm pipe connector for connection to round pipe or flexi-duct.
Article type:
Connecting element
Colour:
white
Connection diameter:
100 mm
Discontinued item:
No
Form:
angular
Height:
55 mm
Length:
150 mm
Mounting/Fixing:
Plug-in system for subsequent gluing
Output drive:
angular, round
System dimension:
100
Width:
108 mm
