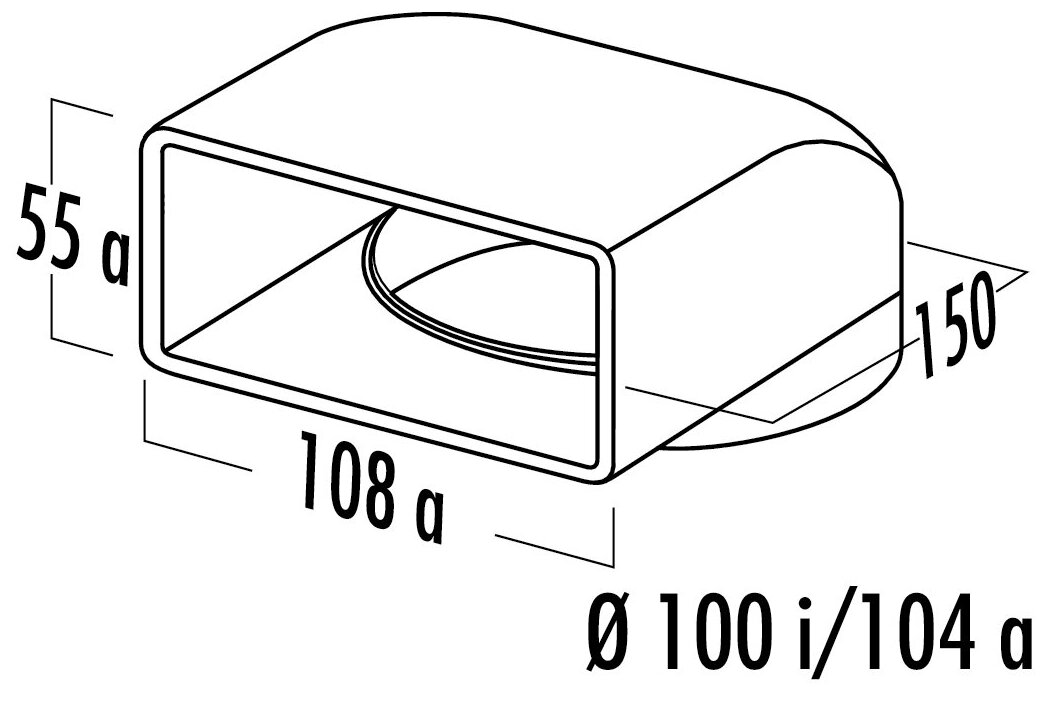

N-UR 100 deflector 90°, white
Product number:
4011003
- Connecting element
- Plug-in system for subsequent gluing
- 150 mm
Description
N-UR 100 deflector 90°, white
The COMPAIR® norm N-UR 100 90° baffle is a solid quality moulded part for the direct connection of a bonnet to the exhaust air installation. Thanks to the integrated condensation water barrier, the moisture contained in the vapour is prevented from flowing back to the bonnet. The ventilation moulding can be quickly connected to the required elements of the COMPAIR® norm series by means of a simple plug-in assembly without tools.
For direct hood connection, with condensing water block.
For direct hood connection, with condensing water block.
Article type:
Connecting element
Colour:
white
Connection diameter:
100 mm
Discontinued item:
No
Form:
angular
Height:
55 mm
Length:
150 mm
Mounting/Fixing:
Plug-in system for subsequent gluing
Output drive:
angular, round
System dimension:
100
Width:
108 mm
