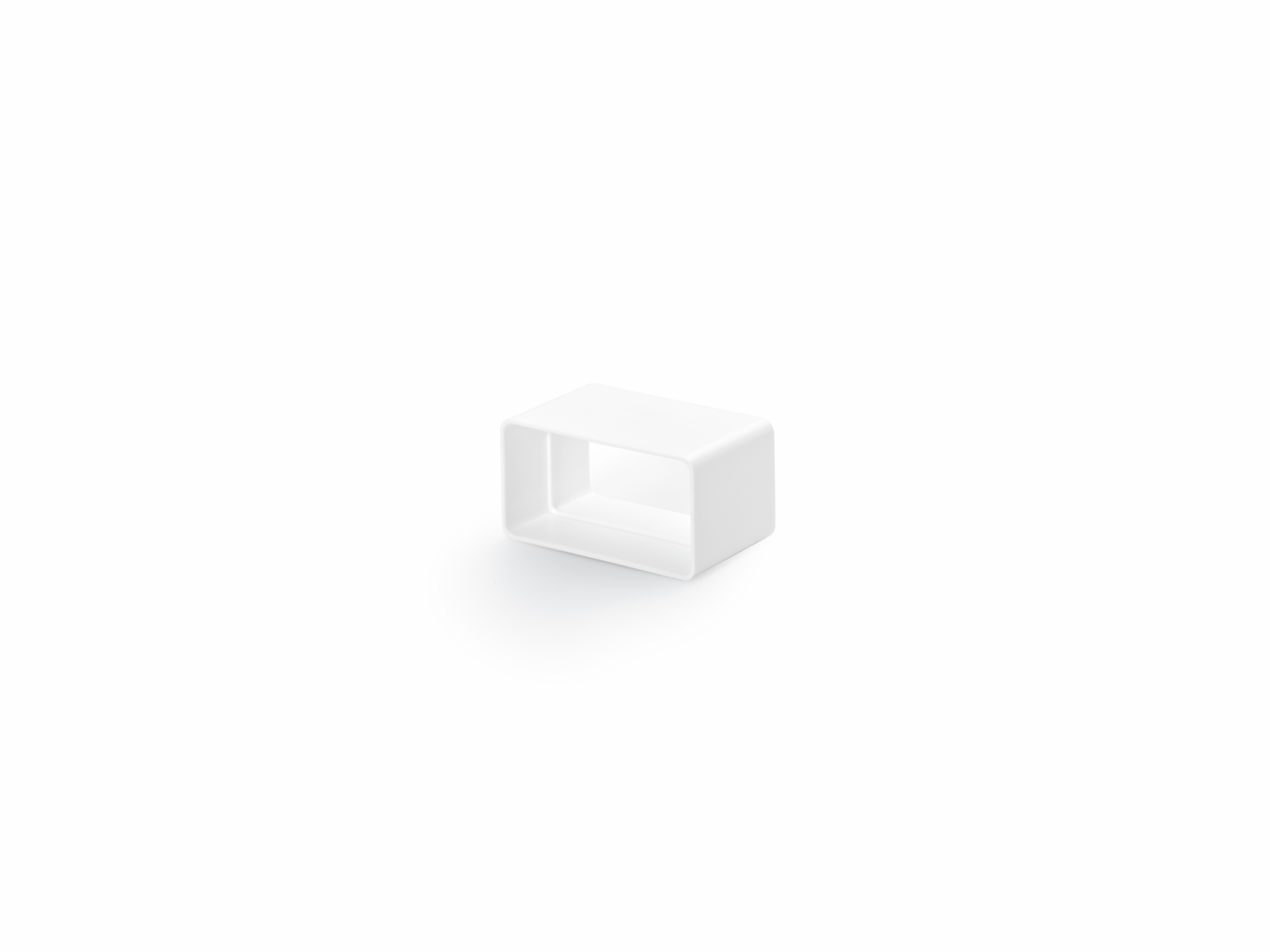

N-RVB 100 pipe connector, white
Product number:
4011010
- Connecting element
- Plug-in system for subsequent gluing
- 71,5 mm
Description
N-RVB 100 pipe connector, white

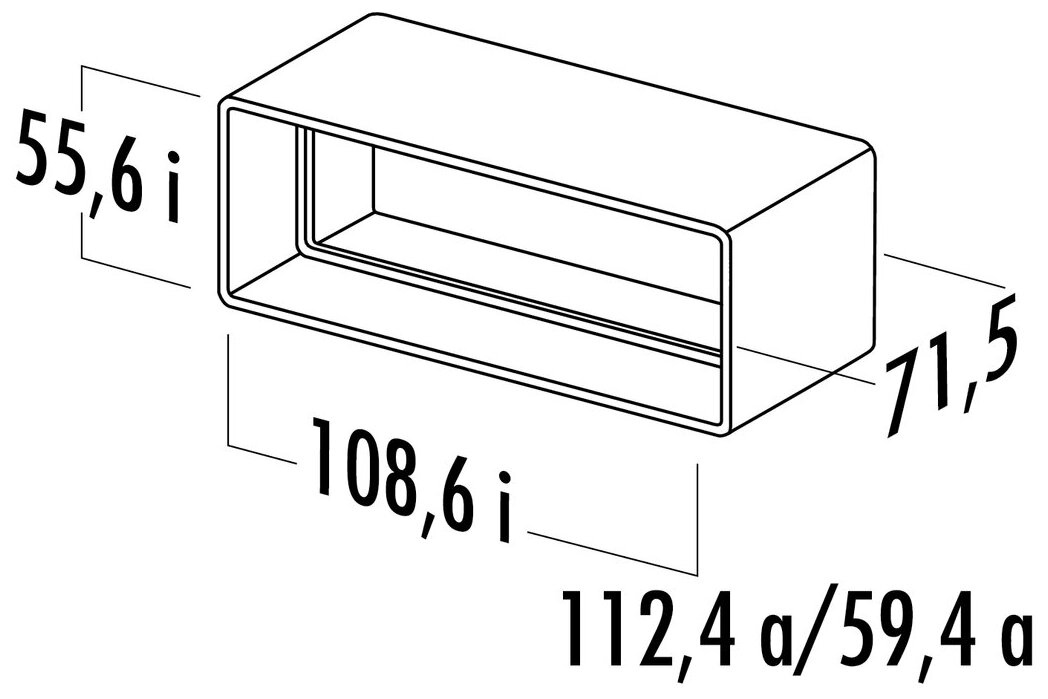

With the straight COMPAIR® norm N-RVB 100 pipe connector, two flat duct pipes without a socket can be easily plugged together in the exhaust and supply air installation of the kitchen. The connecting element creates a safe transition without flow losses. It is suitable for flat ducts with a cross-section of 108.6 x 55.6 mm. The white ventilation moulding has a length of 71.5 mm. Thanks to the centrally integrated stop bulge, the connector is held in position.
For straight ventilation pipes.
— length 71.5 mm
For straight ventilation pipes.
— length 71.5 mm
Article type:
Connecting element
Colour:
white
Connection diameter:
100 mm
Discontinued item:
No
Form:
angular
Height:
55,6 mm
Length:
71,5 mm
Mounting/Fixing:
Plug-in system for subsequent gluing
Output drive:
angular
System dimension:
100
Width:
108,6 mm
