N-EST 100 end piece, white
Product number:
4011023
- Connecting element
- Plug-in system for subsequent gluing
Prices will only be shown once logged in.
Description

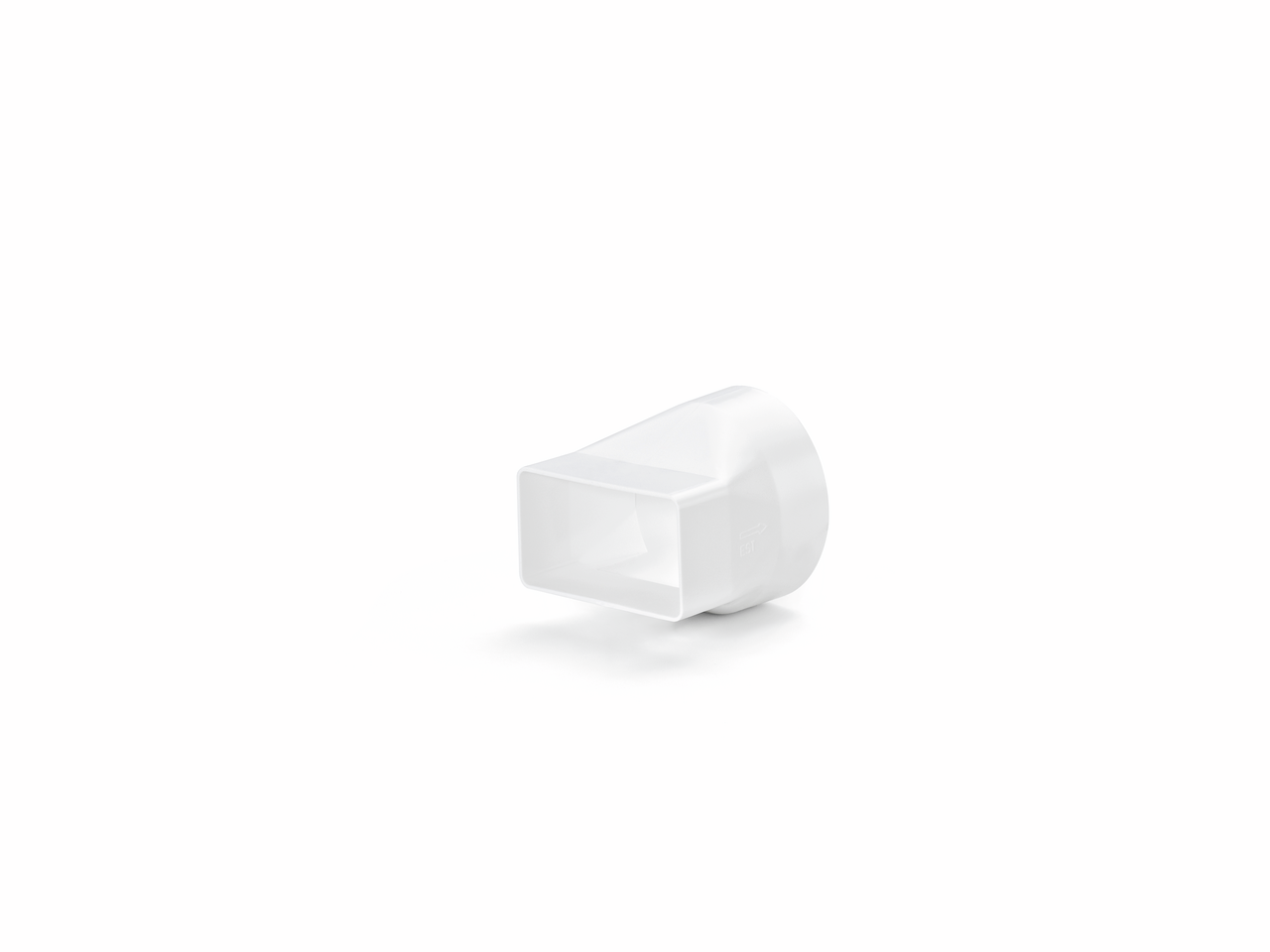

N-EST 100 end piece, white
The COMPAIR® norm N-EST 100 end piece with a direct transition from flat to round is used at the wall duct of the exhaust air installation. The connecting element is equipped with a moulded sleeve for simple and tool-free installation. The round outlet has a diameter of 100 mm to match the K-Klima-R 100/100 wall box.
With integrated sleeve for direct transition from flat to round (wall penetration).
With integrated sleeve for direct transition from flat to round (wall penetration).
Article type:
Connecting element
Colour:
white
Connection diameter:
100 mm
Mounting/Fixing:
Plug-in system for subsequent gluing
Output drive:
angular, round
Shape:
round

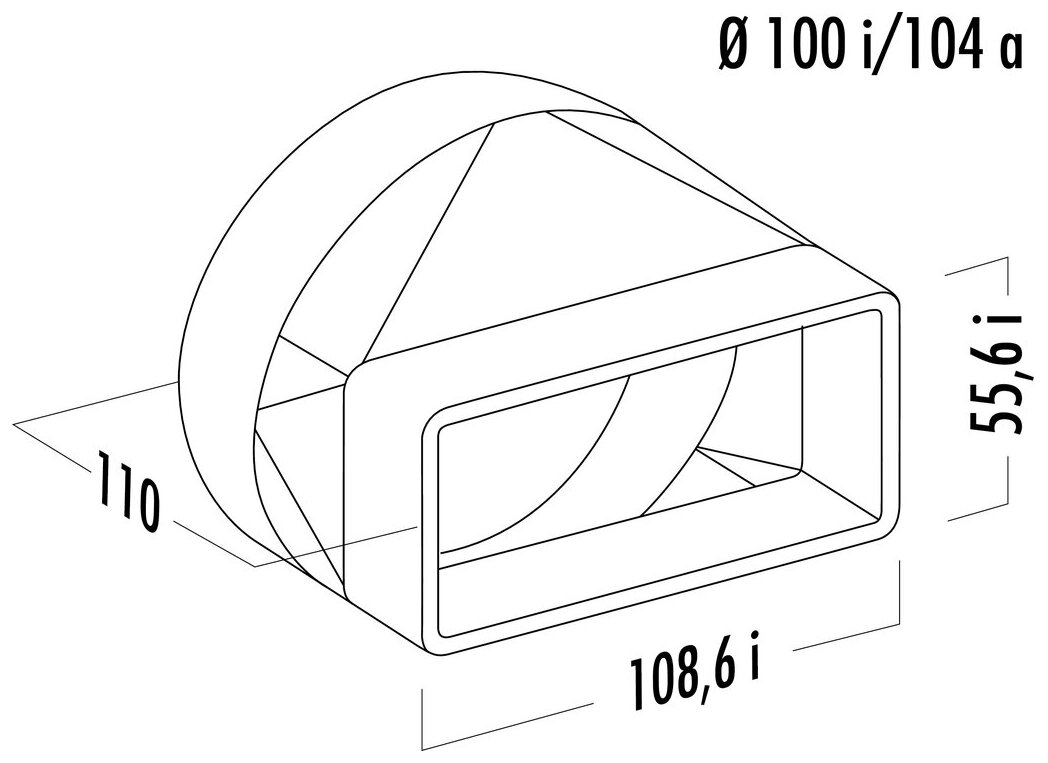

System dimension:
100
Depth:
108,6 mm
Height:
55,6 mm
Width:
110 mm
Downloads
Data sheet
