Product information:
Model 42, stainless-steel, H 170 mm, tube Ø 35 mm
Product number:
3021083
- Console
- Material: stainless steel
- round
Description

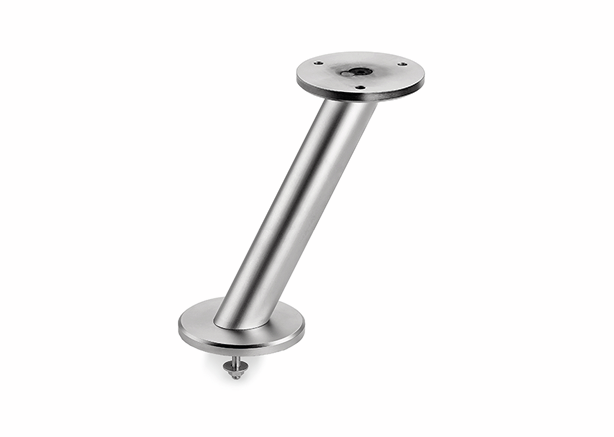

Model 42, stainless-steel, H 170 mm, tube Ø 35 mm
The sloping console support type 42 can be used to create a trendy countertop for the kitchen. It is used to create a raised dining area on the kitchen worktop. Its elegant round tube design with a thickness of 35 mm fits timelessly into many furnishing concepts. The console can be combined with any wooden counter top. Thanks to the integrated mounting plate, it can be screwed to the wood from below. Alternatively, a glass table top can be used. A glass adapter disc from the accessories is required for stable adhesive mounting. A screw fastening for the base is also integrated. The support bracket is made of stainless steel and is characterised by its high load-bearing capacity of up to 60 kg. This load capacity is achieved in pairs as well as with an even load distribution. The support is available in different heights. It is mounted directly on the worktop.
Console. With bolted connection.
— slanted
— max. load per pair approx. 60 kg given even distribution, max. spacing of the consoles of 900 mm and max. projection of the plates of 250 mm
For granite tops, the Capitello series is better.
When using the glass adapter disk (3021056) bonding should be performed by a glazier.
Console. With bolted connection.
— slanted
— max. load per pair approx. 60 kg given even distribution, max. spacing of the consoles of 900 mm and max. projection of the plates of 250 mm
For granite tops, the Capitello series is better.
When using the glass adapter disk (3021056) bonding should be performed by a glazier.
Article type:
Console
Carrying capacity:
max. load per pair approx. 60 kg given even distribution, max. spacing of the consoles of 900 mm and max. projection of the plates of 250 mm
Colour:
Stainless steel
Diameter bearing surface:
90 mm
Form:
round
Height:
170 mm
Inclination angle:
60°
Length:
90 mm
Material:
stainless steel
Mounting/Fixing:
Screw fastening
Note:
For granite tops, the Capitello series is better, When using the glass adapter disk (3021056) bonding should be performed by a glazier.
Support element version:
slanted
Tube dimension:
Ø 35 mm
Width:
90 mm
