Product information:
More:
Mira ES1-S, stainless steel
Product number:
7053049
- Corner socket element
- 3 x earthed plug socket
- angular
Description

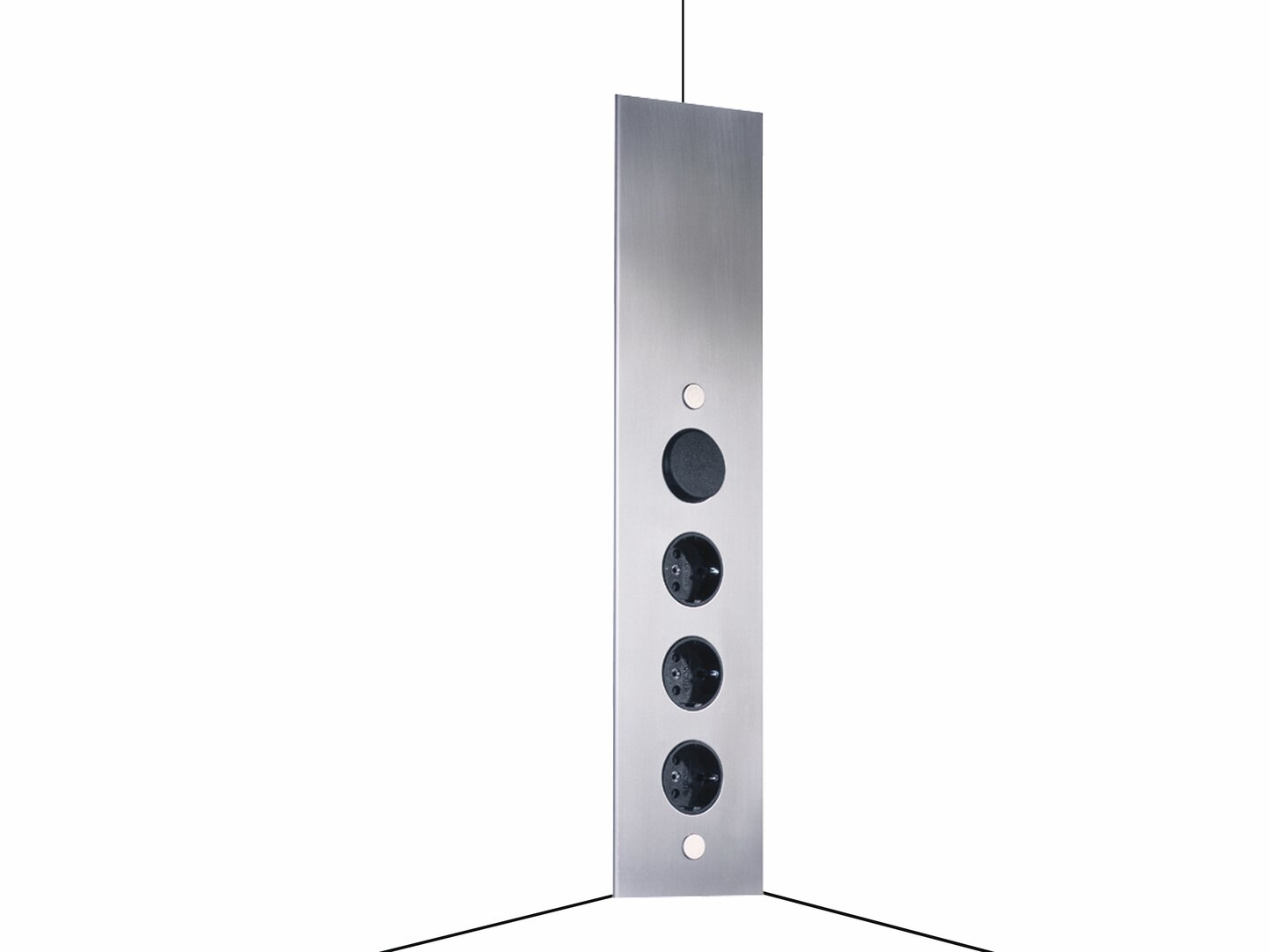

Mira ES1-S, stainless steel
The CON-AKTIV® Mira ES1-S socket outlet can be integrated into any kitchen corner with its triangular and space-saving design. With its elegant and contemporary look, it fits in with all furnishing styles. In order to adapt the 3-way socket to the height between the worktop and the wall cupboard, it is equipped with a telescopic compensating piece. Three sockets arranged one below the other provide power for kitchen appliances such as kettles, toasters and coffee makers. The switch above is suitable for external lighting. The socket element can be installed in the corner of the kitchen worktop or below the wall unit. To ensure that the cable can be connected inconspicuously from behind and laid close to the wall, the cable outlet is arranged at the top at the back. The scope of delivery includes a loose Schuko plug. The corner socket element can be ordered in different colours to match the interior style.
Corner socket element. 3-fold. With telescopic intermediate piece without end caps, with switch black, for external lighting.
— 240 V/16 A
— 460–580 x 83 x 83 mm (H x W x D)
— 2000 mm mains connection line, earthing contact plug enclosed loosely
— 1800 mm switch cable with Euro coupling
— cable outlet back top
Corner socket element. 3-fold. With telescopic intermediate piece without end caps, with switch black, for external lighting.
— 240 V/16 A
— 460–580 x 83 x 83 mm (H x W x D)
— 2000 mm mains connection line, earthing contact plug enclosed loosely
— 1800 mm switch cable with Euro coupling
— cable outlet back top
Article type:
Socket element
Cable outlet:
cable outlet back top
Certification:
CE
Colour:
Stainless steel
Colour bezel:
Stainless steel
Colour socket:
black
Depth:
83 mm
Form:
angular
Height:
460 - 580 mm
Installation depth:
83 mm
Length of the supply line (primary):
2.000 mm
Length secondary line/switch line:
1.800 mm
Mains plug loosely enclosed:
Yes
Mains voltage:
240 V/16 A
Material housing:
stainless steel
Mounting/Fixing:
Corner mounting
Number of sockets (total):
3
Plug type:
Flat plug
Switch for external lighting:
Yes
Telescopic function:
With telescopic intermediate piece without end caps
Type of secondary line/switch line:
with Euro coupling
Type of socket element:
Corner socket element
Version sockets:
3 x earthed plug socket
Width:
83 mm
