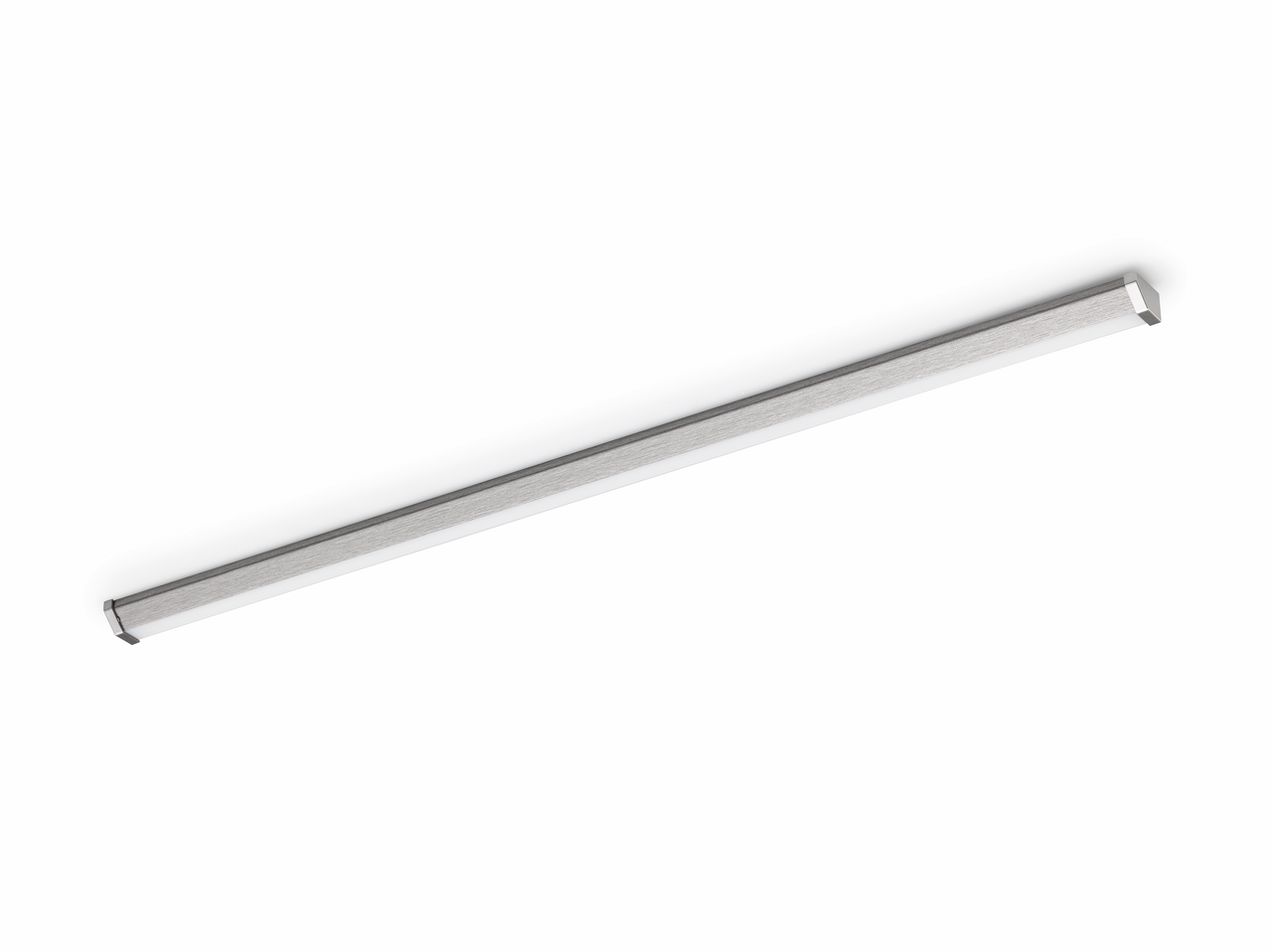

Manubrio colour change LED, single lamp, L 2600 mm, stainless steel coloured

Product number: 7061197
  • LED Stripe
  • Base light/niche light
  • Handle strip lighting
Length

Prices will only be shown once logged in.

Description
Manubrio colour change LED, single lamp, L 2600 mm, stainless steel coloured

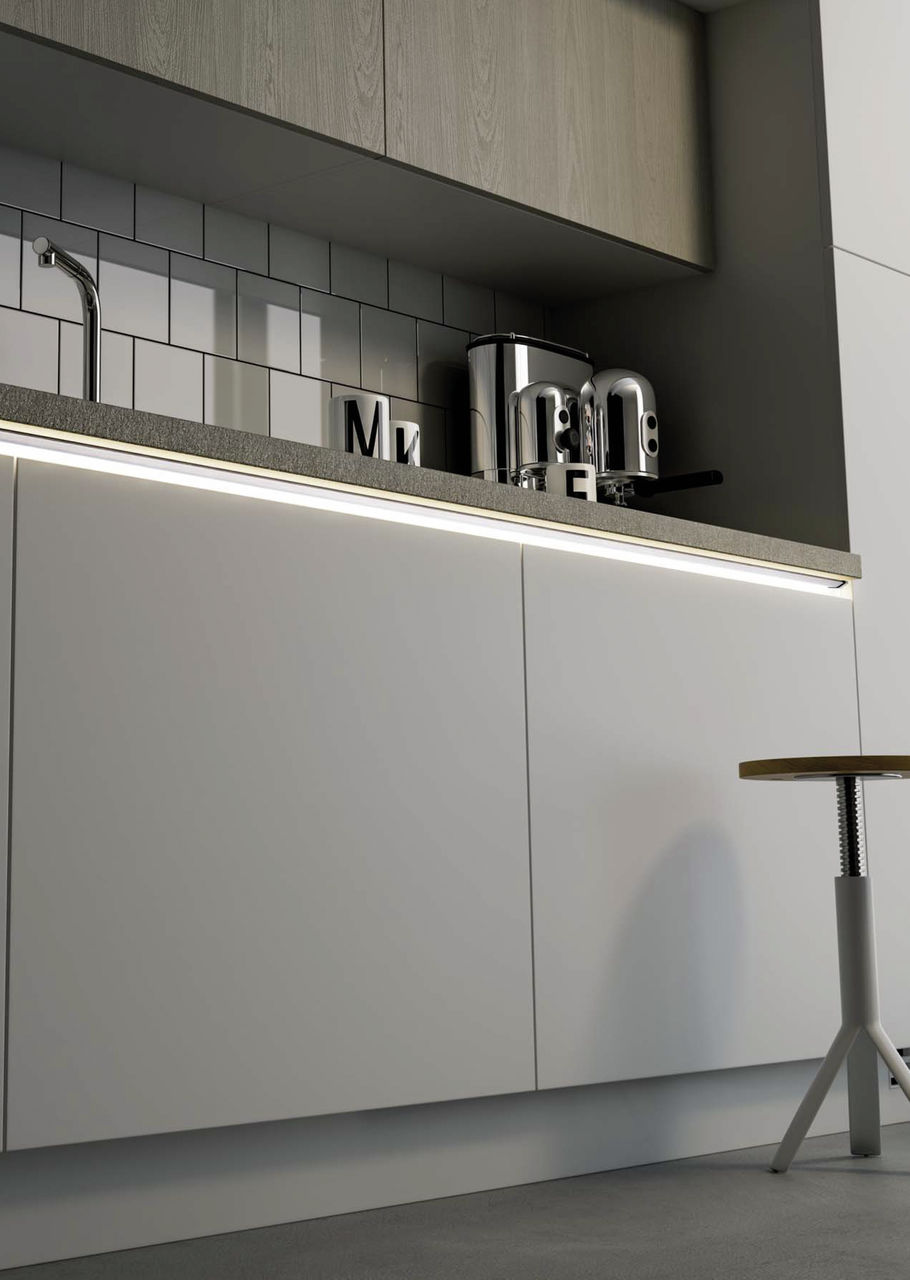

The Manubrio LED profile with colour change provides individual ambient lighting in the kitchen. It has been specially developed for handle strips and is attached directly to the handle edge of the base units using retaining clips. This creates effective light accents in the room. The LED light consists of a stainless steel-coloured plastic housing and a self-adhesive LED strip that can be shortened every 50 mm. The satinised profile cover illuminates the surface evenly, without visible LEDs. The ambient light can be continuously adjusted within a range of 2,700 to 6,500 K. This corresponds to a colour temperature from warm white to daylight white. The integrated light source provides 7.8 W per metre at up to 80 lumens per watt. A supply cable on both sides with a length of 200 cm each allows an uncomplicated installation. Four end caps are included in the scope of delivery. The single luminaire is available in different lengths. Additional brackets and connectors are available as accessories. The cabinet luminaire is compatible with the separately available components of the smart LUMICA LIC LED system, which enables individual control from fingertip to voice command.



Handle strip lighting. Plastic body, self-adhesive LED strip, can be shortened every 50 mm, no visible LED incl. holding clamps for handle strips.

Individual lamp
— 7.8 watts per meter, 12 V
— continuous control of the light colour from 2700 K warm white to 6500 K cold white
— max. 80 lumen/watt at 6500 K cold white
— 2000 mm two-sided supply line
— LED strip, two-sided feed-in
— incl. 4 end caps
— LIC LED system compatible
This product contains a light source of energy efficiency class F.

More information about the LIC LED system





Article type:
LED stripe
Colour:
stainless-steel coloured
Colour temperature:
2700 K warm white to 6500 K cold white
Colour temperature adjustable:
stepless
Connection:
On both sides
Design:
Base light/niche light, Handle strip lighting, LED Stripe
Energy efficiency class:
F
Form:
straight
Height:
12 mm
Homogeneous light field without visible LED points:
Yes
Housing colour:
stainless-steel coloured
Illuminant included:
Yes
Illuminant type:
LED
LIC system compatible:
Yes
Length:
2.600 mm
Length of the supply line (primary):
2.000 mm
Light output in lumen:
max. 80 lumen/watt at 6000 K cold white
Material housing:
plastic
More parts:
incl. 4 end caps, incl. holding clamps
Mounting/Fixing:
self-adhesive
Replaceable illuminant:
No
Shortenability:
may be shortened every 50 mm
Transformer / converter required:
Yes, must be ordered separately
Width:
19 mm

Downloads

Handbooks & Flyers Handbooks & Flyers

Accessories

1-channel colour change remote control, white
1-channel colour change remote control, white
Product number: 7061285
  • Remote control
Details
End cap set
Product number: 7061200
Details

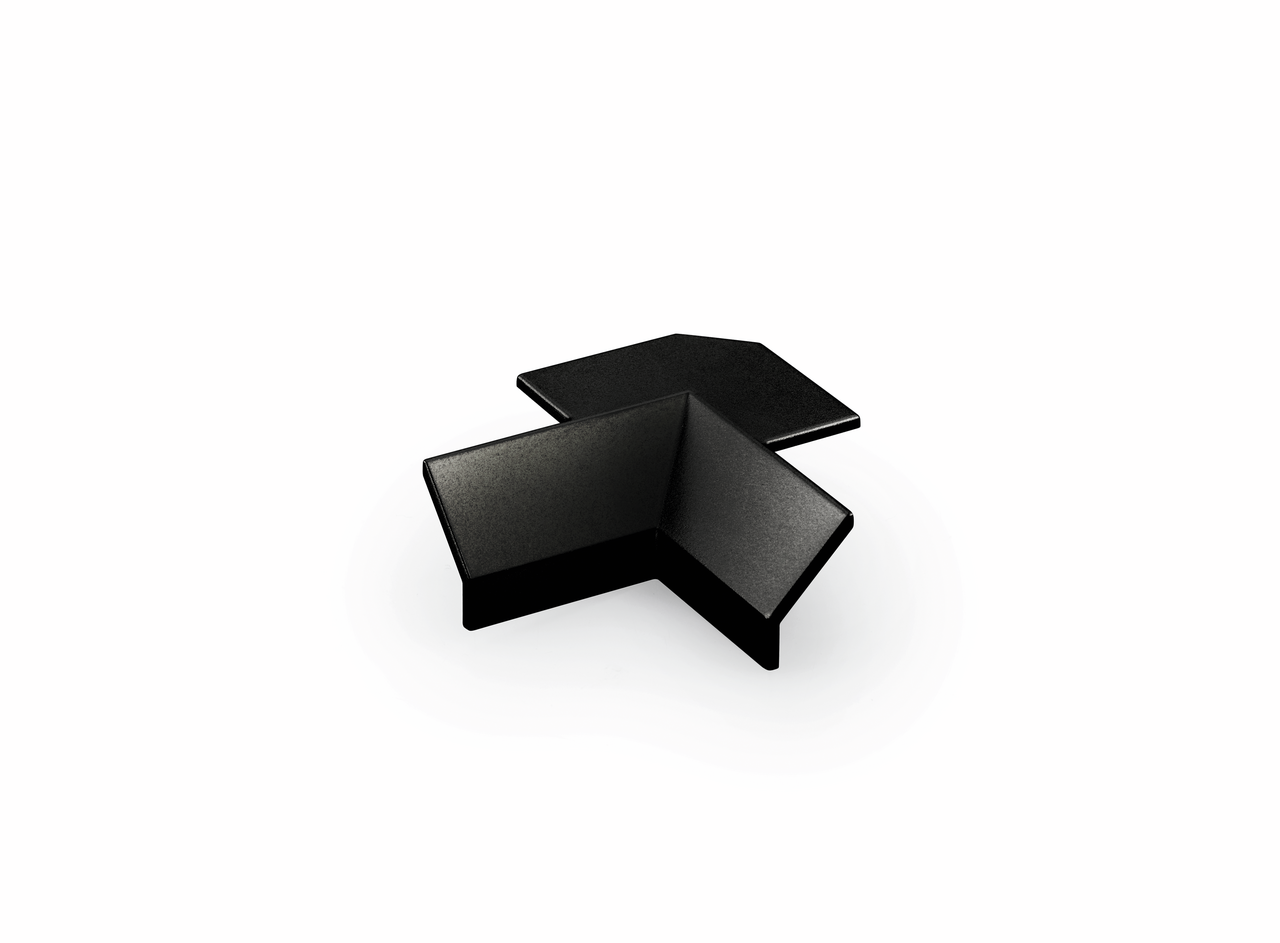

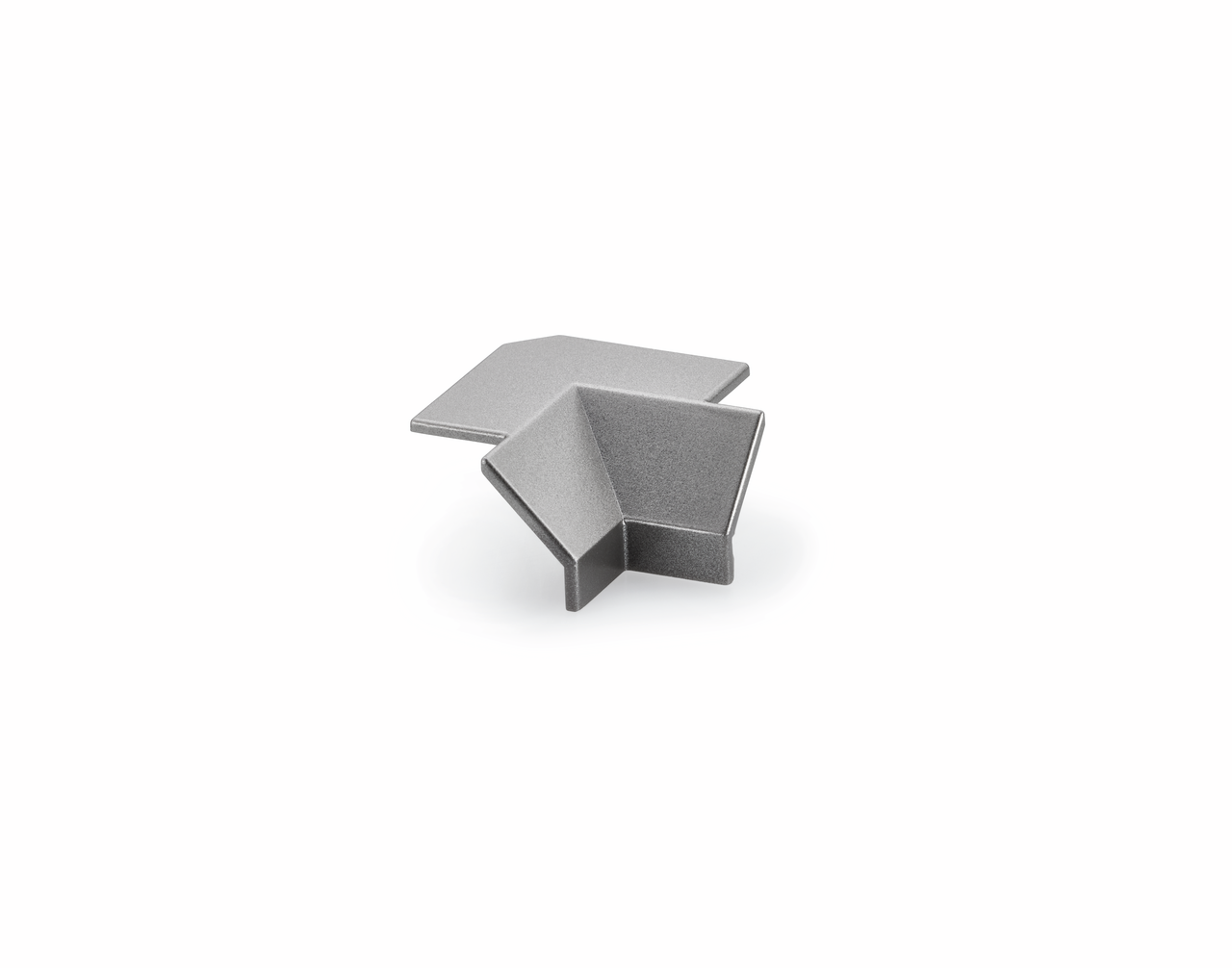

Interior angle
Interior angle
Product number: 7061198
  • Zubehör
  • grau
Details
2 variations available

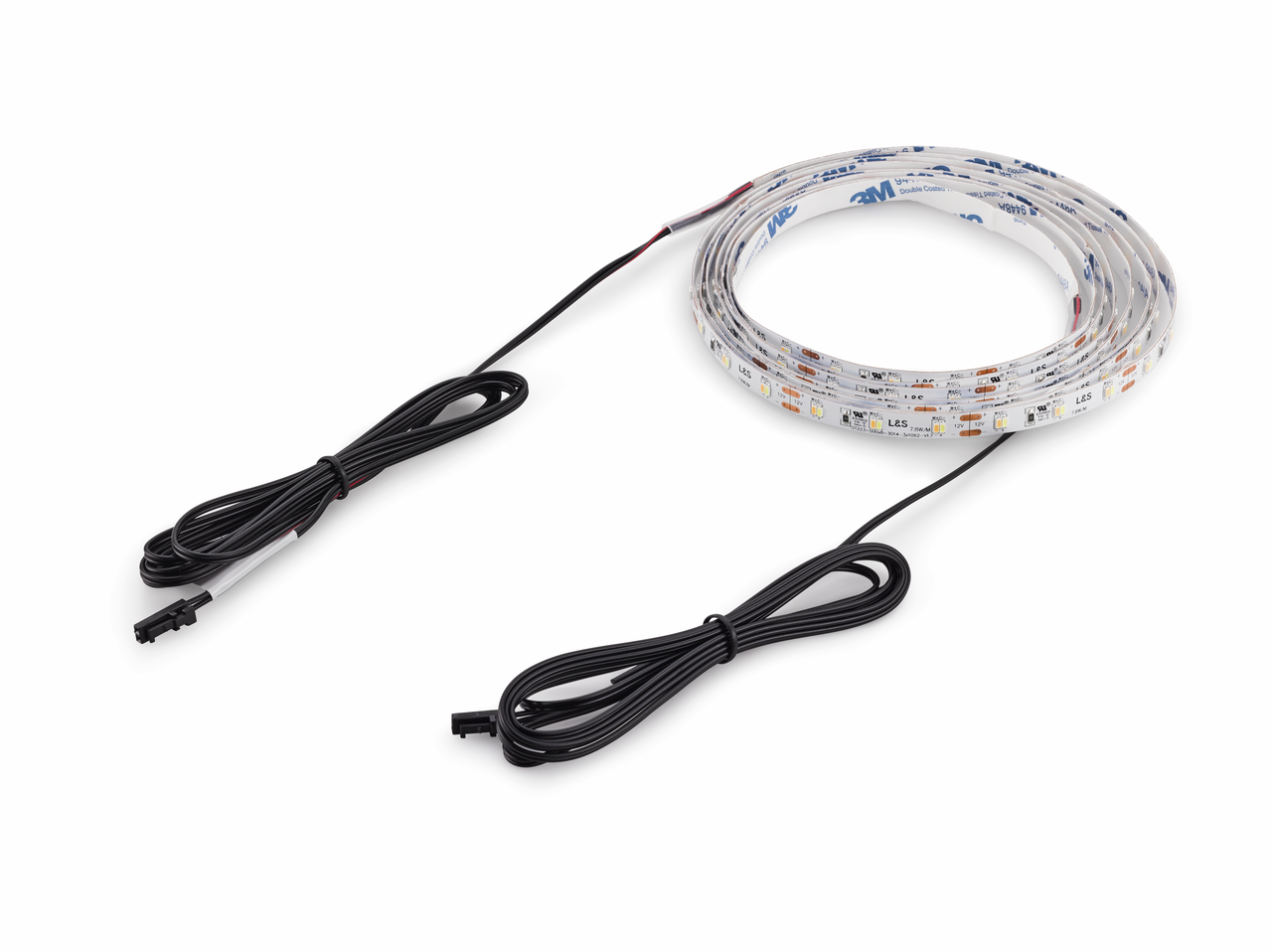

Colour change LED strip, L 1500 mm, 11.7 W/12 V
Colour change LED strip, L 1500 mm, 11.7 W/12 V
Product number: 7061314
  • LED Stripe
Details
LED connection line, white, L 2000 mm
LED connection line, white, L 2000 mm
Product number: 7061049
  • with mini plug-in system
  • Connecting element
  • Length: 2.000 mm
Details

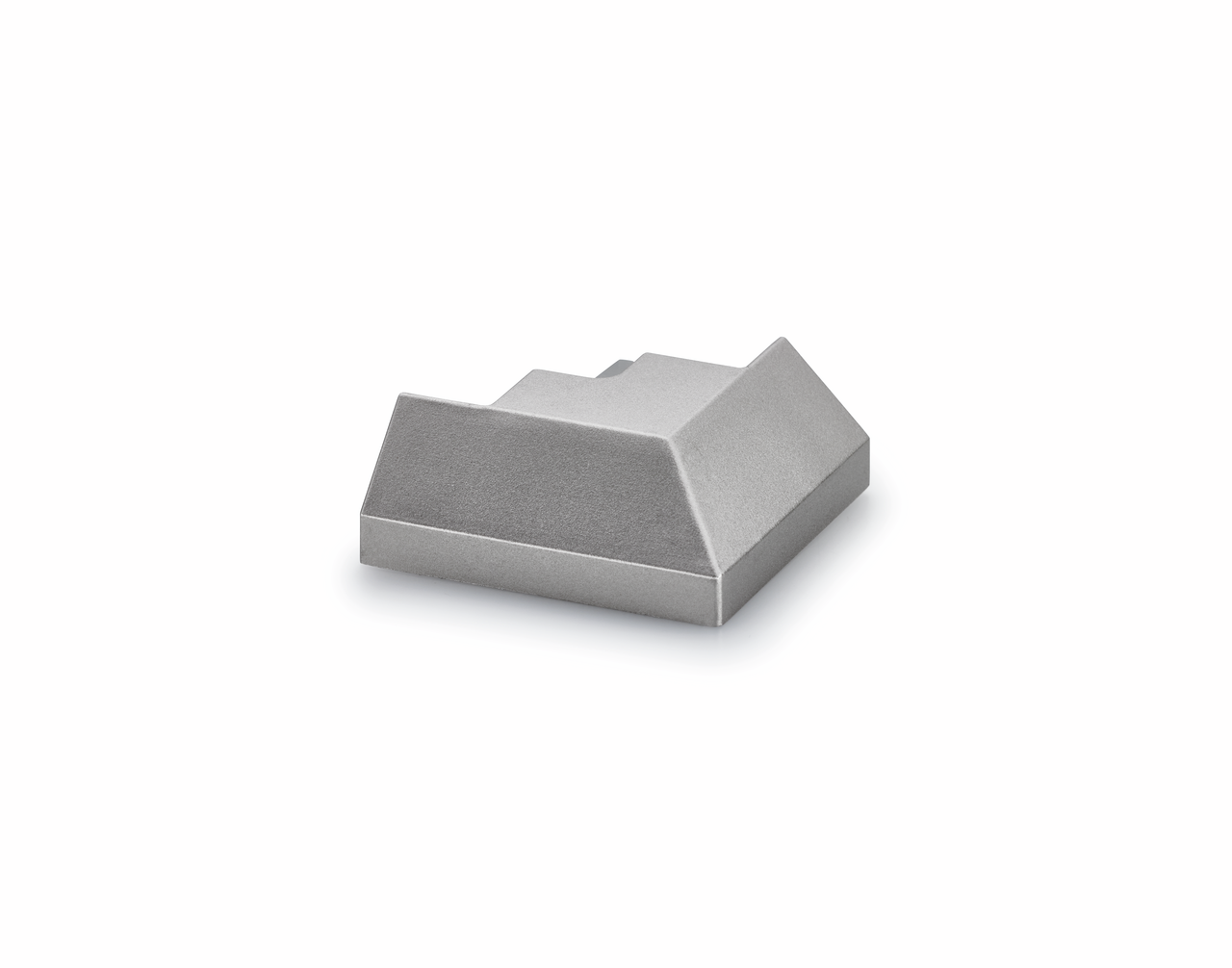

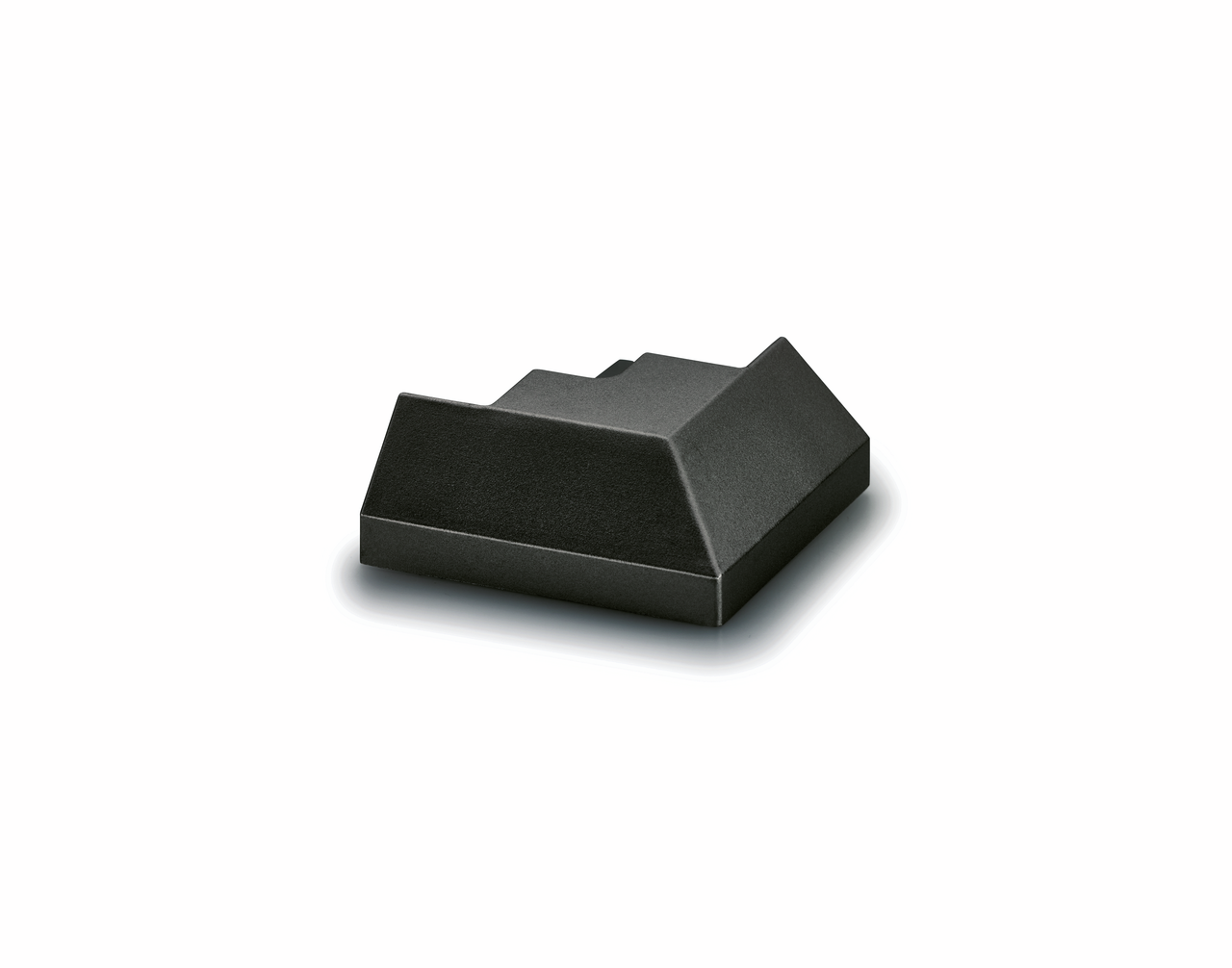

Exterior angle
