MF-RBV 125 pipe bend vertical 90°, white
Product number:
4033013
- Connecting element
- Plug-in system for subsequent gluing
- 162 mm
Description
MF-RBV 125 pipe bend vertical 90°, white

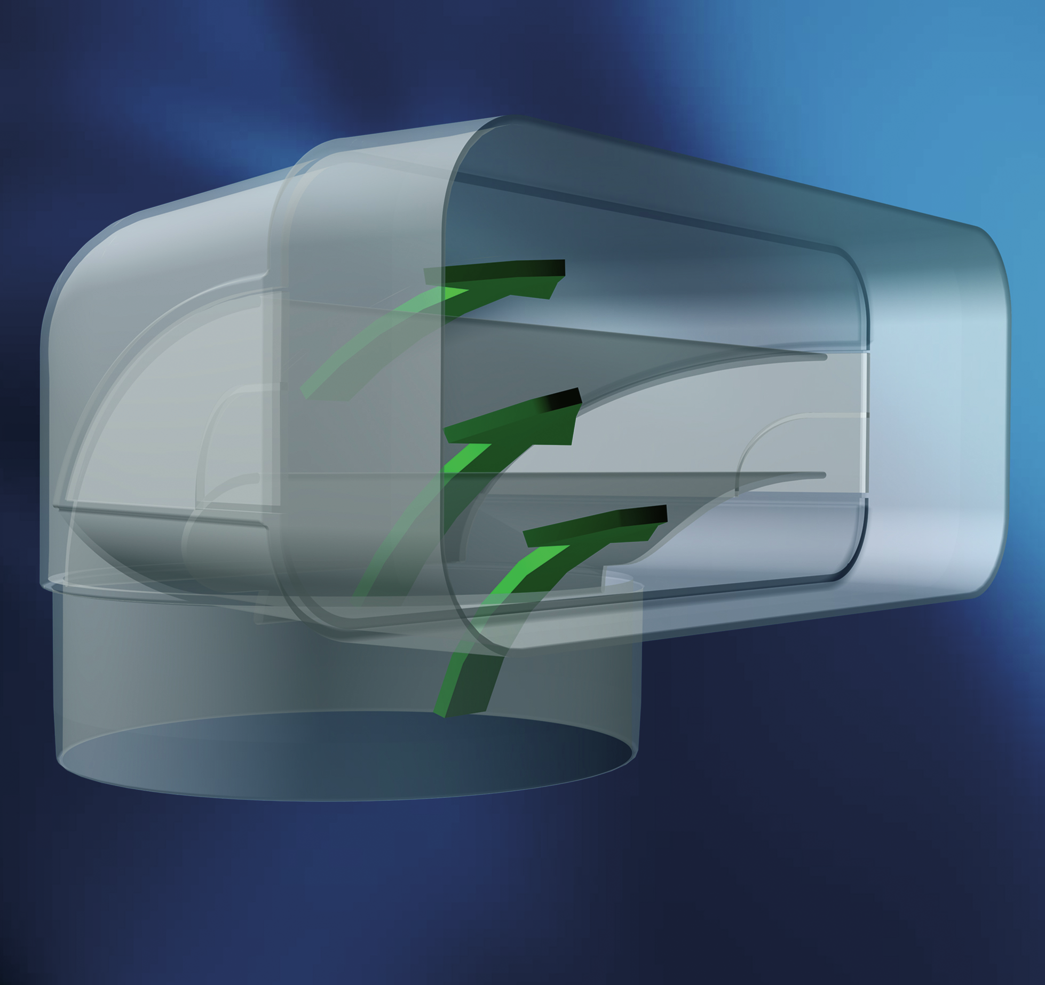

The COMPAIR® flow MF-RBV 125 vertical pipe bend with moulded sockets on both sides enables the direction of the air flow in air ducts to be changed at an angle of 90°. The integrated air baffles enable optimum flow behaviour with low pressure losses. For an easy and reliable connection with a universal connector, the ventilation moulding has a latching element.
With guide vanes and sleeves integrated on both sides.
With guide vanes and sleeves integrated on both sides.
Article type:
Connecting element
Colour:
white
Form:
angular

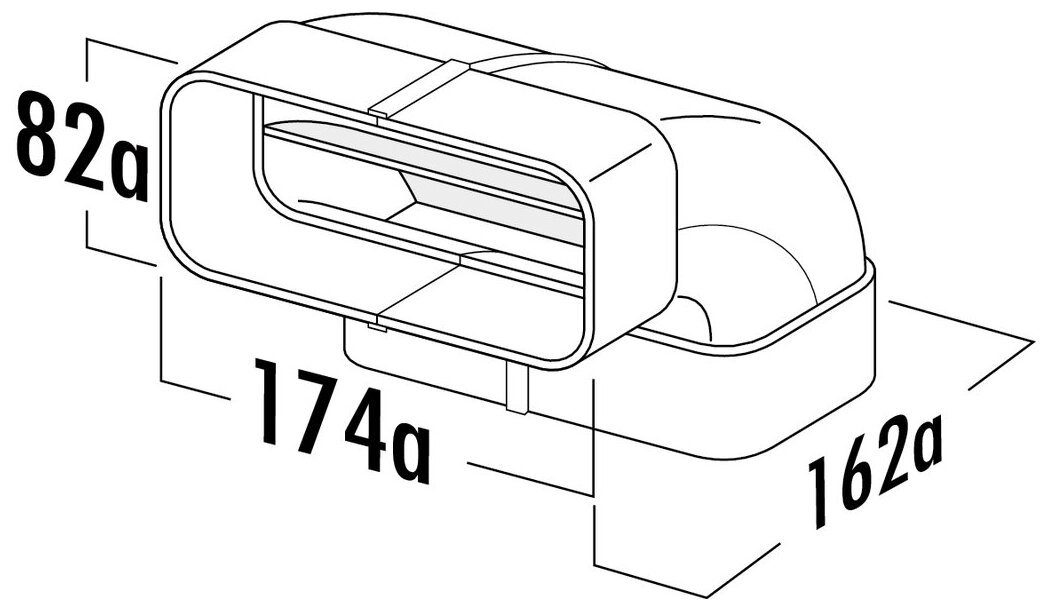

Height:
82 mm
Length:
162 mm
Material:
Polystyrene
Mounting/Fixing:
Plug-in system for subsequent gluing
Outer diameter:
125 mm
Output drive:
angular
System dimension:
125
Width:
174 mm
Downloads
Measures
