Description

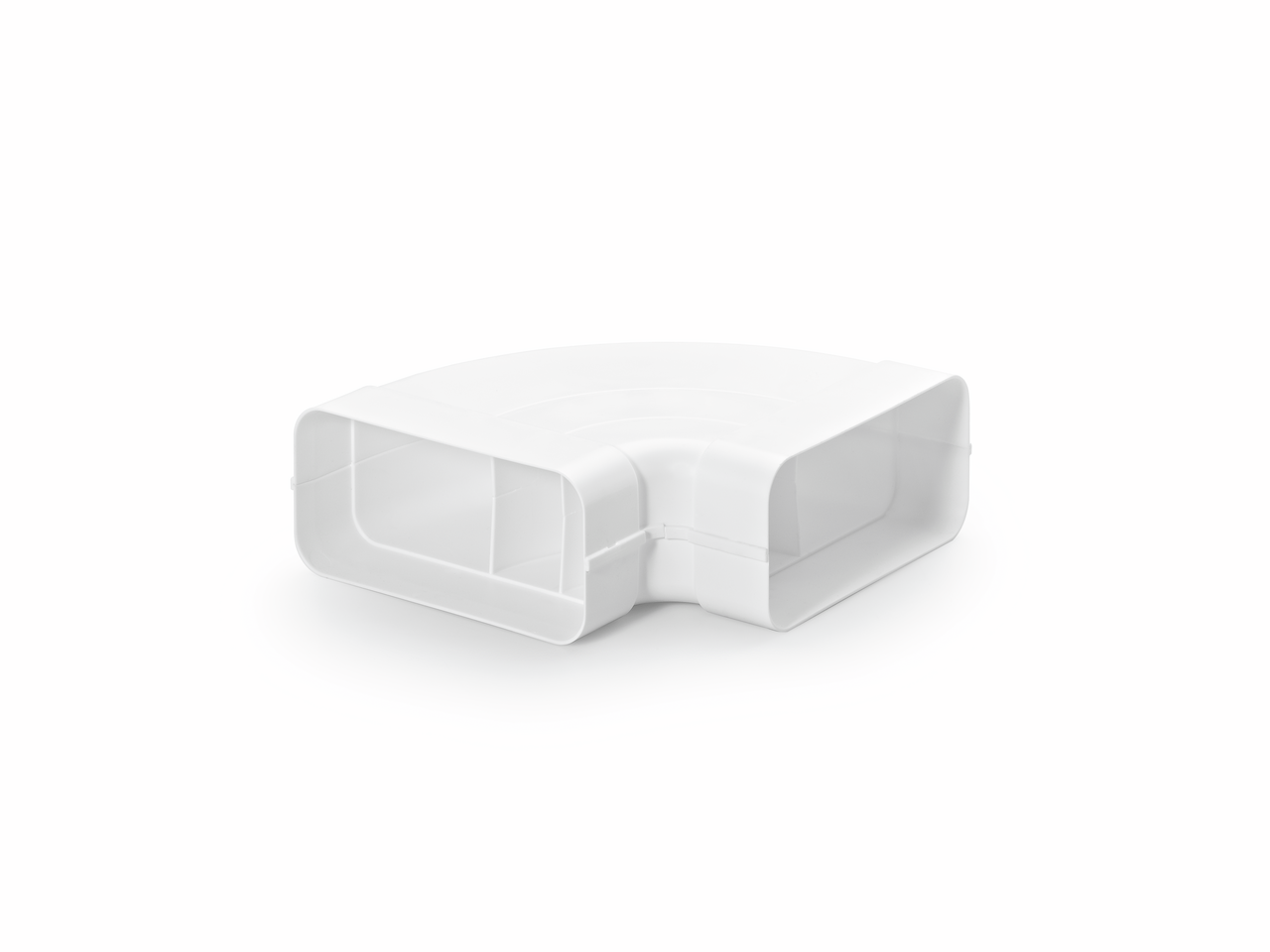

MF-RBH 125 pipe bend horizontal 90°, white
The flat COMPAIR® flow MF-RBH 125 horizontal pipe bend is used to change the direction of the air flow in the air duct by an angle of 90° and is equipped with moulded sleeves on both sides. Due to the integrated guide element technology, the exhaust air is discharged efficiently with minimal flow resistance and less pressure loss. With its latching element, the moulded part can be connected securely and easily with a universal connector.



With guide vanes and sleeves integrated on both sides.



Article type:
Connecting element
Colour:
white
Connection diameter:
125 mm
Form:
angular

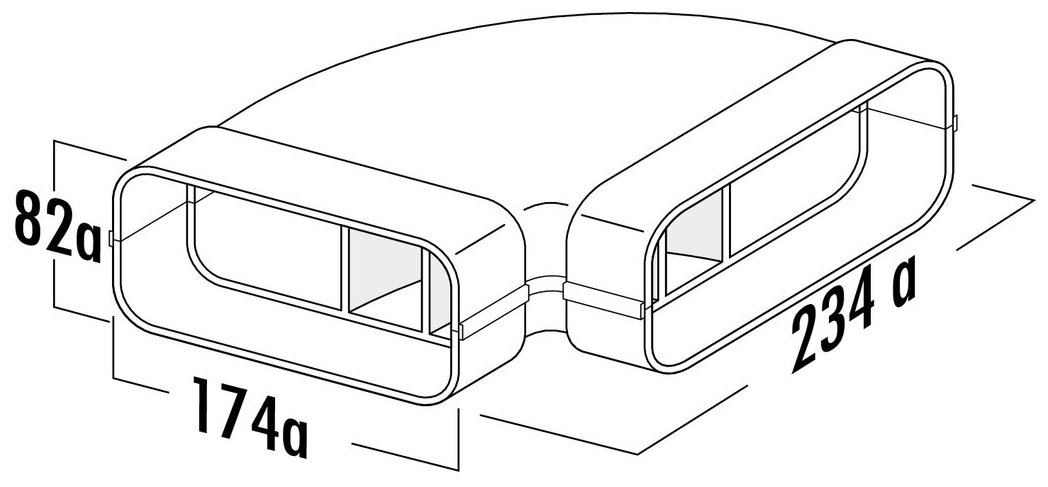

Height:
82 mm
Length:
234 mm
Material:
Polystyrene
Mounting/Fixing:
Plug-in system for subsequent gluing
Output drive:
angular
System dimension:
125
Width:
174 mm
