Product information:

More:

LIC Home Base Module, white

Product number: 7061288

System component
1.000 mm
230 VAC / 5 V

Prices will only be shown once logged in.

Description

The LIC Home Base module is the central element for modern Smart Light lighting control. It is part of the innovative LUMICA LIC LED system, which includes LED luminaires, converters, function modules and control units. With the signal converter, the desired ambient lighting in the kitchen can be selected without much effort. This is because the gateway module enables lighting scenarios to be defined and controlled equally via a remote control, a smartphone app or by voice command. For this purpose, the module is wirelessly connected to the Philips Hue ZigBee Bridge. Furthermore, it offers the connection of LIC colour change converters to Smart Home networks via WLAN with 2.4 GHz. Up to four separate luminaire groups or individual luminaires can be controlled. It is compatible with the single-channel or four-channel colour-changing remote control, which are required for teaching the Home Base module. The scope of delivery consists of the HOME Base module and a 230 V power supply unit with a detachable 100 cm long USB cable.

As gateway, the LIC Home Base Module enables the connection of LUMICA^® FW function converters to smart home networks.

Requirements for operation
— existing Zigbee^® Bridge (we recommend the Philips HUE Bridge)
— existing light control of the Lumica FW function converter series
— control via voice input, app or remote control
— voice control in combination with a Zigbee^® Bridge and a smart speaker (e.g. Amazon Echo, Google Assistant, not compatible with Apple HomeKit)
— up to 4 luminaire groups can be controlled
— Existing light controls of the LUMICA^® FW function converters series can be easily retrofitted.
— a 1-channel or 4-channel remote control is essential for training
— 230 VAC, 5 V
— 2.4 GHz
— 1000 mm supply cable with plug-in power supply unit

Article type:

System component

Colour:

white

Form:

square

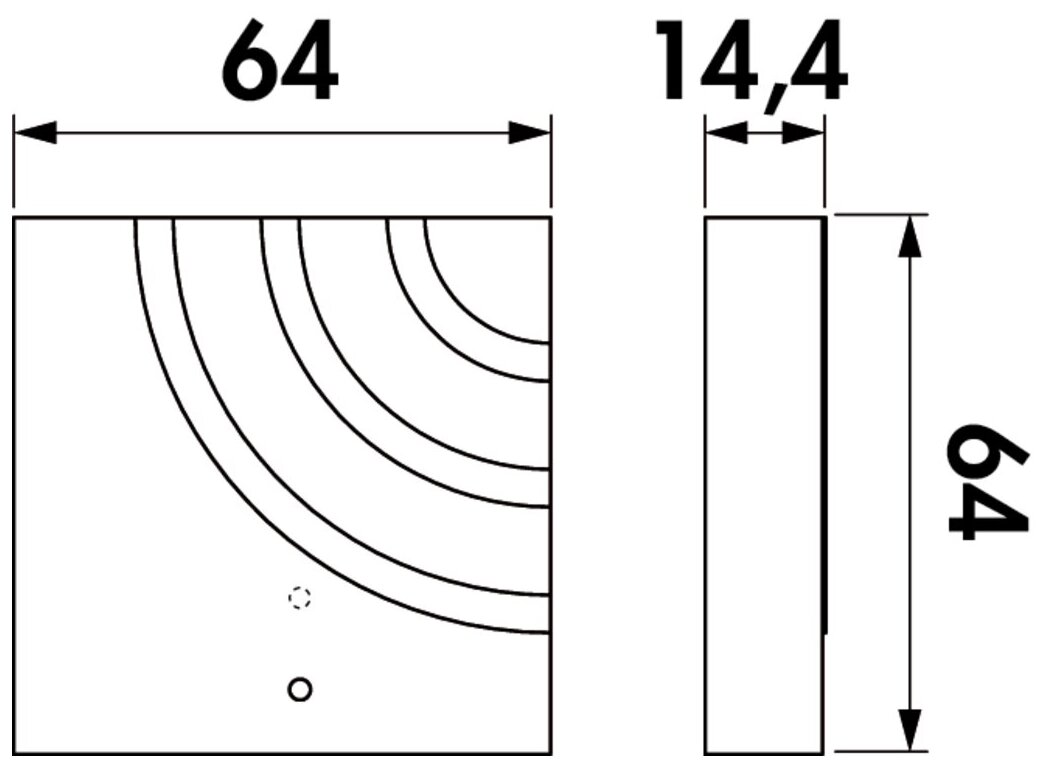

Height:

14,4 mm

Incl. power supply unit/mains plug:

1 power supply unit

Length:

64 mm

Length of the supply line (primary):

1.000 mm

Mains voltage:

230 VAC / 5 V

Number of operable luminaire groups:

4

Smarthome:

Amazon Alexa, Google Home

Width:

64 mm

Downloads

Assembly

Handbooks & Flyers
