Kreta 3 slanted, stainless steel coloured, H 235 mm
Product number:
3021190
- Console
- Material: aluminium
- angular
Description
Kreta 3 slanted, stainless steel coloured, H 235 mm
The stainless steel-coloured Kreta 3 console support in a sloping design has an elegant appearance that is stylishly underlined by a slender silhouette. Visually, it blends harmoniously into modern kitchen planning and is designed for the installation of an additional counter top. As the support brackets are attached to the carcase, no space is lost on the worktop, for example. They are used in pairs and, with a maximum spacing of 900 mm, offer a load-bearing capacity of approx. 60 kg and are therefore highly resilient. If a glass top is used for the counter, it is recommended that a glazier glue it onto the glass adapter pane, which is optionally available as an accessory.
Console. With mounting plat.
— slanted

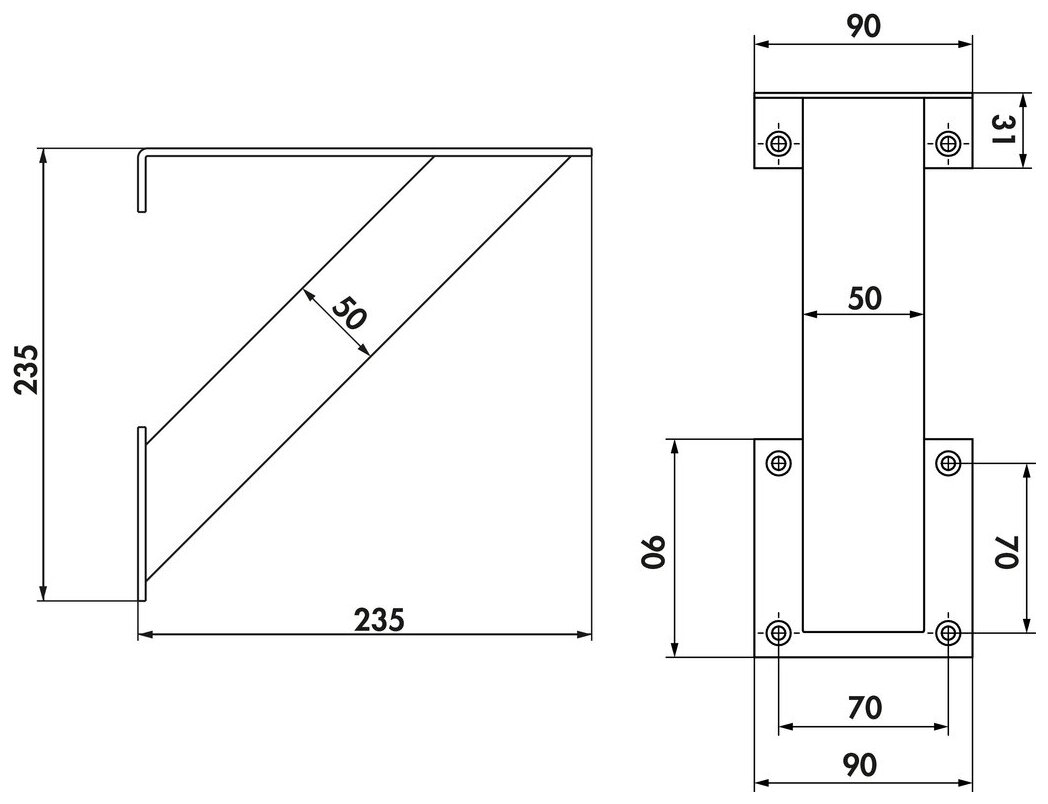

— aluminium profile 50 x 50 mm, milled
— max. load per pair approx. 60 kg given even distribution, max. spacing of the consoles of 900 mm and max. projection of the plates of 250 mm
Console. With mounting plat.
— slanted
— aluminium profile 50 x 50 mm, milled
— max. load per pair approx. 60 kg given even distribution, max. spacing of the consoles of 900 mm and max. projection of the plates of 250 mm
Article type:
Console
Carrying capacity:
max. load per pair approx. 60 kg given even distribution, max. spacing of the consoles of 900 mm and max. projection of the plates of 250 mm
Colour:
stainless-steel coloured
Depth:
50 mm
Form:
angular
Height:
235 mm
Material:
aluminium
Support element version:
slanted
Surface/coating:
milled
Width:
50 mm
With mounting plate:
Yes
