Kreta 2 straight, stainless steel coloured, H 190 mm
Product number:
3023026
- Console
- Material: aluminium
- angular
Description
Kreta 2 straight, stainless steel coloured, H 190 mm
The straight console support Kreta 2 creates a trendy dining area in the kitchen. It forms the basis for a floating counter top on the worktop. Its classic, angular design with clear lines blends harmoniously into many interior styles. The console is designed for attaching a wooden worktop. This can be screwed to the integrated mounting plate from below. The material used is a stable aluminium profile with a thickness of 50 x 50 mm. When used in pairs with even load distribution, a high load-bearing capacity of up to 60 kg is achieved. To ensure that the counter console matches the rest of the kitchen equipment, it is available in various colours. The desired height can also be selected. It is intended to be fixed to the kitchen worktop by means of permanent screw mounting.
Console. Aluminium profile 50 x 50 mm.
— straight
— max. load per pair approx. 60 kg given even distribution, max. spacing of the consoles of 900 mm and max. projection of the plates of 250 mm
Console. Aluminium profile 50 x 50 mm.
— straight
— max. load per pair approx. 60 kg given even distribution, max. spacing of the consoles of 900 mm and max. projection of the plates of 250 mm
Article type:
Console
Carrying capacity:
max. load per pair approx. 60 kg given even distribution, max. spacing of the consoles of 900 mm and max. projection of the plates of 250 mm
Colour:
stainless-steel coloured
Dimensions profile:
50 x 50 mm

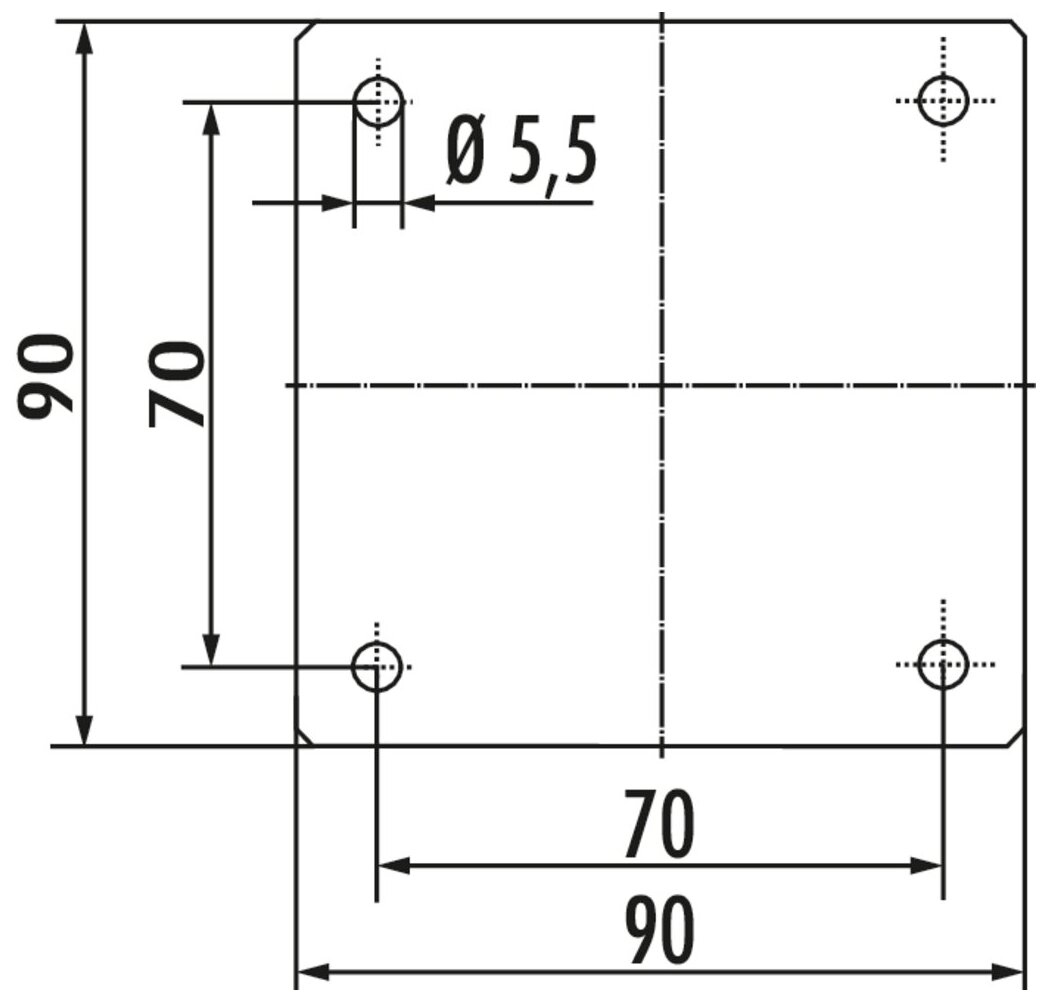

Dimensions support surface:
90 x 90 mm
Form:
angular

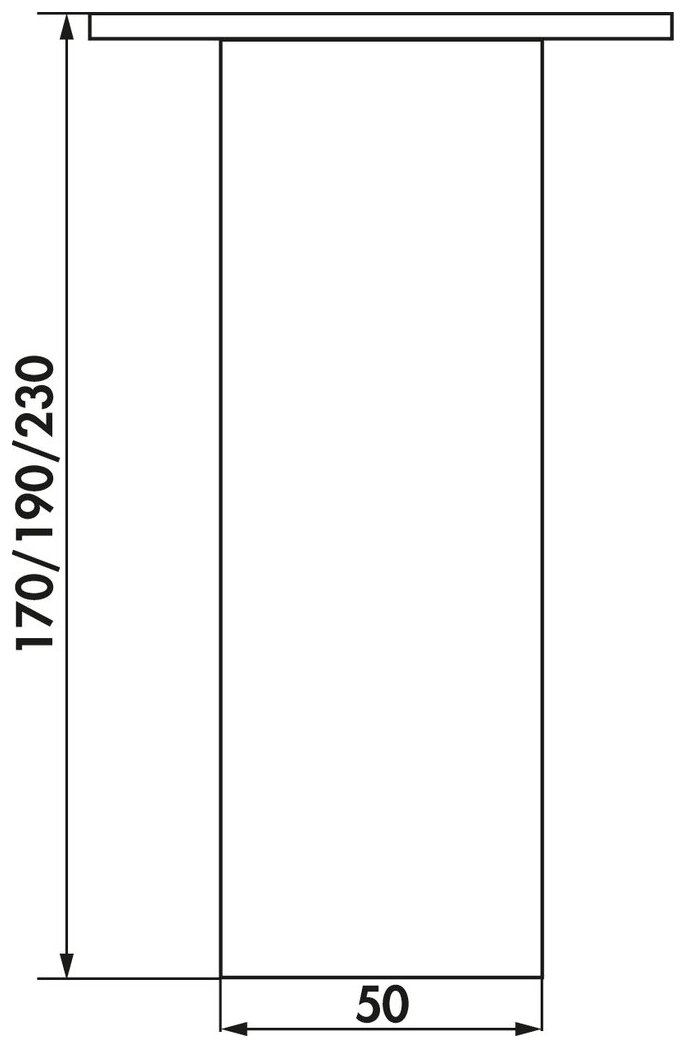

Height:
190 mm
Inclination angle:
0°
Length:
50 mm
Material:
aluminium
Material profile:
aluminium
Support element version:
straight
Width:
50 mm
Downloads
Assembly
