Klima-E flow 125 wall conduct, white, stainless steel

The COMPAIR® flow Klima-E flow 125 wall box provides effective kitchen ventilation and directs the exhaust air out through the wall via the air duct of the patented COMPAIR® flow system. Thanks to integrated air guide elements in transition pieces and horizontal bends, the air flows around the curves energy-efficiently and quietly with minimal flow loss. The telescopic wall box has a rectangular mounting with dimensions of 174 x 82 mm for a flat duct connection. Via the telescopic pipe, the length of the duct can be individually adjusted from 420-620 mm depending on the wall thickness. The pipe is also adjustable and can be shortened to a length of 210 mm. For the pipe diameter of 125 mm, a wall opening of approx. 132 mm is required. To regulate the air flow, the exhaust air wall box is equipped with a backflow flap. This prevents air from outside from flowing through the pipe into the kitchen. Additional protection against the weather is provided by the high-quality stainless steel exterior louvre in a louvre design.



Telescopic pipe and stainless-steel external blind, with backpressure shutter. With rectangular connector for COMPAIR® flow 125.

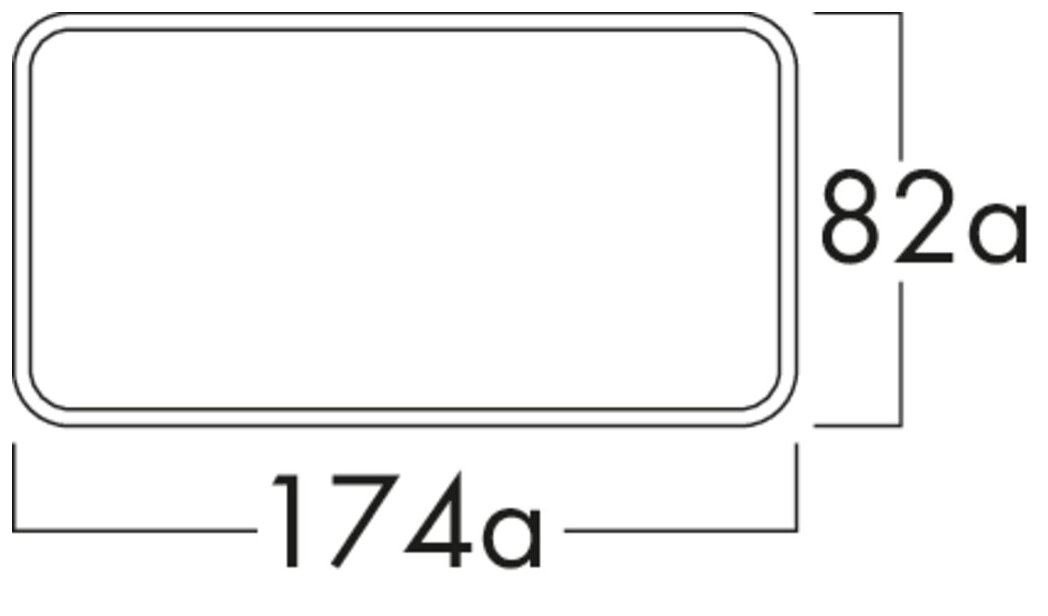

— pipe connector 174 x 82 mm
— connector depth 80 mm
— installation depth 420–620 mm, can be shortened to 210 mm
— wall penetration Ø about 132 mm
